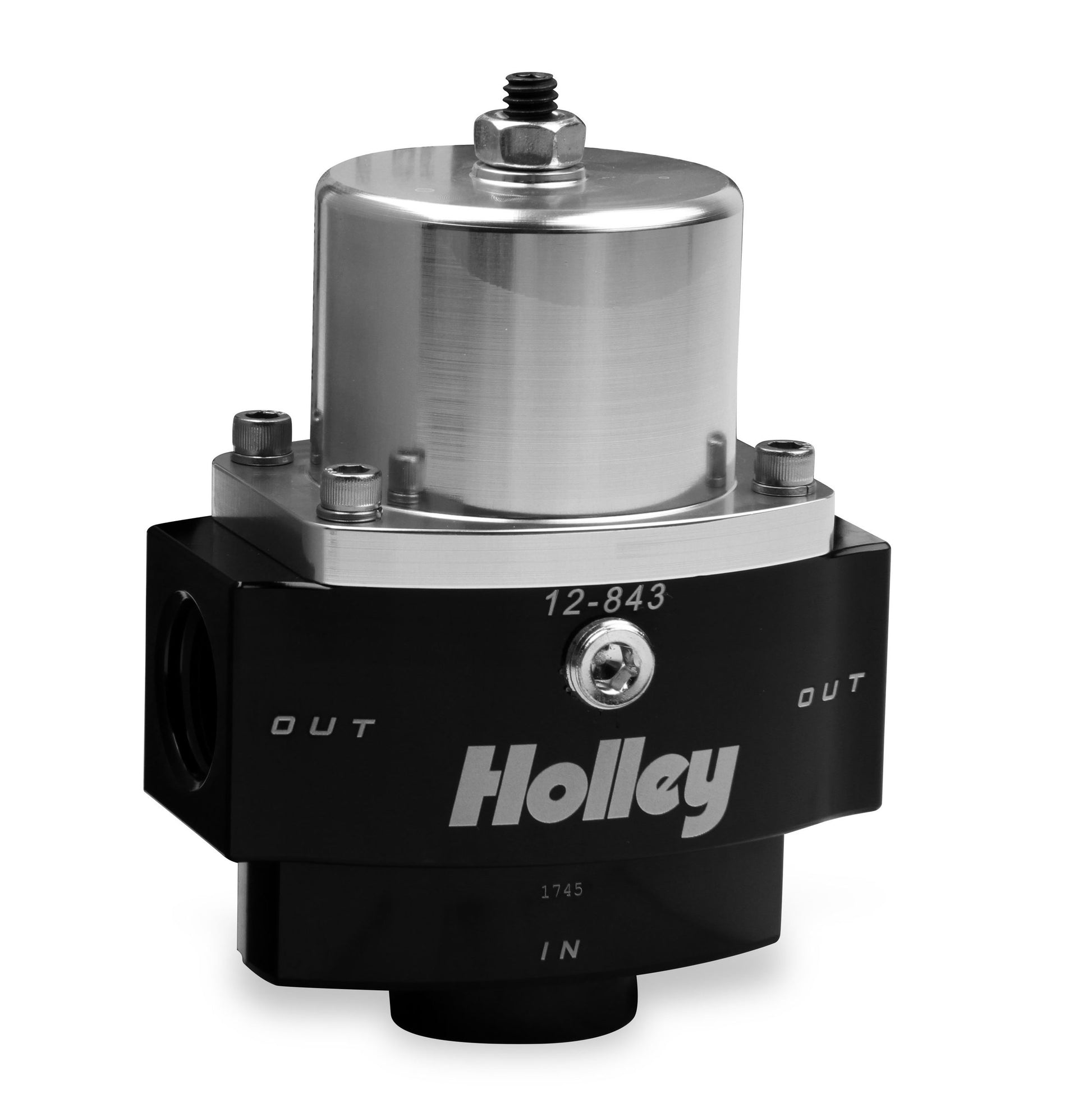

Holley - 12-843
Fuel Pressure Regulator - HP Billet - 4.5 to 9 psi - In-Line - 10 AN O-Ring Inlet - Dual 8 AN O-Ring Outlets - Aluminum - Black Anodized - Gas - Each
HP Billet Fuel Pressure Regulator; 4.2-9 psi; -10AN O-Ring Inlet; -8AN O-Ring Outlets; Non-Return Style; Carbureted; Gasoline/Diesel/E85; Black Anodized;

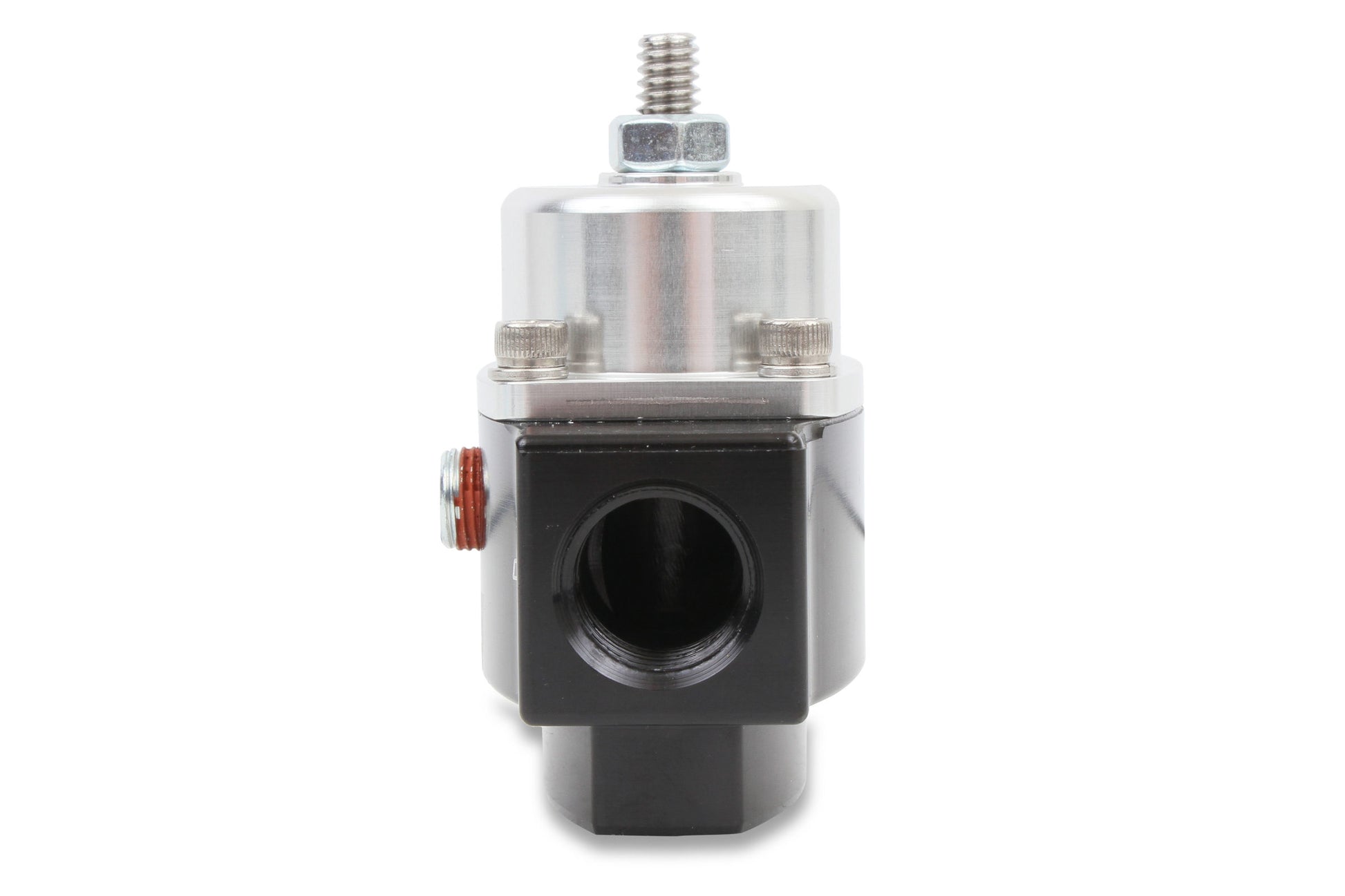

Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-843 fuel pressure regulator features (1) -10 AN O-ring inlet, (2) -8 AN O-ring outlets.
- Adjustable from 4.5-9 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
- Used in systems where a return line is not needed
- Use with electric or mechanical pumps

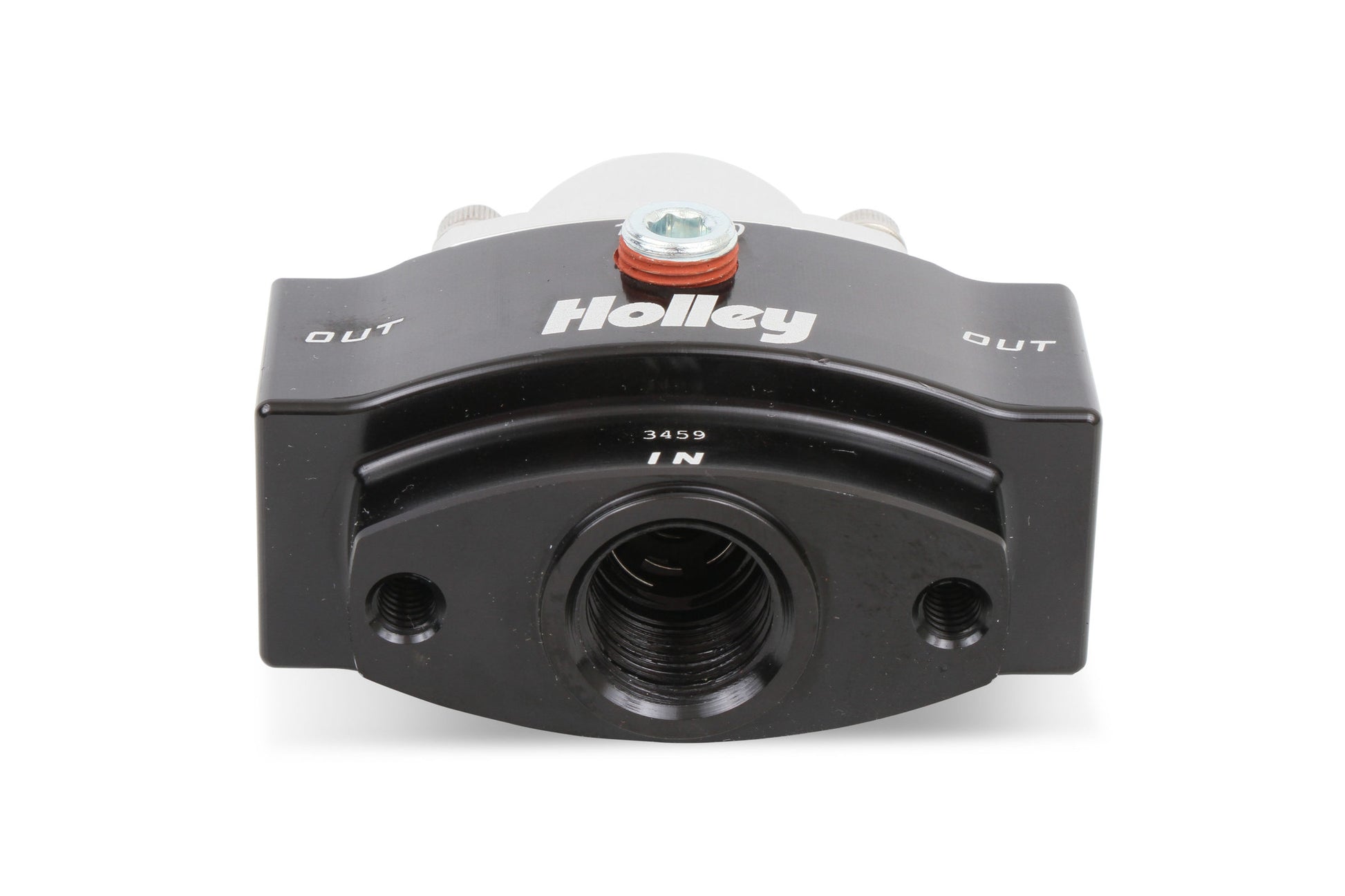

- (1) -10 an O-ring inlet,(2)-8 an O-ring outlets
- 1/8" NPT gauge port
- Comparable and interchangeable with popular Holley® 12-704 regulator

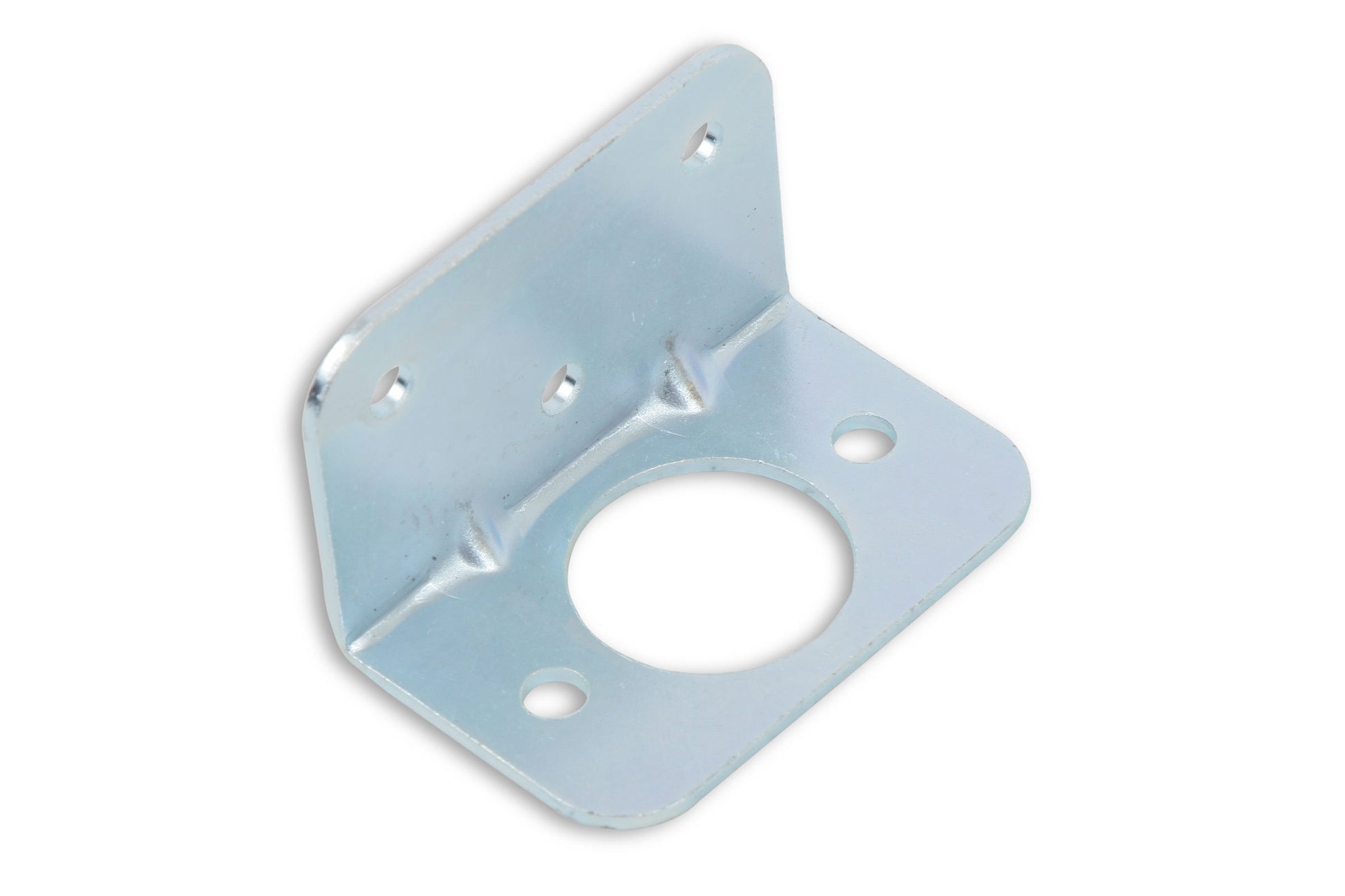

- Mounting bracket included
Adjustable: Yes
Brand: Holley
Category: Air and Fuel Delivery
Color: Black Anodized
Emission Code: 5
Fuel System: Carbureted
Fuel Type: Gasoline
Fuel Type: Diesel
Gauge Included: No
Gauge Port Included: Yes
Grade Type: Performance
Inlet Gender: Female
Inlet Port Diameter: 10 AN ORB
Inlet Port Quantity: 1
Inlet Type: 10 AN ORB
Material: Aluminum
Maximum Pressure: 9
Minimum Pressure: 4.5
Mounting Bracket Included: Yes
Mounting Type: Inline
Outlet Gender: Female
Outlet Port Diameter: 8 AN ORB
Outlet Port Quantity: 2
Outlet Size: 8 AN O-Ring
Outlet Type: 8 AN ORB
part type: Fuel Pressure Regulator
Port Quantity: 2
Pressure Range: 4.5-9 PSI
Product Type: Fuel Pressure Regulator
Rebuildable: Yes
Style: Non-Return
Sub Category: Carburetion
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
