Holley - 12-812-1
Fuel Pump - Electric - In-Line - 88 gph at 9 psi - 3/8 in NPT Female Inlet / Outlet - Bracket Included - Aluminum - Silver - Gas - Each
Electric Fuel Pump; Free Flow GPH 110; Gasoline; Carbureted; 3/8 in. NPT Inlet/Outlet Size; Silver Body/Silver Bracket/Blue Logo;
The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Motor draws only 3 amps current
- 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Not designed for use on aircraft of any type.
- Distinctive “Blue” logo
- Flows 110 GPH (free flow)
- Flows 88 GPH at 9 psi
- maximum pressure is 14 psi
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs

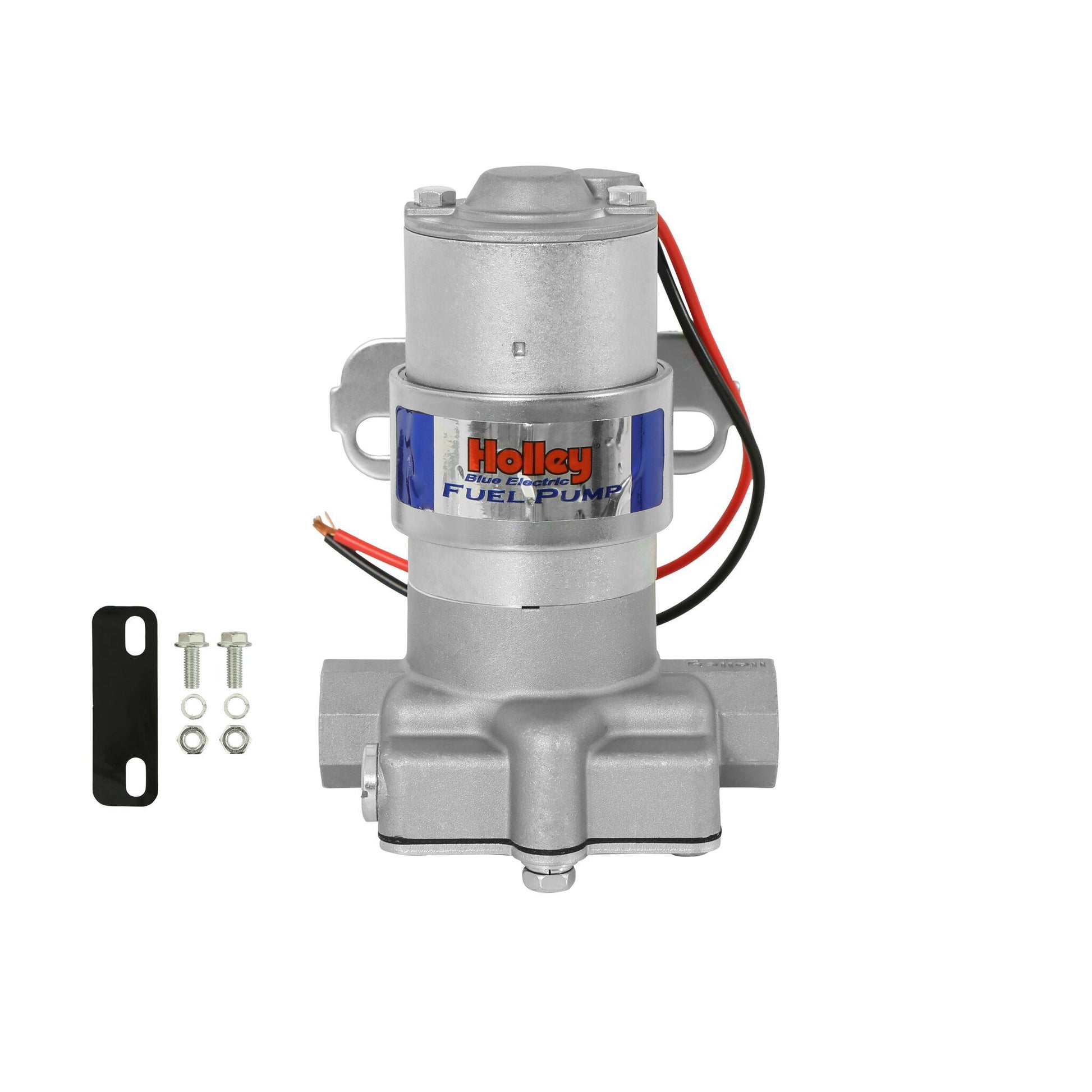

- Includes mounting bracket
- Repair kits are readily available

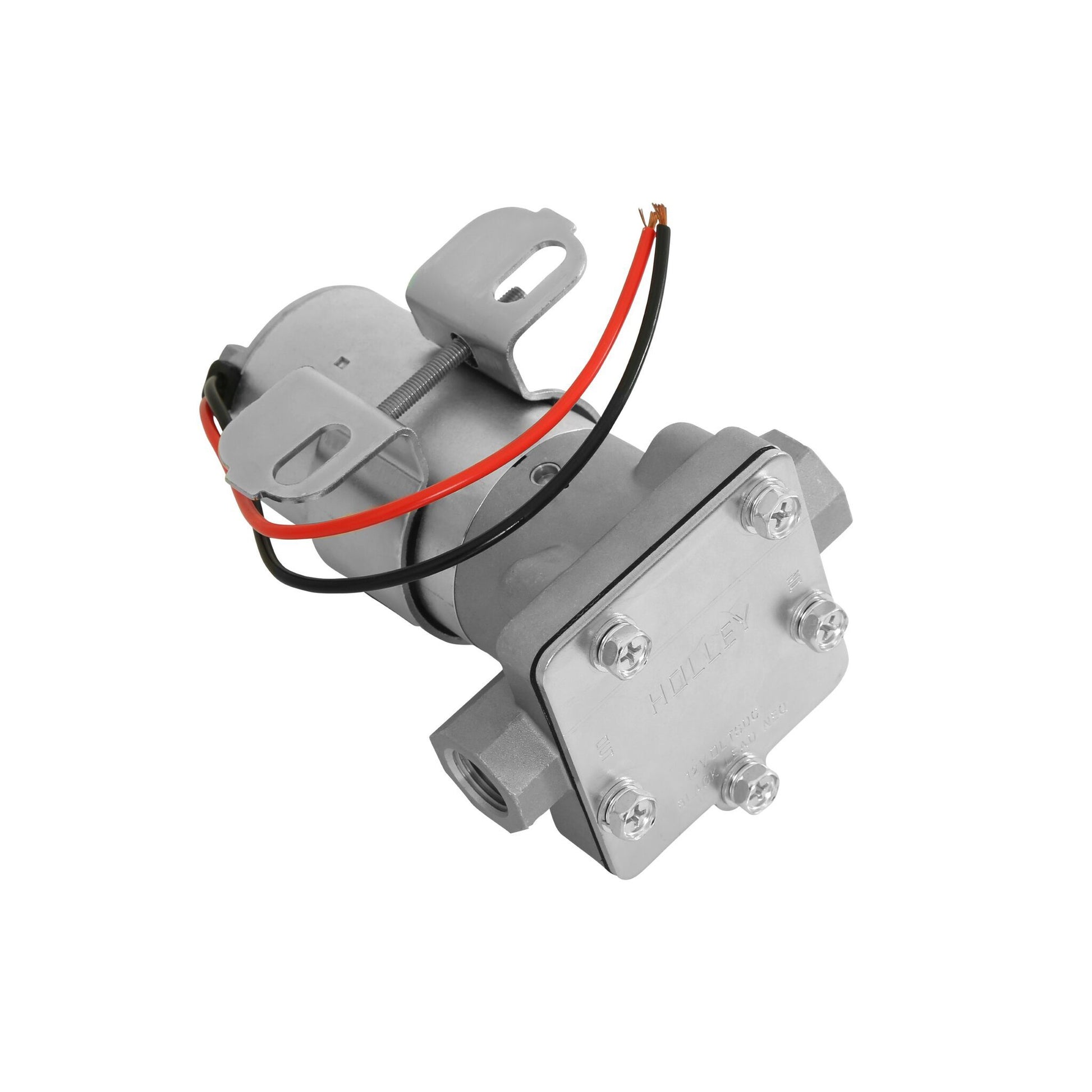

- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Fuel pressure regulator not included
Application: Universal
Bracket Color: Silver
Brand: Holley
Category: Air and Fuel Delivery
Emission Code: 5
Free Flow GPH: 110
Free Flow LPH: 416
Fuel Delivery Type: Carburetor
Fuel Sending Unit Included: No
Fuel System: Carbureted
Fuel Type: Gasoline
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Fitting Thread Size: 3/8
Inlet Size: 3/8 inch NPT
Inlet Type: NPT
Internal Or External: External
Material: Aluminum
Maximum Amperage Draw: 3
Maximum Flow Rating: 110
Maximum Pressure: 14
Motor Finish: Silver
Negative Ground: Yes
Outlet Fitting Thread Size: 3/8
Outlet Quantity: 1
Outlet Size: 3/8 inch NPT
Outlet Type: NPT
part type: Electric Fuel Pump
Product Type: Fuel Pump
Pump Body Color: Silver
Regulator Included: No
Sub Category: Fuel Pumps and Related Components
Universal Or Specific Fit: Universal
Voltage: 12
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Quantity: 2
