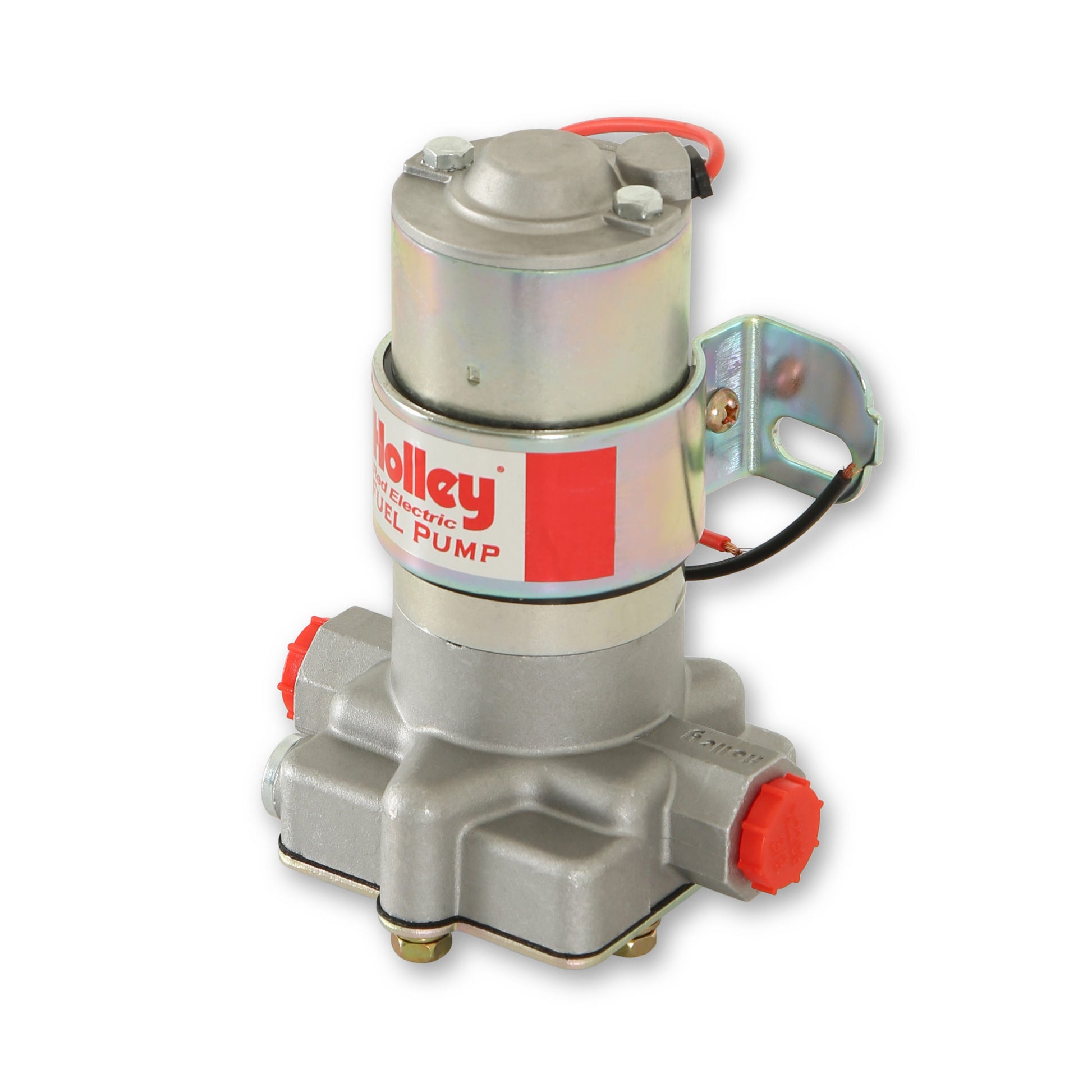

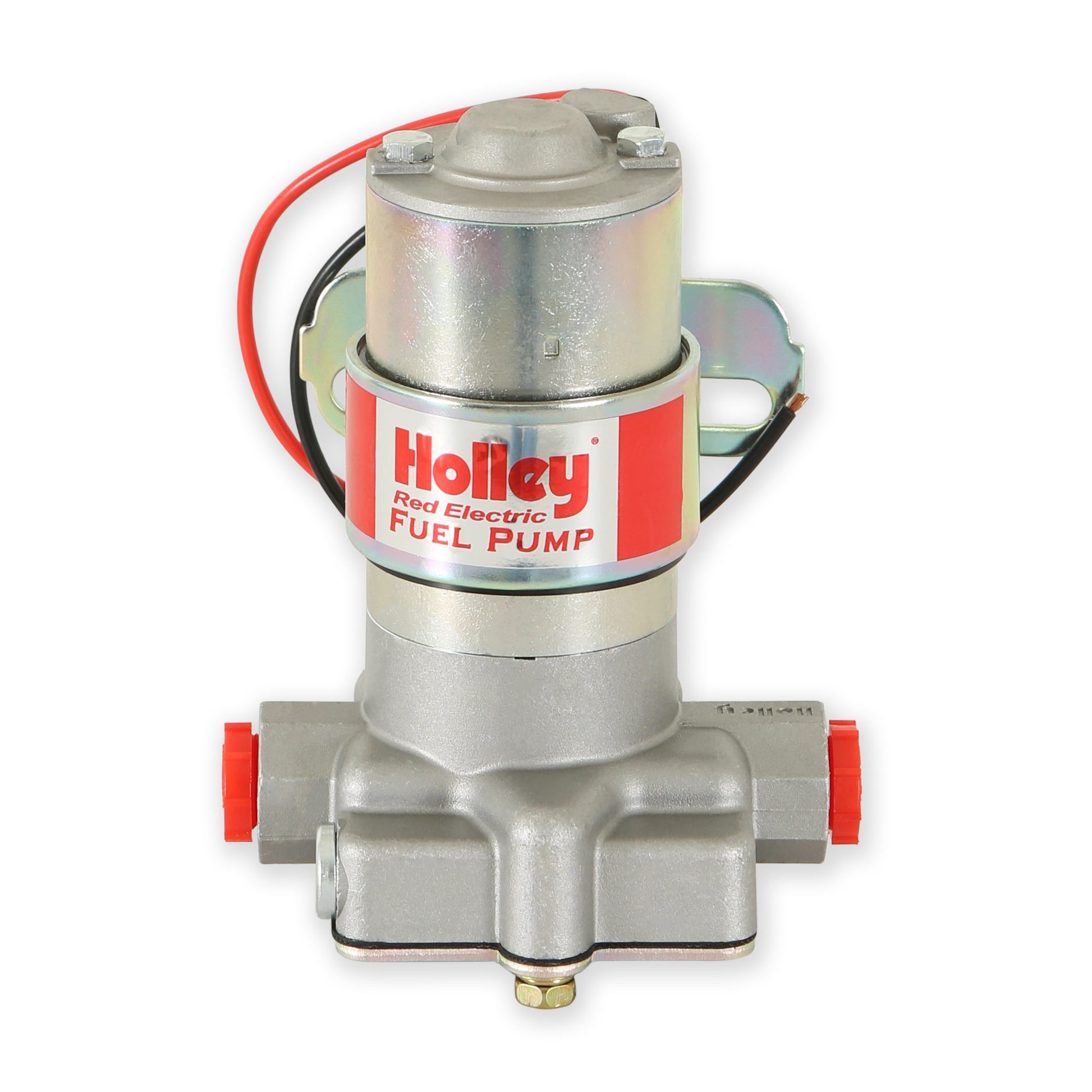

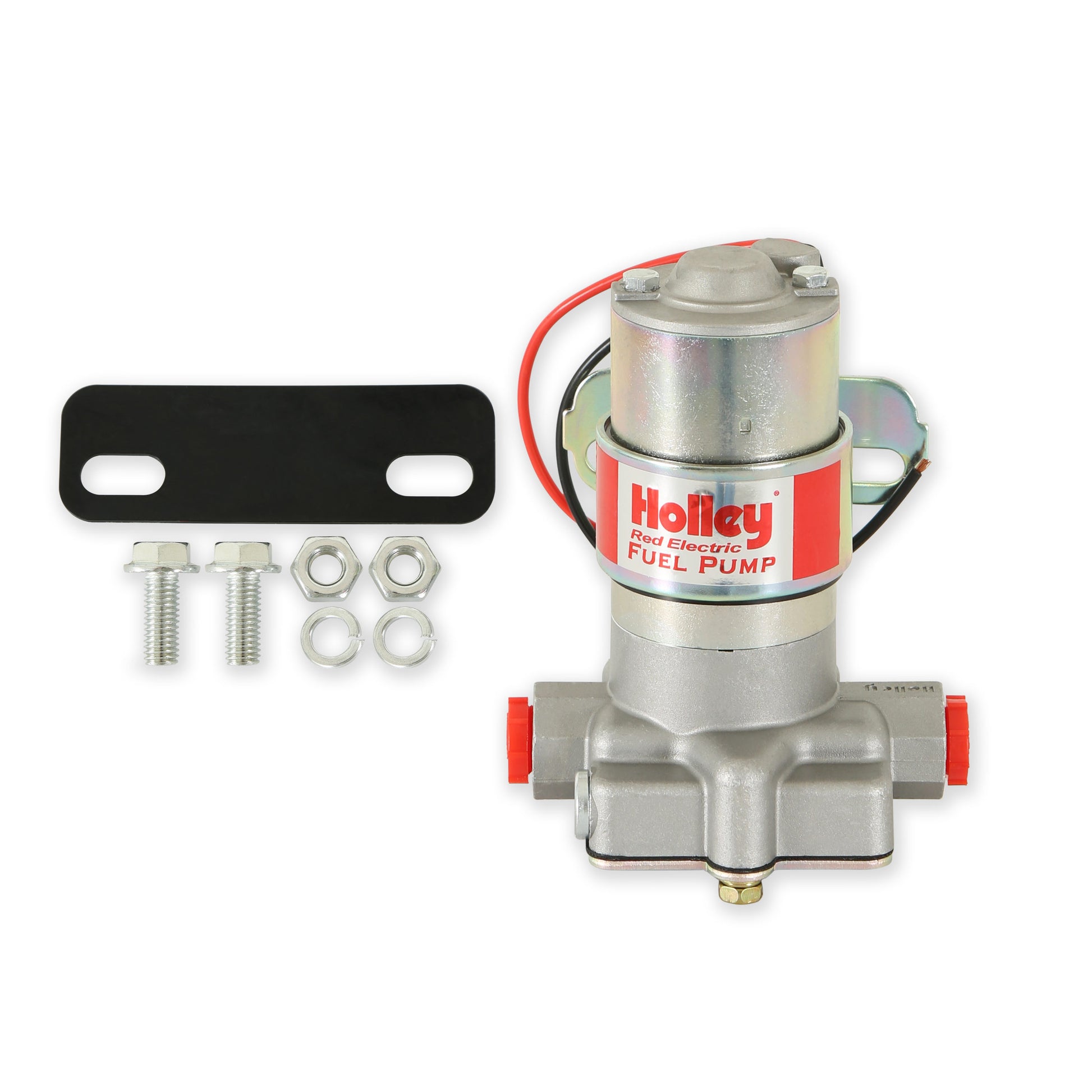

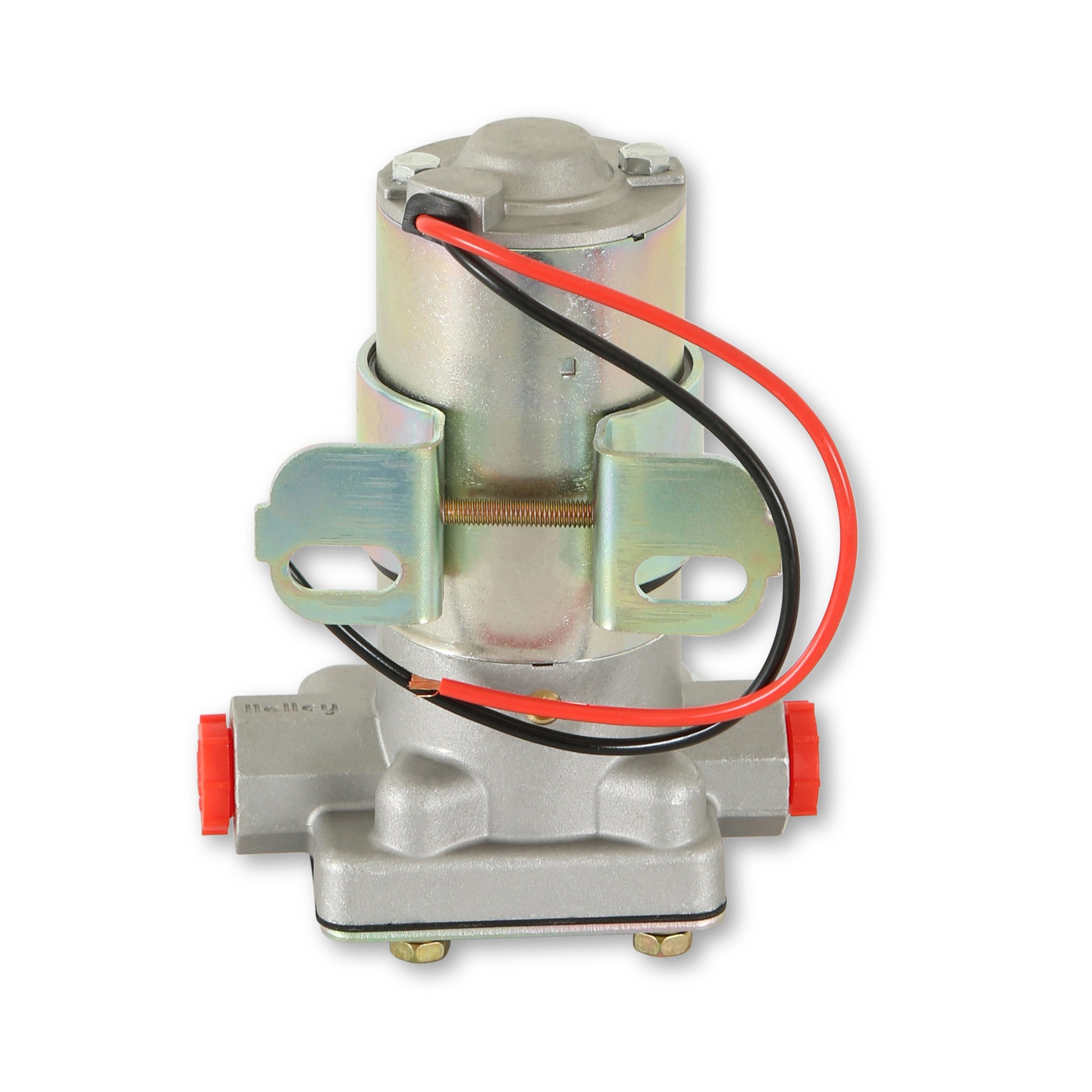

Holley - 12-801-1
Fuel Pump - Red - Electric - In-Line - 71 gph at 4 psi - 3/8 in NPT Female Inlet / Outlet - Silver - Gas - Each
Electric Fuel Pump; Free Flow GPH 97; Free Flow LPH 367; Gasoline; Carbureted; 3/8 in. NPT Inlet/Outlet Size; Silver Body/Silver Bracket/Red Logo;
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow
- Maximum pressure is 7 psi
- Motor draws 2 amps current
- Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
- Constant fuel flow with no pulsation
- Improved design for street/strip applications
- Not designed to be used on aircraft of any type
- Distinctive “Red” logo
- Flows 97 GPH (free flow)

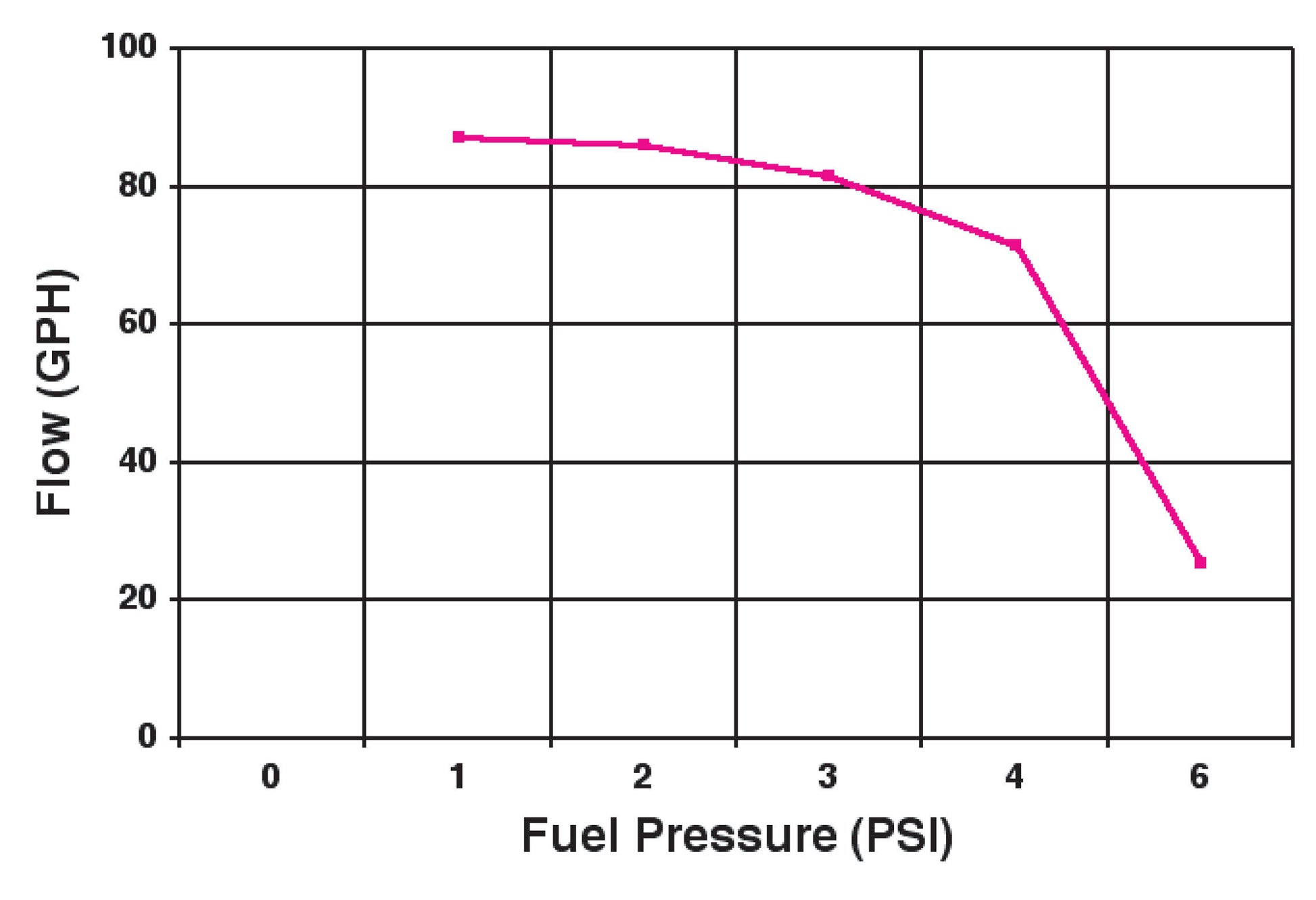

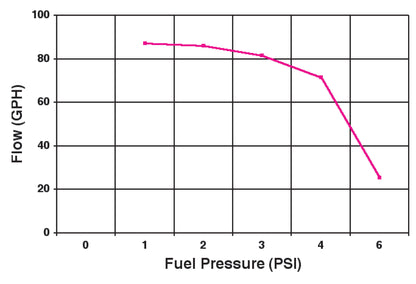

- Flows 71 GPH at 4 psi
- Regulator is not required
- Has externally accessible pressure relief valve (max 7 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 2.88 lbs
- Not designed or recommended for use with fuel injection systems

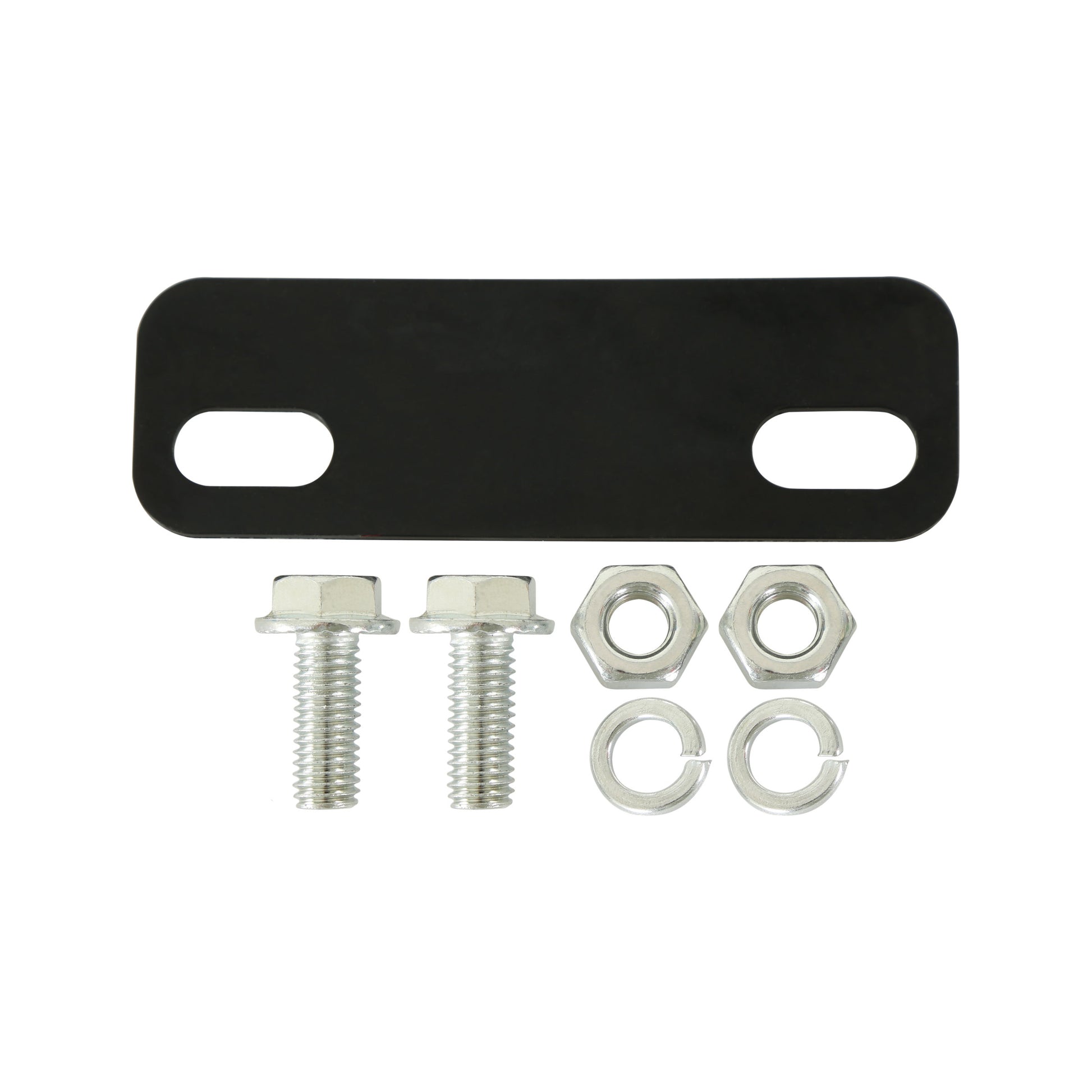

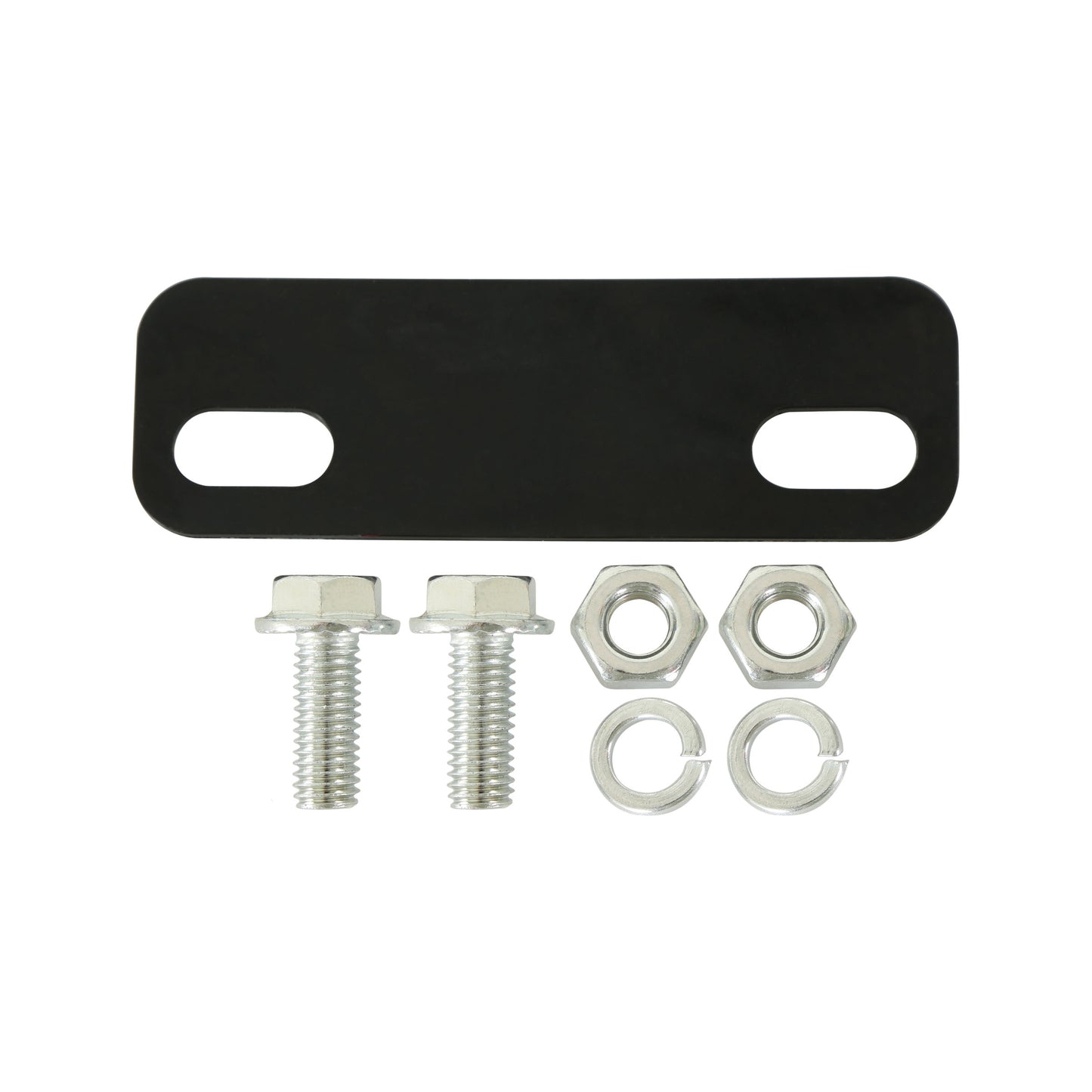

- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
Application: Universal
Bracket Color: Silver
Brand: Holley
Category: Air and Fuel Delivery
Emission Code: 5
Free Flow GPH: 97
Free Flow LPH: 367
Fuel Delivery Type: Carburetor
Fuel Sending Unit Included: No
Fuel System: Carbureted
Fuel Type: Gasoline
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Fitting Thread Size: 3/8
Inlet Size: 3/8 inch NPT
Inlet Type: NPT
Internal Or External: External
Material: Aluminum
Maximum Amperage Draw: 2
Maximum Flow Rating: 97
Maximum Pressure: 7
Motor Finish: Silver
Negative Ground: Yes
Outlet Fitting Thread Size: 3/8
Outlet Quantity: 1
Outlet Size: 3/8 inch NPT
Outlet Type: NPT
part type: Electric Fuel Pump
Product Type: Fuel Pump
Pump Body Color: Silver
Regulator Included: No
Sub Category: Fuel Pumps and Related Components
Universal Or Specific Fit: Universal
Voltage: 12
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Quantity: 2
