Holley - 12-364

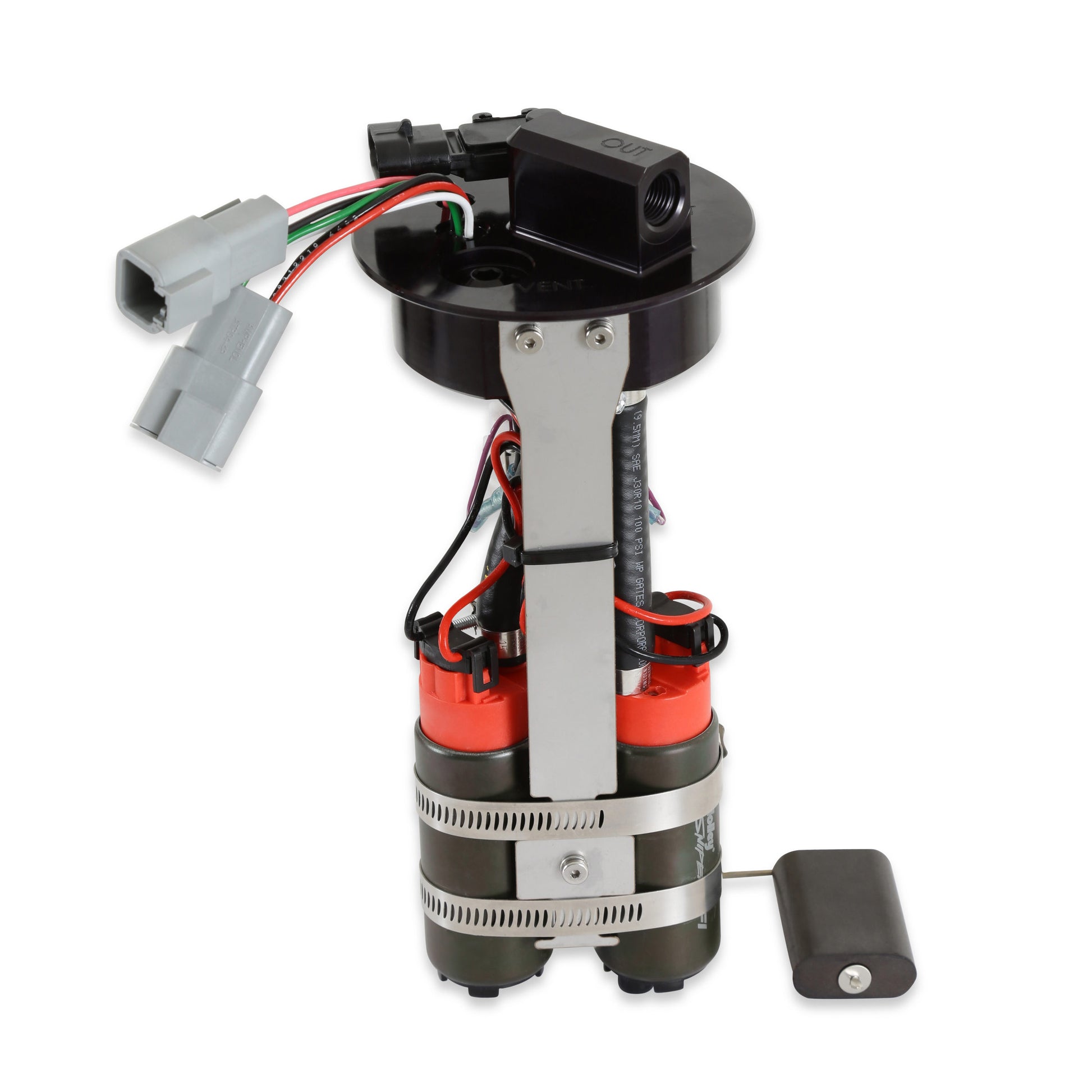

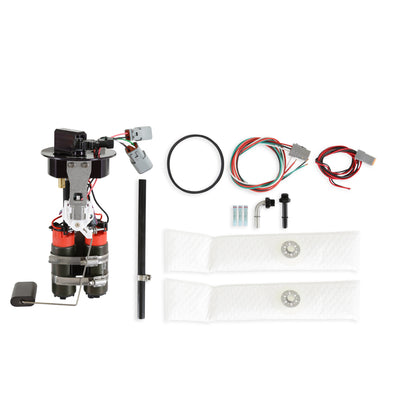

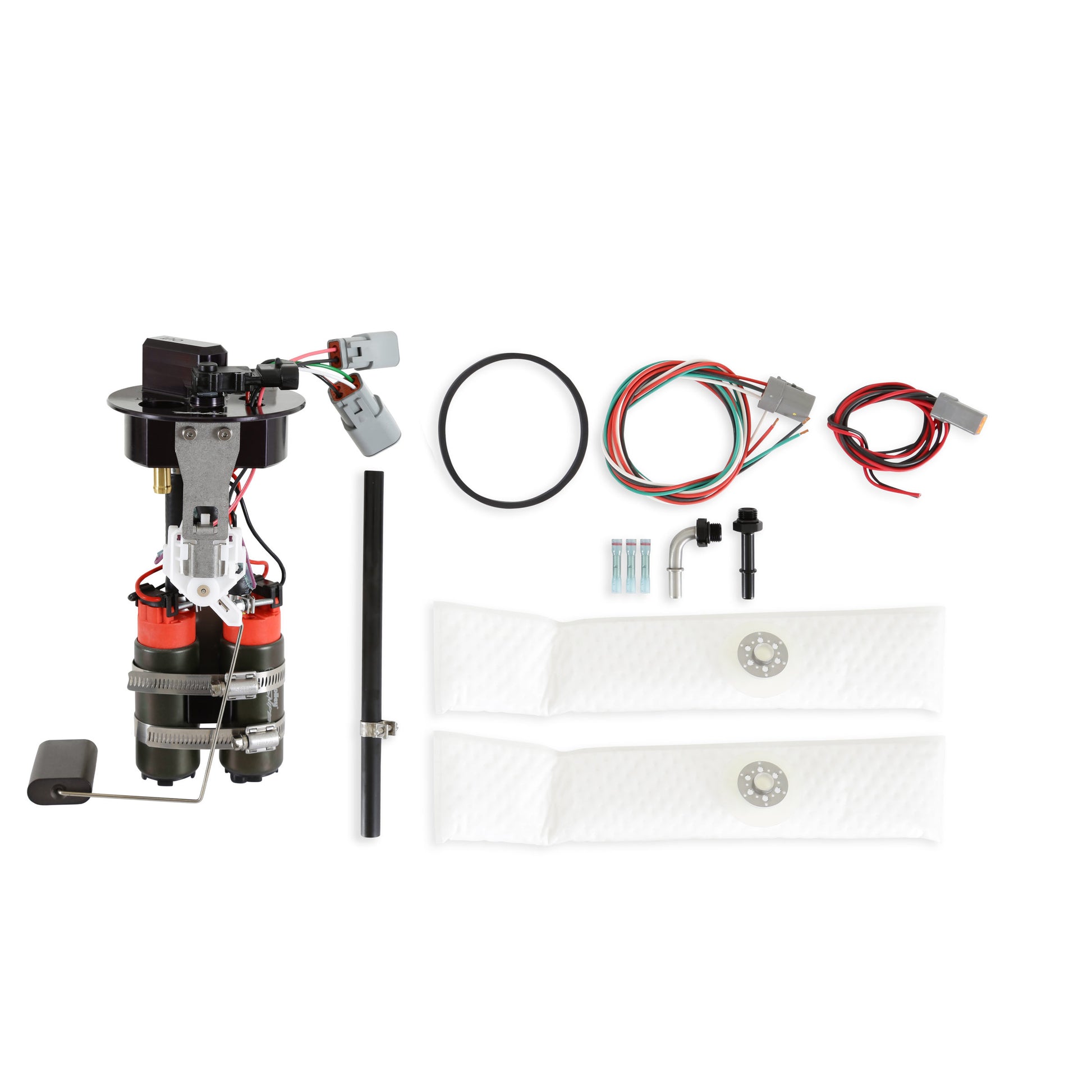

HOLLEY PUMP MODULE SYSTEM - TWIN 340 LPH
Fits 1998-2002 Camaro / Firebird - Twin 340 LPH Pump Module
Part #: 12-365 - Twin 450LPH Pump Module

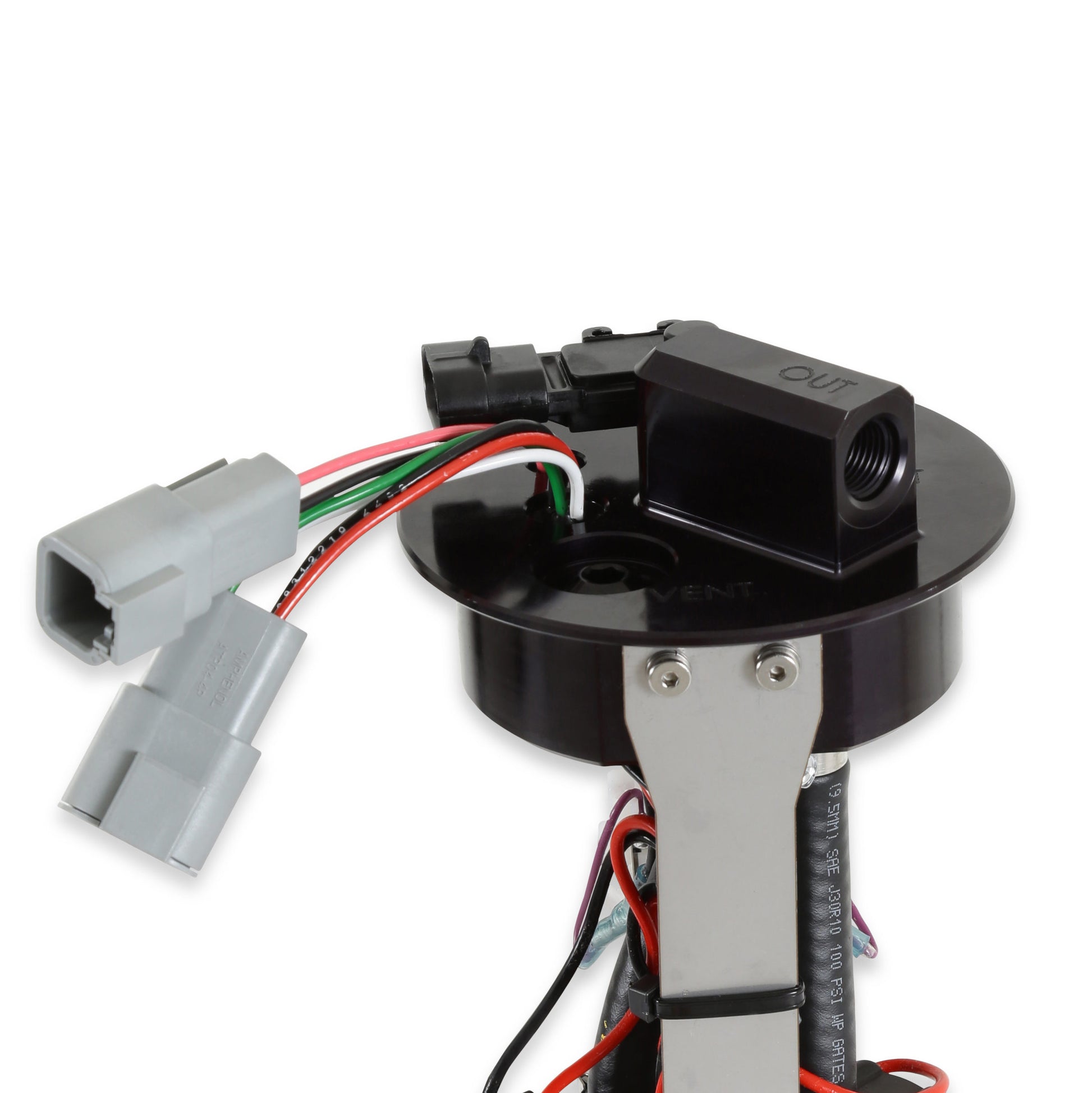

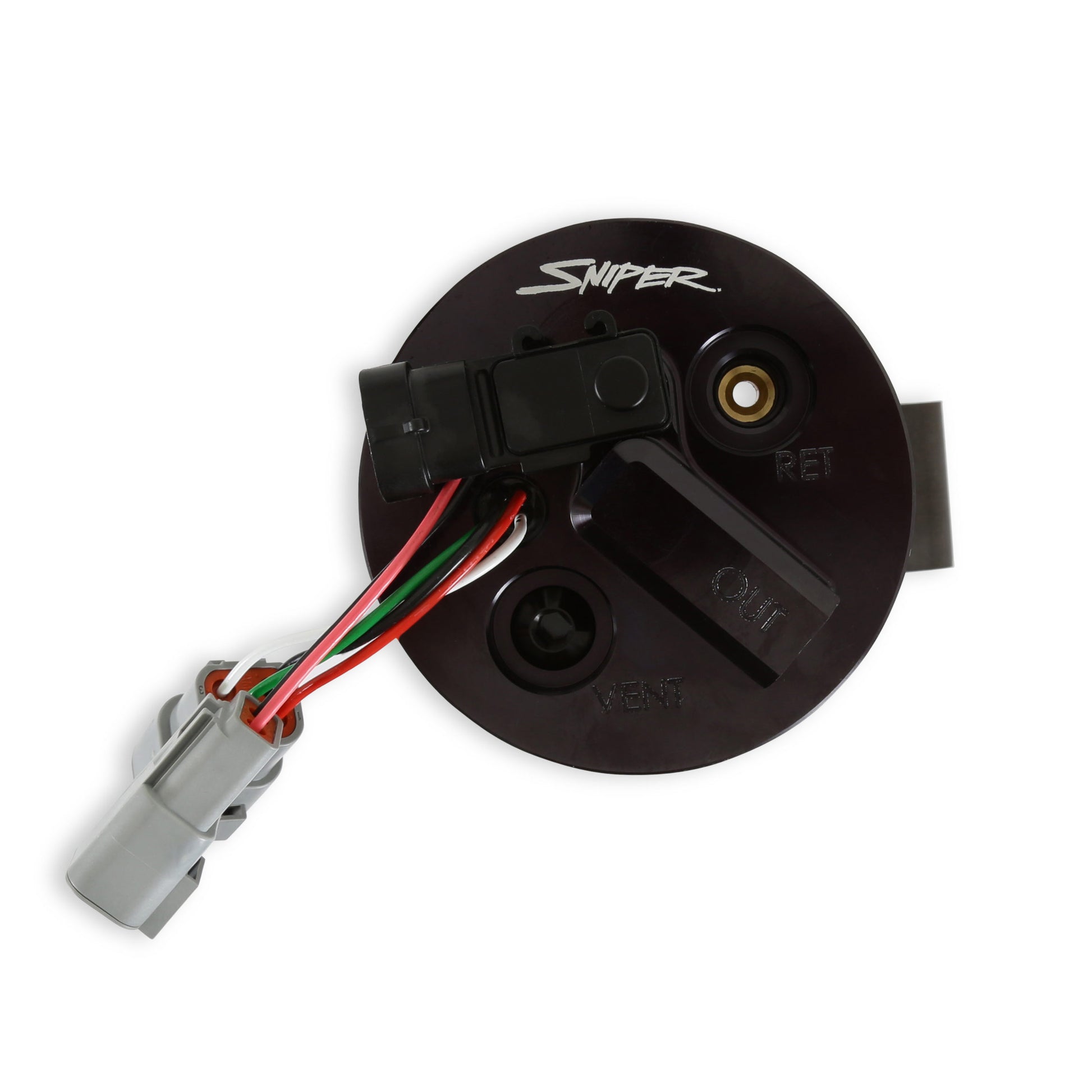

- Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent
- All SKUs compatible with Gasoline AND E85

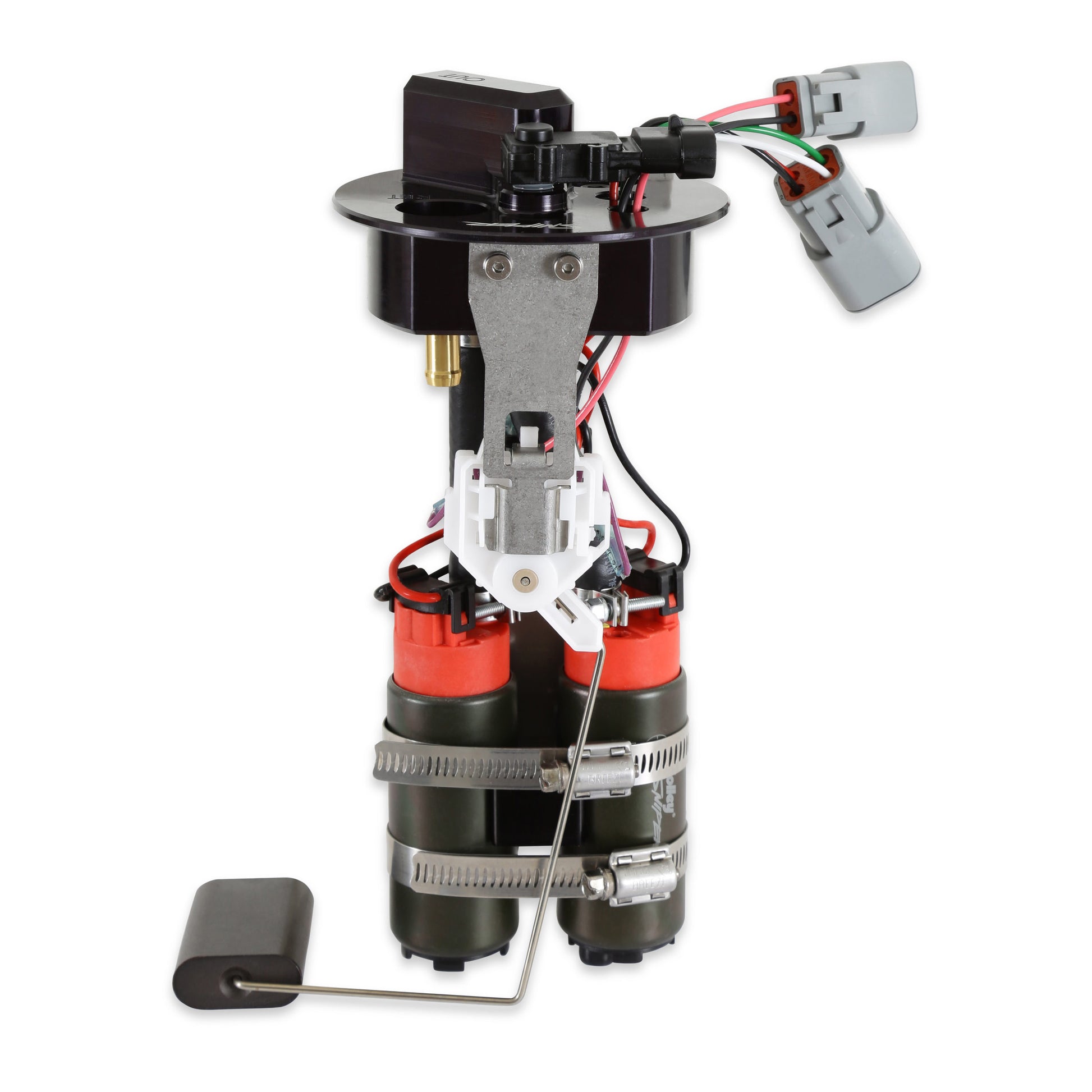

- Comes pre-installed with new pre-calibrated fuel level (33 – 240 Ω) and tank pressure sensors

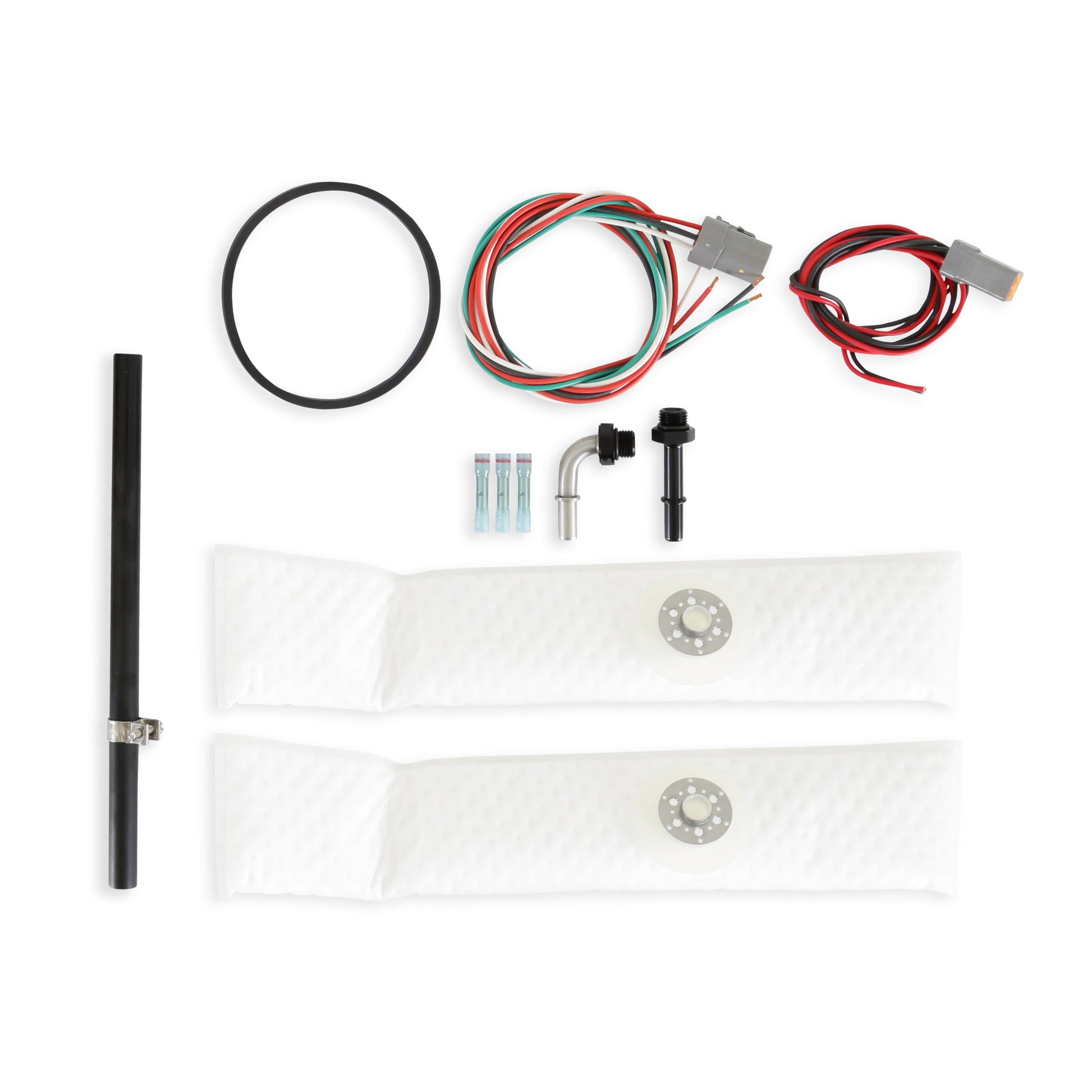

- Includes new gasket to complete installation

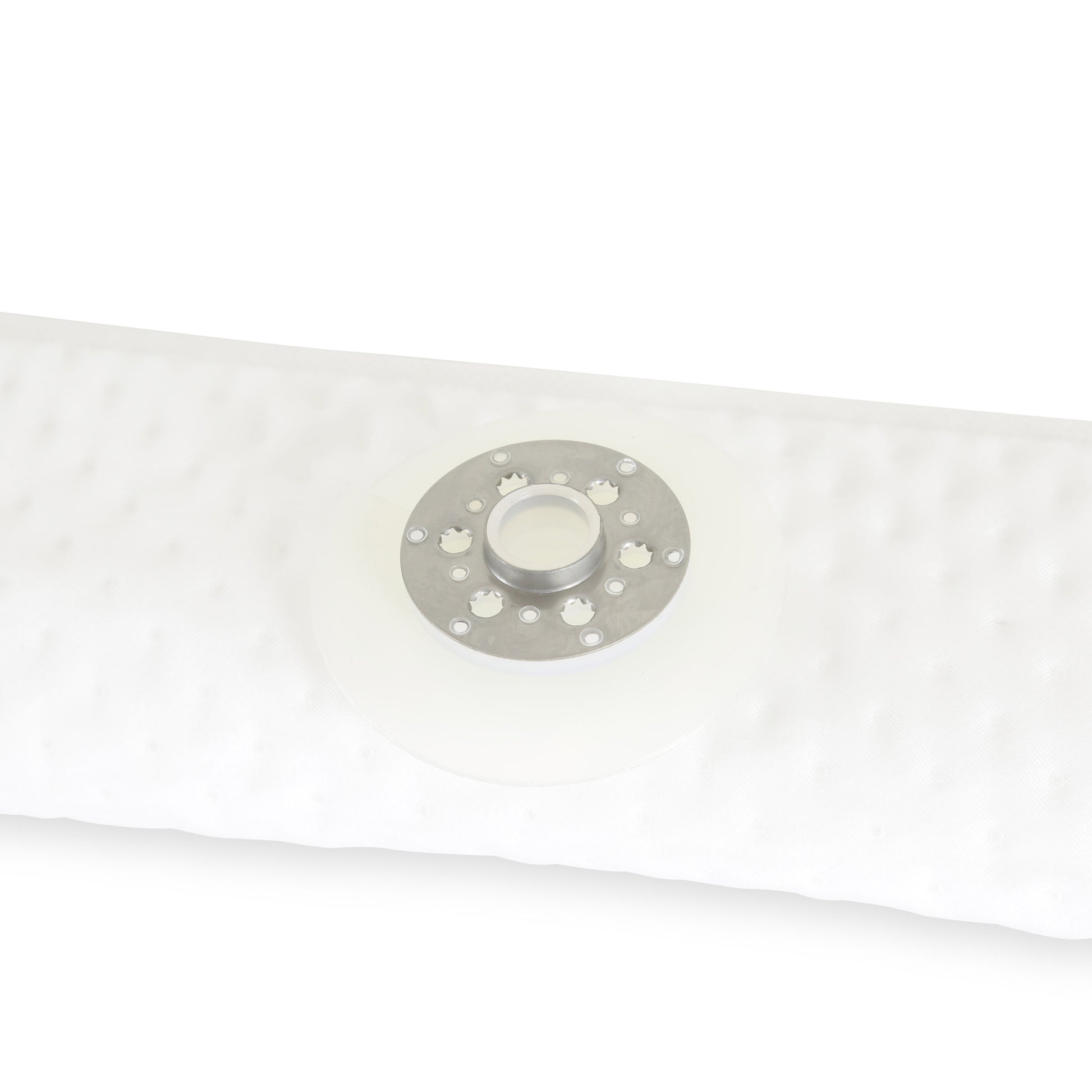

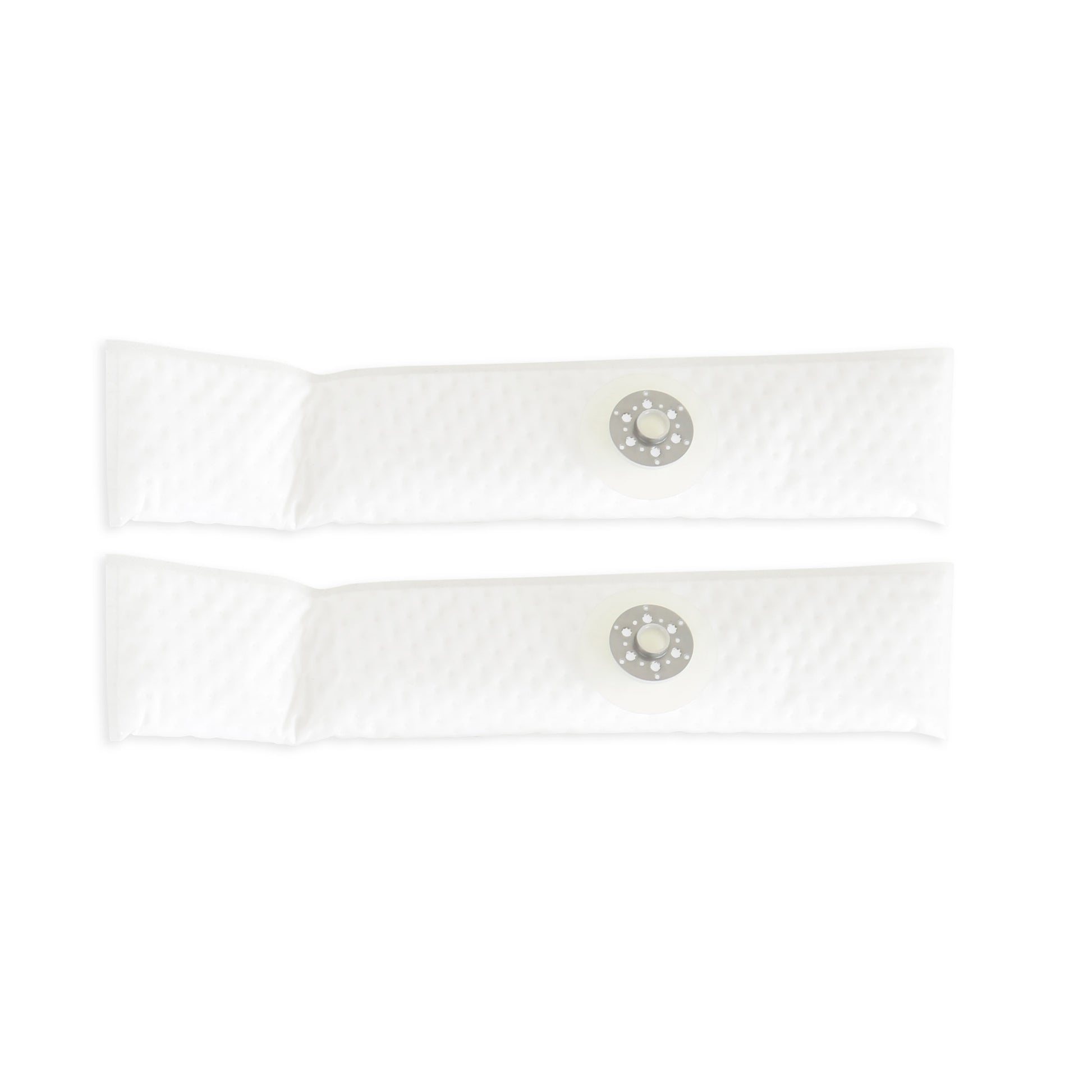

- A 3 x 11-inch HydraMat is included for each pump
- Fits factory plastic tank used in LS1 98-02 Camaro / Firebird or an earlier 4th Gen F-body with fuel tank upgrade
- Fittings included allowing connection to the factory 3/8 quick connect feed and return lines
- Flanges have been designed to be compatible with feed and return line sizes up to -8AN
- Step-down butt connectors included to wire level sensor
- Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL - sold separately)
- Kit includes vehicle pigtail harness - All connectors used are DTM style
Average Current Draw: 29
Average Flow Rating: 680
Brand: Holley
Category: Air and Fuel Delivery
Connector Color: Gray
Connector Gender: Female
Connector Quantity: 2
Emission Code: 5
Finish: Anodized Black
Free Flow GPH: 216
Free Flow LPH: 820
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel System: EFI
Fuel Tank Pressure Sensor Included: Yes
Fuel Type: Gasoline/E85 Compatible
Gasket Or Seal Included: Yes
Gasket Or Seal Material: Rubber
Grade Type: Performance
Height: Standard
Housing Material: Aluminum
In Tank or External: In Tank
Inlet Quantity: One
Inlet Size: 6 AN ORB
Inlet Type: 6 AN ORB
Internal Or External Strainer: External
Lock Ring Included: No
Material: Billet Alluminum 6061-T6
Maximum Pressure: 60
Mounting Hardware Included: Yes
Negative Ground: Yes
Outlet Quantity: One
Outlet Size: 6 AN ORB
Outlet Type: 6 AN ORB
part type: Fuel Pump Module Assembly
Product Type: Fuel Pump Module
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 33
Resistance Ohms Full: 240

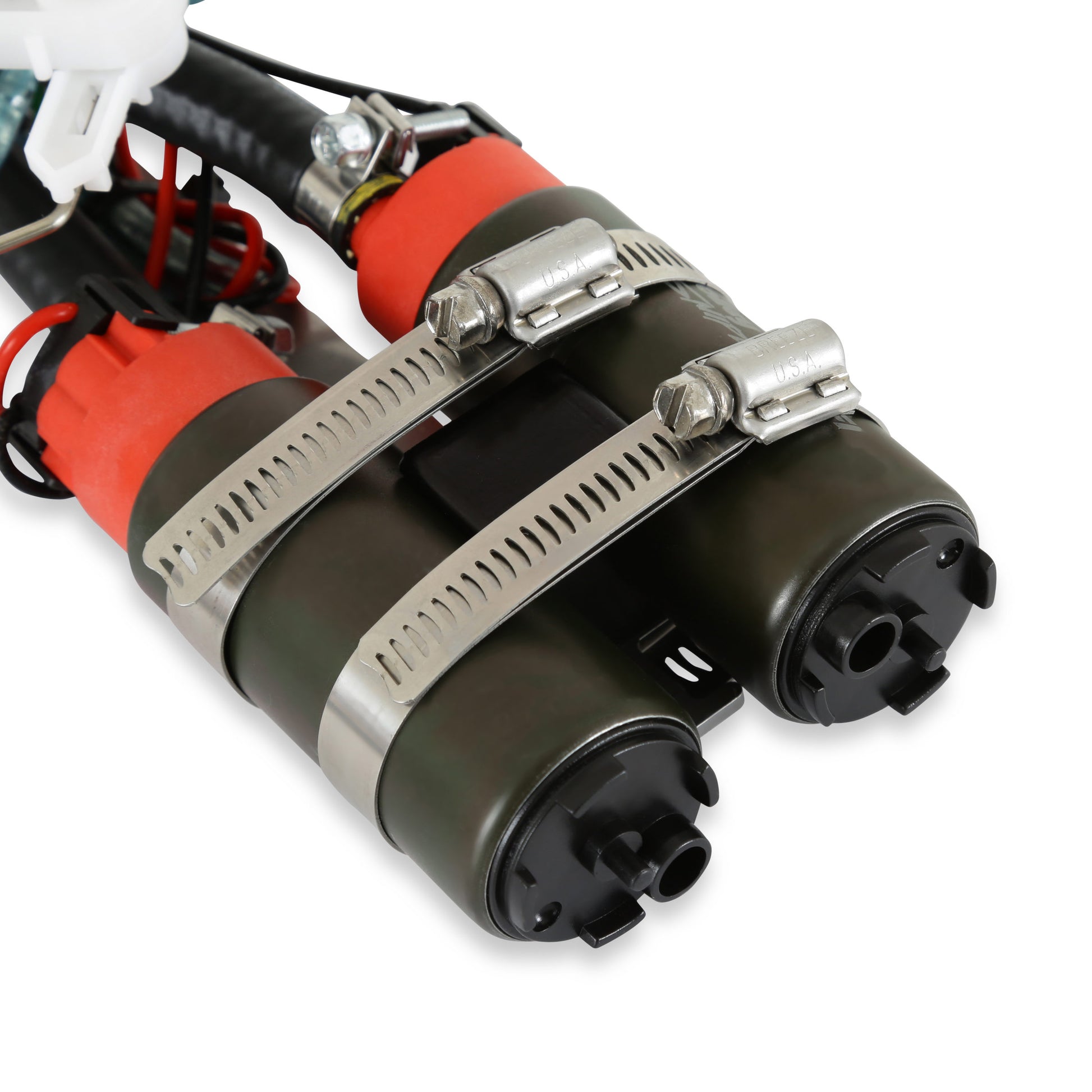

Single Or Dual Pump: Dual
Sub Category: Fuel Pumps and Related Components
Universal Or Specific Fit: Specific
Voltage: 12
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Quantity: 4
