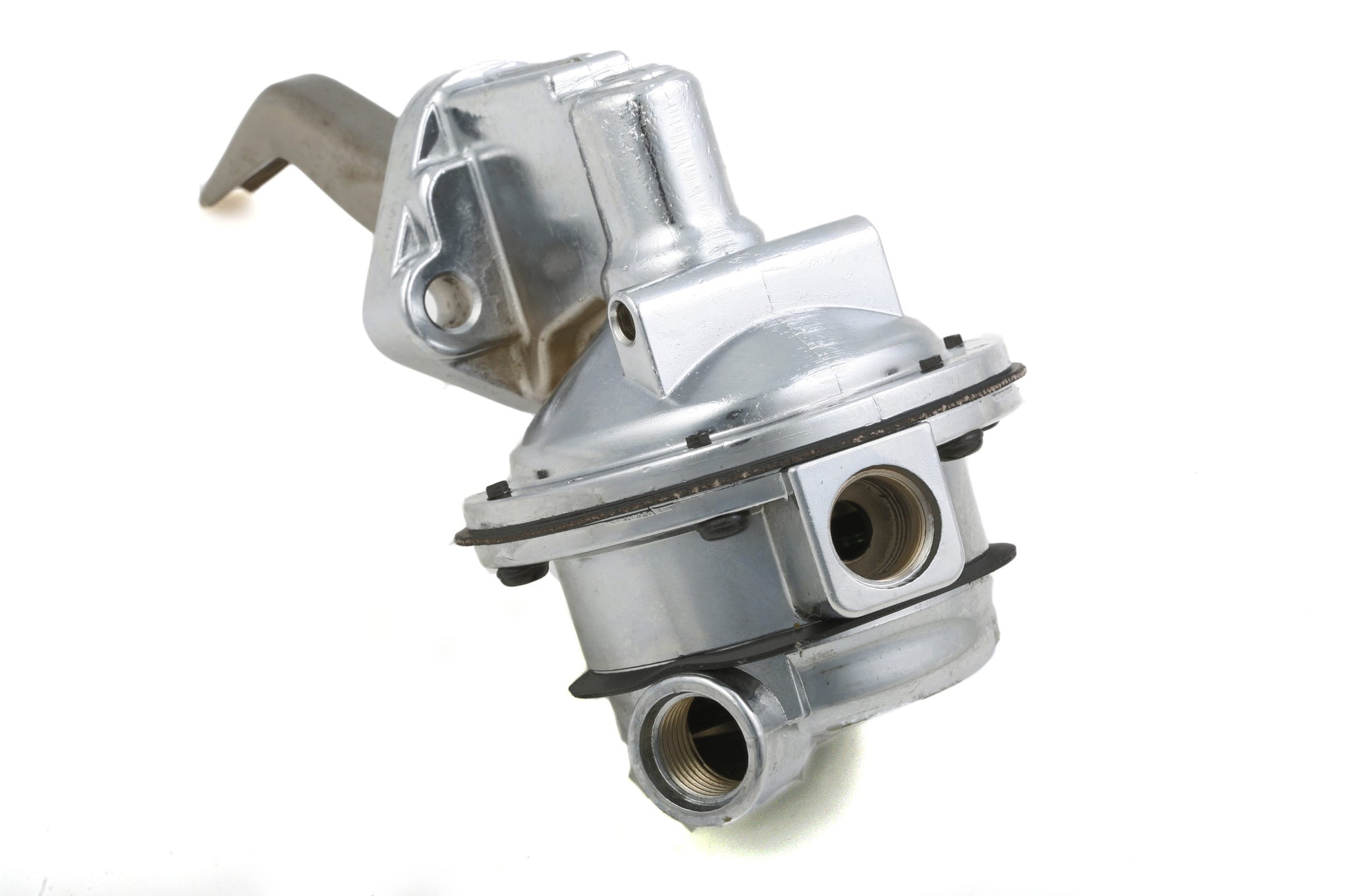

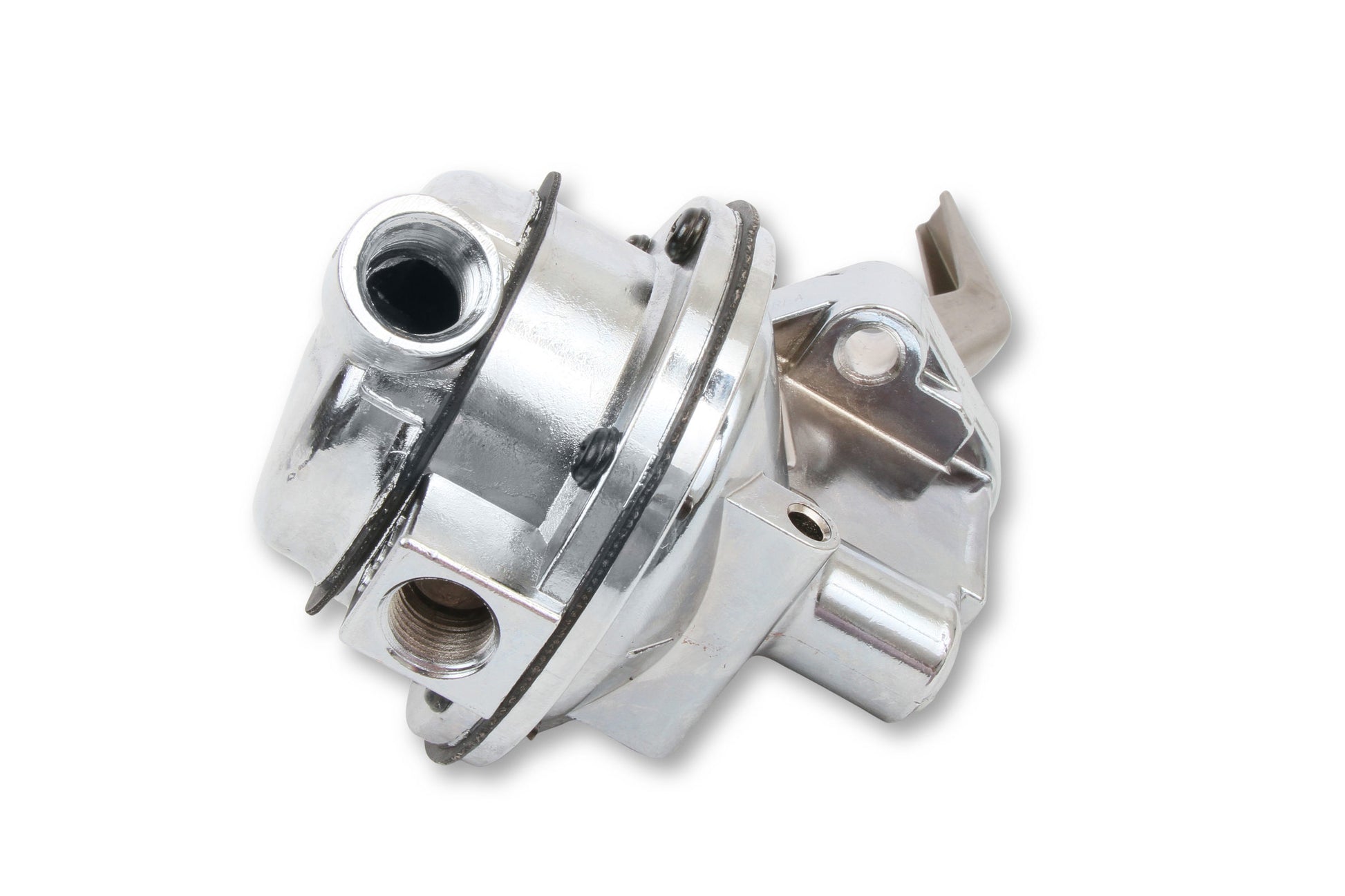

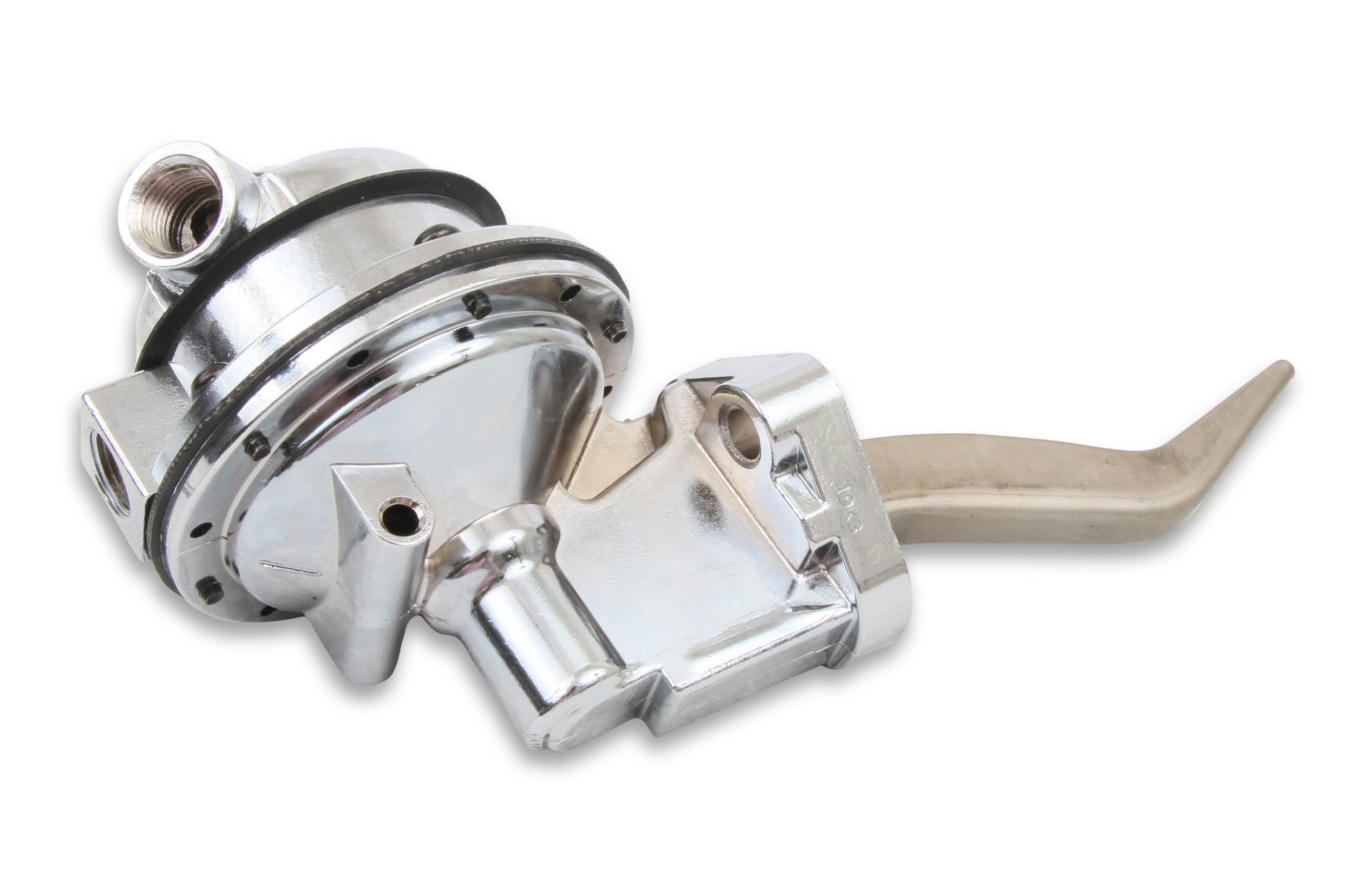

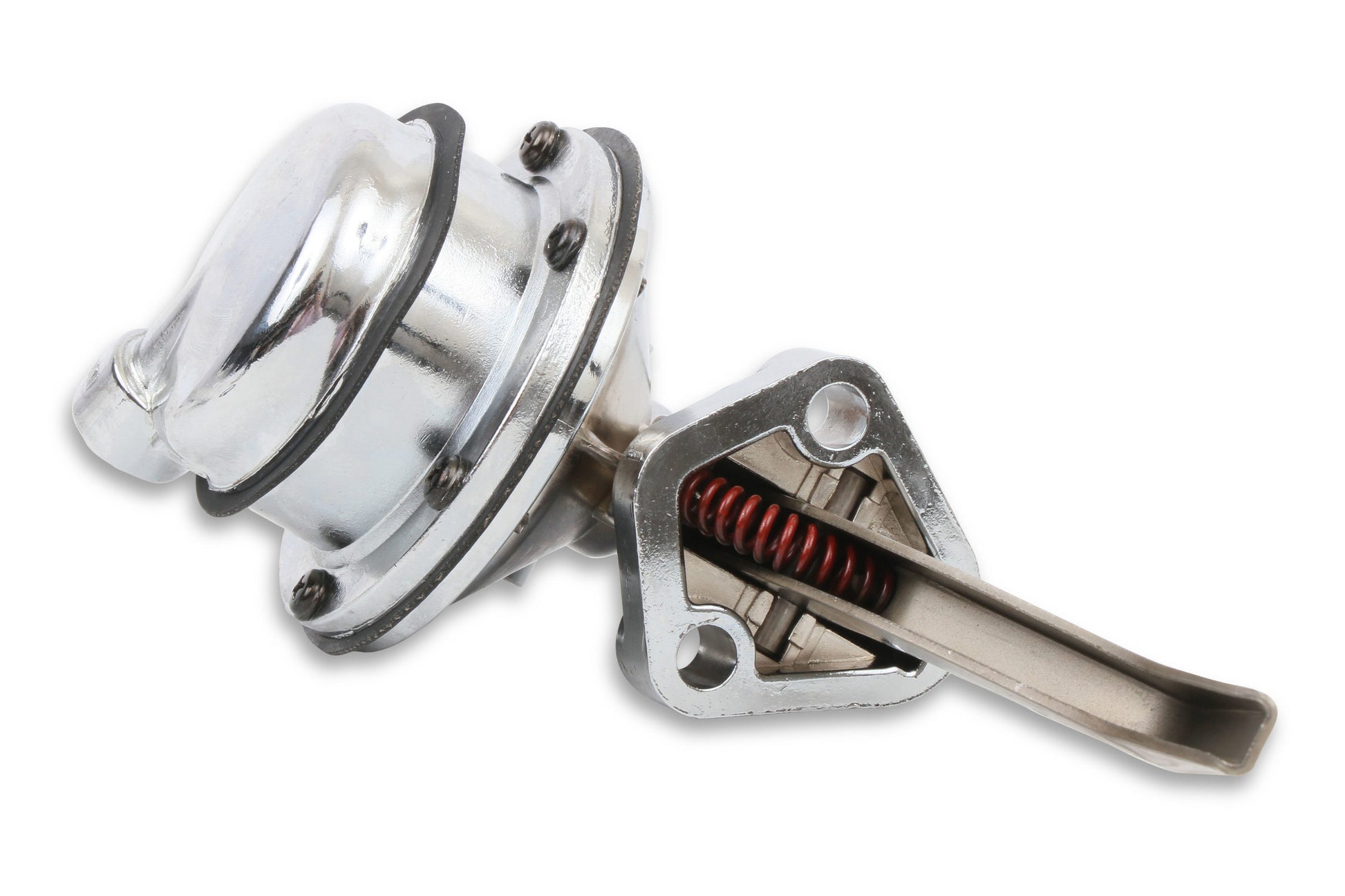

Holley - 12-289-20
Fuel Pump - Mechanical - 170 gph - 8 psi - 8 AN Female O-Ring Inlet / Outlet - Aluminum - Polished - Gas - Small Block Ford - Each
Keith Dorton Series VoluMax Race Series Fuel Pump; Free Flow GPH 170+; Free Flow LPH 644; Gasoline; 8 AN O-Ring - 3/4-16 SAE Inlet/Outlet; Silver;
Holley mechanical fuel pumps range from 80 GPH to 225 GPH in many various applications to meet the fuel demands of most engines. Whether you are looking for a street performance or an all out race mechanical fuel pump, Holley has the pump you need.
- High Output Fuel Flow
- Flows 170+ gph Free Flow
- Shutoff Pressure Pre-Set At 8 PSI
- Fuel Pressure Regulator Is Not Required
- Heavy Duty Construction For Continuous High rpm Operation
- Redesigned High Flow Valves Always Ensure Adequate Fuel Delivery
- Fuel Body Casting Can Be Rotated For Plumbing Situations
- Inlet And Outlet Tapped For 3/8 in. NPT
- Fittings Not Included
Application: Small Block Ford
Average Flow Rating: 170
Brand: Holley
Category: Air and Fuel Delivery
Color: Silver
Emission Code: 5
Free Flow GPH: 170
Free Flow LPH: 644
Fuel Type: Gasoline

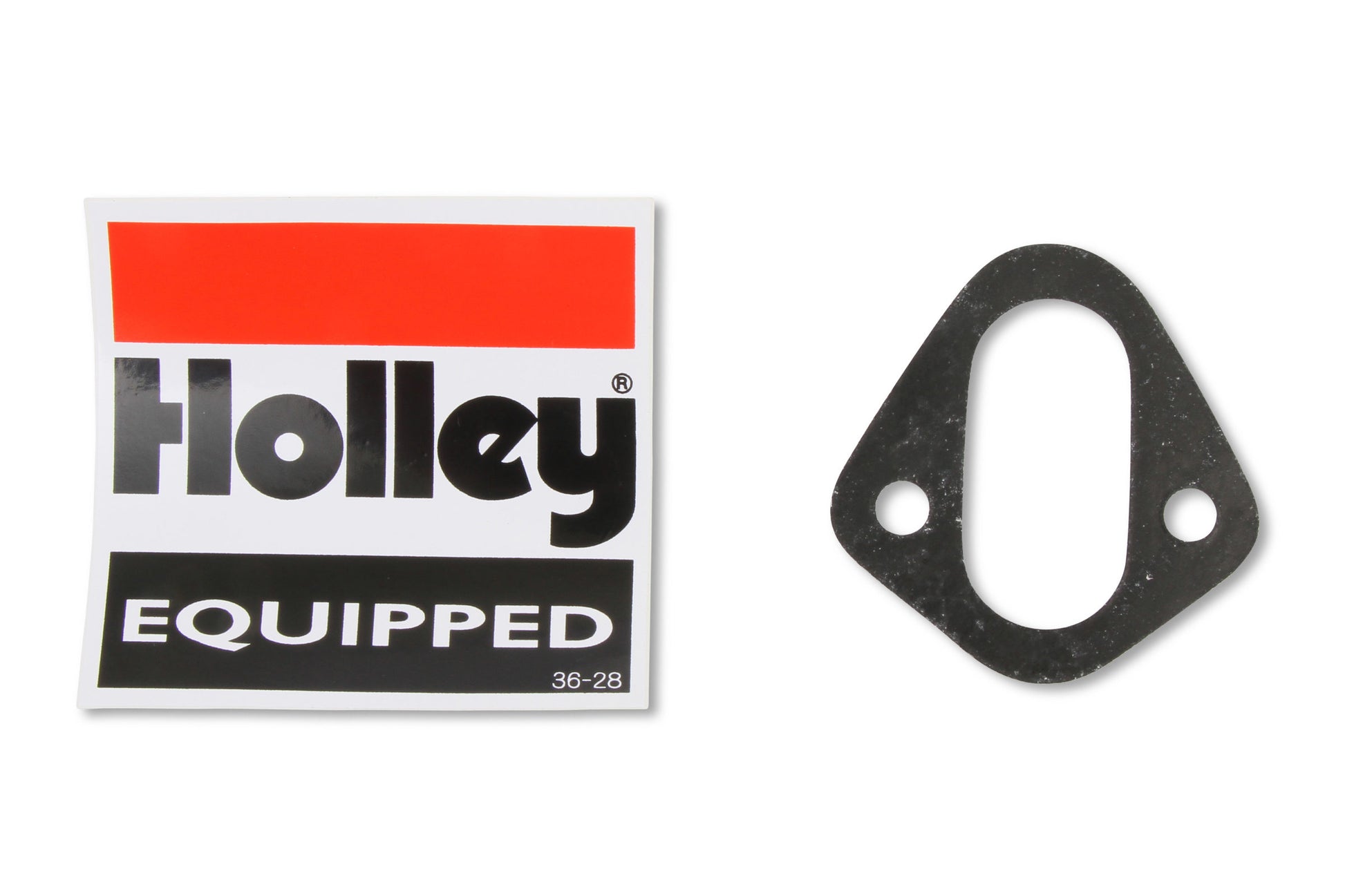

Gasket Or Seal Included: Yes
Grade Type: Performance
Housing Material: Aluminum
Inlet Fitting Thread Size: 3/4-16
Inlet Quantity: 1
Inlet Size: 8 AN O-Ring - 3/4-16 SAE
Inlet Type: 8 AN ORB
Material: Aluminum
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Outlet Fitting Thread Size: 3/4-16
Outlet Quantity: 1
Outlet Size: 8 AN O-Ring - 3/4-16 SAE
Outlet Type: 8 AN ORB
Product Type: Fuel Pump
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
