Holley

Holley 12-141 - Fuel Cell EFI Pump Module Assembly

MSRP: $731.95
$649.95
( saved $82.00 )
Write a Review
  • Holley 12-141 - Fuel Cell EFI Pump Module Assembly
  • Holley 12-141 - Fuel Cell EFI Pump Module Assembly
  • Holley 12-141 - Fuel Cell EFI Pump Module Assembly
  • Holley 12-141 - Fuel Cell EFI Pump Module Assembly
  • Holley 12-141 - Fuel Cell EFI Pump Module Assembly
  • Holley 12-141 - Fuel Cell EFI Pump Module Assembly
  • Holley 12-141 - Fuel Cell EFI Pump Module Assembly
  • Holley 12-141 - Fuel Cell EFI Pump Module Assembly
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
HOL-12-141
UPC:
090127029602
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Holley - 12-141

Fuel Pump - Electric - In-Tank - 4-3/8 in 6-Bolt Flange - 450 lph - 8 AN Inlet - 10 AN Outlet - 7-1/2 to 12 in Depth - Installation Hardware Included - Alcohol / Gas - Kit

Fuel Cell EFI Pump Module Assembly; 6 Bolt Flange; 450 LPH Drop-In Module; 8AN Inlet/10AN Outlet;

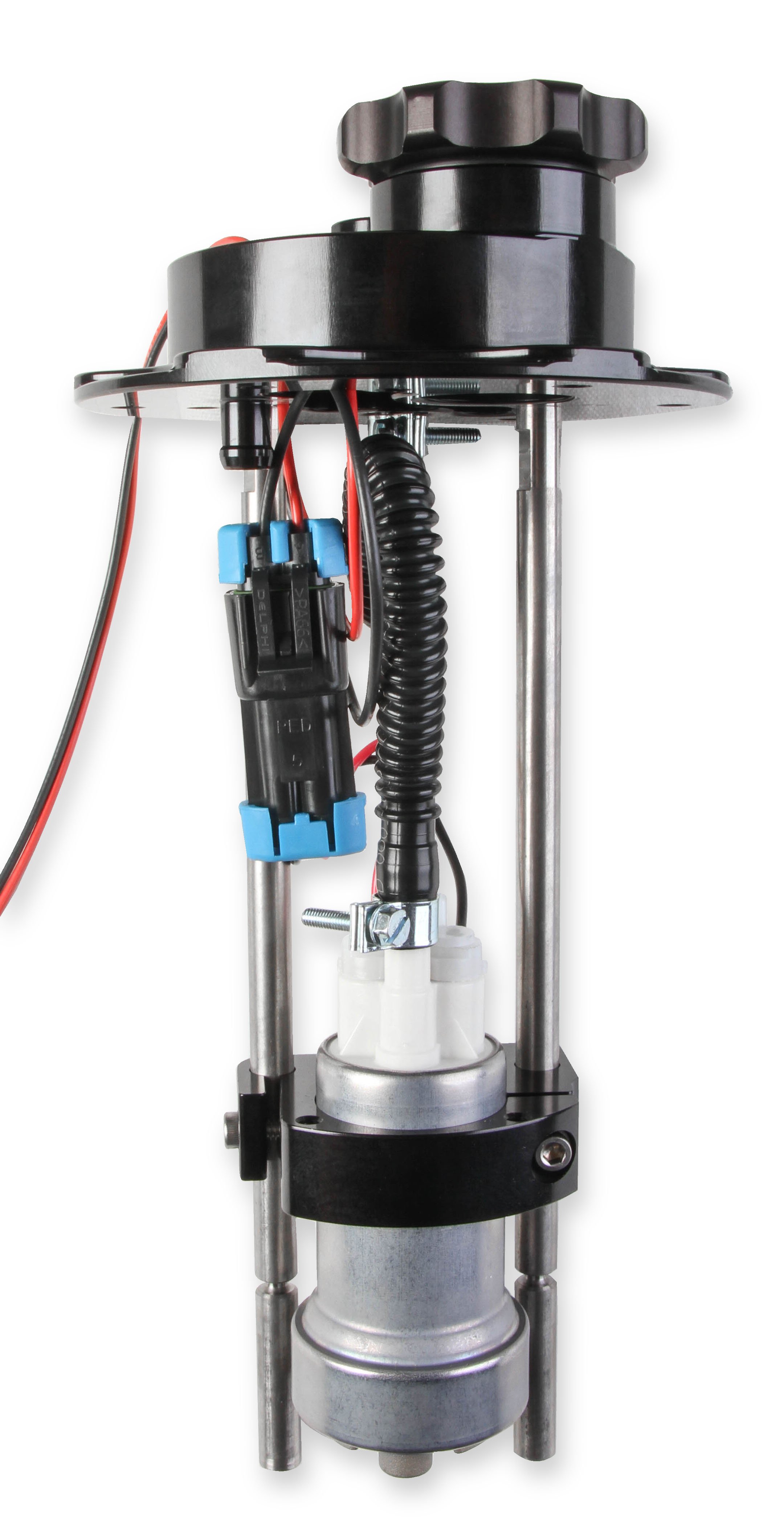

Updating your racing fuel system to EFI is so simple! Holley is excited to introduce our Holley Fuel Cell EFI Pump Modules. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The modules were designed to drop in as a direct replacement for your existing 6 bolt flange fuel cell cap assembly. The billet top flange includes an 8AN inlet port, a 10AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5 in. to 12 in. deep. The EFI modules are available with single 255 LPH and 450 LPH fuel pumps. The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line.***Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells.***Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)

  • Update your fuel cell to EFI the easy way!
  • Designed to drop right into your existing 6 bolt flange fuel cell

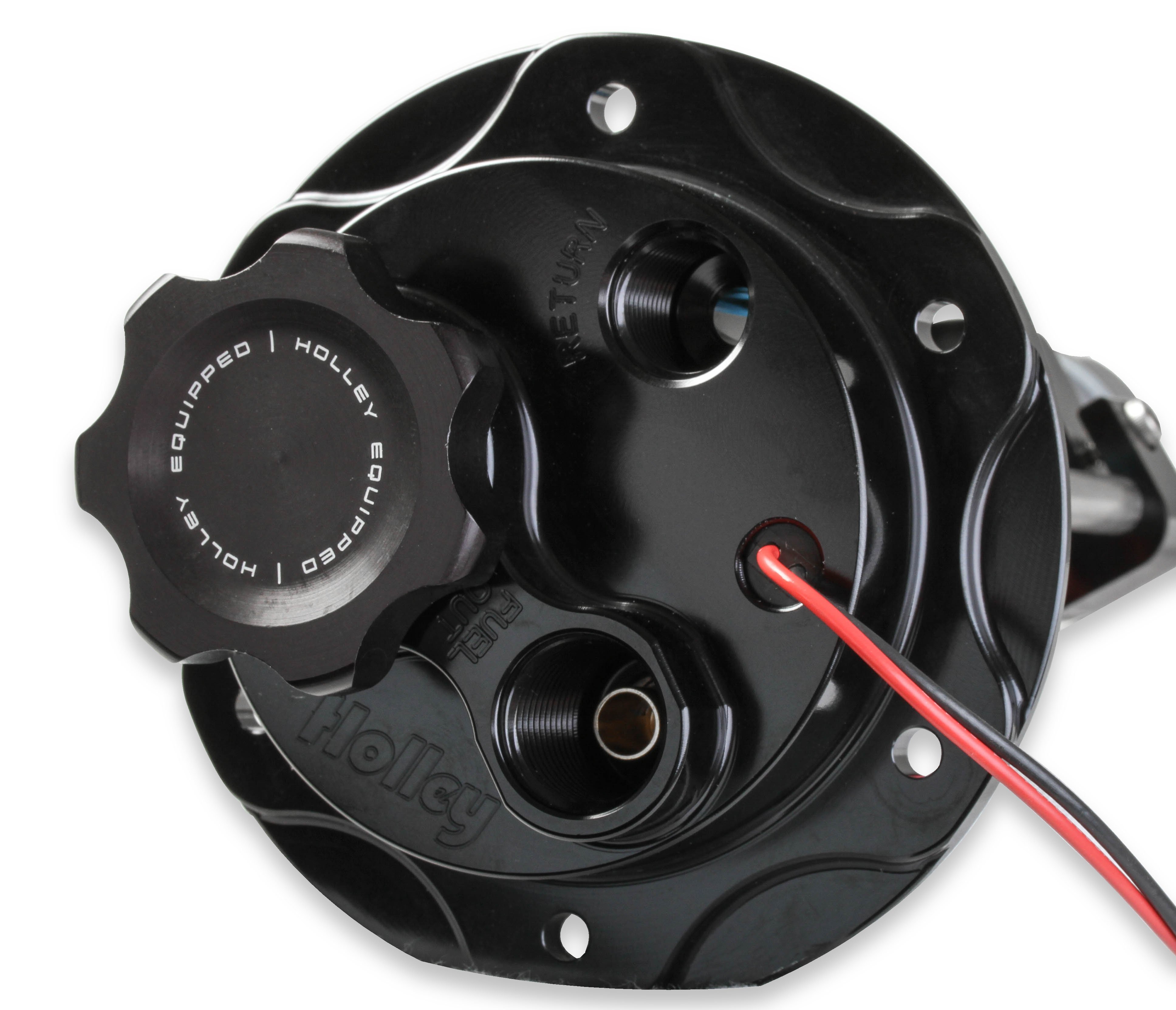

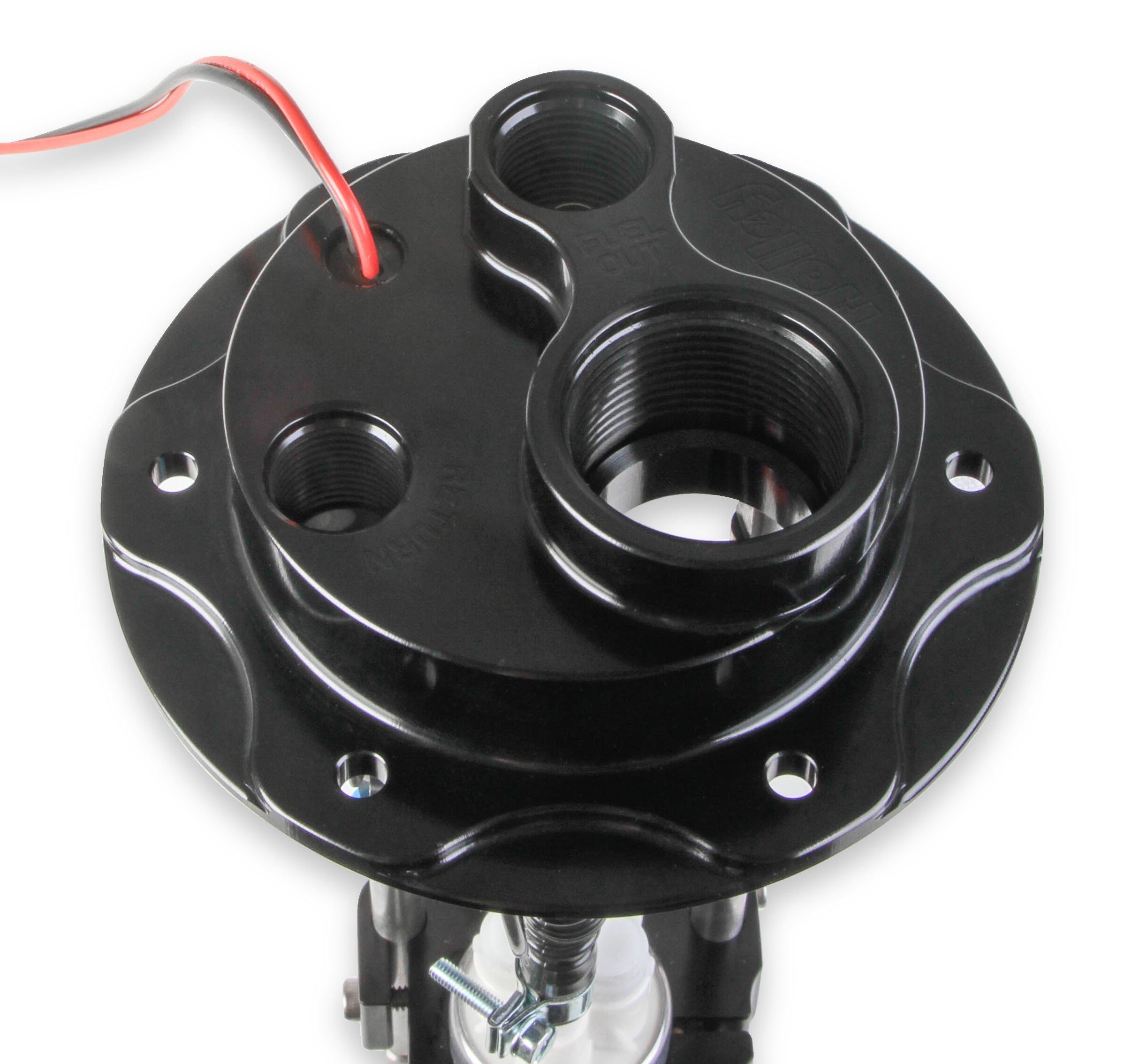

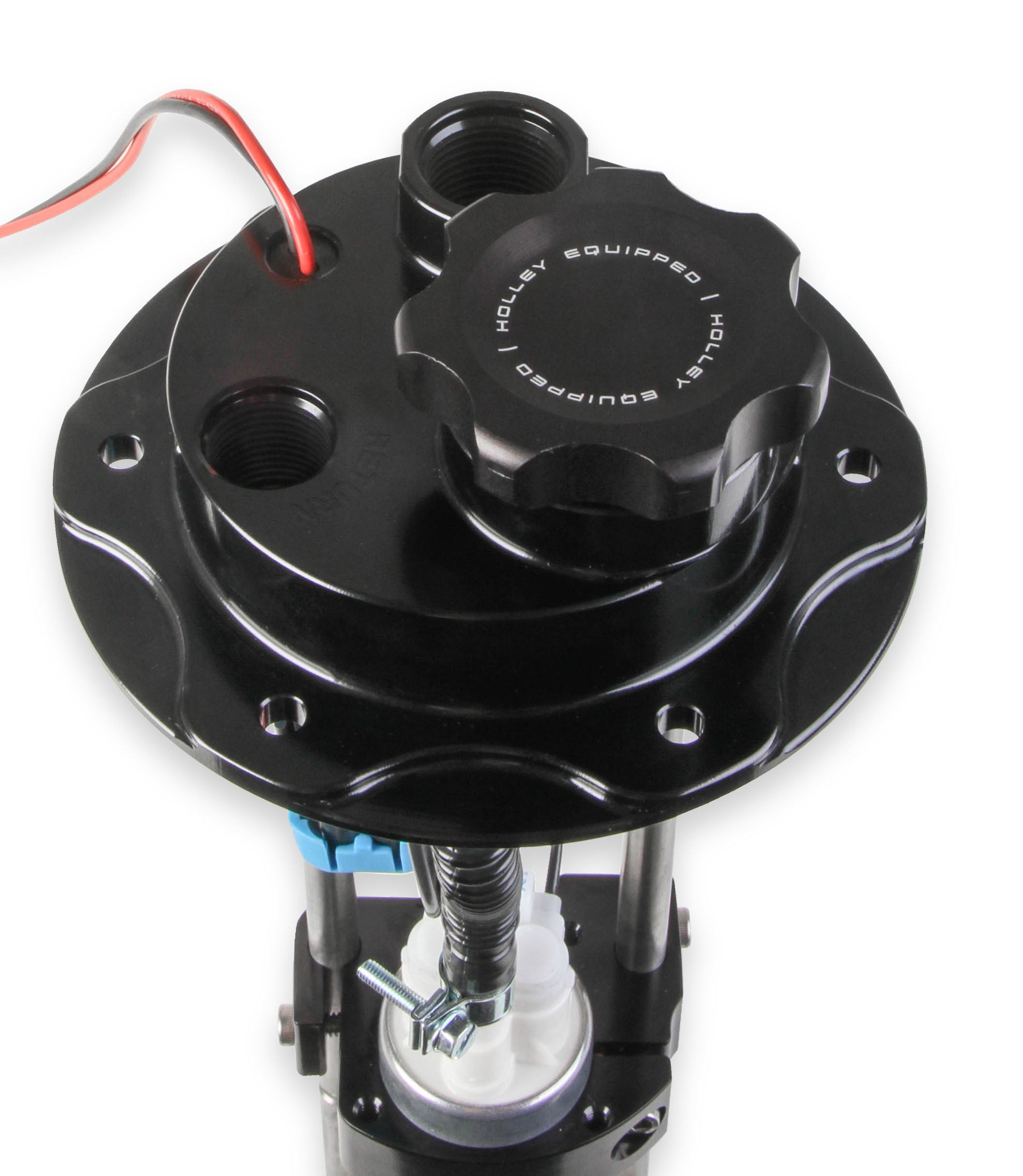

  • Billet top flange housing includes an 8AN inlet and 10AN outlet port and a fuel filler cap
  • Modules are available with 255 or 450 LPH fuel pumps in single pump configurations
  • The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5”-12” deep.
  • Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)

Application: Universal
Average Current Draw: 16.9 68
Average Flow Rating: 450 LPH
Brand: Holley
Category: Air and Fuel Delivery
Connector Color: Black
Connector Gender: Male
Connector Quantity: 1
Emission Code: 5
Flange Style: 6 Bolt
Free Flow GPH: 118
Free Flow LPH: 450
Fuel Filter Included: Yes
Fuel Sending Unit Included: No
Fuel Tank Pressure Sensor Included: No
Fuel Type: E85, Gasoline

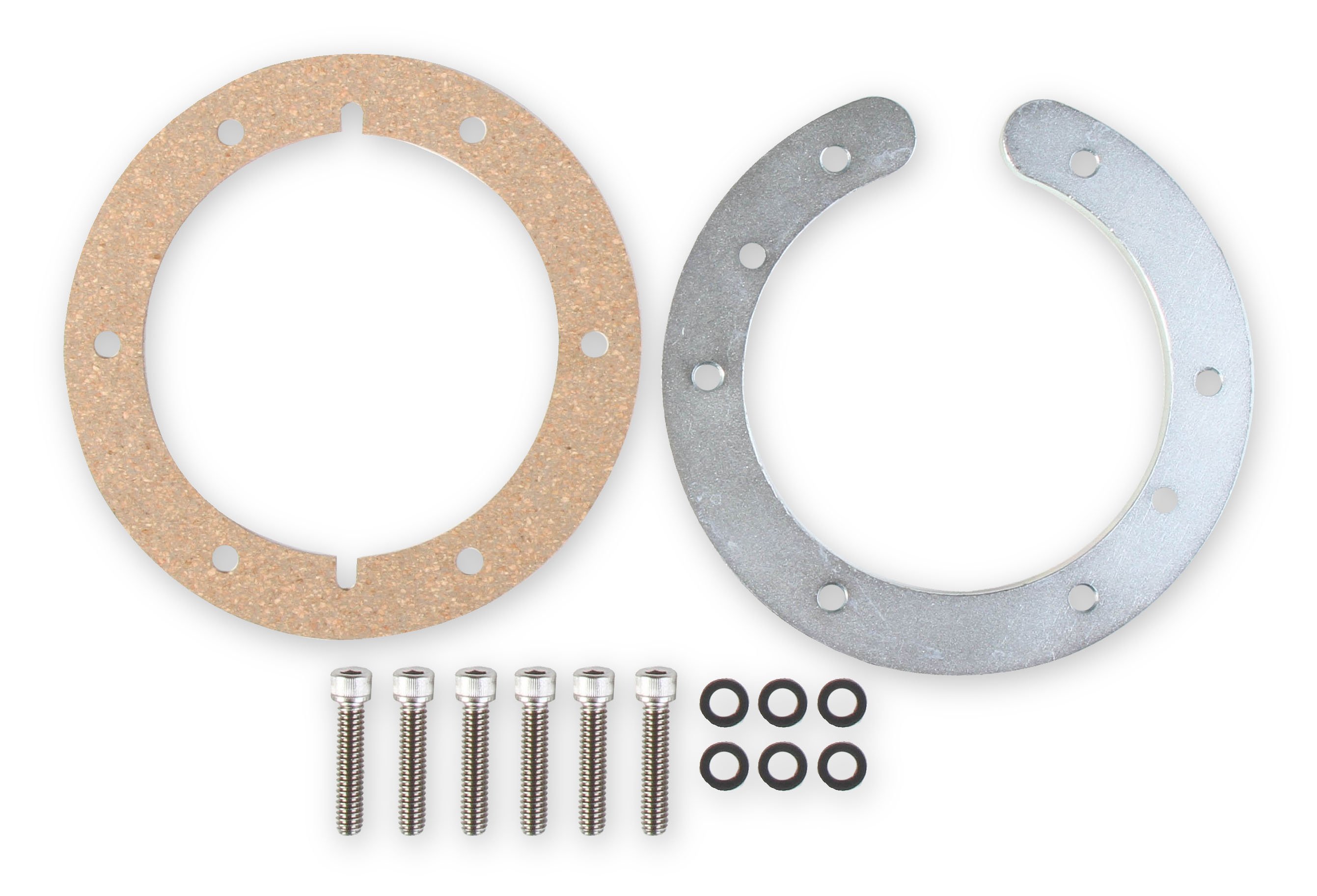

Gasket Or Seal Included: Yes
Gasket Or Seal Material: Cork
Grade Type: Performance
Height: Adjustable
Housing Material: Aluminum
In Tank or External: In Tank
Inlet Quantity: One
Inlet Size: 8 AN
Inlet Type: 8 AN ORB

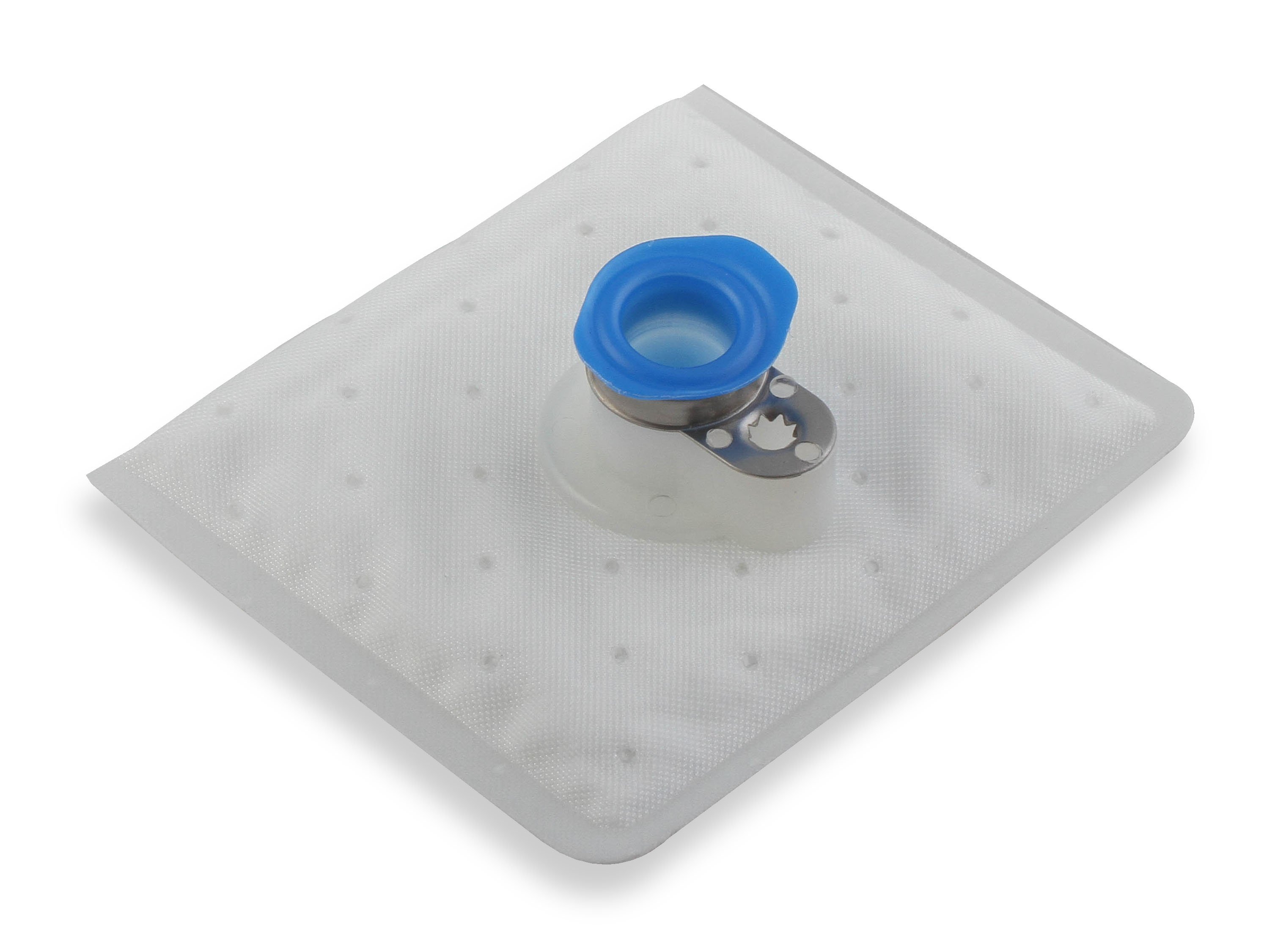

Internal Or External Strainer: External
Lock Ring Included: Yes
Max PSI: 87
Maximum Pressure: 60 PS
Mounting Hardware Included: Yes
Negative Ground: Yes
Outlet Quantity: One
Outlet Size: 10 AN
Outlet Type: 10 AN ORB
Product Type: Fuel Pump
Pump Type: Electric
Regulator Included: No
Single Or Dual Pump: Single
Universal Or Specific Fit: Universal
Voltage: 12 2H
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Harness Included: Yes
Wire Quantity: 2
