Hella - 998570001
HEADLAMP DE-ES A EB MG12 M60 1BL
Headlight Assembly

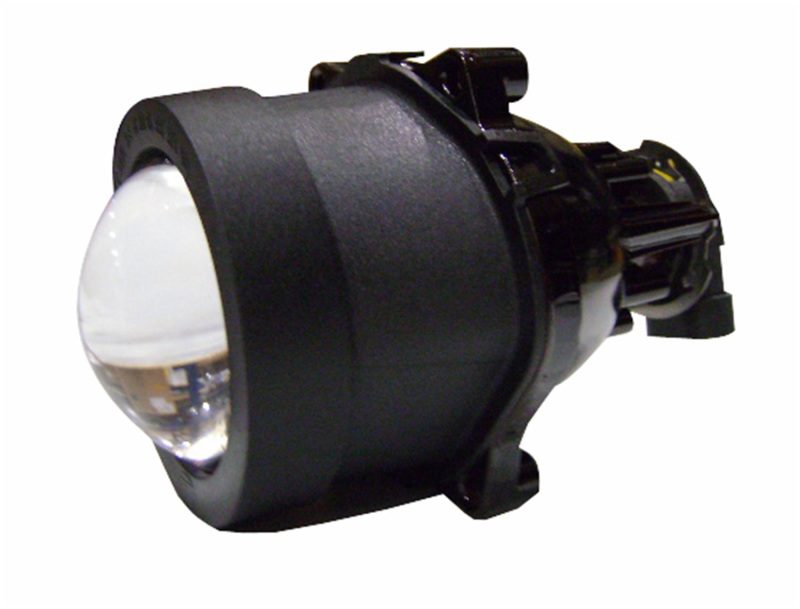

The Module 60 floodlights feature a compact design and excellent light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.
- 7443 Bulb
- High Performance In A Compact Design
- Exceptional Performance And Light Distribution
Street Legal: No
Bulb Color: Clear
Bulbs Included: Yes
Lens Color: Clear
Bulb Type: 9005/HB3
Mounting Hardware Included: Yes
Headlight Type: Bulb
Housing Color: Black
Bulb Technology: Halogen
Wattage: 65.0
Mounting Type: Fitting
Lamp Type: HB3
Light Design: DE
Voltage [V]: 24
Fitting Position: Left
Width [mm]: 103
Width [in]: 4.06
Height [in]: 3.50
Height [mm]: 89
Depth [mm]: 157
Depth [in]: 6.18
Light Function: with Low Beam
Number of light functions: 1
Registration Type: SAE approved
Test Mark: SAE
Plug Type: Blade Terminal
Left-hand/Right-hand Traffic: for right-hand traffic
Shape: Round
Housing Color: black
Illuminated Area [mm]: 60
Illuminated Area [in]: 2.36
Supplementary Article/Info 2: with Bulbs
Supplementary Article/Supplementary Info: with Bulb
Assy./disassy. by qualified personnel required!: .
