Hella 996661001 - Work Lamp Na 0Gr Md1224 Dt Ov100 1Ga

Hella 996661001 - Work Lamp Na 0Gr Md1224 Dt Ov100 1Ga

Hella | 996661001
SKU: HLA-996661001
Regular price $244.99 USD
Regular price $269.49 USD Sale price $244.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

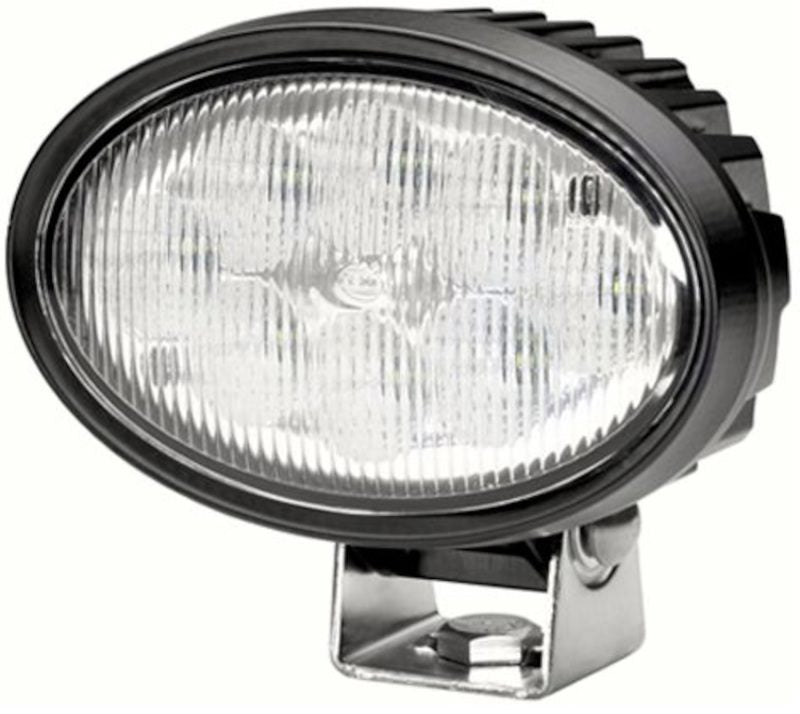

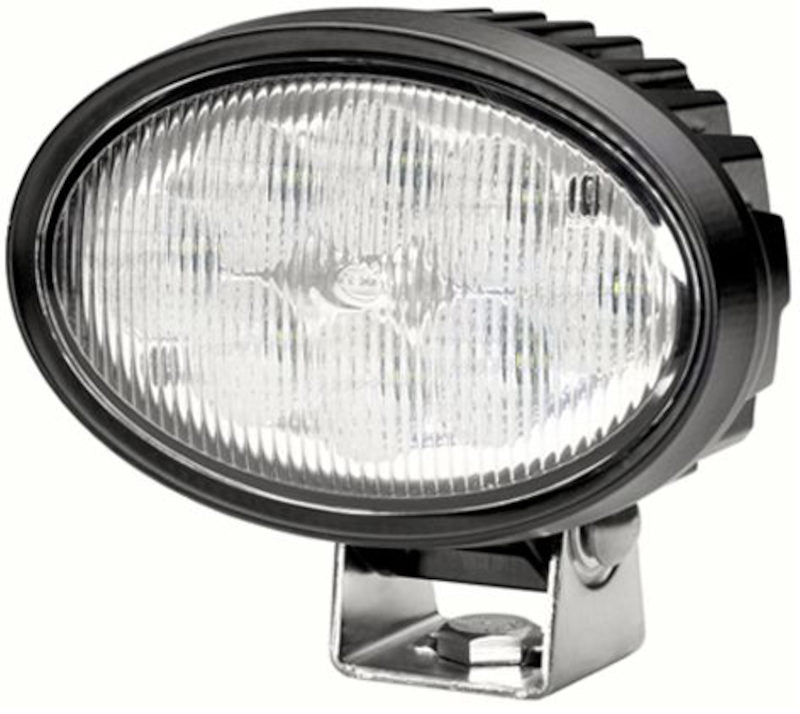

Hella 996661001 - Work Lamp Na 0Gr Md1224 Dt Ov100 1Ga

WORK LAMP NA 0GR MD12-24 DT OV100 1GA

Work Light

The Oval 100 LED worklight complements the modular series with the halogen and xenon variants with efficient LED technology. The spotlight can be operated with both 12 and 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 33 volts. Thanks to its powerful light output, the Oval 100 LED can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 25 watts. This makes the worklight ideal for use on vehicles with battery operation, and when the alternator is already heavily loaded. The light output is a powerful 1,700 lumens. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 100 LED can be mounted either upright (0deg) or suspended (180deg). With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and thus prevent rapid eye fatigue. The worklight's black housing is made of aluminium and has cooling fins to dissipate the heat from the 8 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited.

  • HELLA Lighting Series: Comprehensive line of affordable lighting for a multitude of vehicle applications.
  • Bright & Powerful: Delivers strong, focused light to illuminate work areas in low-light or nighttime conditions.
  • Durable Design: Constructed with tough materials to resist impacts, dust, and harsh weather for long-lasting performance.
  • Energy-Efficient: Provides consistent lighting with minimal power consumption, ensuring prolonged use.
  • Wide Application: Perfect for construction, outdoor work, or emergency situations where reliable lighting is essential.
Energy Consumption: 25W @ 13.5VDC
Diffusing Lens Type: Patterned Diffusing Lens
Bracket: SS Bracket
Mounting: Pedestal
Fastening Type: Swivelling Mounting Bracket

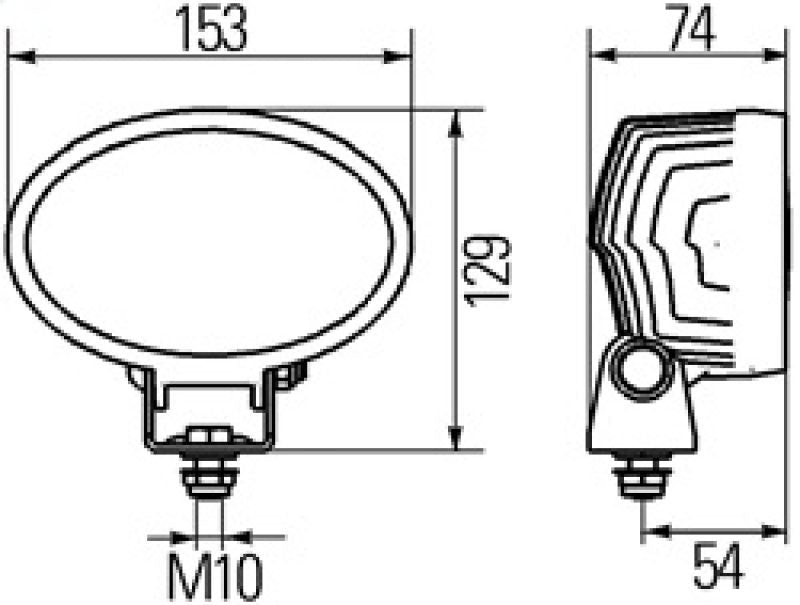

Depth [in]: 2.91
Height [in]: 5.08
Registration Type: ADR/GGVS Approved
Width [in]: 6.02
Test Mark: ADR / GGVS
Diffusing Lens Material: Plastic
IP Rating: IP6K7
Housing Type: Aluminium Housing
Housing material: Aluminum
Light Design: LED
Lamp Type: LED
Luminous Flux [lm]: 1900
Width [mm]: 153
ECE Regulation: R10
Plug Type: DEUTSCH Plug
Connector: DT Connector
Housing Color: Black
Color Temperature [K]: 6500
Height [mm]: 129
Voltage [VDC]: 12
Assy/Disassy by Qualified Personnel Required!: .
Lens Material: Nylon

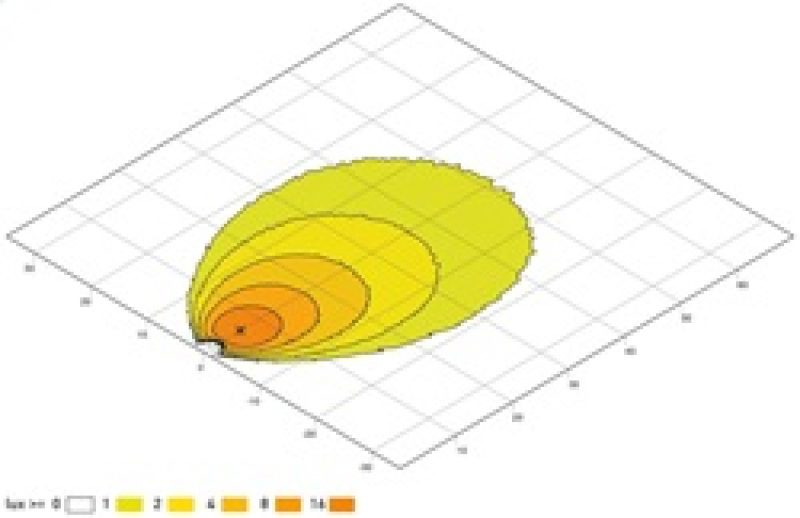

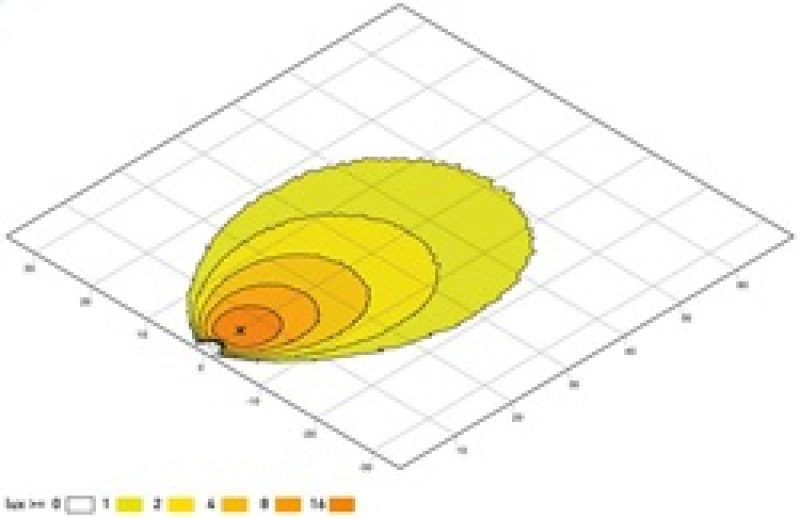

Light Distribution: Short Distance Lighting
Mounting Type: Mounting
Wattage [W]: 25
LED Quantity: 8
Luminous Efficacy [lm/W]: 72
Depth [mm]: 74
Power Source: Electric
Rechargeable: No
Weather Resistant: Yes
Light Emitting Diode Count: 8
Charger Included: No
Mounting Type: Bolt-On
Bulb Technology: LED
