Hella 996386001 - Work Lamp Na 0Gr Md1224 Dt Ov90 1Gb

Hella 996386001 - Work Lamp Na 0Gr Md1224 Dt Ov90 1Gb

Hella | 996386001
SKU: HLA-996386001
Regular price $247.99 USD
Regular price $272.79 USD Sale price $247.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Hella 996386001 - Work Lamp Na 0Gr Md1224 Dt Ov90 1Gb

WORK LAMP NA 0GR MD12-24 DT OV90 1GB

Work Light

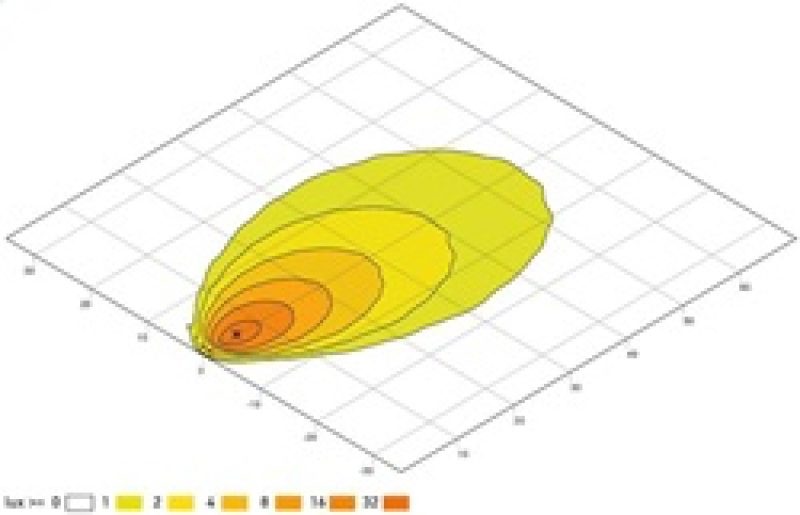

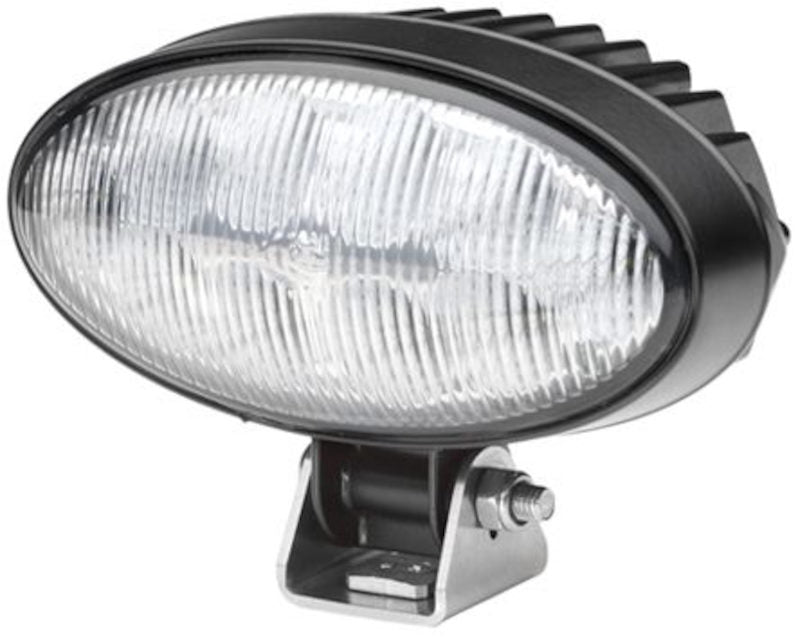

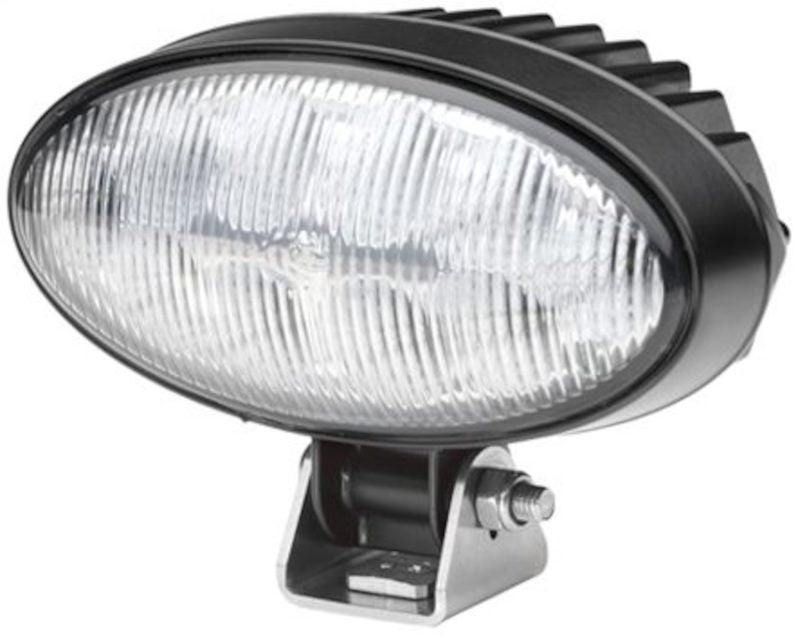

The Oval 90 from HELLA is a compact worklight with a modern, attractive design. The product range of the Oval 90 worklights includes halogen and xenon versions. The modular series is expanded with the Oval 90 LED to include efficient LED technology. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. Thanks to its powerful light output, the Oval 90 LED can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 28 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 90 LED can be mounted either upright (0deg) or suspended (180deg). The light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklights' black housing is made of aluminium and has cooling fins ensuring the necessary heat dissipation of the 10 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited. The integrated electronics are protected against reverse polarity and equipped with an LED fault bypass.

  • HELLA Lighting Series: Comprehensive line of affordable lighting for a multitude of vehicle applications.
  • Bright & Powerful: Delivers strong, focused light to illuminate work areas in low-light or nighttime conditions.
  • Durable Design: Constructed with tough materials to resist impacts, dust, and harsh weather for long-lasting performance.
  • Energy-Efficient: Provides consistent lighting with minimal power consumption, ensuring prolonged use.
  • Wide Application: Perfect for construction, outdoor work, or emergency situations where reliable lighting is essential.
Height [in]: 4.96
Housing Color: Black
Color Temperature [K]: 6500
Voltage [VDC]: 12
Electromagnetic Compatibility (EMC): ECE R10
Depth [in]: 4.13
Cable Length [in]: 7.87
Assy/Disassy by Qualified Personnel Required!: .
Light Distribution: Short Distance Lighting
Mounting Type: Mounting
Power Source: Electric
Rechargeable: No
Weather Resistant: Yes
Light Emitting Diode Count: 10
Power Cord Length: 7.87
Charger Included: No
Mounting Type: Bolt-On
Bulb Technology: LED
LED Quantity: 10
Wattage [W]: 28
Diffusing Lens Material: PC (Polycarbonate)
Width [mm]: 177
Height [mm]: 126
Diffusing Lens Type: Patterned Diffusing Lens
Fastening Type: Swivelling Mounting Bracket
Depth [mm]: 105
Registration Type: ADR/GGVS Approved
Test Mark: ADR / GGVS
Transportation Certification: ADR/GGVS
IP Rating: IP6K9K
Housing Type: Aluminium Housing
Housing material: Aluminum
Width [in]: 6.97
Light Design: LED
Lamp Type: LED
Cable Length [mm]: 200
Luminous Flux [lm]: 2000
ECE Regulation: R10
Plug: DEUTSCH
Plug Type: DEUTSCH Plug
