Hella - 933332051
HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.
Voltage [V]: 12
Temperature range from [°C]: -40
Temperature range from [°F]: -40.00
Temperature range to [°C]: 125
Temperature range to [°F]: 257.00
Inductive Load [A]: 15
Capacitive Load [A]: 5
Rated Current [A]: 40
Ohmic Load [A]: 40

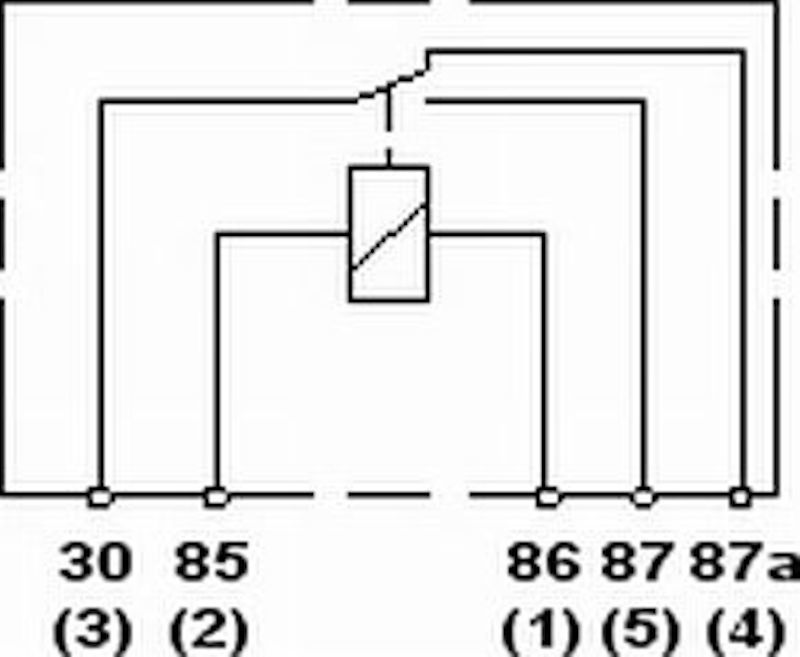

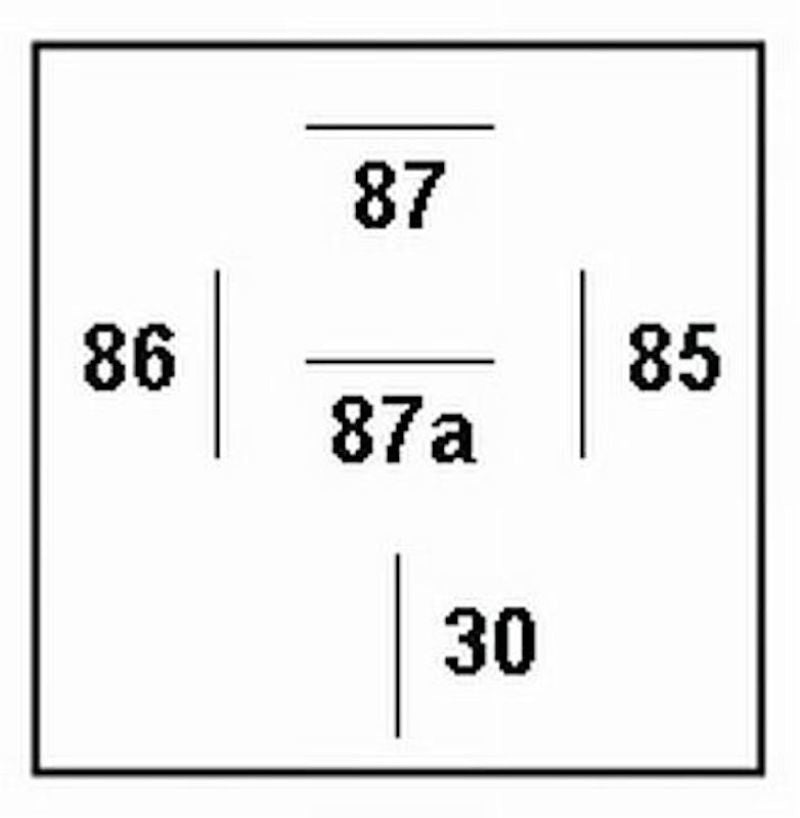

Number of pins: 5
Combi Switch Function: Changeover Contact
Assy./disassy. by qualified personnel required!: .
