Hella 016560101 - Rallye 4000 LED Driving Lamp Flood Beam 12/24V

Hella 016560101 - Rallye 4000 LED Driving Lamp Flood Beam 12/24V

Hella | 016560101
SKU: HLA-016560101
$319.92 USD
$351.91 USD $319.92 USD
Sale Sold out
Shipping calculated at checkout.

6 in stock

Hella 016560101 - Rallye 4000 LED Driving Lamp Flood Beam 12/24V

HELLA Auxiliary Light 016560101

Auxiliary Light

Auxiliary headlights from HELLA are not only technical highlights, but also outstanding design elements that give every off-road vehicle an individual look. Reason enough to provide the headlights with special protection when they are switched off in order to preserve their function and appearance in the long term. With the precisely fitting protective caps with HELLA logo, you kill two birds with one stone: when switched off, they protect the headlights from dirt and thus serve safety, because the light output can be better brought onto the track later.

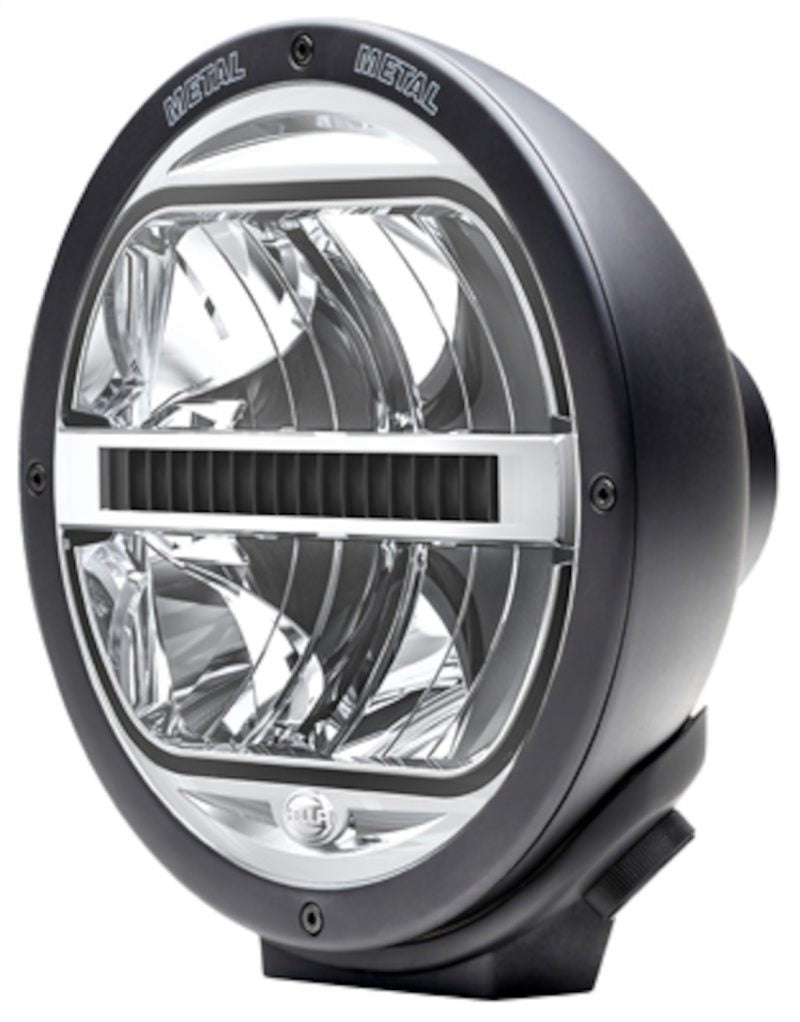

  • LED Auxiliary Driving Lamp Rallye 4000 LED with distinctive LED position light in hexagonal contour design.
  • Durable Construction: Built with rugged materials to withstand harsh weather and rough terrains.
  • Long-Lasting Performance: Engineered to endure prolonged use without compromising on brightness.
  • Versatile Application: Perfect for off-roading, towing, and any other demanding lighting needs.
  • Easy Mounting: Designed for simple installation on a variety of vehicles, including trucks and off-road vehicles.
Lens Material: PC
Overall Height [in]: 9.13
Fitting Depth [mm]: 90
LED Quantity: 3
Fastening Type: Swivelling Mounting Bracket
Depth [in]: 5.16
Number of light functions: 1
Luminous Flux [lm]: 1800
IP Rating: IPX9K/IP6K7
Diffusing Lens Type: Clear Diffusing Lens
Fitting Depth [in]: 3.54
Cable Length [in]: 15.75
Mounting: Upright
Light Function: with High Beam (LED)
Light Design: LED
Lamp Type: LED
ECE Regulation: R10
Supplementary Article/Supplementary Info: with LED
Lens Color: Crystal Clear
Connection: Wire Leads (800 mm - 31.5“)
Technology: LED Free-Form
Assy/Disassy by Qualified Personnel Required!: .
Mounting Bracket: Die-Cast Aluminum
Frame Color: Black
Housing Color: Black

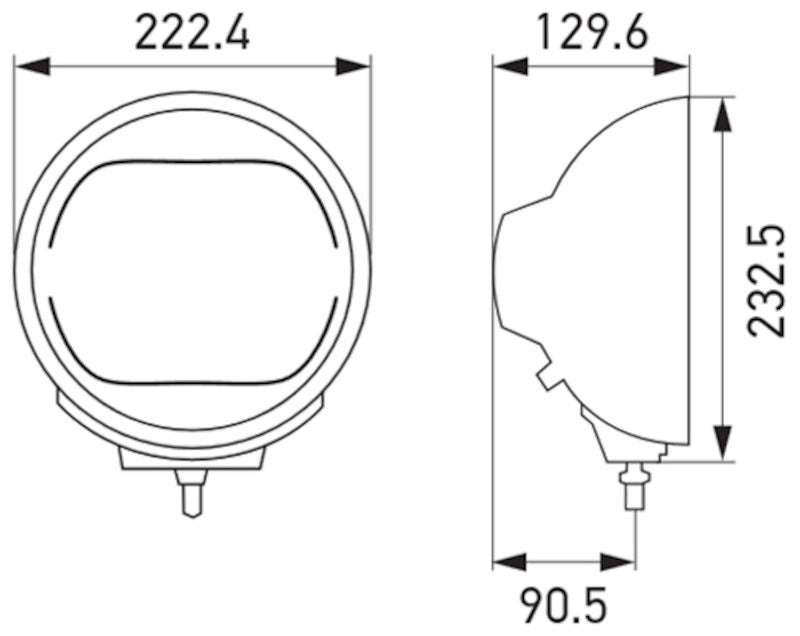

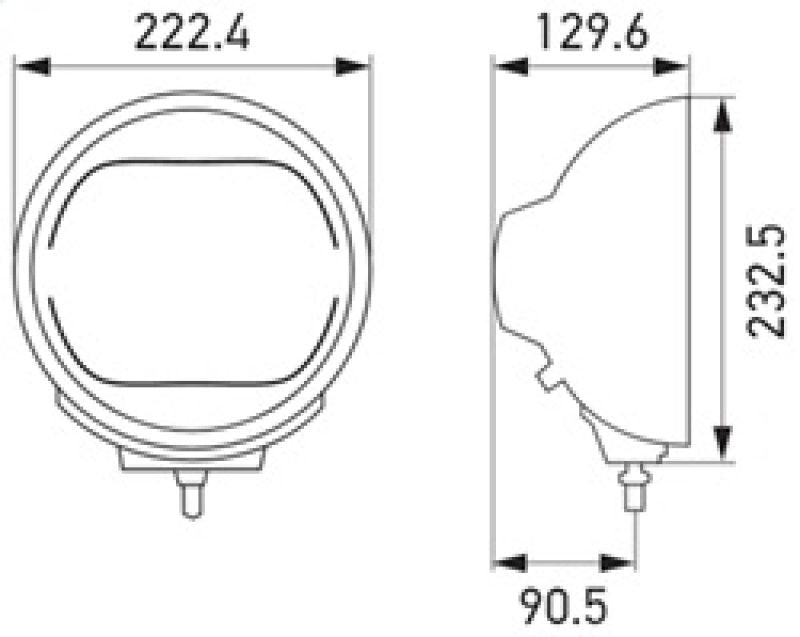

Width [mm]: 222
Height [mm]: 222
Light Temperature: 6500 K
Certification: ECE R112 (High Beam)
Test Mark: ECE-R10
Cable Length [mm]: 400
Overall Height [mm]: 232
Fitting Position: Right
Shape: Round
Voltage [VDC]: 24
Single Lamp Includes: (1) Lamp, Universal Mounting Hardware, Step-by-Step Mounting Instructions
Width [in]: 8.74
Height [in]: 8.74
Supplementary Article/Supplementary Info 2: without Cap
Housing Type: Metal Housing
Mounting Type: Mounting
Depth [mm]: 131
Water Resistance: Yes
Voltage: 12.00
Voltage: 24.00
Housing Shape: Round
Housing Finish: Powder Coated
Base Length: 222.00
Base Length: 8.74
Base Width: 222.00
Base Width: 8.74
Bulb Type: LED
Bracket Color: Black
Grade Type: Standard Replacement
Housing Color: Black
Bulb Technology: LED
Light Beam Pattern: Driving
Wattage: 30.00
