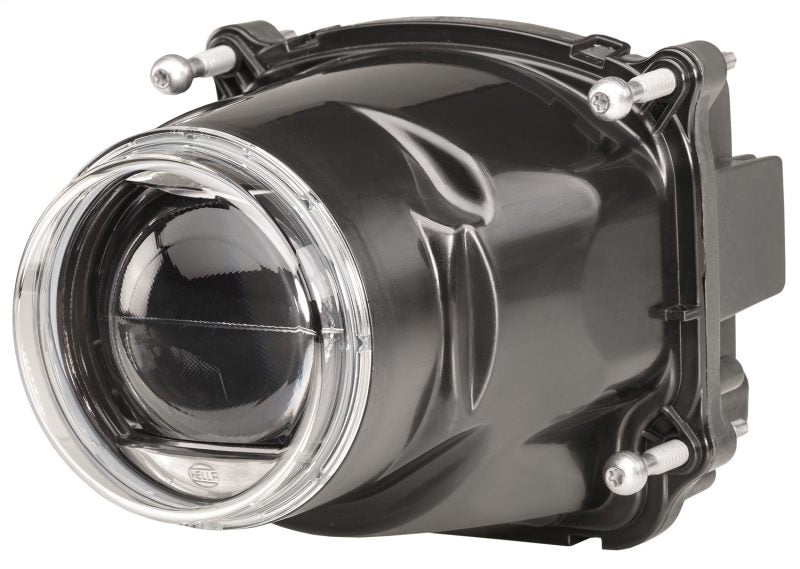

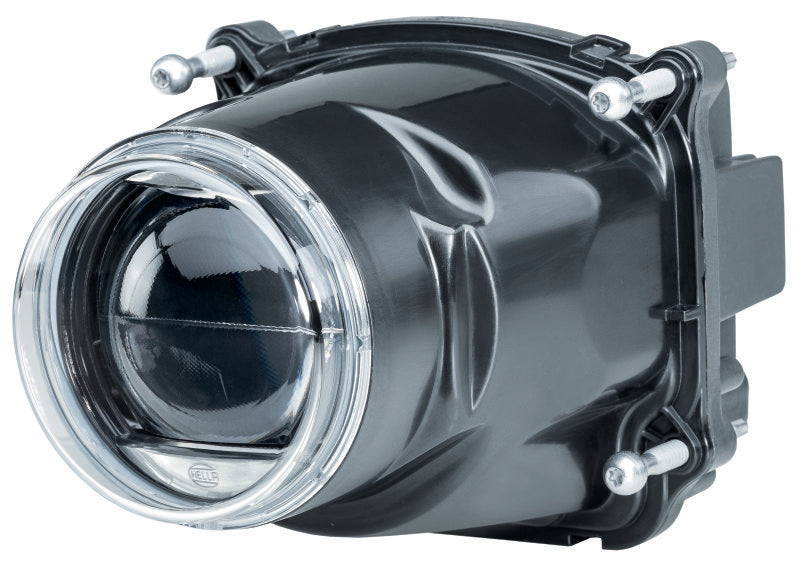

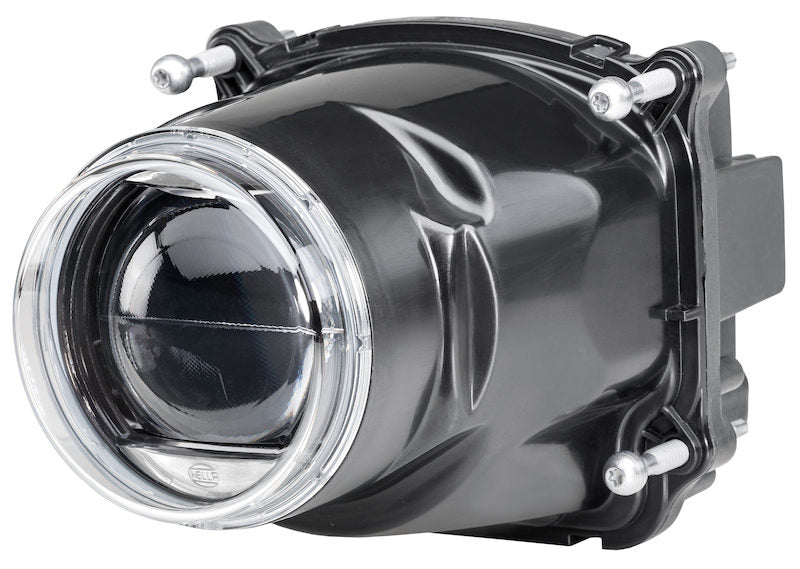

Hella 012758121 - 90mm Bi-LED High - Low Beam 2nd Gen (SAE) Module

Hella 012758121 - 90mm Bi-LED High - Low Beam 2nd Gen (SAE) Module

Hella | 012758121
SKU: HLA-012758121
Regular price $559.99 USD
Regular price $615.99 USD Sale price $559.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Hella 012758121 - 90mm Bi-LED High - Low Beam 2nd Gen (SAE) Module

HEADLAMP DE-US A/F MD12/24 1AL

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

  • Provides superior illumination for enhanced driving safety with optimized light distribution technology.
  • Ensures reliable performance in all weather conditions with durable materials designed for varied climates.
  • Enhances visibility in urban and rural settings with precision-engineered beam patterns for optimal light focus.
  • Offers universal compatibility, ensuring seamless integration with most modern vehicles for easy installation.
  • Facilitates hassle-free setup with user-friendly design, enabling straightforward installation and maintenance.
Quantity: 1.00
Light Function: with Low Beam (LED)
Lens Color: Crystal Clear
Height [in]: 4.80
Illuminated Area [in]: 4.80
Light Design: DE
Bulb Technology: LED - without Bulb
Plug Type: DEUTSCH Plug
Housing Color: Black
Test Mark: E1 4208
Electromagnetic Compatibility (EMC): ECE R112/R10
Fitting Position: Right
Shape: Round
Depth [in]: 7.05
Supplementary Article/Supplementary Info: without Bulb
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Width [mm]: 134.00
Low Beam Bulb Technology: LED
Lens Color: Clear
Bulb Type: LED
Terminal Type: Blade
Mounting Hardware Included: No
Grade Type: Standard Replacement
Headlight Type: Composite
Housing Color: Black
Bulbs Included: No
Bulb Material Color: White
Street Legal: Yes
Beam Type: High Beam Low Beam
Voltage: 12.00
Bulb Technology: LED
Ballast Included: No
Adjusting Screw Included: No
Automatic Leveling Included: No
Adaptive Headlight: No
Turn Signal Included: No
Adaptive High Beam: No
Daytime Running Light Included: No
Wattage: 35.00
Curve Lighting: No
LED Accent Included: No
Voltage [VDC]: 12.00
Length [mm]: 115.00
Assy/Disassy by Qualified Personnel Required!: .
Number of light functions: 2.00
Height [mm]: 122.00
Illuminated Area [mm]: 122.00
Depth [mm]: 179.00
Mounting Type: Fitting
Diameter [mm]: 90.00
Fastening Type: Four-Point Attachment
Width [in]: 5.28
Diameter [in]: 3.54
Lamp Type: LED
ECE Regulation: R10
