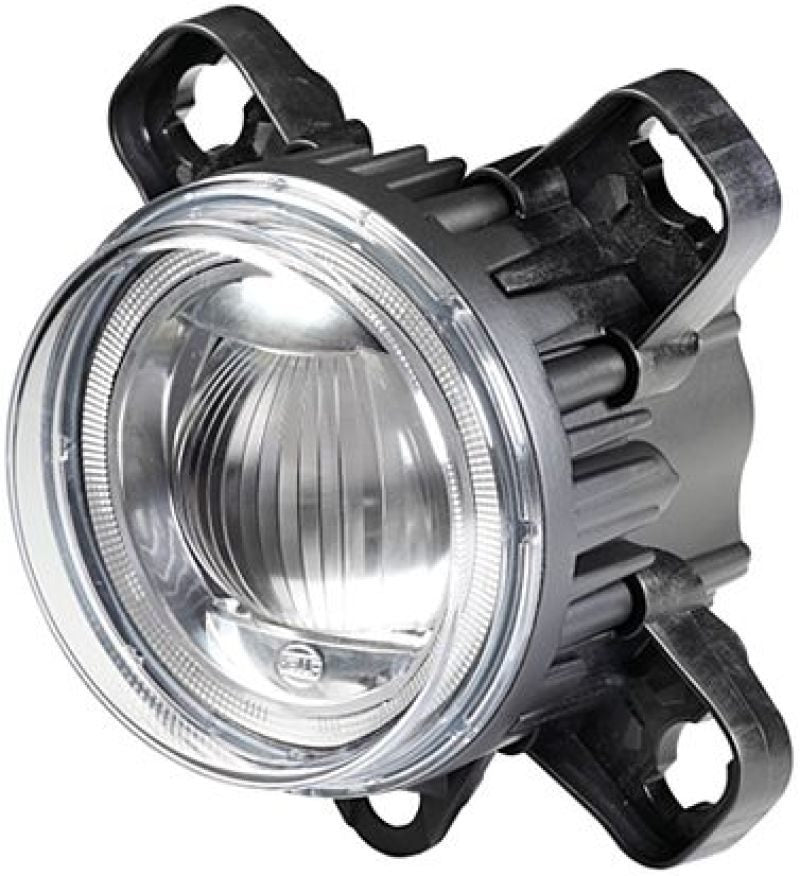

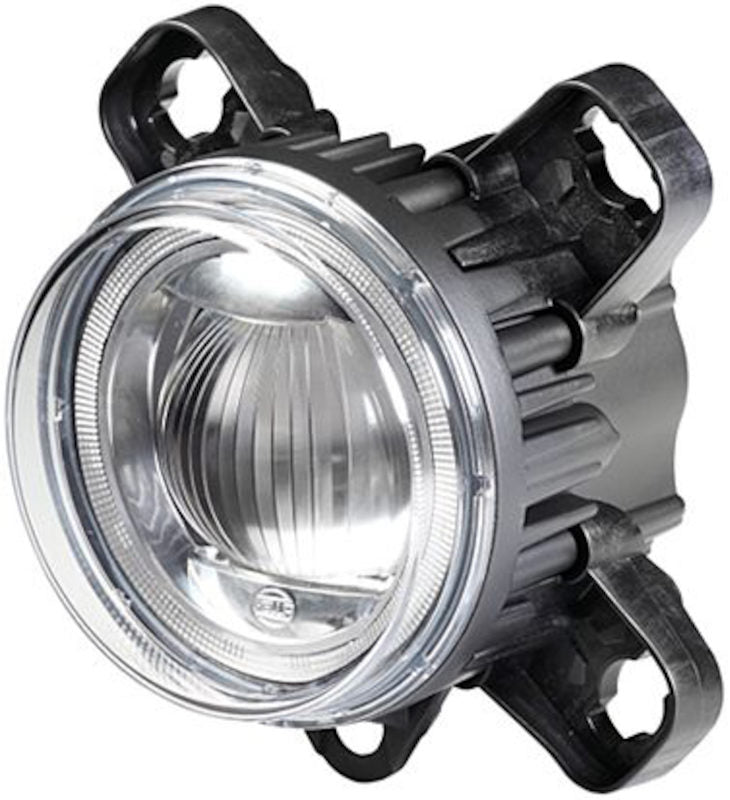

Hella 011988121 - 90mm L4060 LED High Beam / Driving Lamp Module

Hella 011988121 - 90mm L4060 LED High Beam / Driving Lamp Module

Hella | 011988121
SKU: HLA-011988121
Regular price $374.99 USD
Regular price $412.49 USD Sale price $374.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Hella 011988121 - 90mm L4060 LED High Beam / Driving Lamp Module

HEADLAMP DE-ZF MD12/24 1F0

Headlight

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

  • High-Intensity Illumination: Delivers powerful, focused light for enhanced visibility in low-light conditions.
  • Durable Construction: Built with rugged materials to withstand harsh weather and rough terrains.
  • Long-Lasting Performance: Engineered to endure prolonged use without compromising on brightness.
  • Easy Mounting: Designed for simple installation on a variety of vehicles, including trucks and off-road vehicles.
  • Versatile Application: Perfect for off-roading, towing, and any other demanding lighting needs.
Housing Color: Black
Bulb Technology: LED
Wattage: 20.00
SAE Regulation: SSB 674

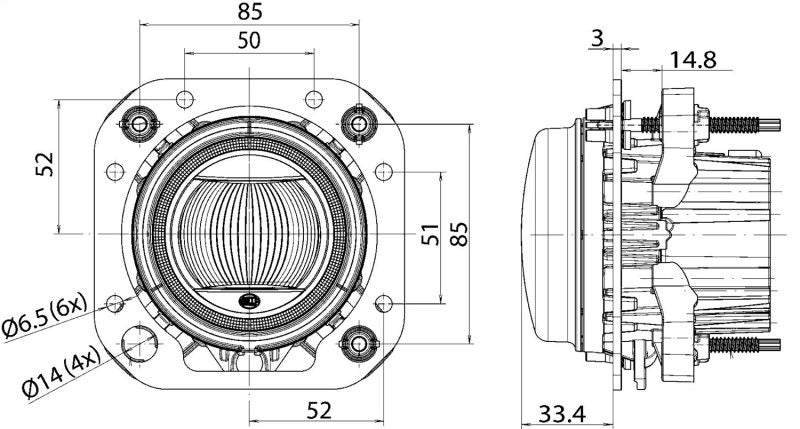

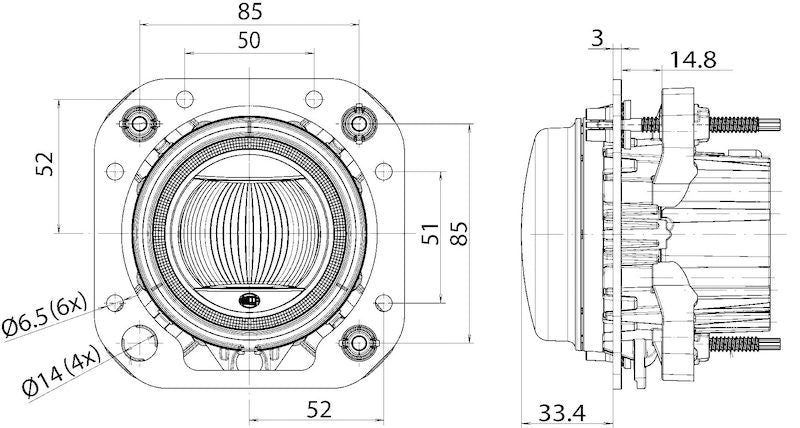

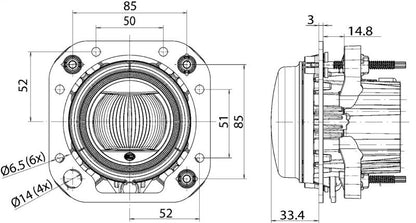

Fitting Depth [in]: 2.17
Width [mm]: 126
Overall Height [mm]: 126
Height [mm]: 91
Depth [mm]: 91
Voltage [VDC]: 12
Diffusing Lens Type: Clear Diffusing Lens
Depth [in]: 3.58
Height [in]: 3.58
Light Function: with High Beam (LED)
Light Design: LED
Lamp Type: LED
ECE Regulation: R10
Fitting Depth [mm]: 55
Supplementary Article/Supplementary Info: with LED
Lens Color: Crystal Clear
Number of light functions: 1
Fitting Position: Left
Assy/Disassy by Qualified Personnel Required!: .
Housing material: Die-Cast Aluminum with Integrated Electronics
Width [in]: 4.96
Overall Height [in]: 4.96
Housing Color: Black
Test Mark: E1 7079
Water Resistance: Yes
Voltage: 24.00
Housing Shape: Round
Housing Finish: Powder Coated
Base Length: 126.00
Base Length: 4.96
Housing Type: Metal Housing
Supplementary Article/Supplementary Info 2: without Carrier Frrame
Mounting Type: Screw Connection
Registration Type: SAE Approved
Shape: Round
Fastening Type: 3-Point Attachment
Base Width: 3.58
Base Width: 91.00
Bulb Type: LED
Bracket Color: Black
Grade Type: Standard Replacement
