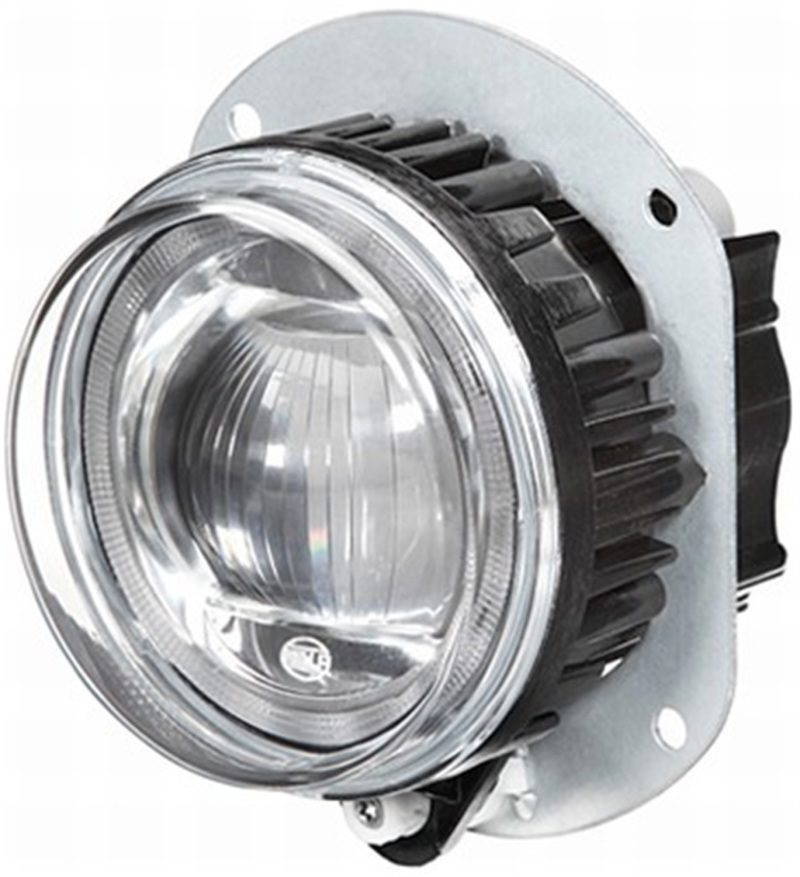

Hella 011988021 - 90mm LED L4060 High Beam Module

Hella 011988021 - 90mm LED L4060 High Beam Module

Hella | 011988021
SKU: HLA-011988021
Regular price $374.99 USD
Regular price $412.49 USD Sale price $374.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Hella 011988021 - 90mm LED L4060 High Beam Module

HEADLAMP DE-ZF MD12/24 1F0

Headlight

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

  • Provides superior illumination for enhanced driving safety with optimized light distribution technology.
  • Ensures reliable performance in all weather conditions with durable materials designed for varied climates.
  • Enhances visibility in urban and rural settings with precision-engineered beam patterns for optimal light focus.
  • Offers universal compatibility, ensuring seamless integration with most modern vehicles for easy installation.
  • Facilitates hassle-free setup with user-friendly design, enabling straightforward installation and maintenance.
Voltage [VDC]: 12.00
Supplementary Article/Supplementary Info 2: with Carrier Frame
SAE Regulation: SSB 674
Overall Height [mm]: 118.00
Assy/Disassy by Qualified Personnel Required!: .
Depth [mm]: 91.00
Base Width [mm]: 91.00
Height [mm]: 91.00
Water Resistance: Yes
Base Length [mm]: 96.00
Width [mm]: 96.00
Diffusing Lens Type: Clear Diffusing Lens
Fastening Type: Four-Point Attachment
Housing Finish: Powder Coated
Base Width [in]: 3.58
Height [in]: 3.58
Depth [in]: 3.58
Width [in]: 3.78
Base Length [in]: 3.78
Light Function: with High Beam (LED)
Light Design: LED
Lamp Type: LED
ECE Regulation: R112
Supplementary Article/Supplementary Info: with LED
Number of light functions: 1.00
Lens Color: Crystal Clear
Overall Height [in]: 4.65
Fitting Position: Left
Housing Color: Black
Bracket Color: Black
Fitting Depth [mm]: 36.00
Electromagnetic Compatibility (EMC): ECE R112/R149/R10
Test Mark: ECE-R10
Fitting Depth [in]: 1.42
Shape: Round
Housing Shape: Round
Registration Type: SAE Approved
Mounting Type: Screw Connection
Housing material: Metal
Housing Type: Metal Housing
Voltage: 12.00
Voltage: 24.00
Street Legal: Yes
Lens Color: Crystal Clear
Bulb Type: LED
Mounting Hardware Included: Yes
Shape: Round
Grade Type: Standard Replacement
Housing Color: Black
Bulb Technology: LED
Wattage: 20.00
