Hella - 007645021

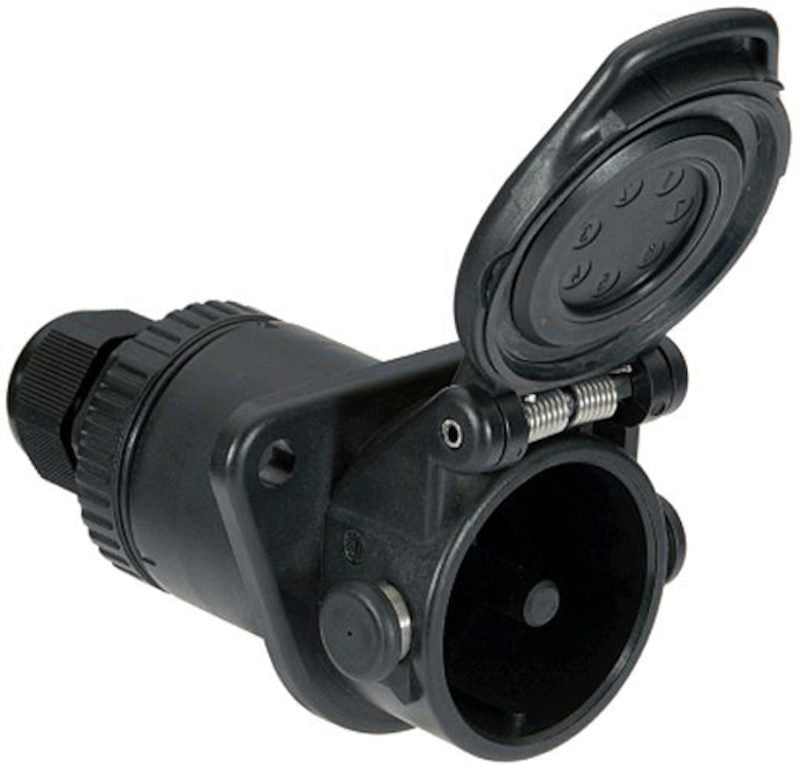

7-Pole Socket ABS
The robust, contact-safe plug-in connection with thread is suitable for both indoor and outdoor use. The demands on material and Function are very high for these products. This makes it all the more important to build on quality that you can really rely on: Just like the high quality of HELLA.
- OE quality
Voltage [V]: 24
Number of pins: 7
Capacity at 24V: 16A
DIN/ISO: 7638-1
Plug Type: Soldered Bush Contact
Protection Type (IP Code): IP 54
Color: black
Cross Section [mm²] from: 1.5
Cross Section [mm²] to: 6
Assy./disassy. by qualified personnel required!: .
Current Strength from [A]: 15
Current strength to [A]: 30
Temperature range from [°F]: -40.00
Temperature range from [°C]: -40
Temperature range to [°F]: 185.00
Temperature range to [°C]: +85
Cable Diameter from [in]: 0.35
Cable Diameter from [mm]: 9
Cable Diameter to [in]: 0.63
Cable Diameter to [mm]: 16
Braking/Drive Dynamics: for vehicles with ABS
Supplementary Article/Info 2: with protective cap/bellow
Quantity: 1
