Hella - 007424801

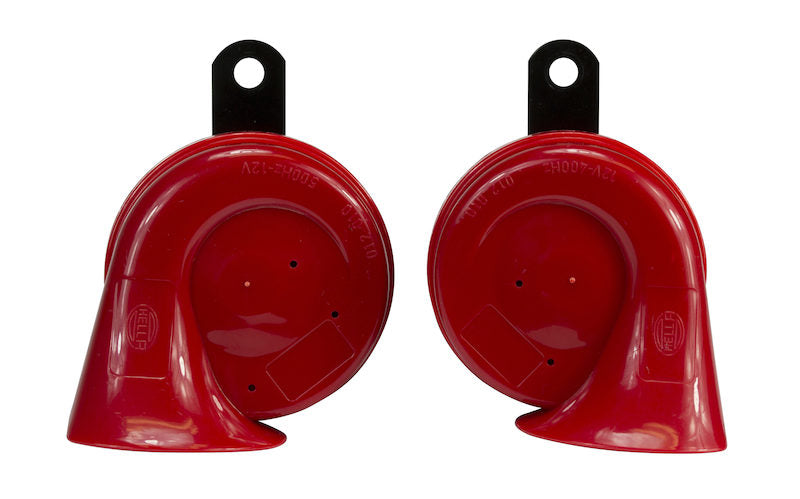

Trumpet Kit Low-Tone/High-Tone, 12 V, 400/500 Hz with Bracket
The HELLA TE24 Series Trumpet Horn epitomizes style and functionality, perfect for drivers who appreciate a sporty design and superior performance. This horn features a harmonious sound that spreads widely, ensuring your vehicle's presence is noticed. Built to original equipment quality standards, the TE24 Series reflects HELLA's status as a global leader in automotive components, offering reliability that you can trust. Whether navigating through city traffic or cruising on a highway, this horn combines an aesthetically pleasing look with a robust sound emission.
- With moisture protection
Frequency range from [Hz]: 400
Frequency range to [Hz]: 500
Power Consumption [W]: 72
Voltage [V]: 12
Width [mm]: 109
Depth [mm]: 80
Power consumption [A]: 6
Supplementary Article/Info 2: with E quality Seal
Fulfils ECE norm: R28
Supplementary Article/Supplementary Info: with Accessories
Registration Type: ECE approved
Signal: High Tone
Test Mark: ECE
Housing Color: red/black
Protection Type (IP Code): 6K9K
Temperature range from [°C]: -40
Overall Height [in]: 3.50
Temperature range to [°C]: 80
Width [in]: 4.29
Overall Height [mm]: 89
Operating Mode: Electric
Depth [in]: 3.15
Temperature range from [°F]: -40.00
Temperature range to [°F]: 176.00
Sound Level [dB(A)]: 110
Quantity: 2
Quantity Unit: Kit
Assy./disassy. by qualified personnel required!: .

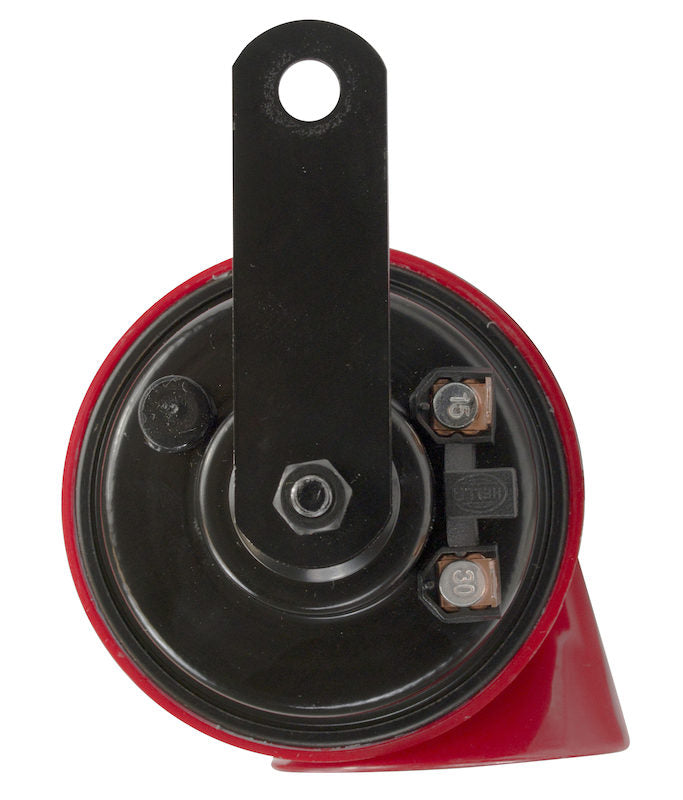

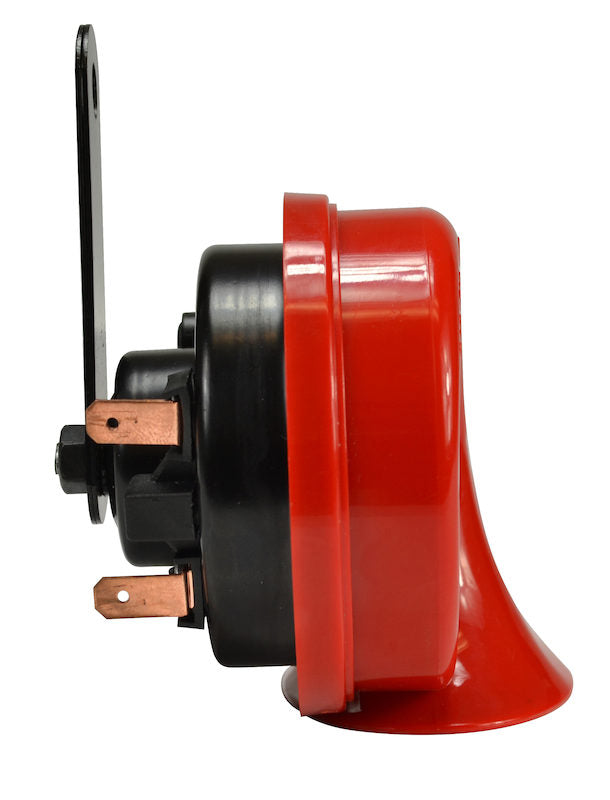

Mounting Type: With 6.3 mm Blade Terminal Contacts, Open
Protection: IP54

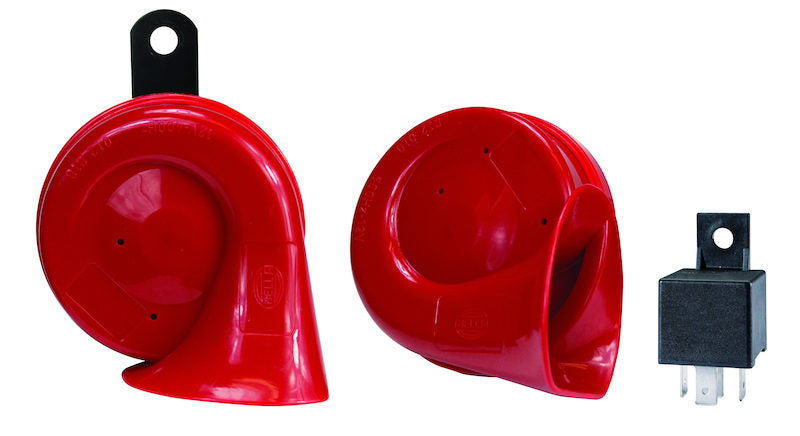

Set includes: (1) High-Tone Trumpet Horn and (1) Low-Tone Trumpet Horn, (1) Relay, Mounting Brackets, Step-by-Step Mounting Instructions
Bracket: M8 Mounting Screw
Homologation: ECE-R28
