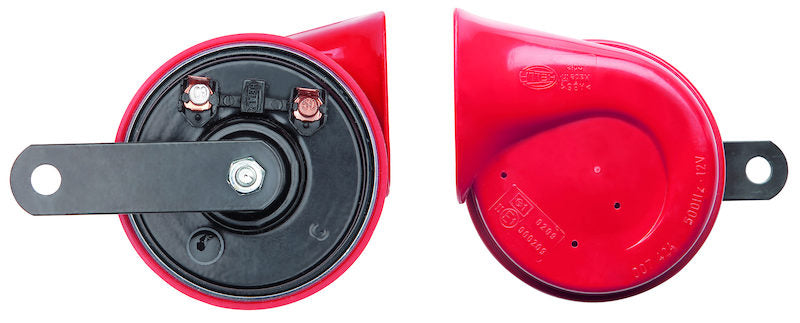

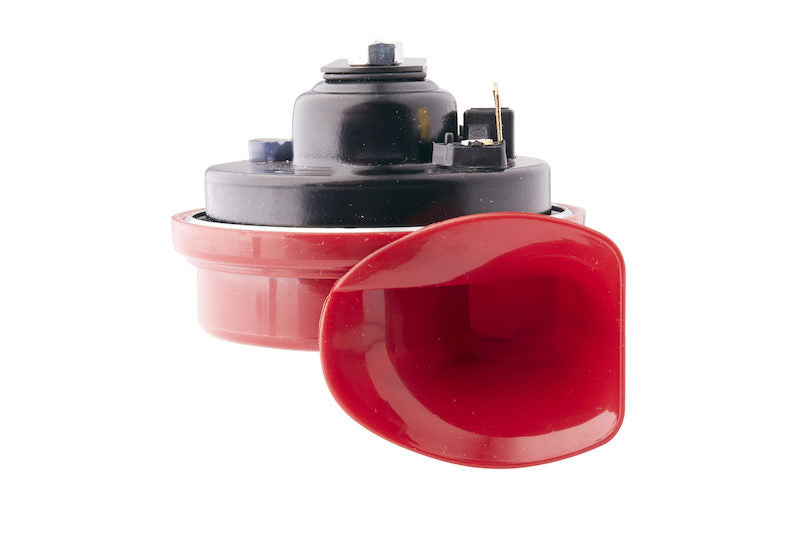

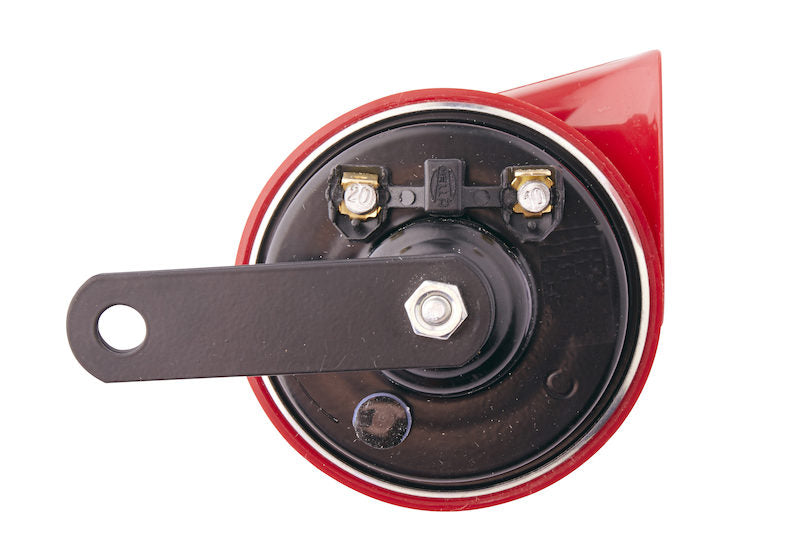

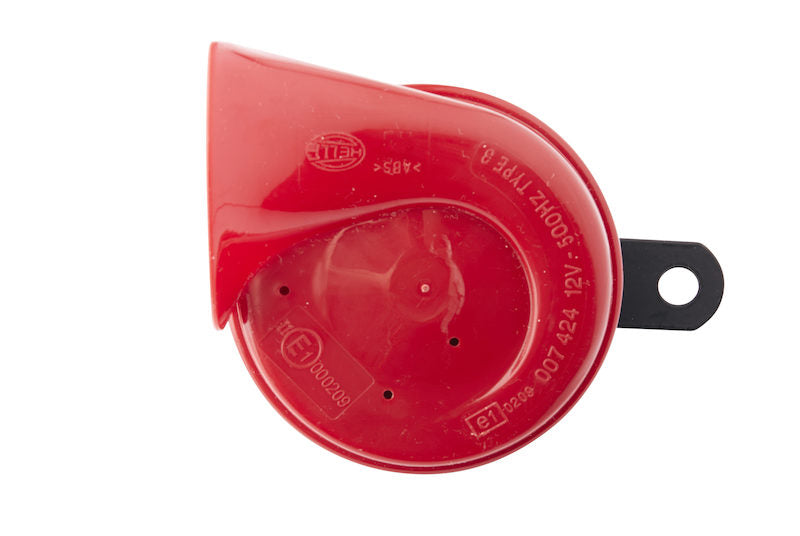

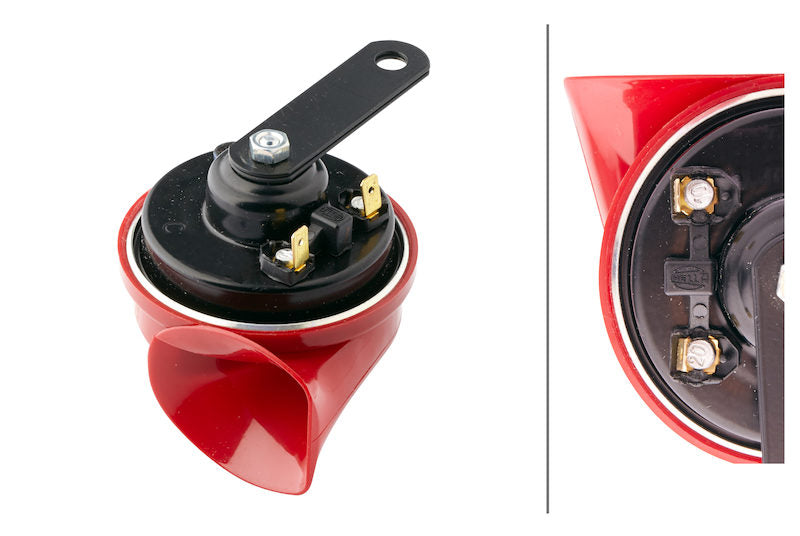

Hella 007424011 - Single Low-Tone Trumpet Horn 12V 400Hz

Hella 007424011 - Single Low-Tone Trumpet Horn 12V 400Hz

Hella | 007424011
SKU: HLA-007424011
Regular price $45.99 USD
Regular price $50.59 USD Sale price $45.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Hella 007424011 - Single Low-Tone Trumpet Horn 12V 400Hz

Trumpet High-Tone, 12 V, 500 Hz with Bracket

The HELLA TE24 Series Trumpet Horn epitomizes style and functionality, perfect for drivers who appreciate a sporty design and superior performance. This horn features a harmonious sound that spreads widely, ensuring your vehicle's presence is noticed. Built to original equipment quality standards, the TE24 Series reflects HELLA's status as a global leader in automotive components, offering reliability that you can trust. Whether navigating through city traffic or cruising on a highway, this horn combines an aesthetically pleasing look with a robust sound emission.

  • Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
  • Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
  • Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
  • Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
  • Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
Sound Level [dB(A)]: 110
Includes: (1) Low-Tone Trumpet Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Grade Type: Standard Replacement
Temperature range to [°F]: 176
Quantity: 1
Supplementary Article/Supplementary Info 2: with E Quality Seal
Assy/Disassy by Qualified Personnel Required!: .
Mounting Type: Flat Plug-in Connector
Width [mm]: 109
Depth [in]: 3.15
Overall Height [in]: 3.5
Frequency Range [Hz]: 500
Frequency range to [Hz]: 500
Power consumption [A]: 6
ECE Regulation: R28
Housing Color: Red / Black
Temperature range from [°C]: -40
Temperature range from [°F]: -40
Test Mark: ECE
Registration Type: ECE Approved
Voltage [VDC]: 12
Homologation: ECE-R28
Operating Mode: Electric
IP Rating: 6K9K
Bracket: M8 Mounting Screw
Width [in]: 4.29
Depth [mm]: 80
Temperature range to [°C]: 80
Overall Height [mm]: 89
Signal: High Tone
Wattage [W]: 72
Mounting Bracket Included: Yes
Terminal Quantity: 2
Mount Type: Bracket Mounting
Connector Quantity: 1
Mounting Hardware Included: Yes

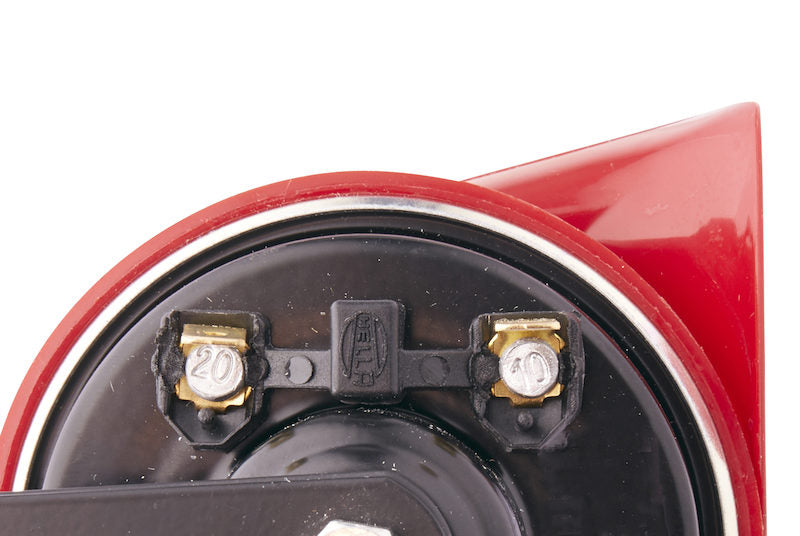

Terminal Type: Blade
Decibel Rating: 110.00
Color: Red / Black
Voltage: 12.00
