Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)

Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)

Hella | 002768431
SKU: HLA-002768431
Regular price $49.99 USD
Regular price $54.99 USD Sale price $49.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

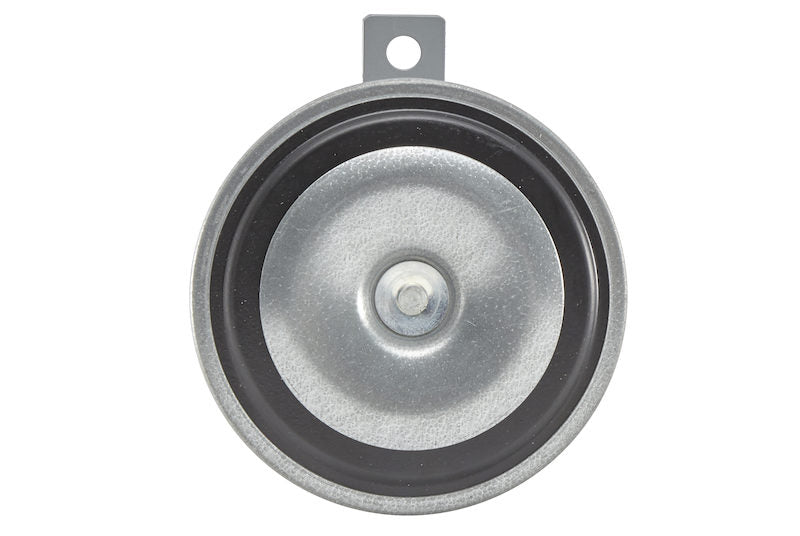

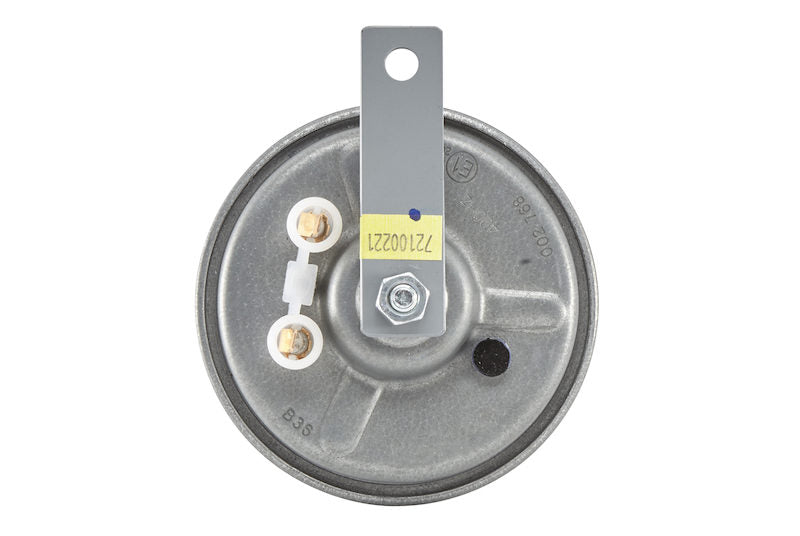

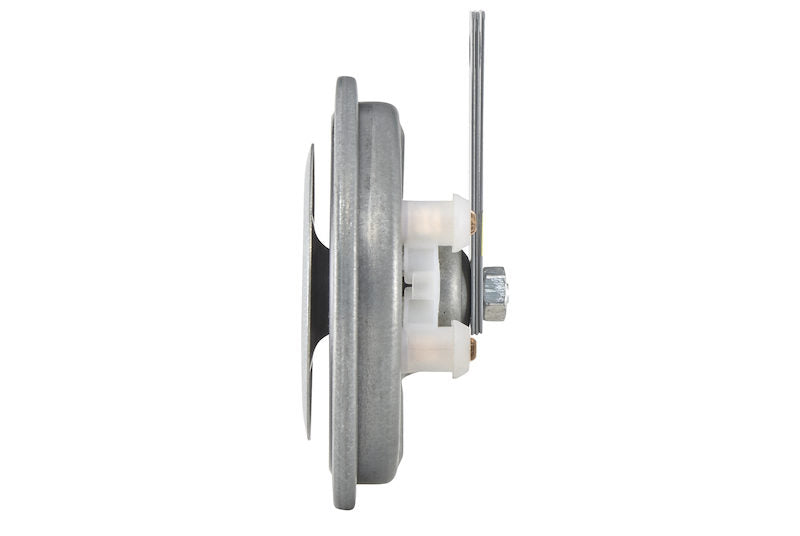

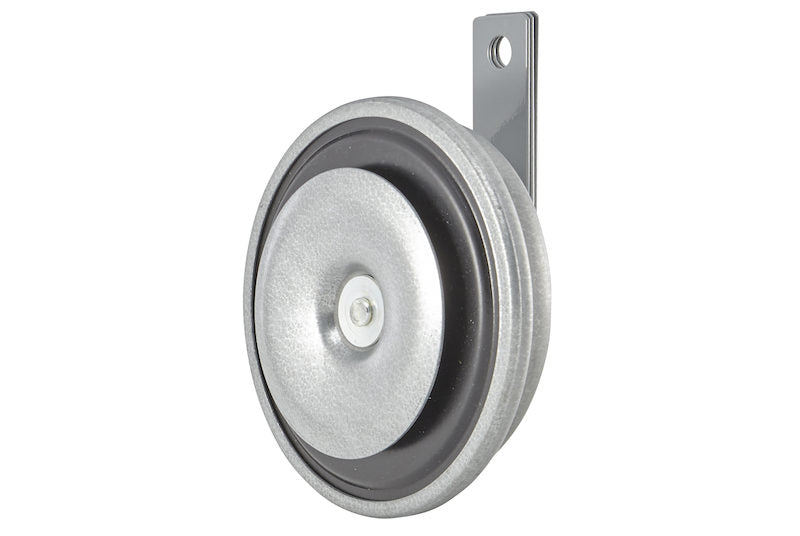

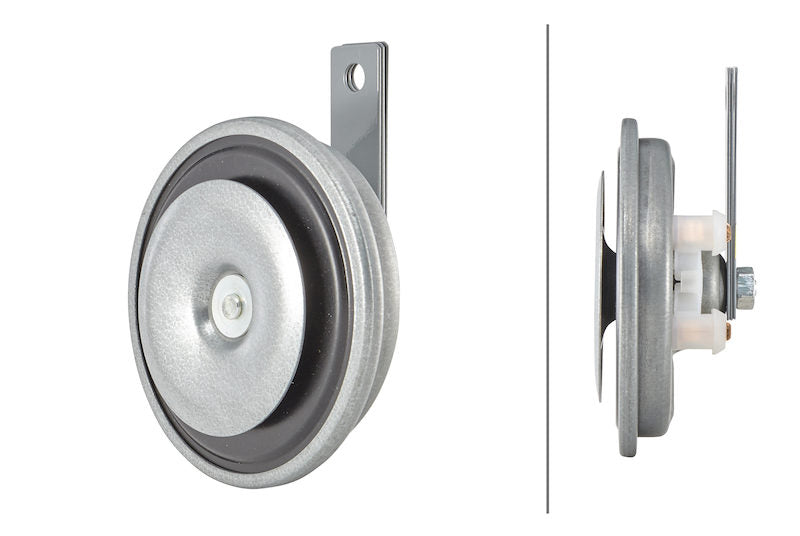

Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)

HORN 24V 400HZ B36 3BA

The HELLA B36 Series Disc Horn is engineered for durability and performance, providing a reliable safety feature for any vehicle. These disc horns are galvanized to resist corrosion and built to last, with a sound frequency of 335 Hz (Low-Tone), or 400 Hz (High-Tone), ensuring precise and robust auditory signals in all driving conditions. The sleek, compact design allows for versatile installation options, making it an excellent choice for drivers who need a powerful horn without compromising space. Whether navigating busy city streets or rural roads, the HELLA B36 Series enhances your vehicle's audible presence, ensuring you are heard when it matters most. These horns guarantee your highest safety and the attention needed in critical situations. HELLA horns guarantee the best functionality, optimum fit, and long-lasting customer satisfaction.

  • Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
  • Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
  • Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
  • Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
  • Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
Diameter [cm]: 11.2
Grade Type: Standard Replacement
Depth [in]: 2.09
Supplementary Article/Supplementary Info 2: with E Quality Seal
Quantity: 1
Assy/Disassy by Qualified Personnel Required!: .
Mounting Type: Flat Plug-in Connector
Power consumption [A]: 3
IP Rating: X4K
Temperature range to [°F]: 140
Overall Height [in]: 5.08
Sound Level [dB(A)]: 105
Measurements [cm]: 5.3 x 12.9
Temperature range to [°C]: 60
Depth [mm]: 53
ECE Regulation: R28
Temperature range from [°F]: -40
Temperature range from [°C]: -40
Housing Color: Black / Gray
Overall Height [mm]: 129
Test Mark: ECE
Registration Type: ECE Approved
Frequency Range [Hz]: 400
Frequency range to [Hz]: 400
Homologation: ECE-R28
Operating Mode: Electric
Bracket: M10 Mounting Screw
Voltage [VDC]: 24
Diameter [mm]: 112
Single Includes: (1) High-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Diameter [in]: 4.41
Signal: High Tone
Wattage [W]: 72
Voltage: 24.00
Color: Black / Gray
Decibel Rating: 105.00
Terminal Type: Blade
Mounting Hardware Included: Yes
Connector Quantity: 1
Mount Type: Bracket Mounting
Terminal Quantity: 2
Mounting Bracket Included: Yes
