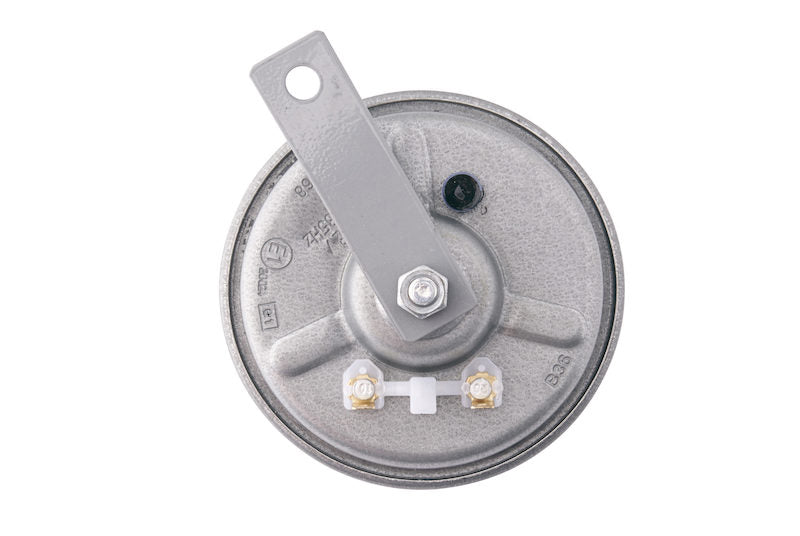

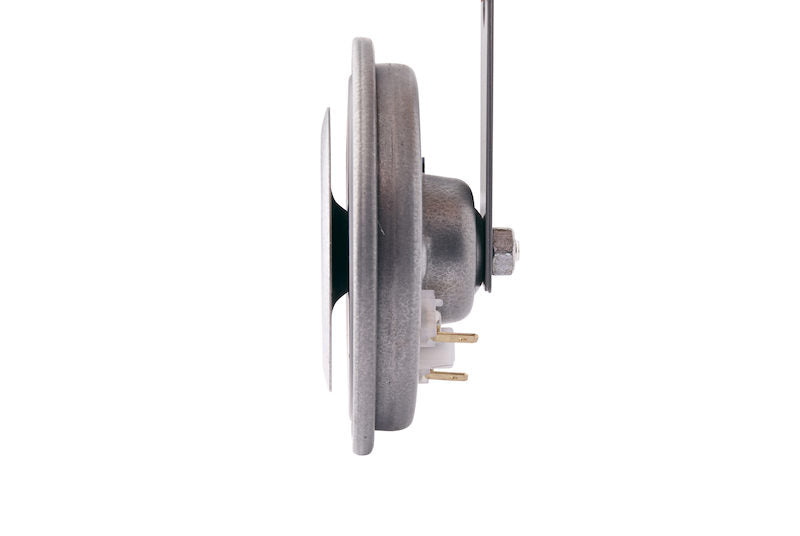

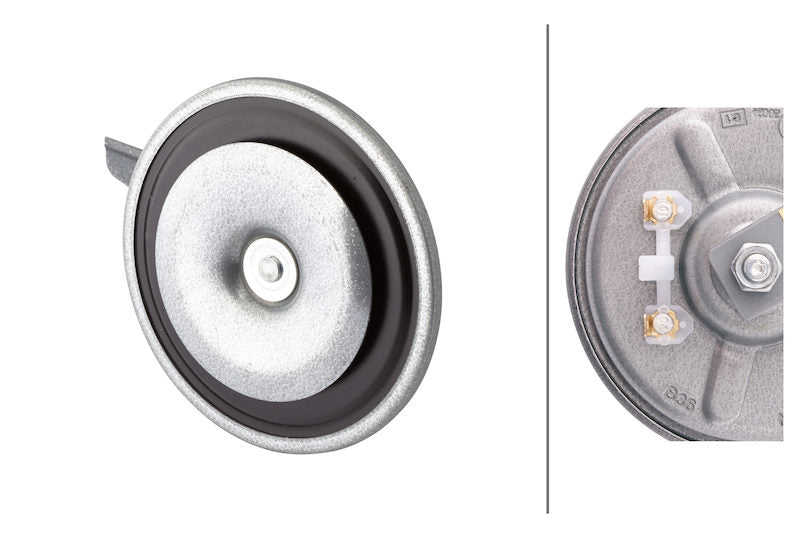

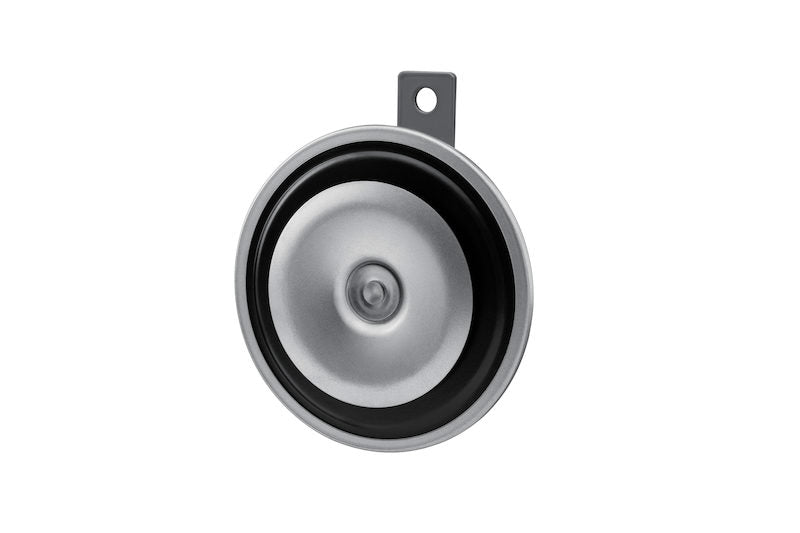

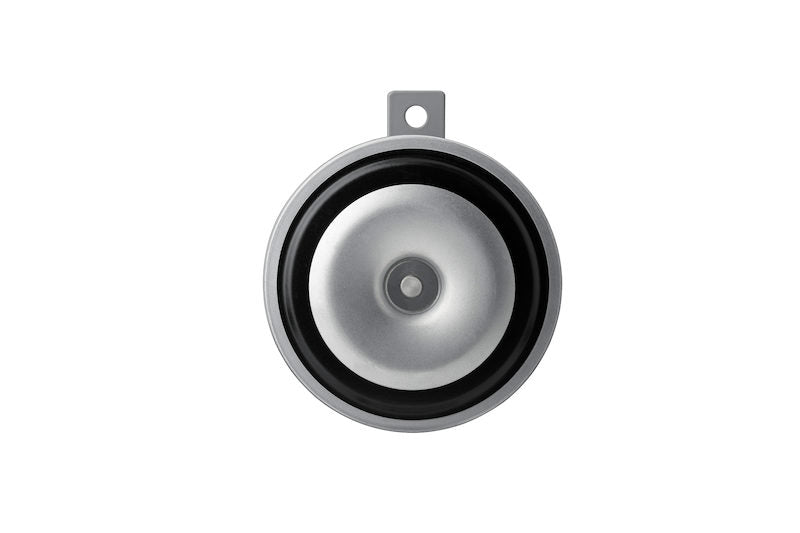

Hella 002768082 - Disc Type Low-Tone, 12 V, 335 Hz with Bracket

Hella 002768082 - Disc Type Low-Tone, 12 V, 335 Hz with Bracket

Hella | 002768082
SKU: HLA-002768082
Regular price $31.99 USD
Regular price $35.19 USD Sale price $31.99 USD
Sale Sold out
Shipping calculated at checkout.

5 in stock

Quantity

Hella 002768082 - Disc Type Low-Tone, 12 V, 335 Hz with Bracket

Disc Type Low-Tone, 12 V, 335 Hz with Bracket

Make your presence known with the HELLA Horn. Designed for loud, clear sound output, it ensures you’re heard in any situation for added safety. Built tough to withstand harsh conditions, this horn delivers reliable performance and easy installation. Trust HELLA for durable, high-quality components that keep you safe on the road.

  • Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
  • Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
  • Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
  • Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
  • Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
Diameter [cm]: 11.2
Single Includes: (1) Low-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Includes: (1) Universal Mounting Bracket
Sound Level [dB(A)]: 116
Grade Type: Standard Replacement
Depth [in]: 2.09
Supplementary Article/Supplementary Info 2: with E Quality Seal
Quantity: 1
Assy/Disassy by Qualified Personnel Required!: .
IP Rating: X4K
Temperature range to [°F]: 140
Overall Height [in]: 5.08
Measurements [cm]: 5.3 x 12.9
Temperature range to [°C]: 60
Depth [mm]: 53
Power consumption [A]: 6
Housing Color: Gray
ECE Regulation: R28
Frequency range from [Hz]: 335
Frequency Range [Hz]: 335
Mounting Type: with 6.3 mm Blade Terminal Contacts, Open
Temperature range from [°F]: -40
Temperature range from [°C]: -40
Signal: Low Tone
Overall Height [mm]: 129
Test Mark: ECE
Registration Type: ECE Approved
Voltage [VDC]: 12
Homologation: ECE-R28
Operating Mode: Electric
Bracket: M10 Mounting Screw
Diameter [mm]: 112
Diameter [in]: 4.41
Wattage [W]: 80
Voltage: 12.00
Color: Black / Gray
Decibel Rating: 116.00
Terminal Type: Blade
Mounting Hardware Included: Yes
Connector Quantity: 1
Mount Type: Bracket Mounting
Terminal Quantity: 2
Mounting Bracket Included: Yes
