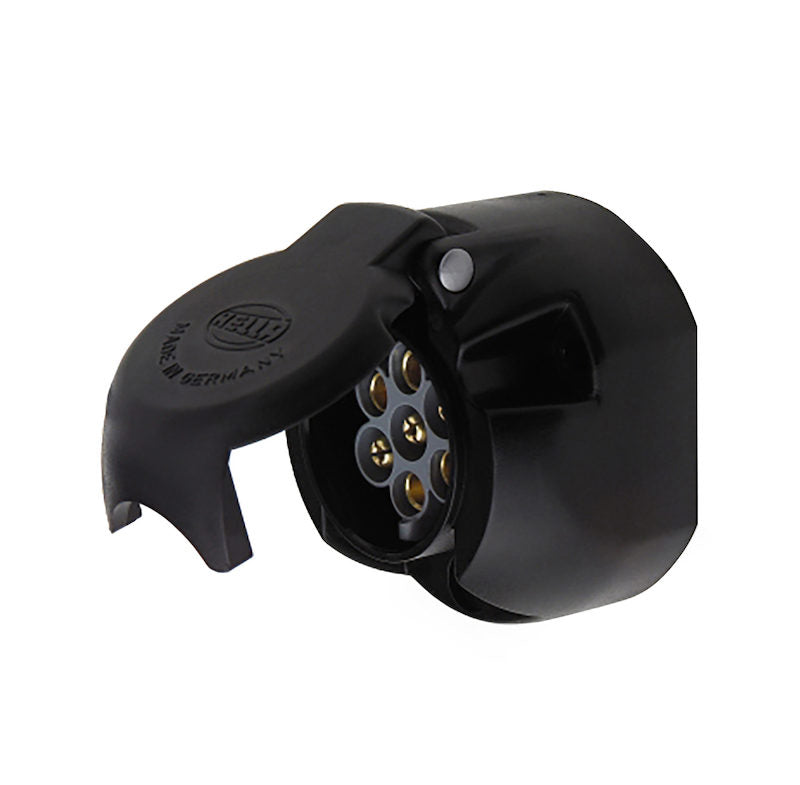

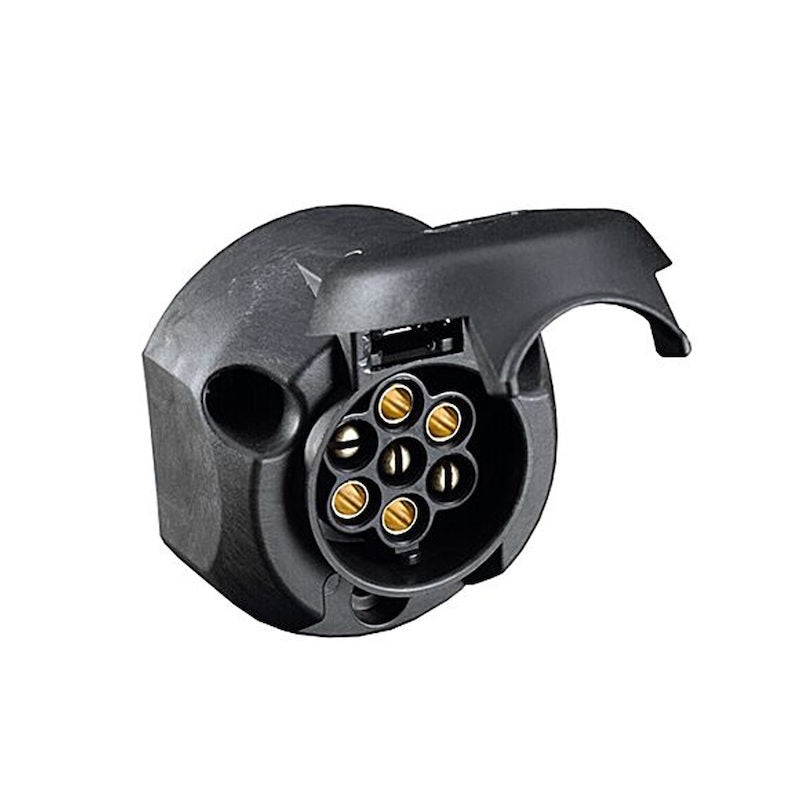

Hella - 001943003
7 Pole Trailer Socket
The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, Type N, according to ISO 1724 and an additional connector, Type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arRangement.
- OE quality
Supplementary Article/Info 2: with Screw Connection
Cross Section [mm²] from: 1.5
Voltage from [V]: 6
Voltage to [V]: 24
Voltage [V]: 12
Capacity at 12V: 16A
DIN/ISO: 1724
Color: black
Housing Type: Synthetic Material Housing
Cross Section [mm²] to: 2.5
Current Strength from [A]: 16
Material: Tin Bronze
Quantity Unit: Box
Current strength to [A]: 25
Number of pins: 7
Depth [in]: 1.69
Depth [mm]: 43
Housing material: Plastic
Mounting Type: Screw Connection
Number of bores: 3
Assy./disassy. by qualified personnel required!: .
Plug Type: Screw Contact
Quantity: 25
