Hella - 001941002

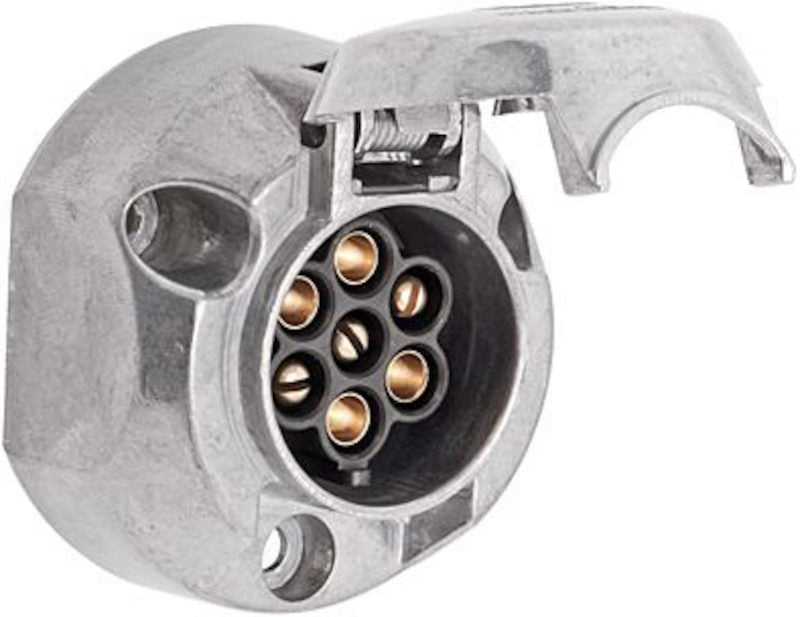

The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, Type N, according to ISO 1724 and an additional connector, Type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arRangement.
- OE quality
Supplementary Article/Info 2: with Screw Connection
Voltage from [V]: 6
Cross Section [mm²] from: 1.5
Voltage to [V]: 24
Capacity at 12V: 16A
DIN/ISO: 1724
Color: silver
Housing Type: Metal Housing
Material: Tin Bronze
Cross Section [mm²] to: 2.5
Quantity: 25
Current Strength from [A]: 16
Number of pins: 7
Current strength to [A]: 25
Bore Ø [mm]: 5.5
Number of bores: 3
Depth [mm]: 47
Depth [in]: 1.85
Height [in]: 2.83
Height [mm]: 72
Width [mm]: 63
Width [in]: 2.48
Mounting Type: Screw Connection
Plug Type: Plug Terminal
Assy./disassy. by qualified personnel required!: .
