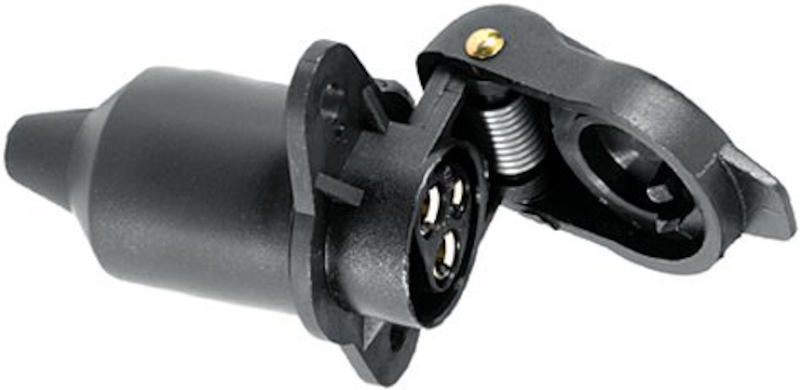

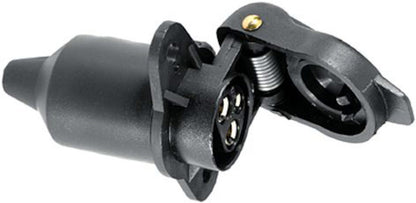

Hella - 001933011
3 Pole Socket 24V
The 3-pole plug-in system according to DIN 9680 is used on tractors and agricultural machinery for the electrical connection of permanent consumers, such as mowers, backhoes and sweepers, with a current Consumption of max. 25 A. This standard does not apply to electrical connections for the supply of Lighting equipment (see ISO 1724). The 3-pole plug-in system without standard is used for the transmission of additional Functions between tractor and trailer.
- OE quality
Plug Type: Blade Terminal
Current Strength [A]: 25
Cross Section [mm²]: 2.5
Bore Ø [in]: 0.20
Bore Ø [mm]: 5
Temperature range from [°F]: -13.00
Temperature range from [°C]: -25
Temperature range to [°C]: +75
Temperature range to [°F]: 167.00
Fitted Diameter [in]: 1.18
Fitted Diameter [mm]: 30
Assy./disassy. by qualified personnel required!: .
Quantity: 10
Mounting Type: Fitting
Voltage [V]: 24
Voltage from [V]: 6
Voltage to [V]: 42
Capacity at 24V: 16A
DIN/ISO: 9680
Number of pins: 3
Color: black
