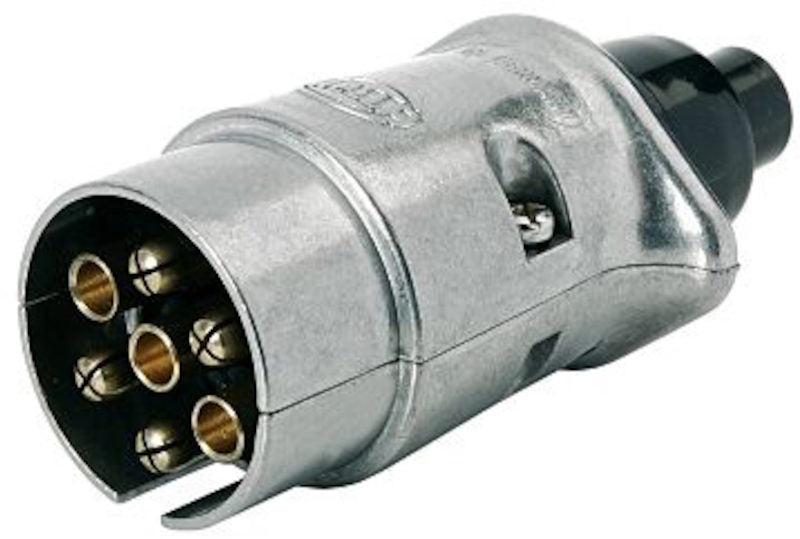

Hella - 001918021
The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, Type N, according to ISO 1724 and an additional connector, Type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arRangement.
- OE quality
Material: Aluminium
Supplementary Article/Info 2: with Strain Relief
Voltage [V]: 12
Mounting Type: Screw Connection
Capacity at 12V: 16A
Contact surface: Coated
Quantity: 25
Number of pins: 7
Color: silver
Plug Type: Screw Contact
Length [mm]: 98
Length [in]: 3.86
Cross Section [mm²] from: 1.5
Cross Section [mm²] to: 2.5
Current Strength from [A]: 16
Current strength to [A]: 25
DIN/ISO: 1724 N-Typ
Assy./disassy. by qualified personnel required!: .
