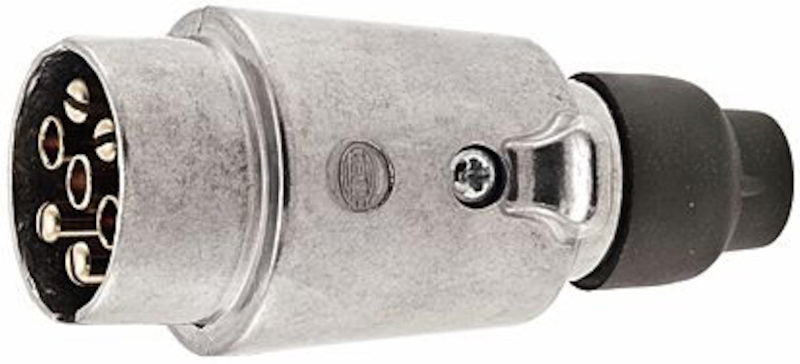

Hella - 001918002
7-Pole Plug
The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, Type N, according to ISO 1724 and an additional connector, Type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arRangement.
- OE quality
Supplementary Article/Info 2: with Strain Relief
Capacity at 12V: 16A
Number of pins: 7
Plug Type: Screw Contact
Voltage [V]: 12
Assy./disassy. by qualified personnel required!: .
DIN/ISO: 1724 N-Typ
Contact surface: Coated
Cross Section [mm²] from: 1.5
Cross Section [mm²] to: 2.5
Current Strength from [A]: 16
Current strength to [A]: 25
Length [in]: 3.70
Length [mm]: 94
Color: silver
Material: Aluminium
Quantity: 25
Color: Purple
Power Cord Length: 22.12
Wire Quantity: 44
Portable Or Fixed Mount: Portable
