Hella - 001559011

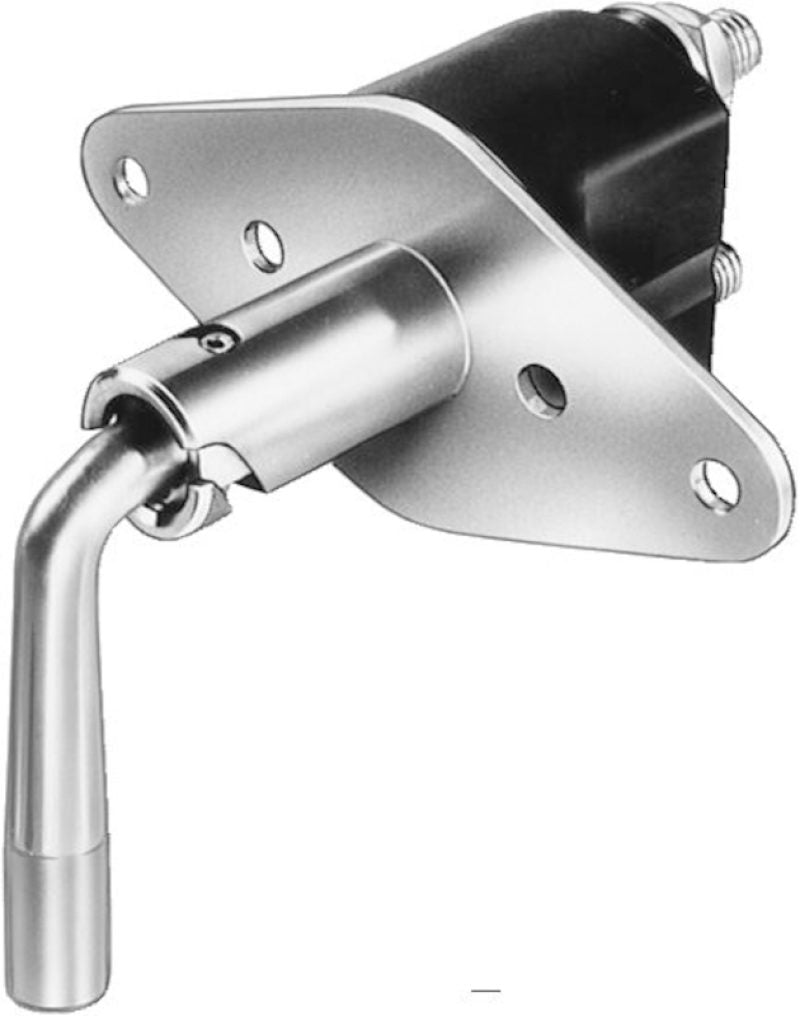

1559 Battery Master Switch (2 Screw)
At HELLA we offer you a wide range of different switches for every function. HELLA's battery disconnectors provide effective safety against theft and fire hazards in the event of accidents in the agricultural and construction machinery industry, for example. Simply pressing the key forcibly closes the vehicle's circuit between the battery, starter and other consumers. Opening (separation) is effected by a return spring. An indispensable safety factor.
- Switching key can be removed in "off" position, current output interrupted. 2 screw terminals.
Mounting Type: Bolted
Connecting thread: M10
Number of connectors: 2
Capacity at 24V: max 2500 A/10 sek.
Control Type: Turn Knob Control
DIN/ISO: 40050
Protection Type (IP Code): IPX4
Thread Pitch [mm]: 1.5
Combi Switch Function: Normally Open Contact
Current Strength [A]: 100
Supplementary Article/Supplementary Info: with Nuts
Assy./disassy. by qualified personnel required!: .
