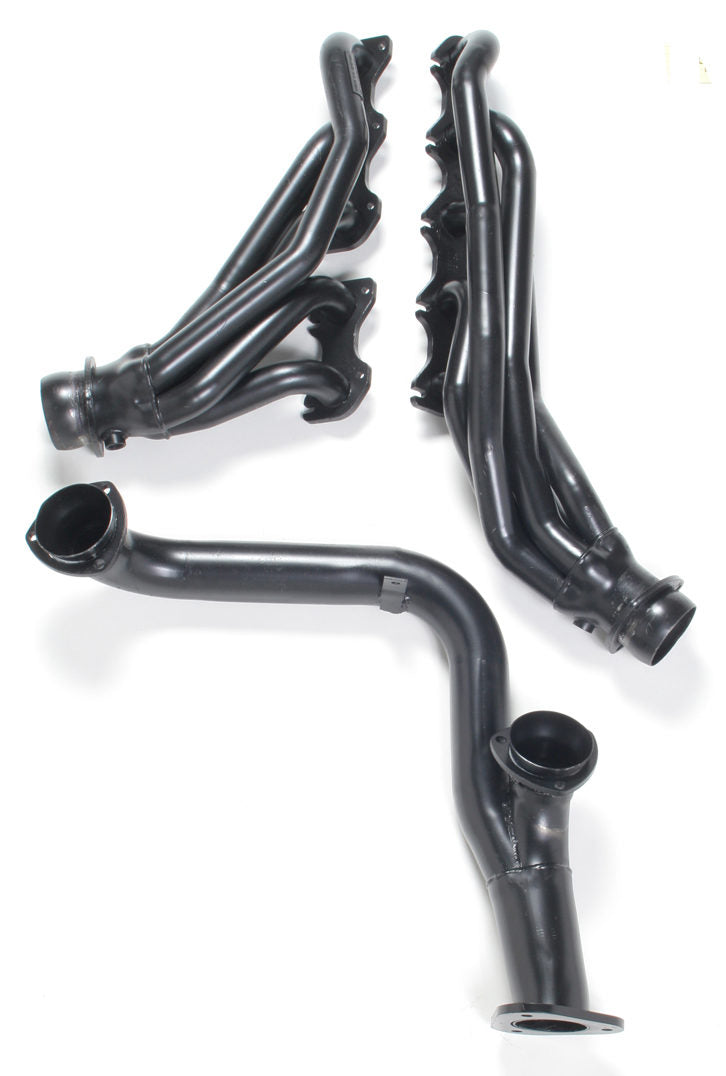

Hedman Hedders - 89660
Headers - Street - 1.5 in Primary - Stock Collector Flange - Y-Pipe Included - Gaskets / Hardware Included - Steel - Black Paint - Ford V10 - Ford Fullsize Truck 1999-2005 - Kit
50 State Legal Headers; 1999-2004 Ford F-250, F-350 2WD / 4WD Trucks with 6.8L V10 Engine; 1-1/2 in. Tube Diameter; Y-Pipe with Stock Collector- Uncoated, Mild Steel Construction
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Reducers Included: No
Y-Pipe Included: No
Quantity: Sold as a kit.
with EGR: No
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in.
Package Contents: Set of Headers, mounting hardware and gaskets
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27580
Replacement Head Flange Gasket: 27580
Weld-Up: No
with A.I.R. System: No
Tube Style: Shorty
E.O. #: Yes
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: No
Manual Transmission - Column: No
Manual Transmission - Floor: No
Power Steering: Yes
Footnotes: 144. Complete with Y-Pipe to single catalytic converter.
Collector Attachment: Stock
Collector Size: Stock
Collector Style: Stock Collector
Contents: headers, head and collector flange gaskets (when applicable), mounting hardware
Emissions Notes: EO# D167-36 (click here for covered vehicles in ARB.CA.GOV document)
Variations: 89666
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Port Shape: Round
Header Style: Mid-Length Tube
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Short Tubes
Tube Material Thickness: 16g
Tube Size: 1-1/2 in.
For Use On: For use on 2WD and 4WD models.
Tube Diameter: 1-1/2 in.
Crossover Pipe Style: Y-pipe
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Crossover Pipe Included: Yes
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
