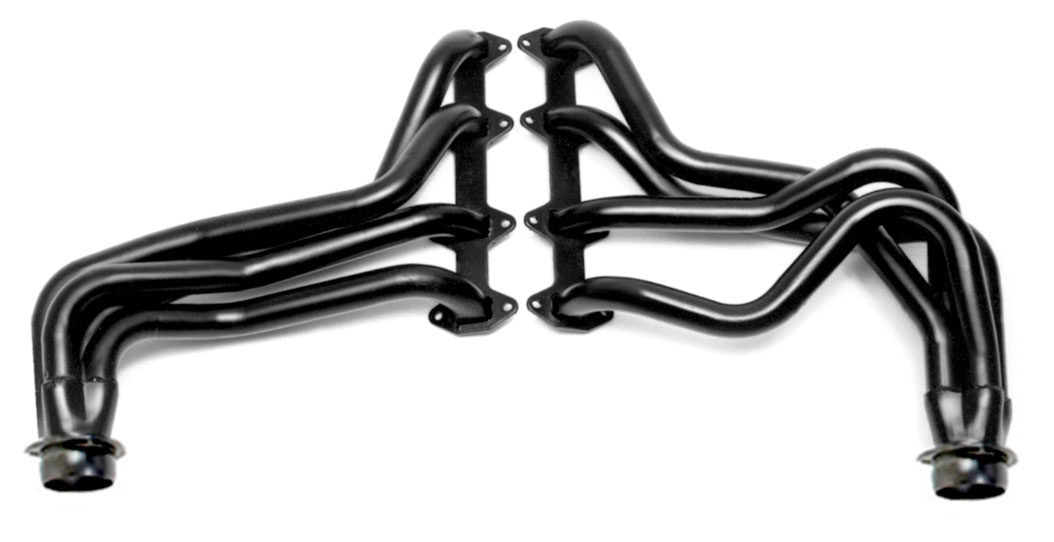

Hedman Hedders 89180 - STANDARD UNCOATED HEADERS; '69-76 FORD F100 & F250, 360-390 ENGINE; 4WD ONLY; 1-3/4 IN. TUBE DIAMETER; 3 IN. COLLECTOR.; FULL LENGTH DESIGN- UNCOATED MILD STEEL
Hedman Hedders 89180 - STANDARD UNCOATED HEADERS; '69-76 FORD F100 & F250, 360-390 ENGINE; 4WD ONLY; 1-3/4 IN. TUBE DIAMETER; 3 IN. COLLECTOR.; FULL LENGTH DESIGN- UNCOATED MILD STEEL
SKU: FBLG-89180
Regular price
$420.99 USD
Regular price
$1,001.66 USD
Sale price
$420.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Hedman Hedders 89180 - STANDARD UNCOATED HEADERS; '69-76 FORD F100 & F250, 360-390 ENGINE; 4WD ONLY; 1-3/4 IN. TUBE DIAMETER; 3 IN. COLLECTOR.; FULL LENGTH DESIGN- UNCOATED MILD STEEL
Headers - Full - 1.75 in Primary - 3 in Collector - Gaskets / Hardware / Reducers Included - Steel - Black Paint - Ford FE-Series - Ford Fullsize Truck 1970-76 - Pair
Standard Uncoated Headers; 1-3/4 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design
- Handcrafted, Mild Steel Construction.
- Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

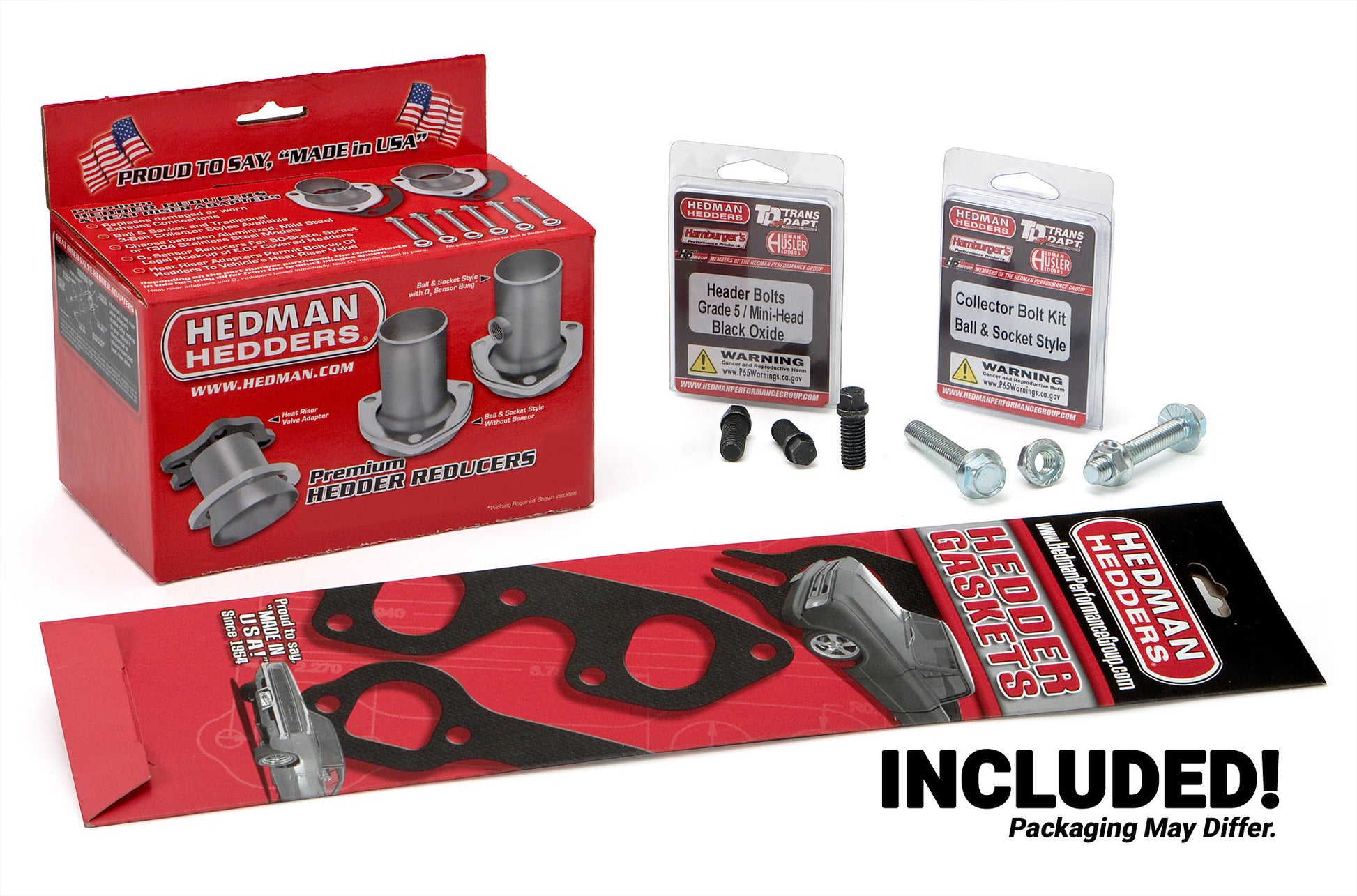

- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Replacement Head Flange Gasket: 27740
with A.I.R. System: No
Tube Size: 1-3/4 in.
Tube Style: Long Tubes
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
Drivetrain: 4WD Only!
Tube Material Thickness: 16g
E.O. #: Yes
Emissions Notes: EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Square Port
Header Style: Long Tube
Notes: 69-77 Ford 1/2 Ton Trucks; 4WD 352-390
Port Shape: Square
Material: Mild Steel
Tube Design: Standard
Tube Length: Long Tubes
Tube Diameter: 1-3/4 in.
Reducers Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 89186
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.75 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Square
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27740
