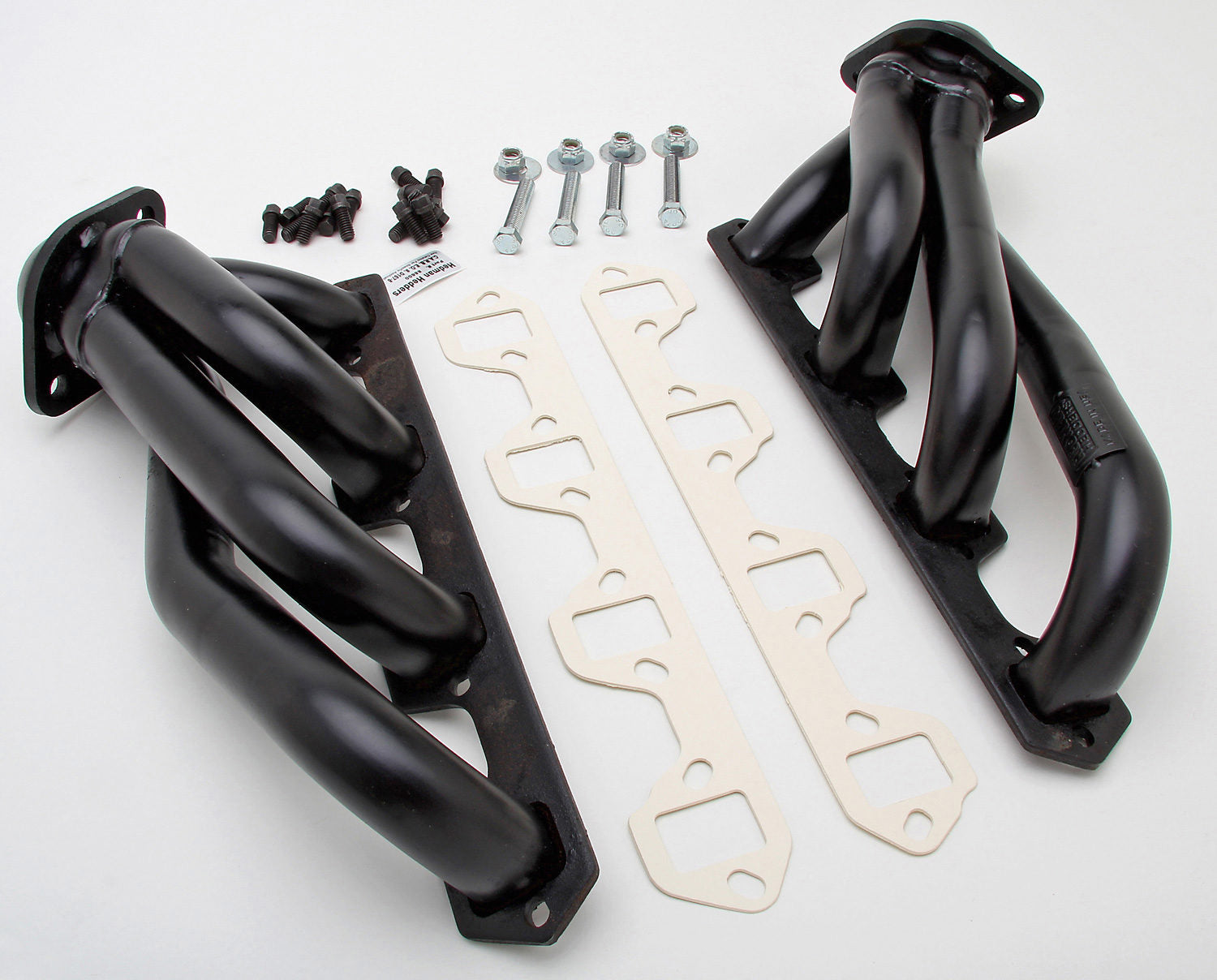

Hedman Hedders - 88600
Headers - Street - 1.625 in Primary - Stock Collector Flange - Gaskets / Hardware Included - Steel - Black Paint - Small Block Ford - Mustang 1986-93 - Pair
Standard Uncoated Headers; 1-5/8 in. Tube Dia.; Stock Coll.; SHORTY Design
- Handcrafted, Mild Steel Construction.
- The Short Tube Header Design Provides Good Low-End Power, and Provides Excellent Ground Clearance And Component Compatibility.
- Stock-Style Header Collector Bolts Up To The Factory Exhaust Without Modification.
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27340
Replacement Head Flange Gasket: 27340
Variations: 88606
Tube Material Thickness: 16g
Tube Style: Shorty
Contents: headers, head and collector flange gaskets (when applicable), mounting hardware
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: Stock
Collector Diameter: Stock
Collector Size: Stock
Collector Style: Stock Collector
Reducer Outlet Size: Stock
Exhaust System Dia: Factory hookup
E.O. #: Yes
Tube Length: Short Tubes
Emissions Notes: EO# D167-36 (click here for covered vehicles in ARB.CA.GOV document)
Engine Version: Ford Windsor Block (W)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 1/4 in. with 5/16 in. collector ring flange.
Header Port Shape: Square
Header Style: Short Tube
Notes: 86-93 Ford Mustang 5.0L
Key Feature: 50 State Legal
Port Shape: Square
Material: Mild Steel
Tube Design: Standard
Tube Diameter: 1-5/8 in.
Reducers Included: No
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Tube Size: 1-5/8 in.
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Set of Headers, mounting hardware and gaskets
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Square
Cylinder Head: Stock Profile Heads
