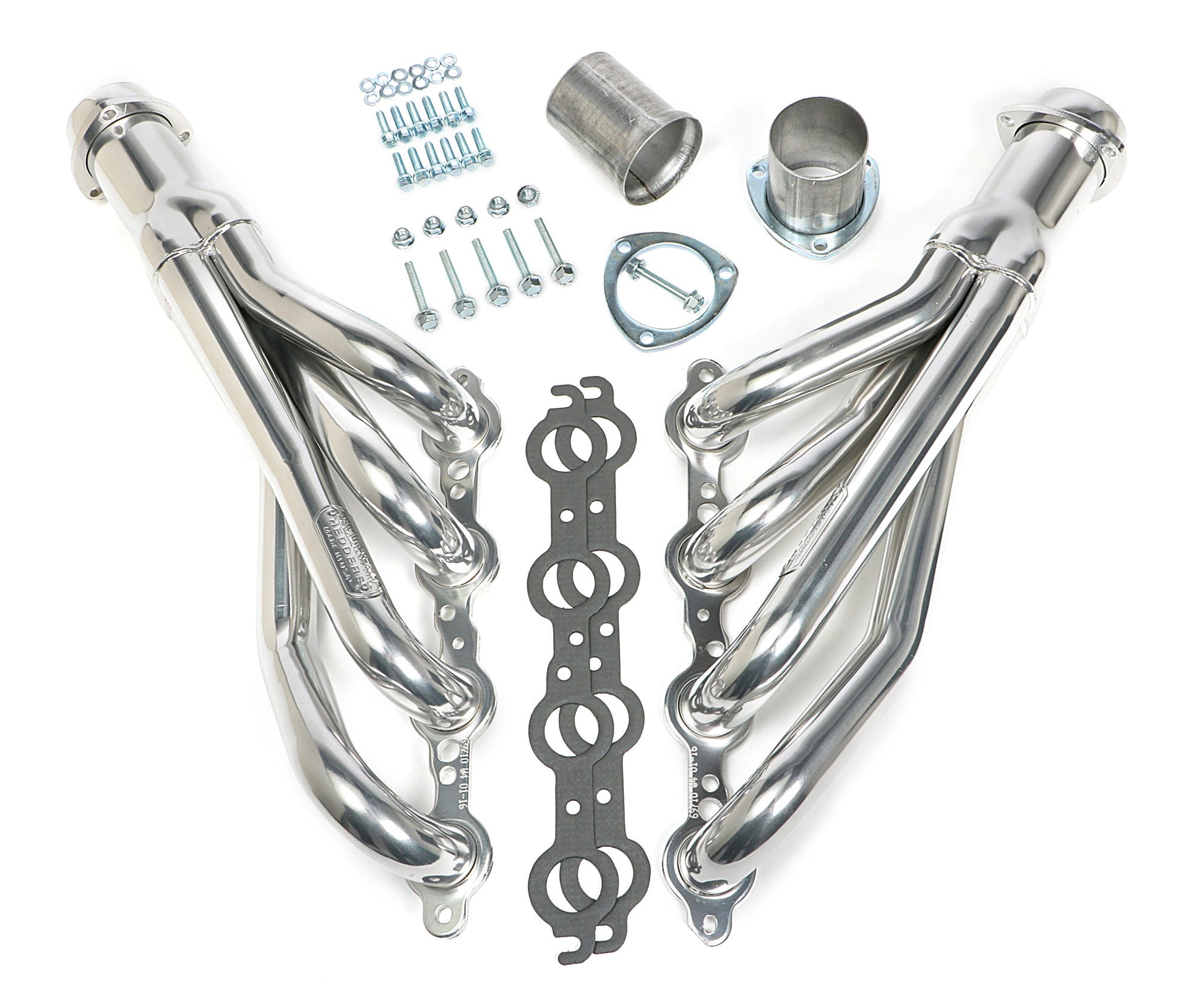

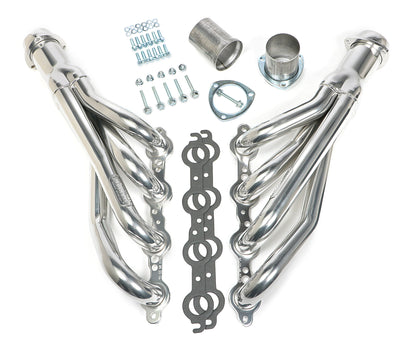

Hedman Hedders - 69716
Headers - 1.75 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Silver Ceramic - GM LS-Series - Chevy - GM Fullsize SUV / Truck 1967-87 - Pair
Headers For Installing An LS Engine into 1967-87 CHEVY/GMC 1/2-3/4 Ton TRUCK/SUV (2WD Only); 1-3/4 in. Diameter, Mid-Length Tube; 3 in. Ball & Socket Collector- HTC Polished-Silver Ceramic Coated, Mild Steel Construction
Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy & GMC Trucks for decades, so designing a good fitting, great performing set of headers for the popular LS engine swap was a no-brainer.
Each set uses smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. The stout 3/8" header flanges ensure a great seal that will resist warping, and Hedman's unique, gasketless ball and socket collector design allows your 1/2 or 3/4 ton Chevy/GMC's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. Hedman is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The tough, polished silver HTC ceramic coating on these headers is good up to 1400 degrees. It helps keep underhood temperatures down, and prevent rusting of the headers. Unlike chrome, this finish will not "blue" or discolor. The coating is warrantied for 5 full years.
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Collector Size: 3 in.
Collector Diameter: 3 in.
Collector Attachment: 3 in.
Transmission Compatibility: Manual Transmission
E.O. #: No
Power Steering: Yes
Manual Transmission - Floor: Yes
Manual Transmission - Column: No
Automatic Transmission - Floor: Yes
Automatic Transmission - Column: No
Air Conditioning: Yes

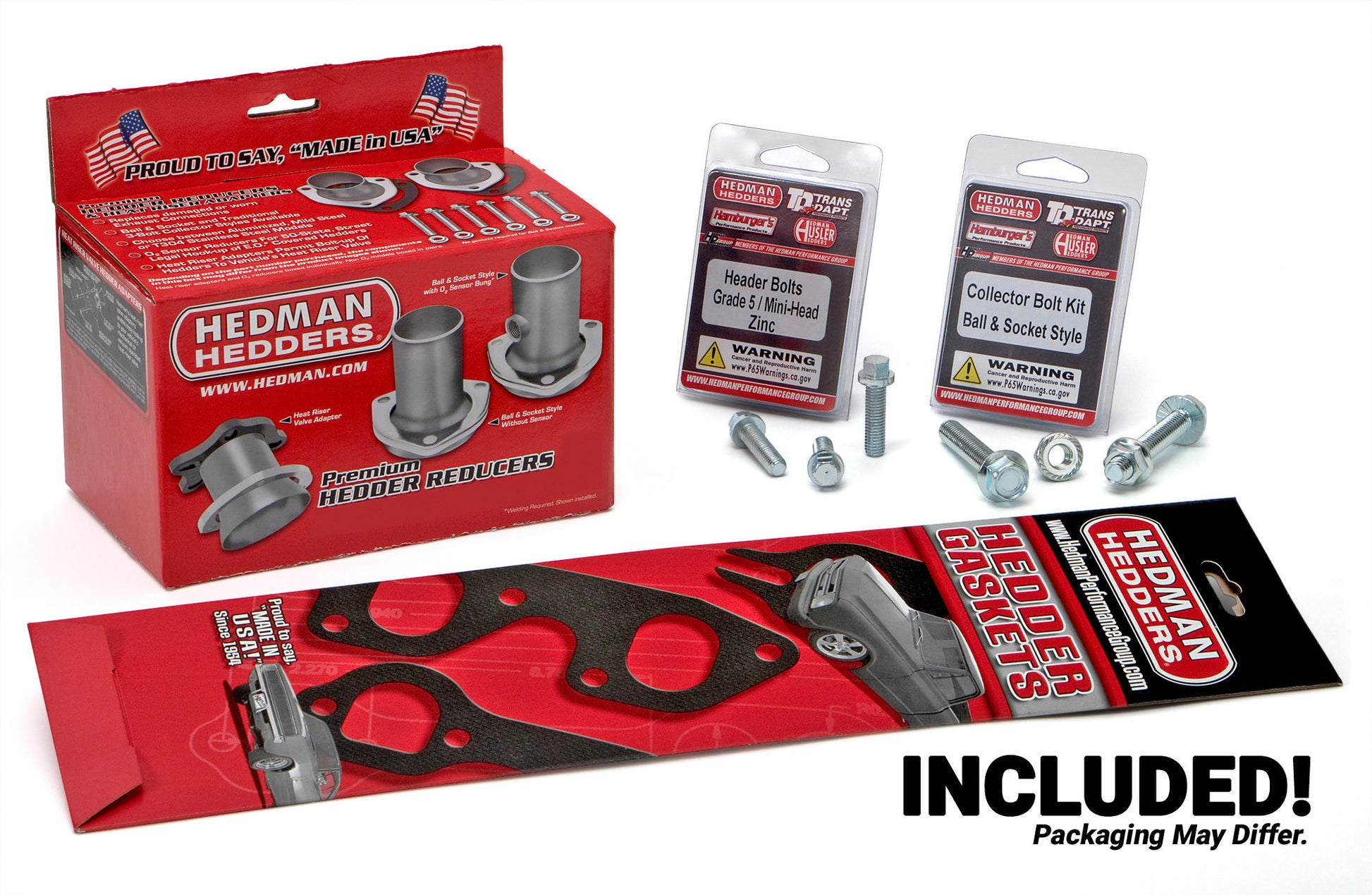

Contents: headers, header gaskets, Reducers (exhaust adapters), header and collector bolts
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.

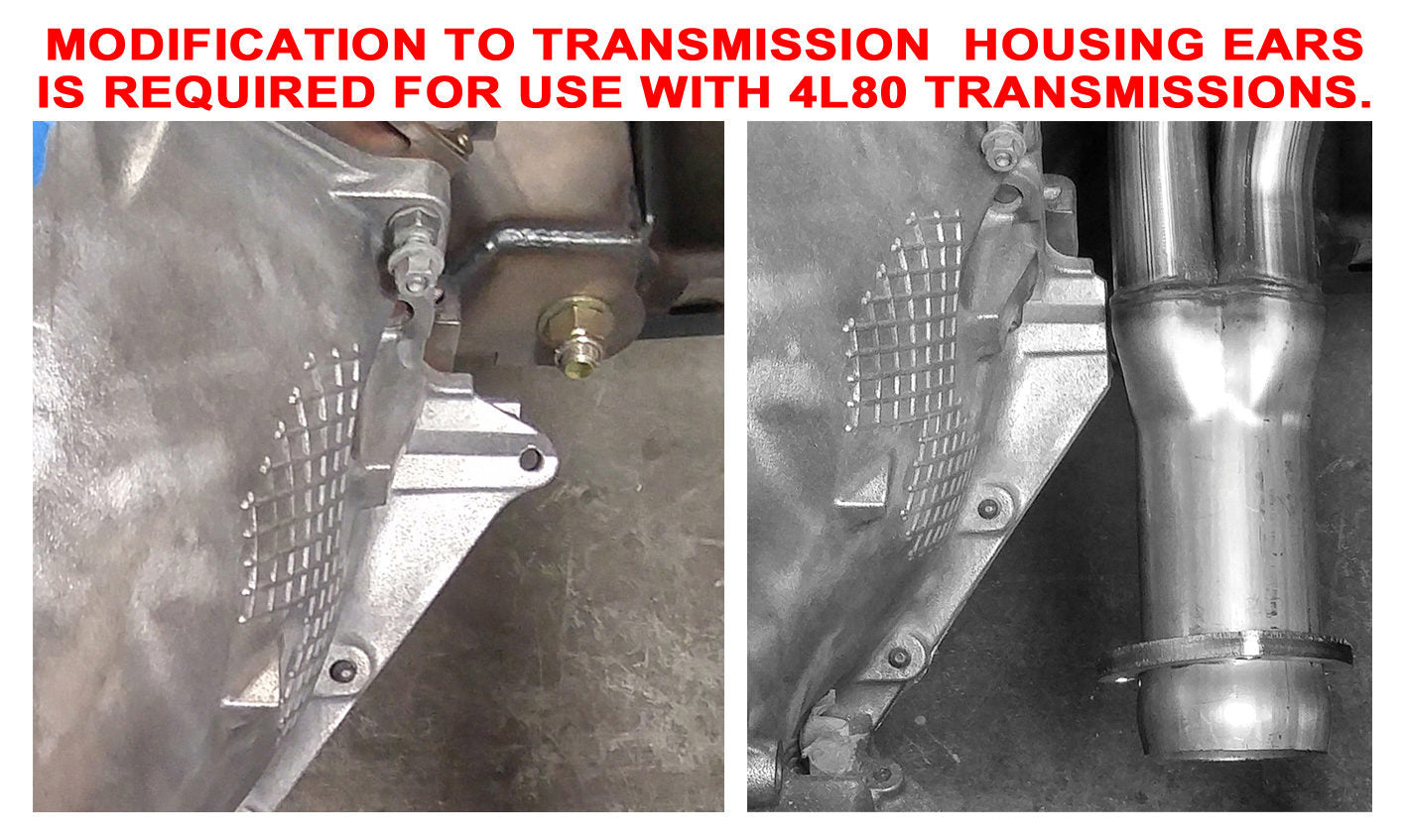

Transmission Notes: 4L80 requires modification/trimming to bellhousing ears
Header Style: Mid-Length Tube
Material: Mild Steel
Product Details: Engine swap headers for installing an LS engine into 1967-87 Chevy/GMC C10 / C15 pick-up trucks
Port Shape: Round
O2 Sensors Included: No
Key Feature: Engine Swap Headers
Notes: LS SWAP MID LENGTH 67-87 C10 TRUCK HEDDERS
Header Port Shape: Round
Engine: Chevy LS Series
Head Style: Factory Profile
Product Type: Headers
Flange Thickness: 0.375 in.
Flange Style: Standard
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
Finish: HTC Polished Silver Ceramic-Metallic
Tube Diameter: 1-3/4 in.
Tuned: No
Header Fasteners Included: Yes
Gasket Or Seal Included: Yes
Crossover Pipe Included: No
Collector Bolts Included: Yes
Catalytic Converter(s) Included: No
Bolts/Studs Included: Yes
Weld-Up: No
Motor Mounts Included: No
with EGR: No
with A.I.R. System: No
Head Type: Factory Heads
Installation Notes: Engine swap, all parts must be factory stock. (25)
Variations: 69710
Tube Size: 1-3/4 in.
Installation Hardware Included: Yes
Mounting Hardware Included: Yes
Tube Length: Mid-Length Tubes
Cylinder Head Port Shape: Round
Replacement Head Flange Gasket: 27470
Replacement Gasket: 27470
Header Construction: MILD STEEL- Standard-Duty
Vehicle Family: C10/C15 Trucks and SUVs; 1967-72
Cylinder Head: Stock Profile Heads
Header Finish: HTC Polished Silver Ceramic-Metallic
Reducers Included: Yes
Header Material: Mild Steel

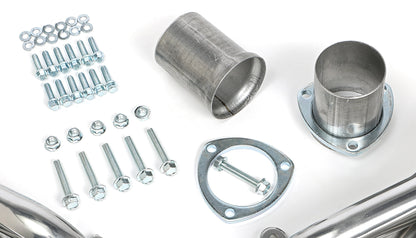

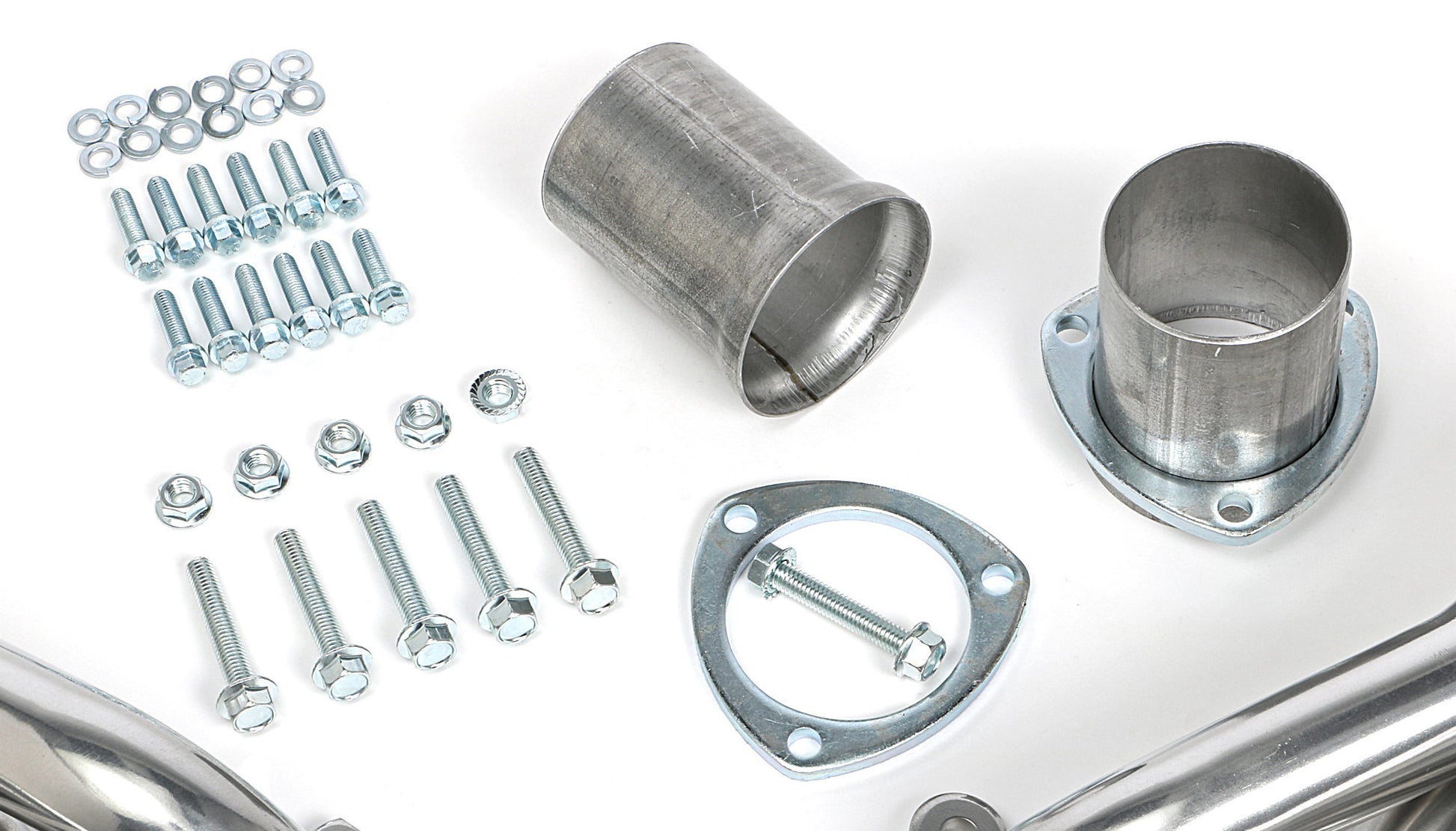

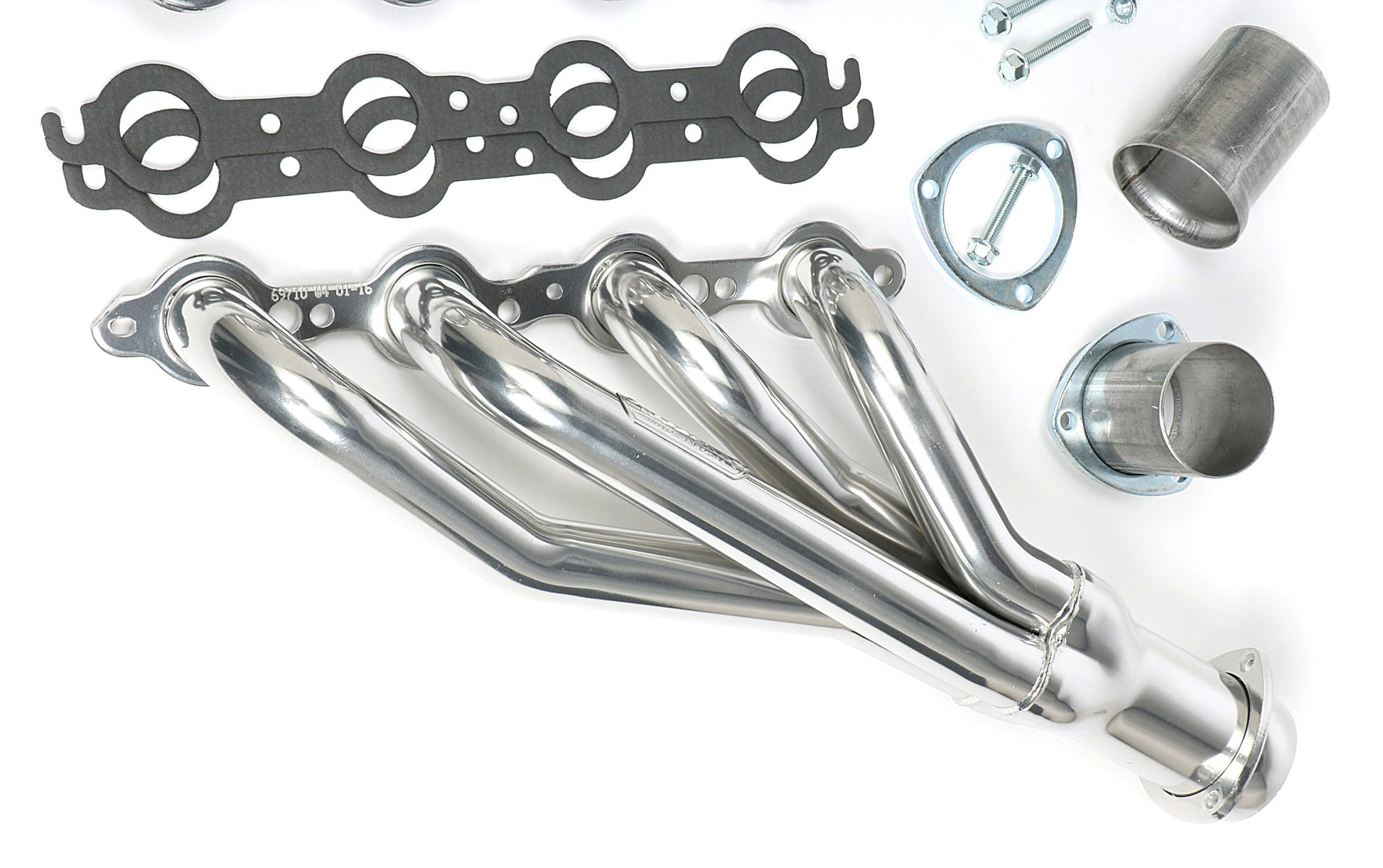

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Primary Tube Diameter (in): 1.75 in.
Primary Tube Gauge: 16g
Quantity: Sold as a pair.
Y-Pipe Included: No
Tube Material Thickness: 16g
Tube Design: Standard
Tube Style: Mid-Length
Chassis Compatibility: Factory Chassis; Porterbuilt Front Dropmember, Roadster Shop Chassis
Exhaust System Dia: 2-1/2 in.
Reducer Outlet Size: 2-1/2 in.
Collector Style: BALL and SOCKET Style (Gasketless)
