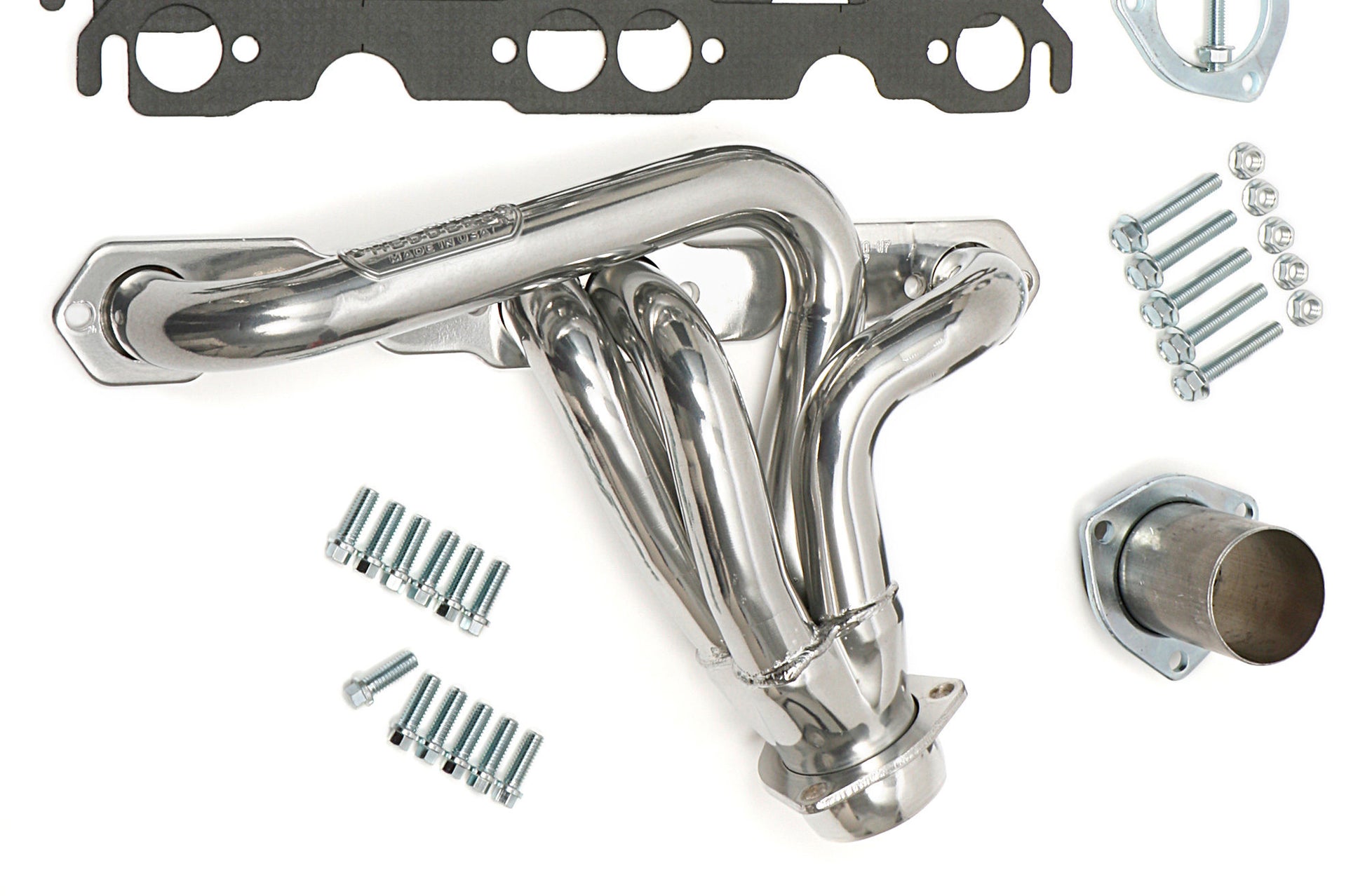

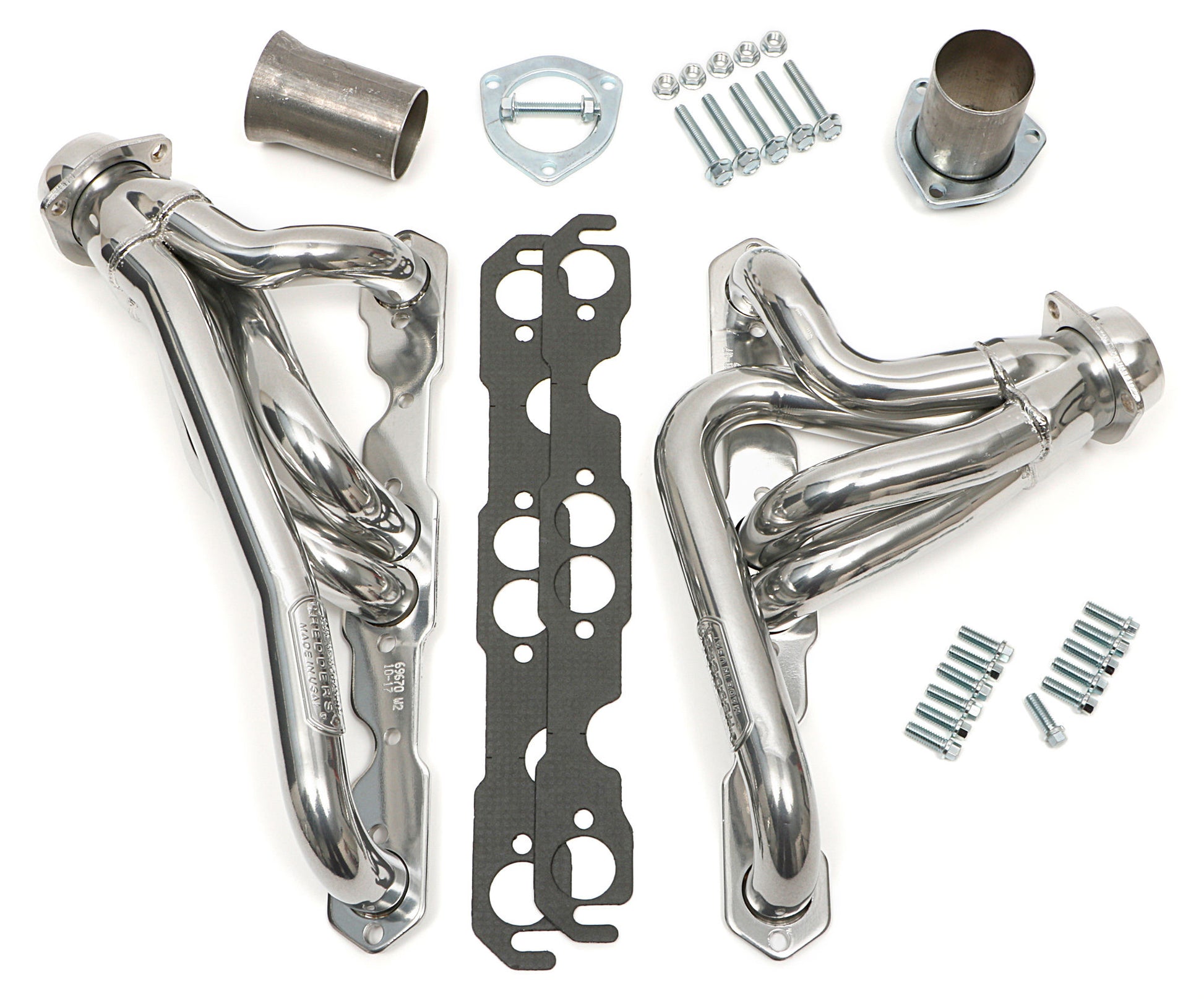

Hedman Hedders 69676 - HTC COATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 69676 - HTC COATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; MID-LENGTH DESIGN
SKU: FBLG-69676
Regular price
$614.99 USD
Regular price
$1,497.14 USD
Sale price
$614.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Hedman Hedders 69676 - HTC COATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; MID-LENGTH DESIGN
Headers - Mid - 1.5 in Primary - 2.5 in Collector - Gaskets / Hardware / Reducers Included - Steel - Silver Ceramic - Small Block Chevy - Jeep CJ 1972-86 - Pair
Mid-Length, V8 Engine Swap Headers For 1972-86 JEEP CJ5, CJ6, CJ7; SB Chevy 283-400 (Gen 1); 1-1/2 in. Tubes; 2-1/2 in. Ball/Socket Collector- SILVER COATED Mild Steel
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

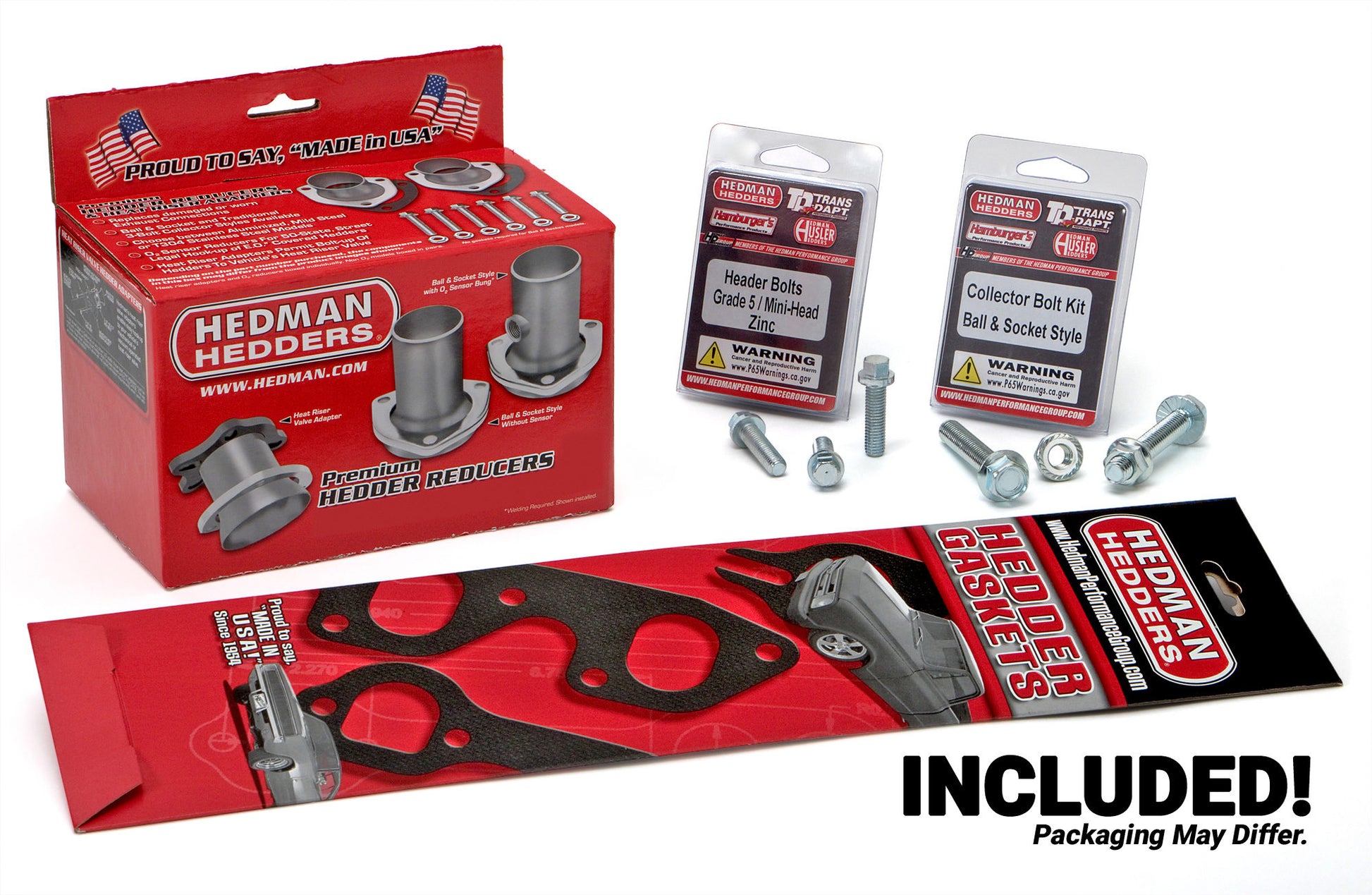

- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Tube Diameter: 1-1/2 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-1/2 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in.

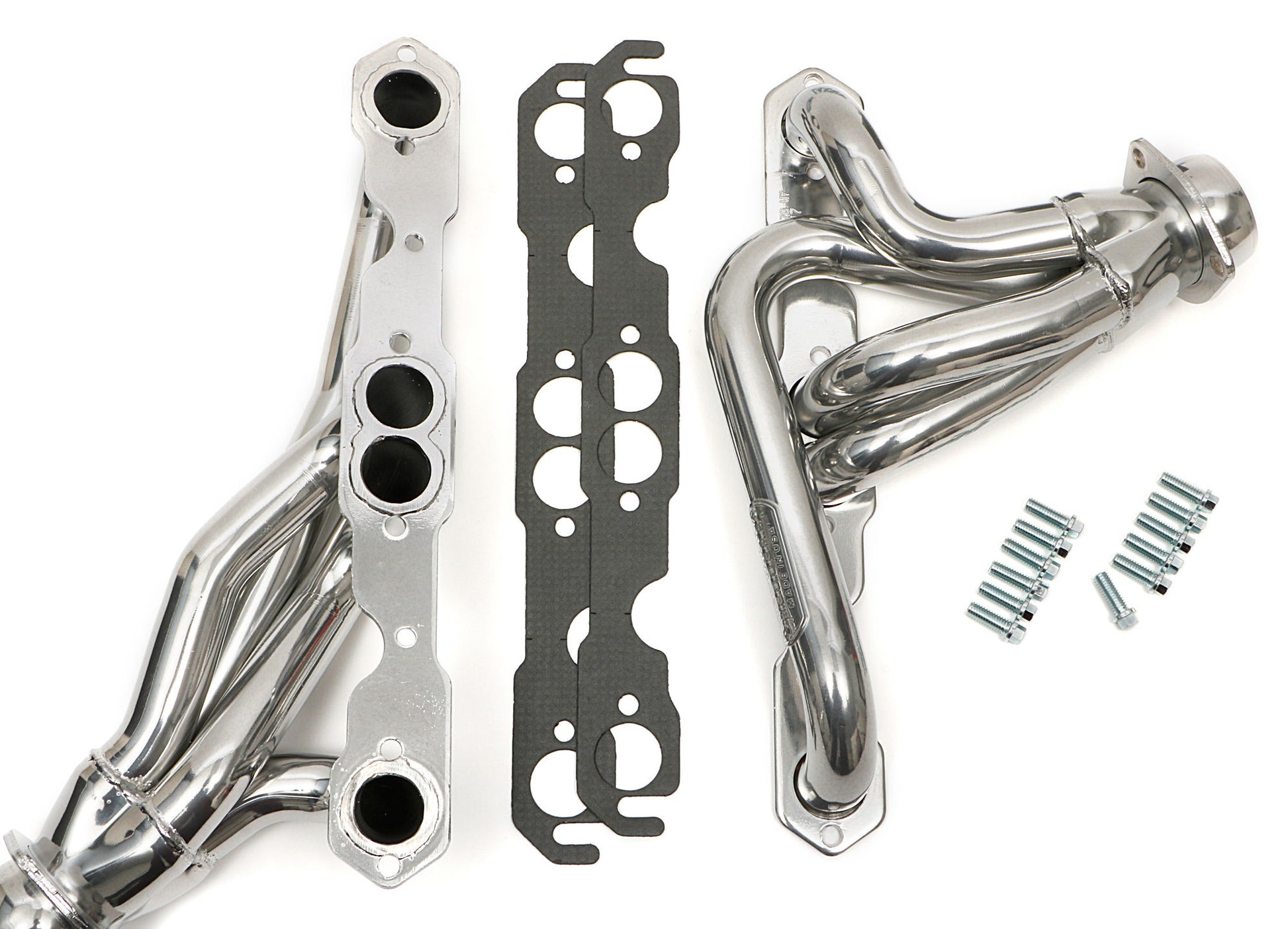

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27500
Replacement Head Flange Gasket: 27500
Variations: 69670, 69678
Tube Material Thickness: 16g
Tube Style: Mid-Length
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 2-1/2 in.
Collector Diameter: 2-1/2 in.
Collector Size: 2-1/2 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
E.O. #: No
Tube Length: Mid-Length Tubes
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Engine Notes: These are ENGINE SWAP headers for installing a Gen. 1 SB Chevy 283-400 V8

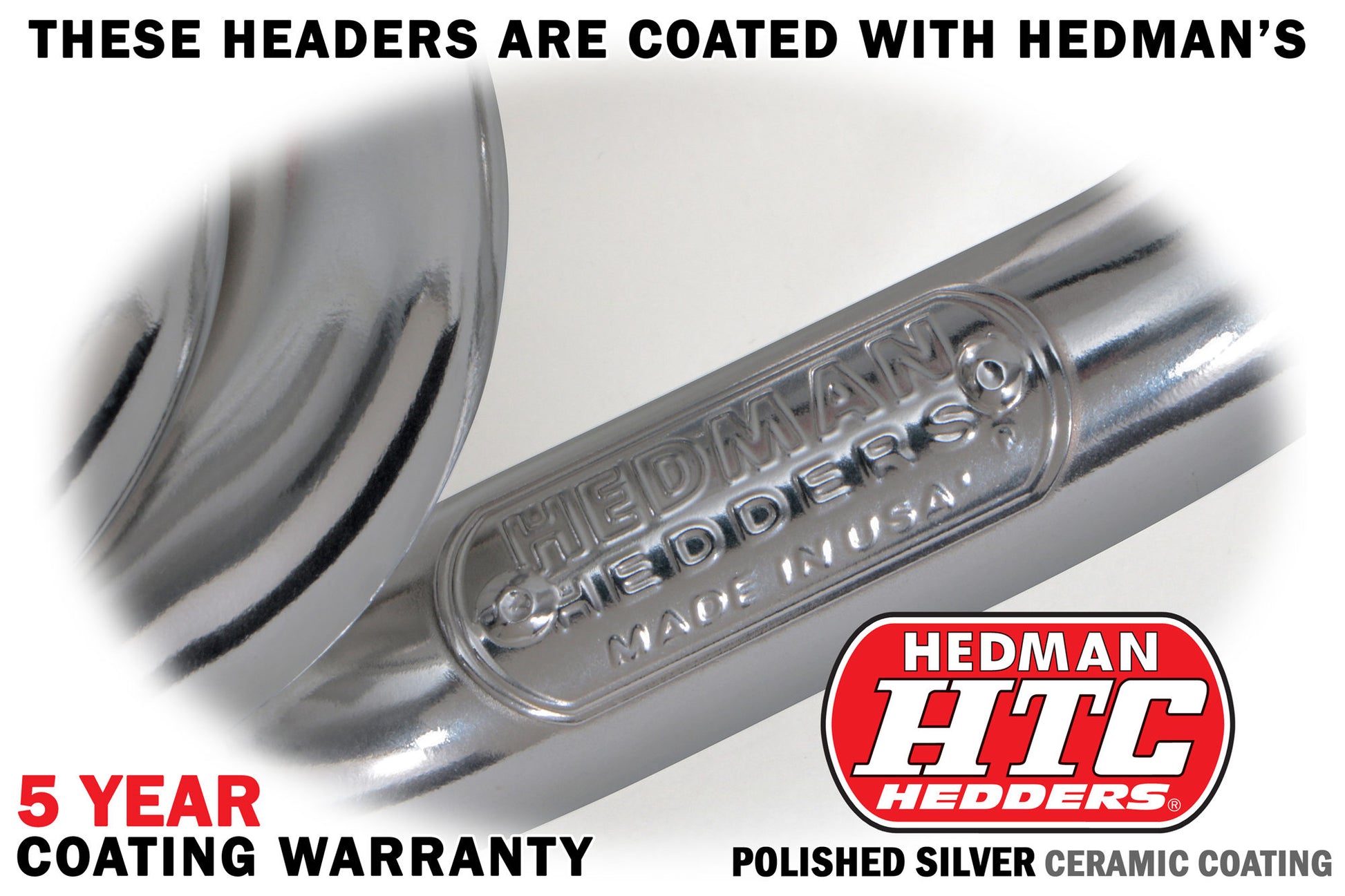

Finish: HTC Polished Silver Ceramic-Metallic
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
<i>COATED HEADERS DURING ENGINE BREAK-IN PERIOD</i>:
CLICK FOR IMPORTANT INFO REGARDING HEADER COATINGS DURING ENGINE BREAK-IN!
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round Port
Header Style: Mid-Length Tube
Notes: 72-86 Jeep CJ-5, 6, 7 Chev. 283-400 Swap
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
