Hedman Hedders

Hedman Hedders 69116 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

MSRP: $1,602.55
$637.99
( saved $964.56 )
Write a Review
  • Hedman Hedders 69116 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
  • Hedman Hedders 69116 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
  • Hedman Hedders 69116 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
  • Hedman Hedders 69116 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
  • Hedman Hedders 69116 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
  • Hedman Hedders 69116 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
  • Hedman Hedders 69116 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
FBLG-69116
UPC:
732611691161
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Hedman Hedders - 69116

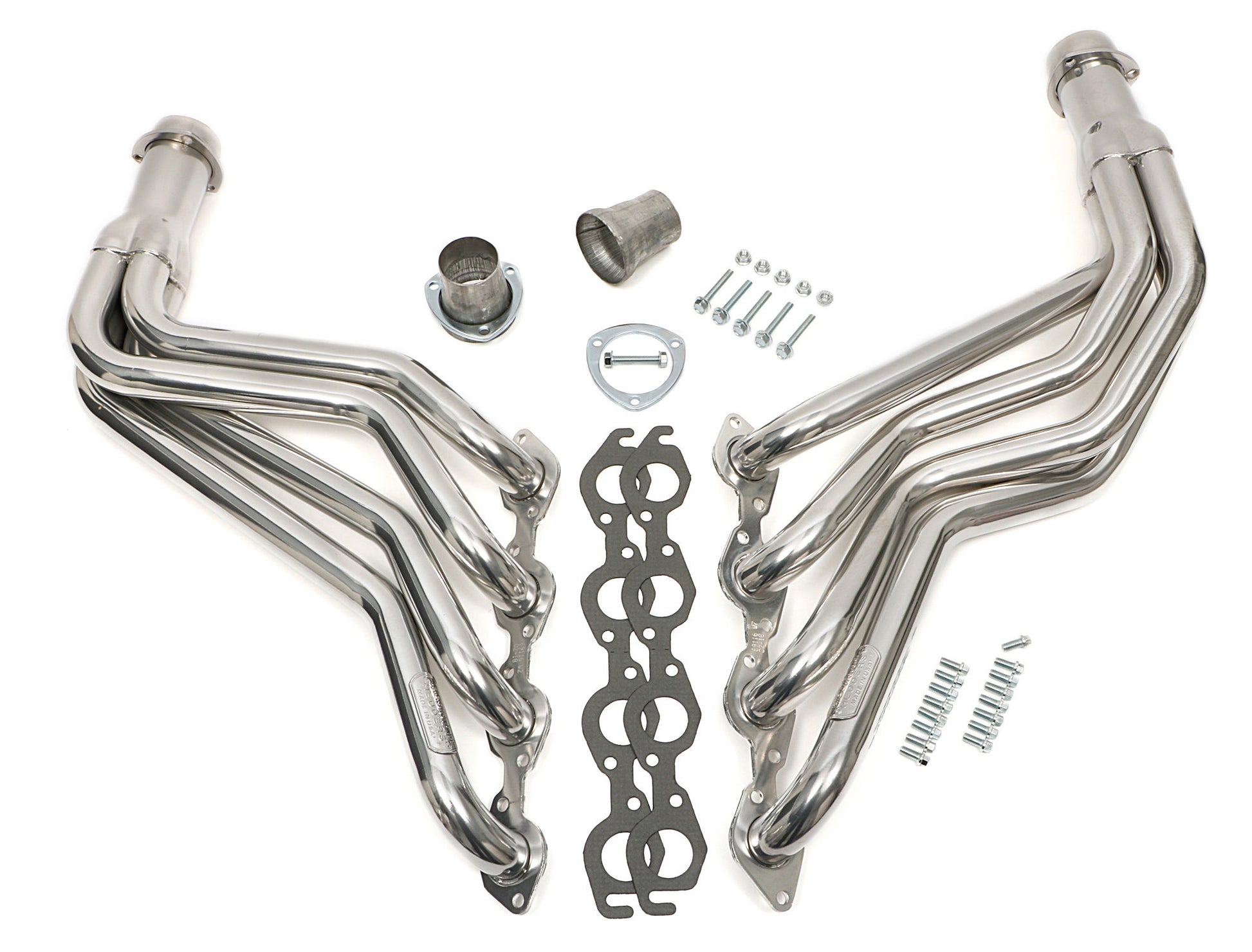

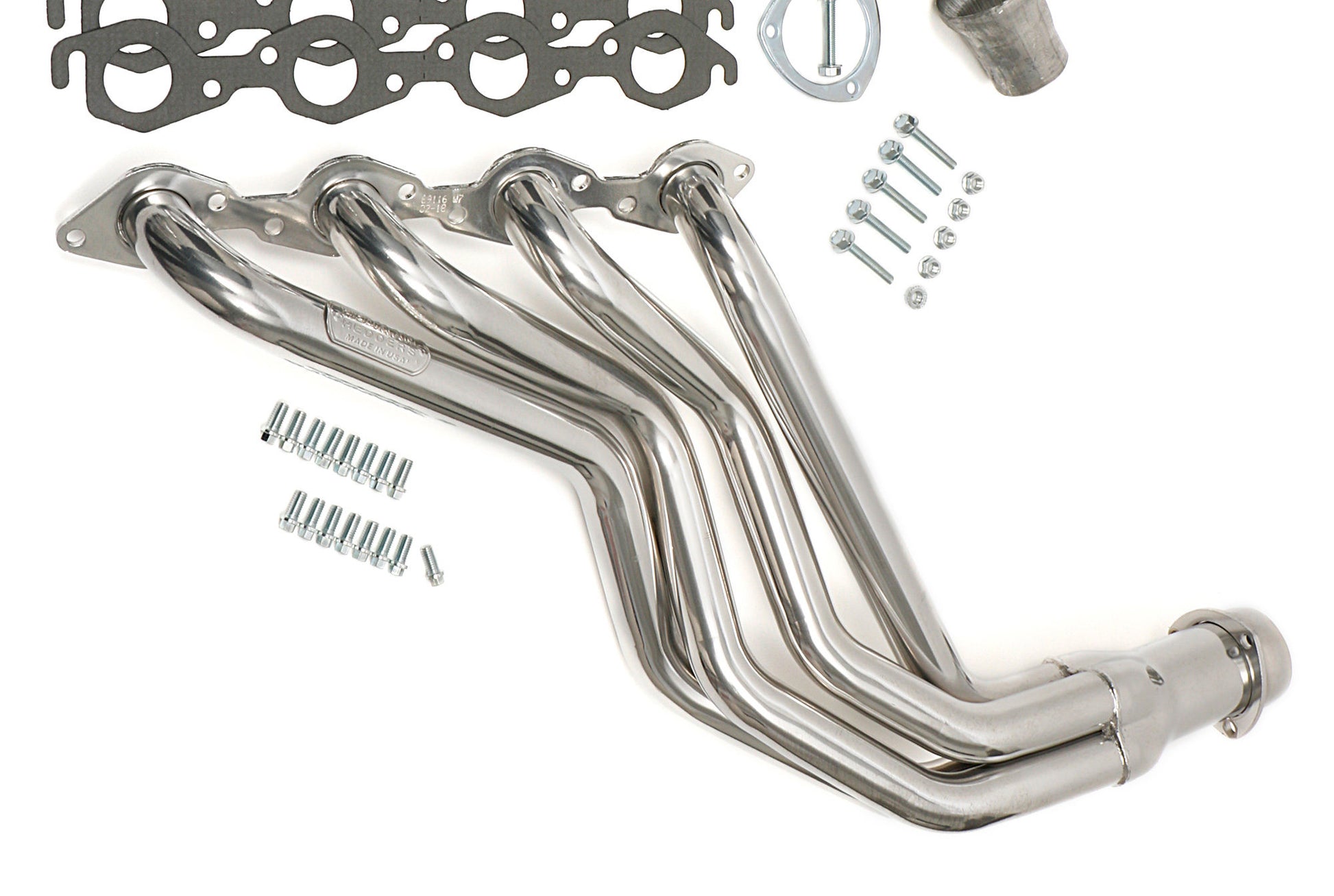

Headers - Street - 1.75 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Metallic Ceramic - Big Block Chevy - GM Fullsize SUV / Truck 1967-91 - Pair

Standard-Duty, Polished Silver Ceramic Coated Long Tube Headers For 1967-87 CHEVY/GMC 2WD & 4WD 1/2 to 1 Ton Pick-Up Truck, Blazer, SUV with 396-502 BB Chevy (Centered Engine Chassis Only); 1-3/4 in. Long Tubes; 3 in. Ball/Socket Collector

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These HTC coated, LONG-TUBE headers are one of Hedman's best selling Chevy truck headers. They fit a wide range of early to mid-year 2WD and 4WD Chevy Trucks and SUVs, powered by a Big Block Chevy engine. Included in this header's long list of applications is 1968-1991 Chevy/GMC 1/2 to 1 Ton 2WD, or 1/2 and 3/4 ton 4WD trucks, Blazers and Suburbans (check the application listings for exact fitment). The smooth 1-3/4 in. tube design provides ample exhaust flow to let your truck's 396-502 BB Chevy engine breathe easy, and produce maximum horsepower and torque.

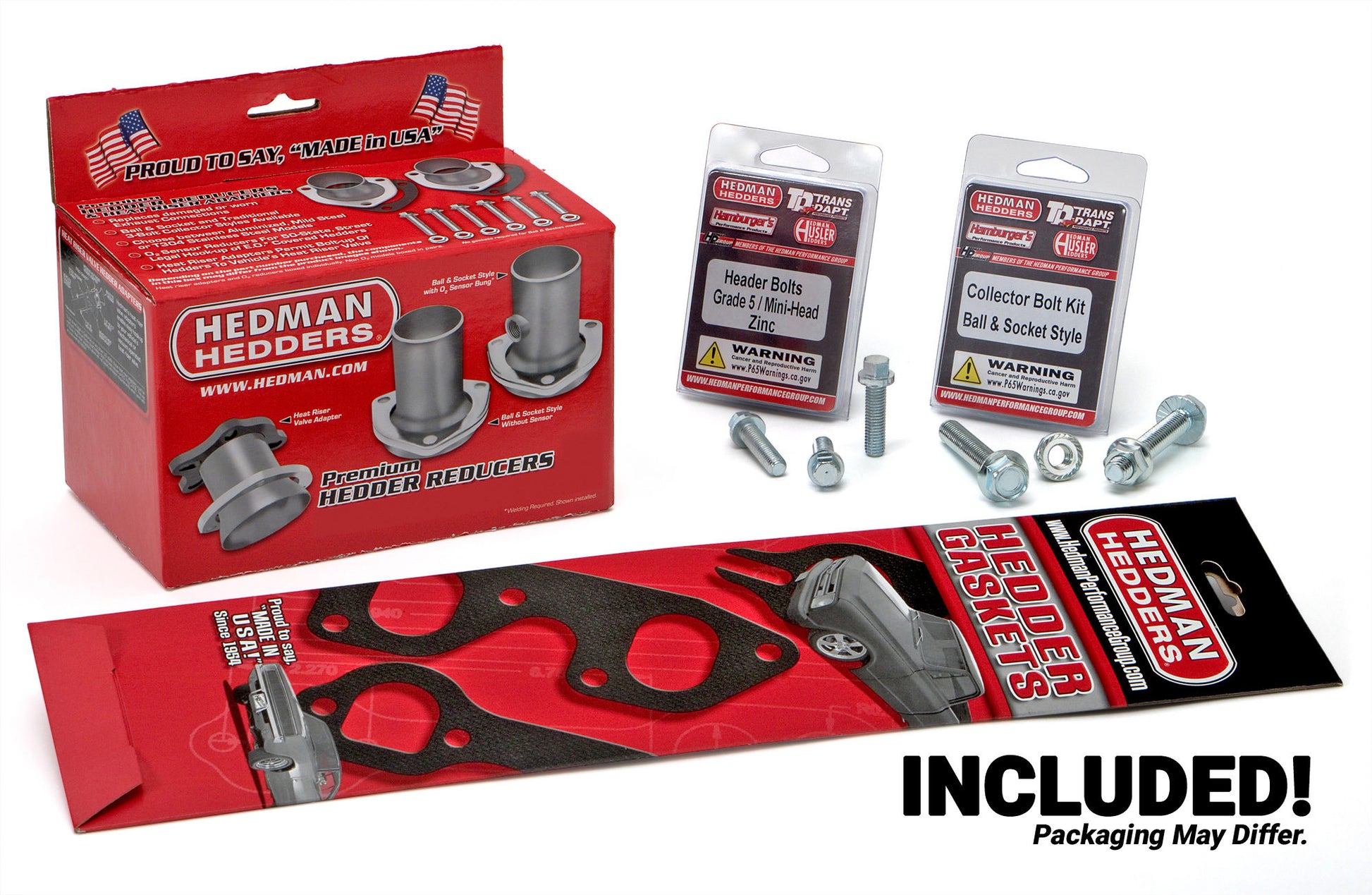

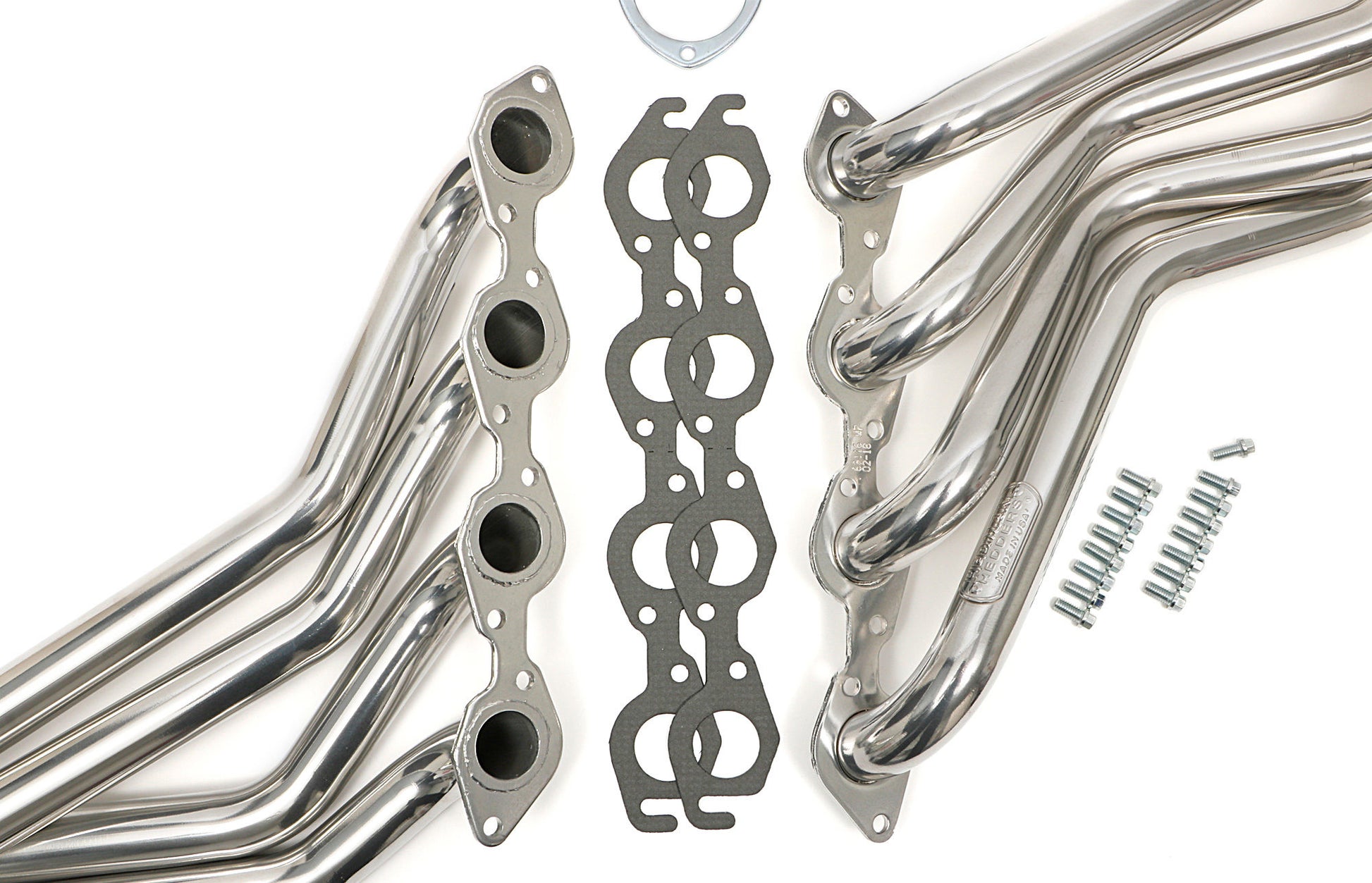

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Tube Material Thickness: 16g
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: HTC Polished Silver Ceramic-Metallic
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round
Header Style: Long Tube
Notes: 68-91 GM 3/4, 1 Ton Truck, SUV 396-502 2-4WD
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Long Tubes
Tube Diameter: 1-3/4 in.
Reducers Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 69110, 69820
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.75 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Clutch Notes: Must use 1975 and later model clutch linkage located at rear of engine. (139)
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27530
Replacement Head Flange Gasket: 27530
with A.I.R. System: No
Tube Size: 1-3/4 in.
Tube Style: Long Tubes
Exhaust System Dia: 2-1/2 in.
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Power Steering: Yes
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment: 3 in.
Collector Diameter: 3 in.
