Hedman Hedders 69086 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Hedman Hedders 69086 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Hedman Hedders | 69086
SKU: FBLG-69086
Regular price $732.99 USD
Regular price $1,766.34 USD Sale price $732.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

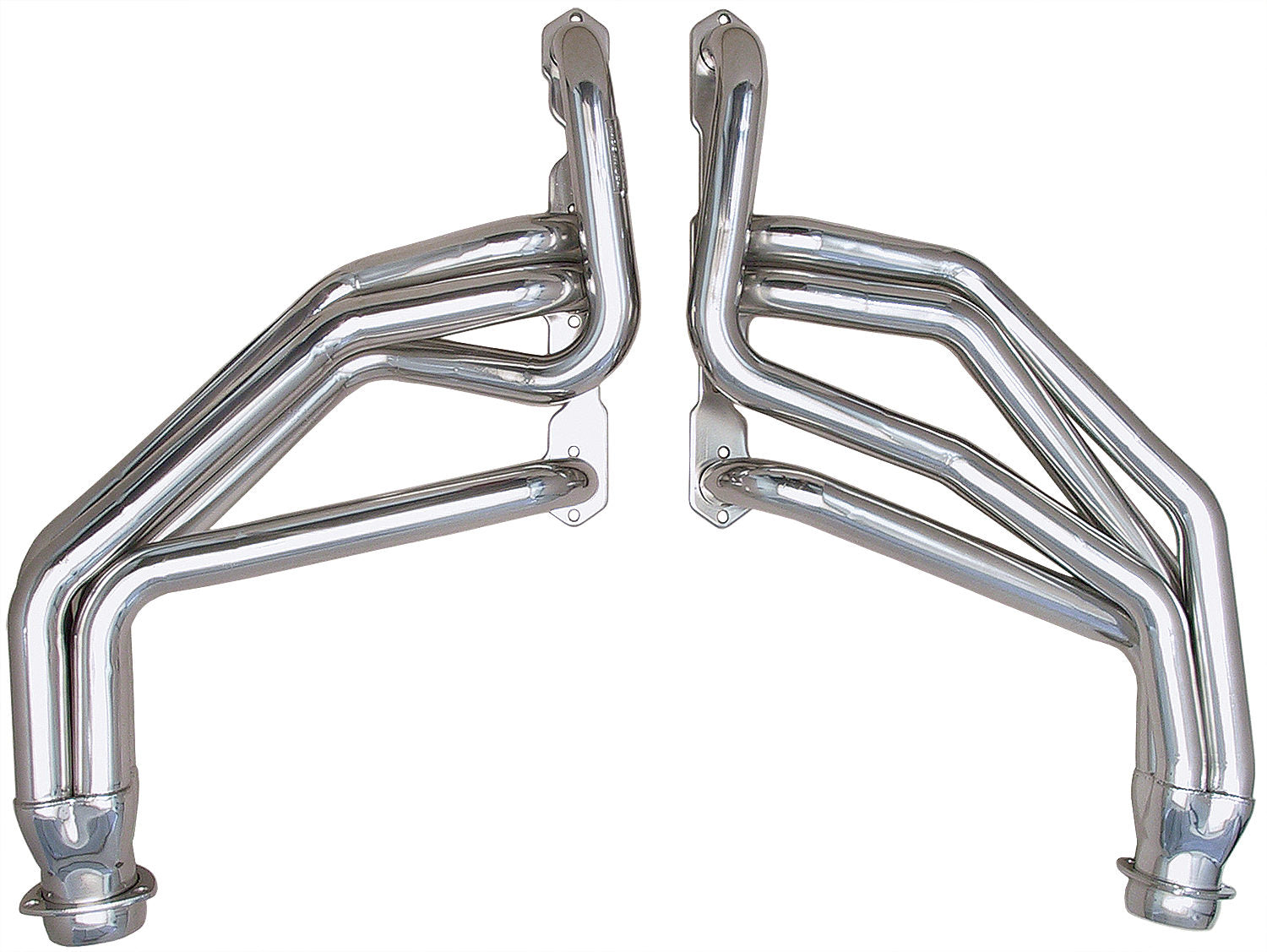

Hedman Hedders 69086 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Headers - Full - 1.75 in Primary - 3 in Collector - Gaskets / Hardware / Reducers Included - Steel - Silver Ceramic - Small Block Chevy - GM Fullsize SUV / Truck 1967-91 - Pair

Standard Long-Tube Headers; 67-91 CHEVY/GMC 1/2-1 Ton 2WD, 67-87 1/2-3/4 Ton 4WD Truck, 67-91 1/2-3/4 Ton SUV, 67-91 Motorhome; 283-400 SB Chevy No A.I.R. (Centered Engine Only); 1-3/4 in. Tubes; 3 in. Ball Collector- Silver, Mild-Steel

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These HTCβ„’ coated, LONG-TUBE headers are one of Hedman's best selling Chevy truck headers. They fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans (check the application listings for exact fitment) powered by a Small Block Chevy engine (without A.I.R. System). The smooth 1-3/4 in. tube design provides superior exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

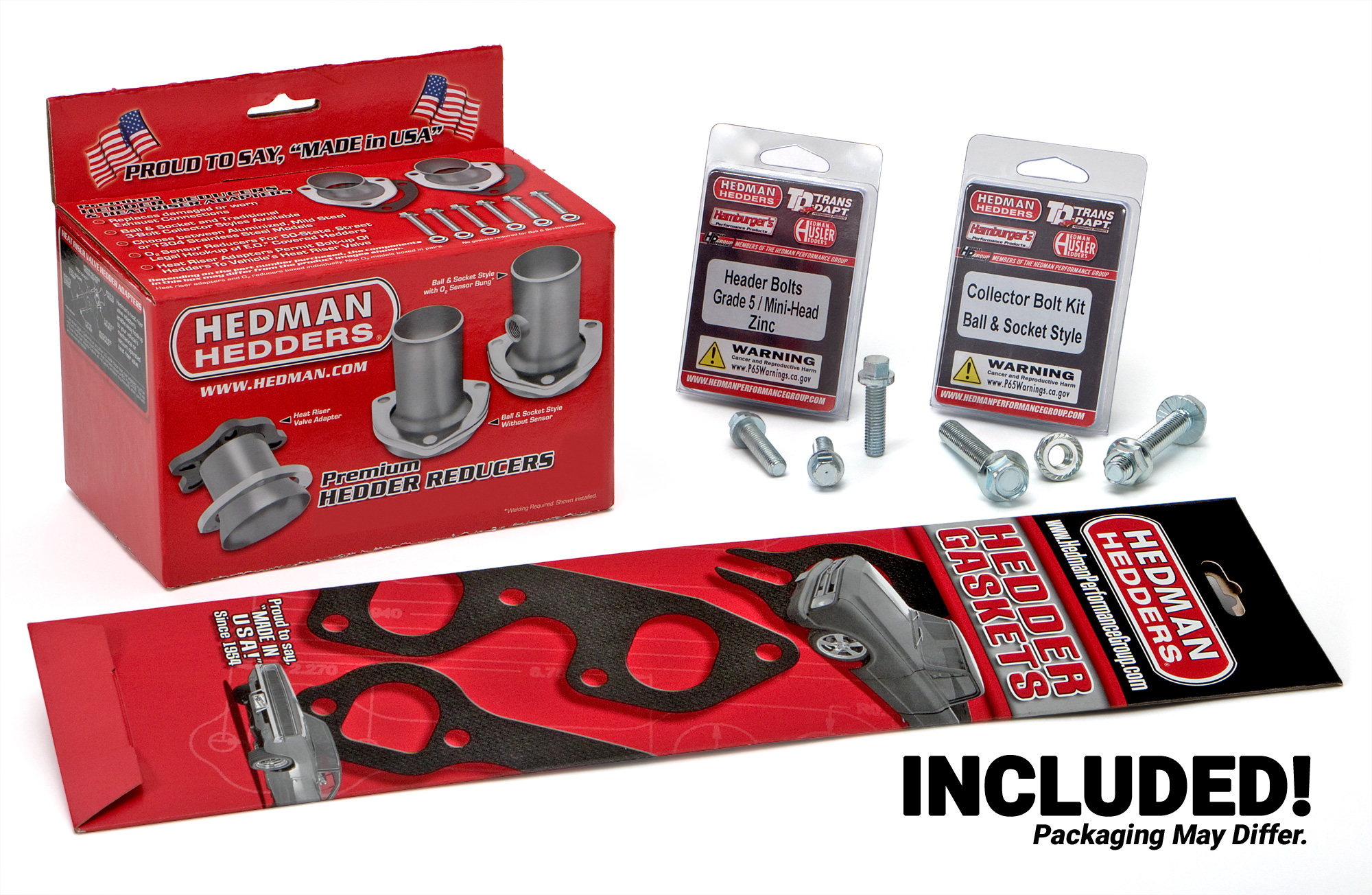

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, HTCβ„’ Polished Silver ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Tube Length: Long Tubes
Tube Style: Long Tubes
Exhaust System Dia: 2-1/2 in.
Air Conditioning: Yes
Air Conditioning Notes: Must modify rotary A/C Bracket (121)
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: No
Power Steering: Yes
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Tube Design: Standard
Drivetrain: 2WD
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: HTC Polished Silver Ceramic-Metallic
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
<i>COATED HEADERS DURING ENGINE BREAK-IN PERIOD</i>:
CLICK FOR IMPORTANT INFO REGARDING HEADER COATINGS DURING ENGINE BREAK-IN!
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Rectangle Port
Header Style: Long Tube
Notes: 67-91 GM. Full Size Blazer, Jimmy, Suburban 283-400 2-4WD
Port Shape: Rectangle
Material: Mild Steel
Tube Diameter: 1-3/4 in.
Mounting Hardware Included: Yes
Variations: 69080, 69088
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Material Thickness: 16g
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.75 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Rectangle
Cylinder Head: Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27560
Replacement Head Flange Gasket: 27560
Tube Size: 1-3/4 in.
