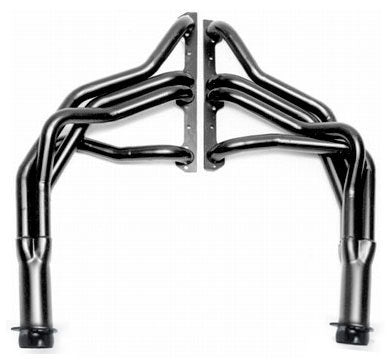

Hedman Hedders - 69060
Headers - Street - 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Small Block Chevy - GM Fullsize Van 1971-91 - Pair
Standard-Duty Uncoated, Long-Tube Headers For 1971-91 CHEVY/GMC Class C Conversion vans/Motorhomes with 283-400 SB Chevy Engine without A.I.R. (Centered Engine Chassis Only); 1-5/8 in. Long Tubes; 3 in. Ball/Socket Collector
- Handcrafted, Mild Steel Construction.
- Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 69066, 69860
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.

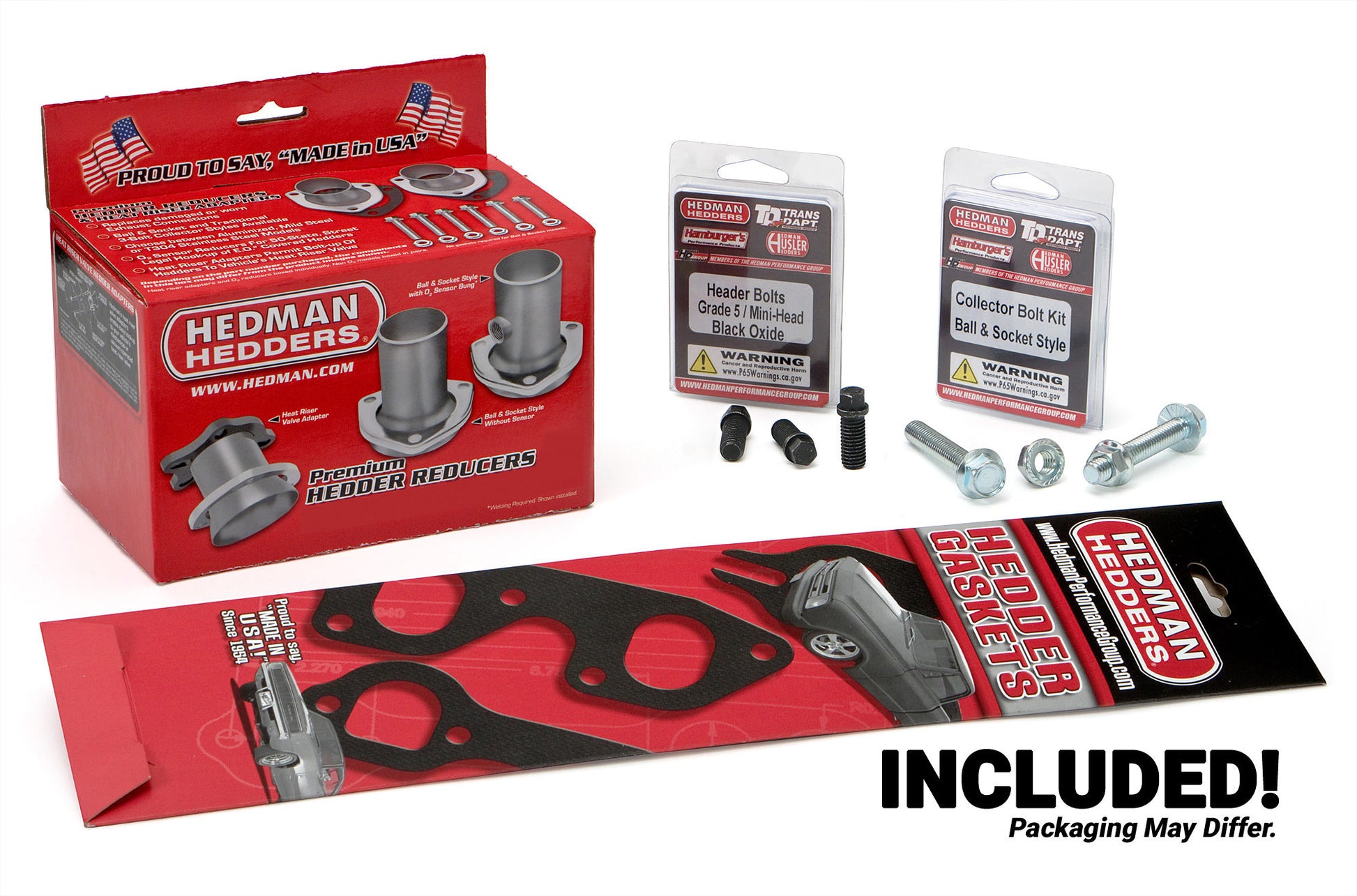

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27500
Replacement Head Flange Gasket: 27500
with A.I.R. System: No
Tube Size: 1-5/8 in.
Tube Style: Long Tubes
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
E.O. #: No
Tube Material Thickness: 16g
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round
Header Style: Long Tube
Notes: 71-91 Chev. C-Class Motorhome, Van 283-400
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Long Tubes
Tube Diameter: 1-5/8 in.
Reducers Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
