Hedman Hedders 68506 - HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN
Hedman Hedders 68506 - HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN
SKU: FBLG-68506
Regular price
$733.99 USD
Regular price
$1,770.03 USD
Sale price
$733.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability

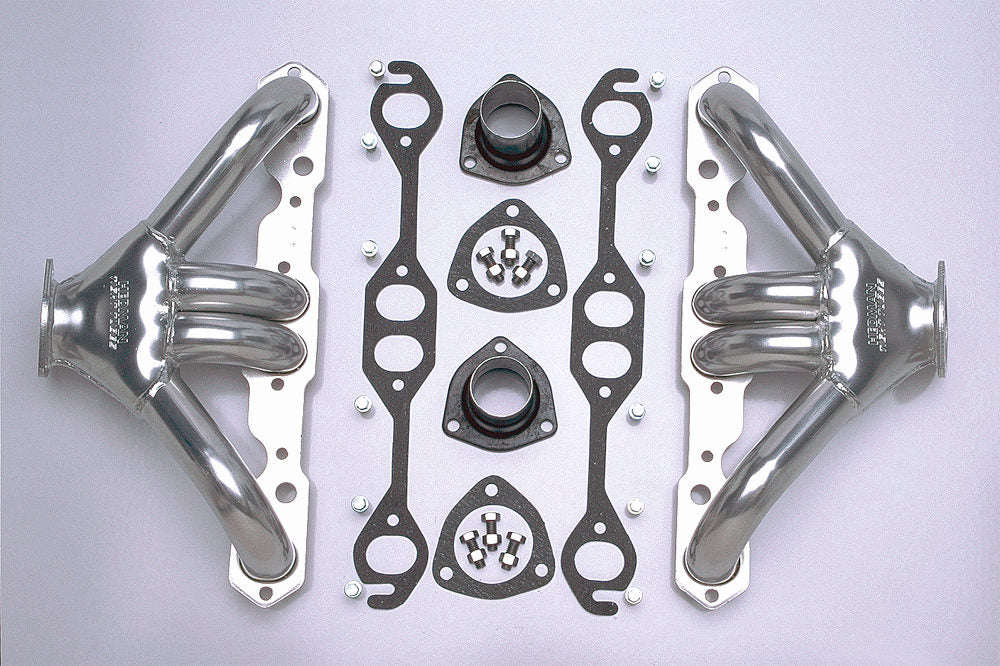

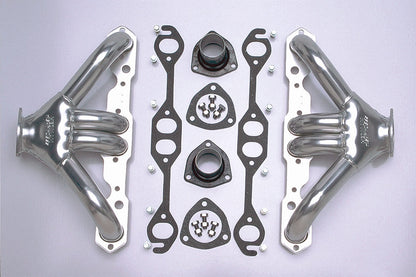

Hedman Hedders 68506 - HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN
Headers - Tight Tubes - Short - 1.625 in Primary - 2.5 in Collector - Gaskets / Hardware / Reducers Included - Steel - Silver Ceramic - Small Block Chevy - Street Rod - Chevy Fullsize Car 1955-57 - Pair
TIGHT TUBES Street Rod Headers; SB Chevrolet 283-400; 1-5/8 In. Tube Diameter, 2-1/2 in. Collector- HTC Polished Silver Ceramic-Metallic Coated Mild Steel
- The Lowest Profile Header On The Market
- The Flat, Clamshell Style Collector Has an Extremely Low Profile So they'll Fit in Nearly Any Street Rod or Custom Build With Little Clearance.
- The High Volume Flat Collector Offers Improved Exhaust Flow For Far Superior Performance Over Classic Block Hugger Models.

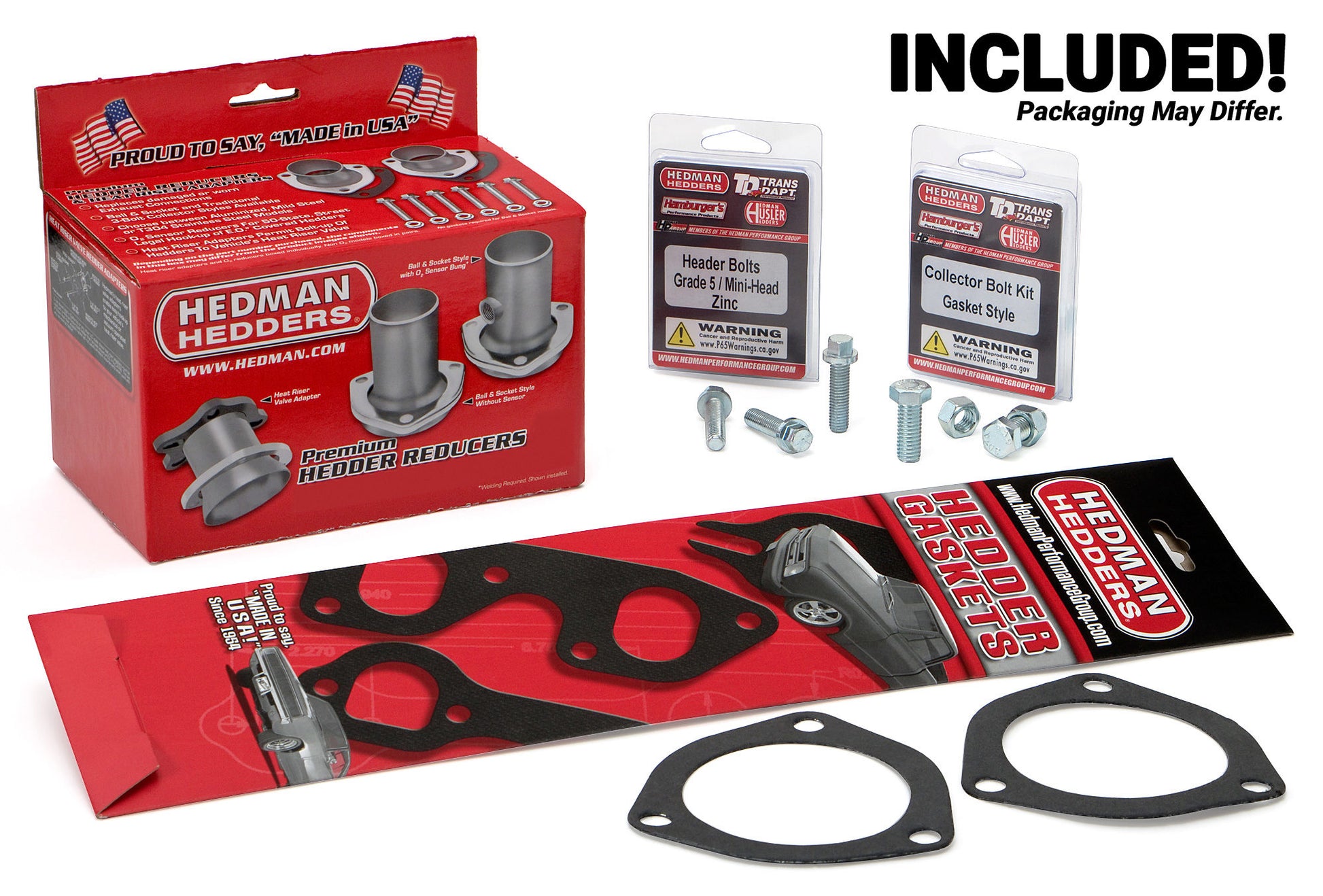

- Includes Classic, 3-Bolt Gasket-Style Header Collectors, Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Exhaust System Dia: 2 in.
E.O. #: No
Tube Length: Tight Tubes
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Engine: Chevy SB 283-400
Finish: HTC Polished Silver Ceramic-Metallic
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
<i>COATED HEADERS DURING ENGINE BREAK-IN PERIOD</i>:
CLICK FOR IMPORTANT INFO REGARDING HEADER COATINGS DURING ENGINE BREAK-IN!
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Oval Port
Header Style: TIGHT TUBES
Notes: 55-57 Chevrolet Passenger Cars 283-400 Tight Tube
Port Shape: Oval
Material: Mild Steel
Tube Design: Standard
Tube Diameter: 1-5/8 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-5/8 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Headers, reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Oval
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27520
Replacement Head Flange Gasket: 27520
Variations: 68500
Tube Material Thickness: 16g
Tube Style: Tight Tubes
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 2-1/2 in.
Collector Diameter: 2-1/2 in.
Collector Size: 2-1/2 in.
Collector Style: 3-Bolt Gasket Style Flange
Reducer Outlet Size: 2 in.
