Hedman Hedders - 68298

Headers - Elite Ultra-Duty - 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Metallic Ceramic - Small Block Chevy - GM A-Body / B-Body 1964-94 - Pair

ELITE Hedders; 1-5/8 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures. ELITE models have a MATTE-SILVER ceramic finish that looks great and keeps more heat in the tubes, and underhood temperatures down.

These LONG-TUBE headers fit a variety of popular 1971-1993 Chevy Passenger cars, including Impala, Caprice and Bel Air; 1970-1977 Monte Carlo (A-Body) , and 1964-1977 Chevy Chevelle, Malibu and El Camino models fitted with a SB Chevy (Gen 1) engine. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, MATTE-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.

  • Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.

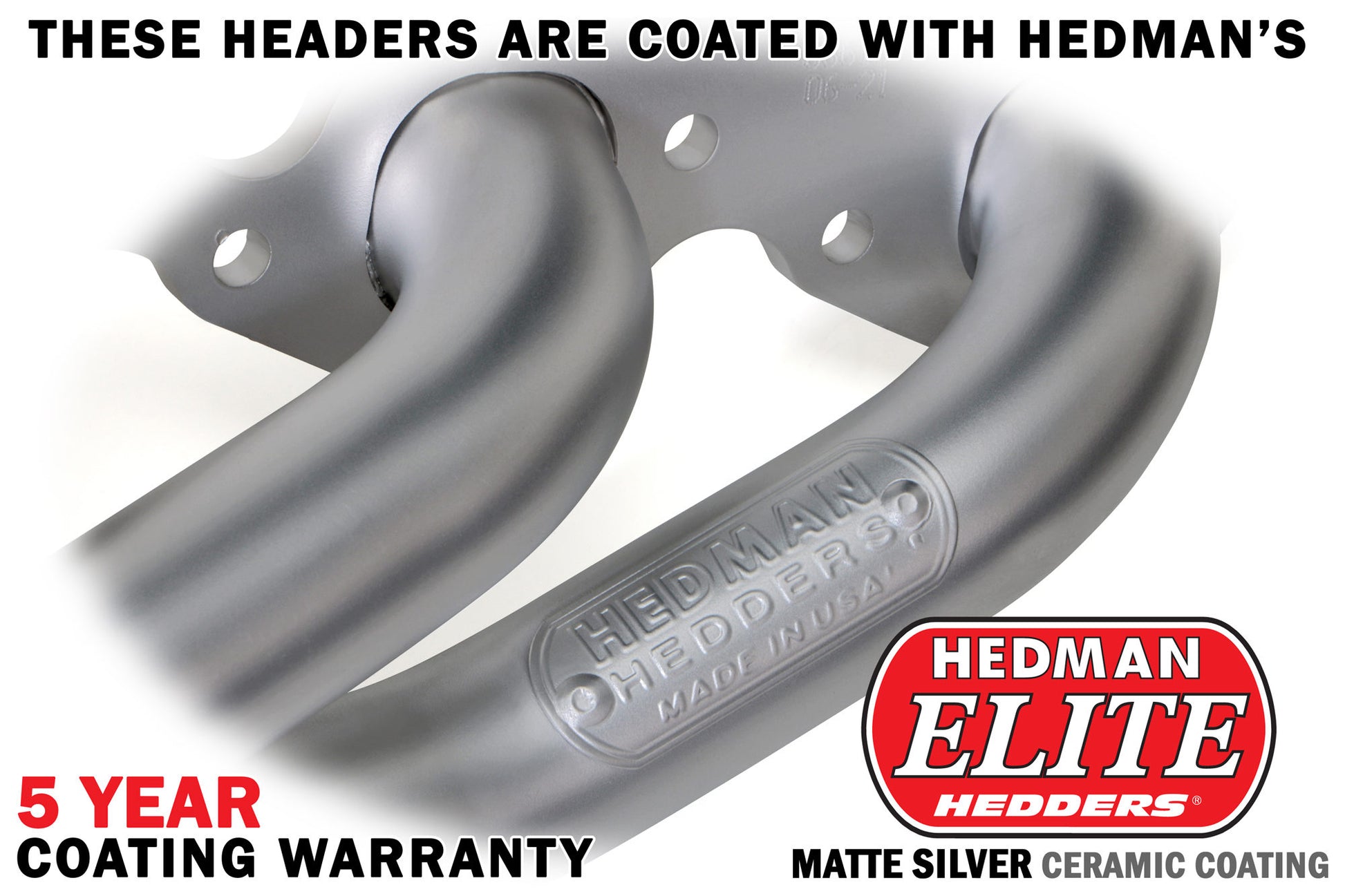

  • Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

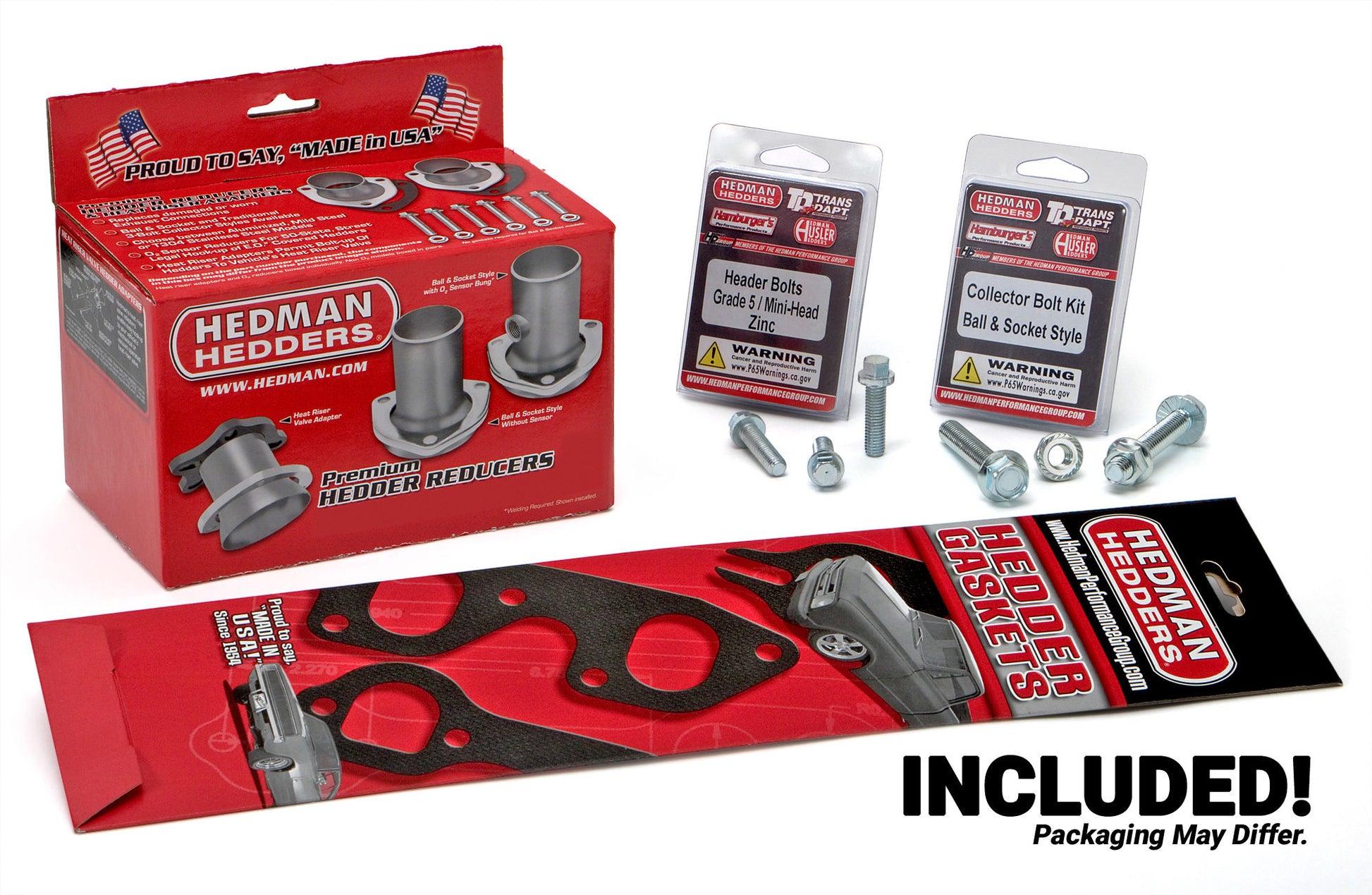

  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

Tube Length: Long Tubes
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: Matte Silver Ceramic-Metallic
Finish Type: MATTE SILVER Ceramic-metallic coated
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Port Shape: Oval Port
Header Style: Long Tube
Notes: 64-77 A-Body, 71-93 Chev. Pass. Car 283-400
Key Feature: Without A.I.R.
Port Shape: Oval
Material: Mild Steel
Tube Design: Standard
Tube Diameter: 1-5/8 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-5/8 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 14g
Primary Tube Diameter (in): 1.625 in.

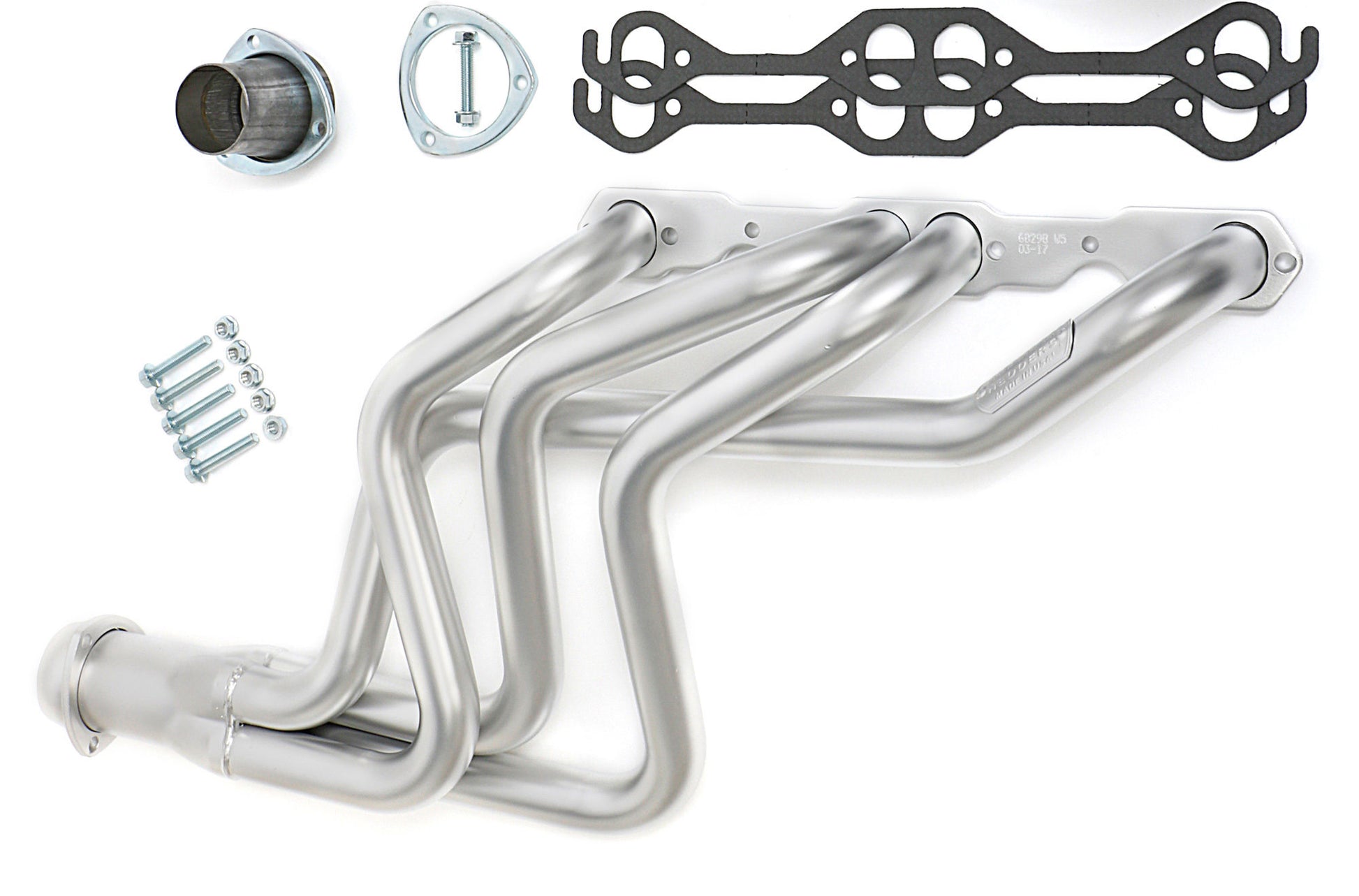

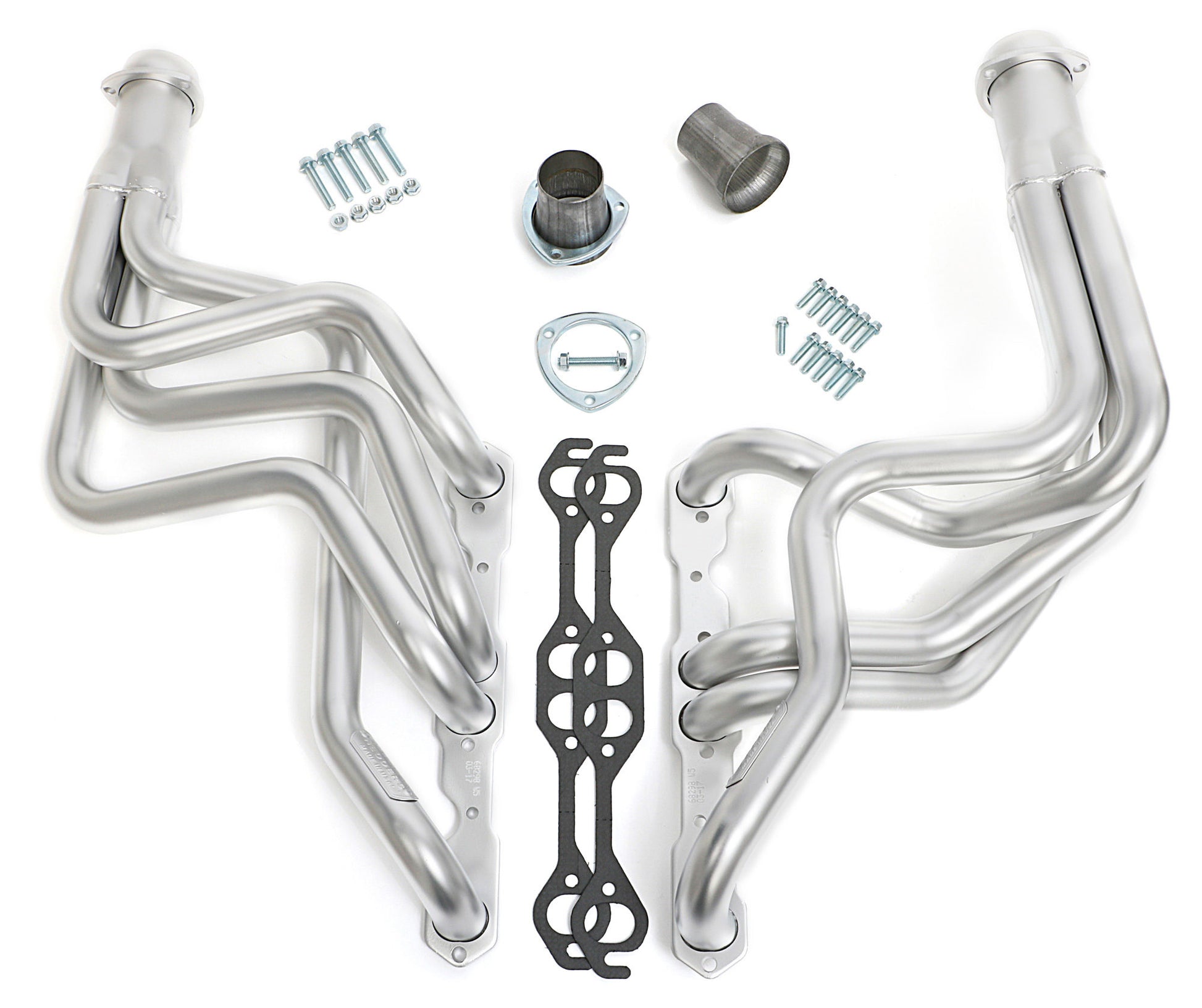

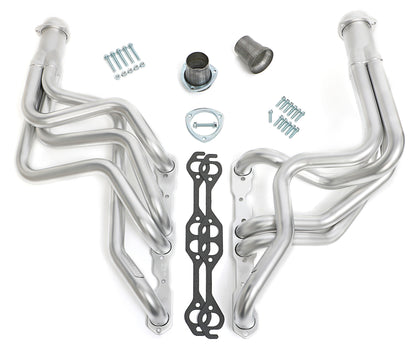

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Matte Silver Ceramic-Metallic
Cylinder Head Port Shape: Oval
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- ELITE Heavy-Duty
Replacement Gasket: 27520

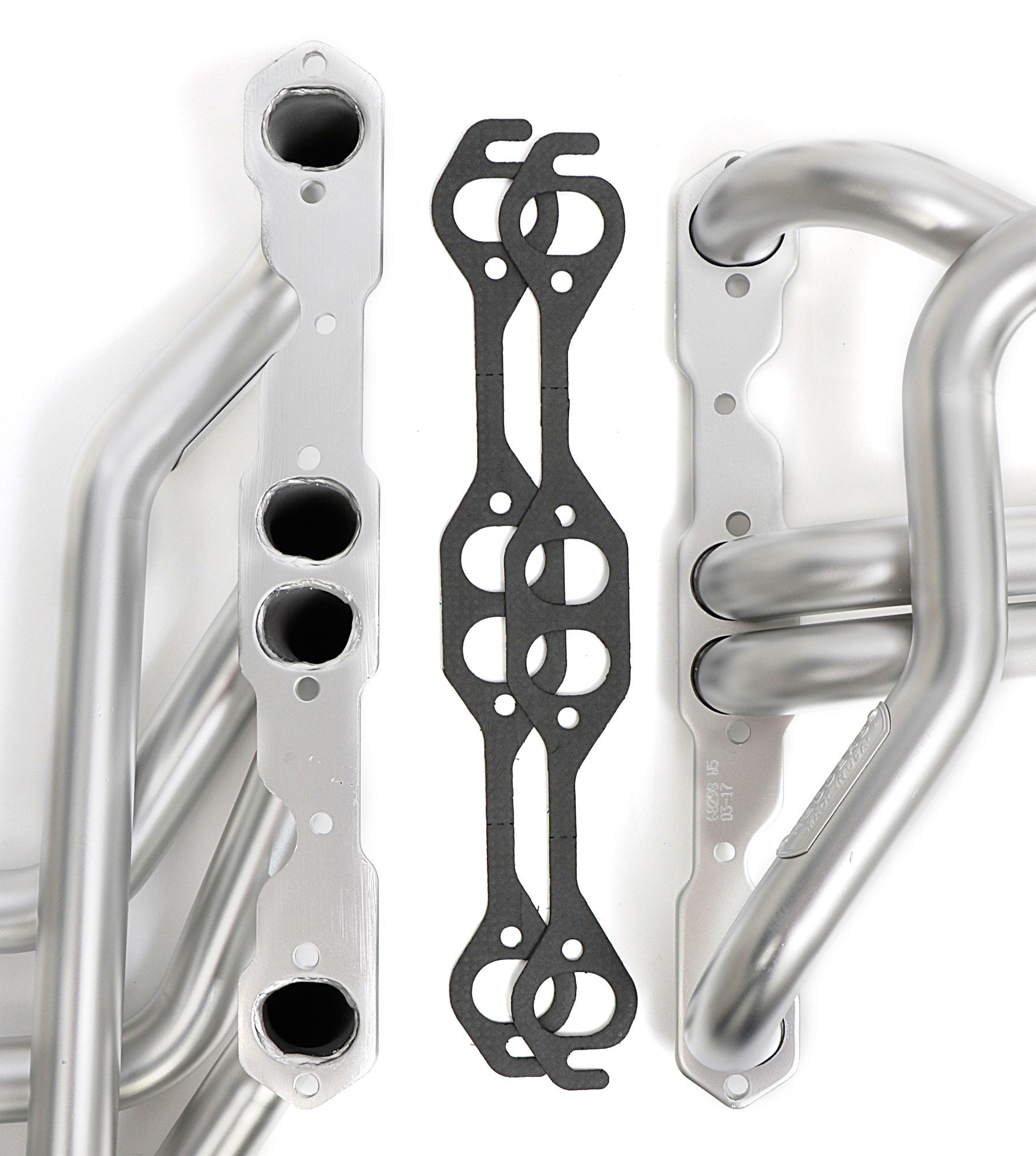

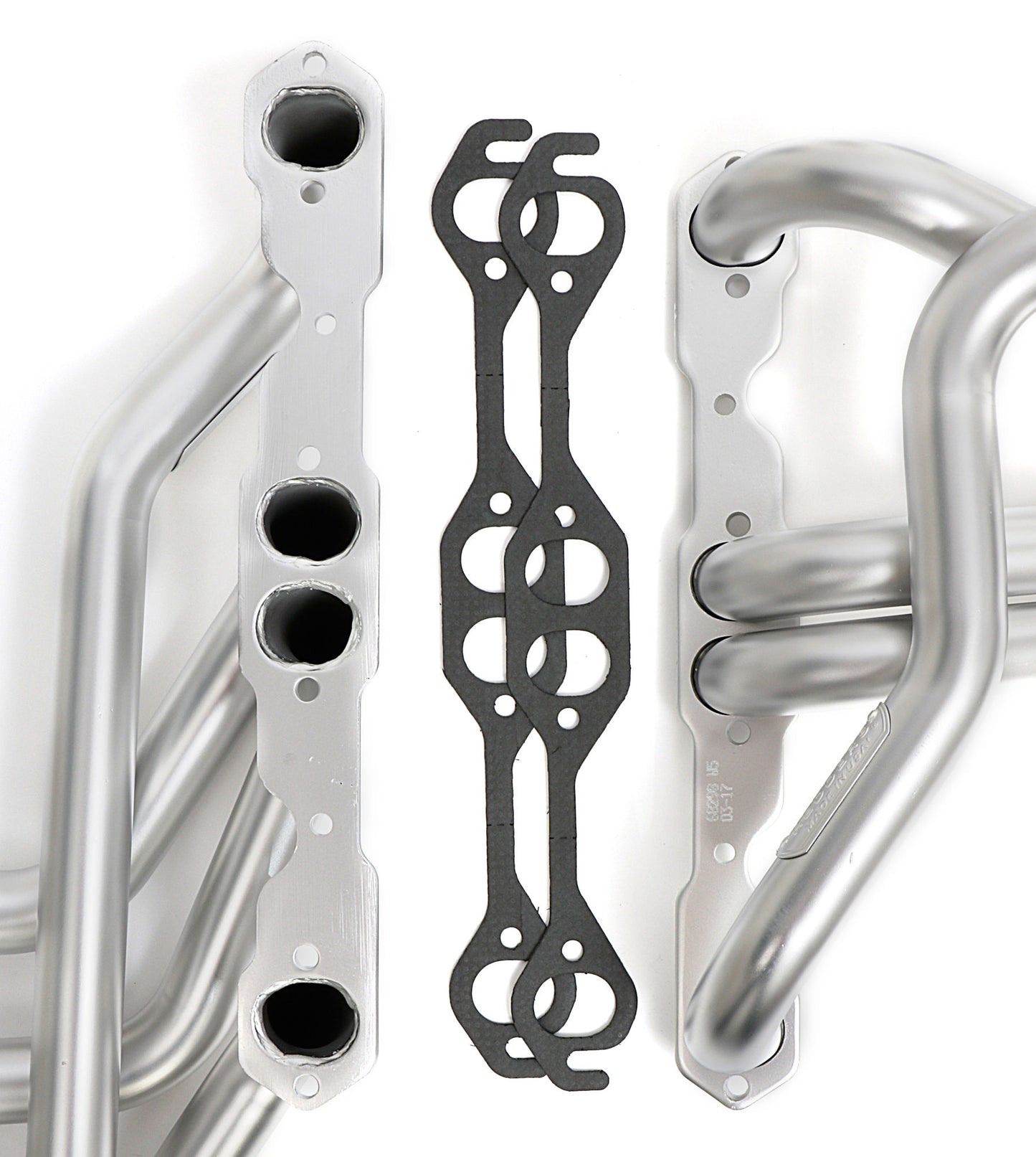

Replacement Head Flange Gasket: 27520
Variations: 68296, 68298
Tube Material Thickness: 14g
Tube Style: Long Tubes
Exhaust System Dia: 2-1/2 in.
Air Conditioning: Yes
Air Conditioning Notes: 70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket.
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
