Hays - 90-103
Hays Classic Clutch Kit - Super Truck-GM

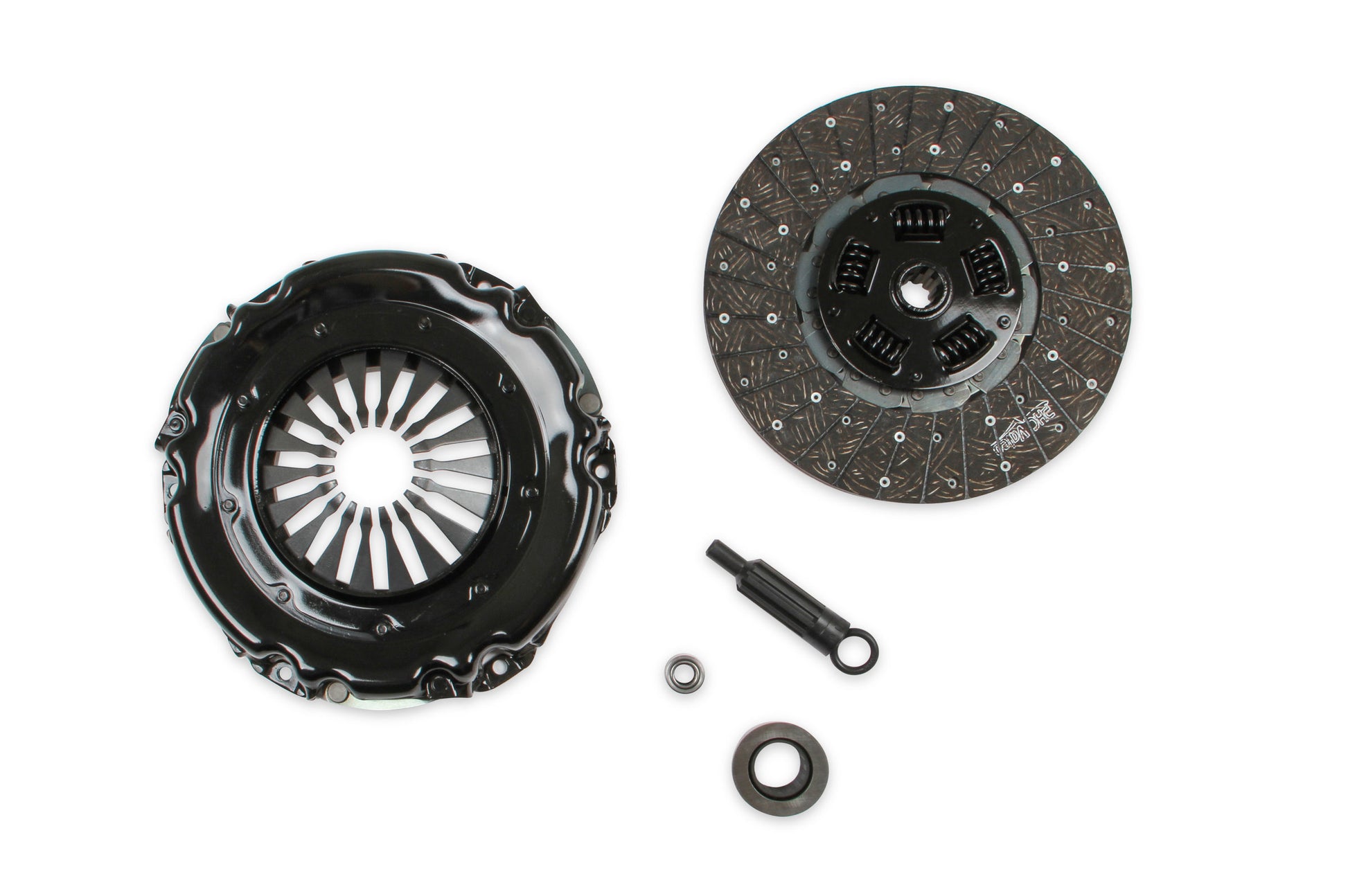

Super-Truck™ Performance Clutch Kit; Diaphragm; Incl. Pressure Plate/Disc/Throwout Bearing/Alignment Tool; For GM Apps w/12 in. Dia.; 10 Spline By 1 1/8 in. Specs;

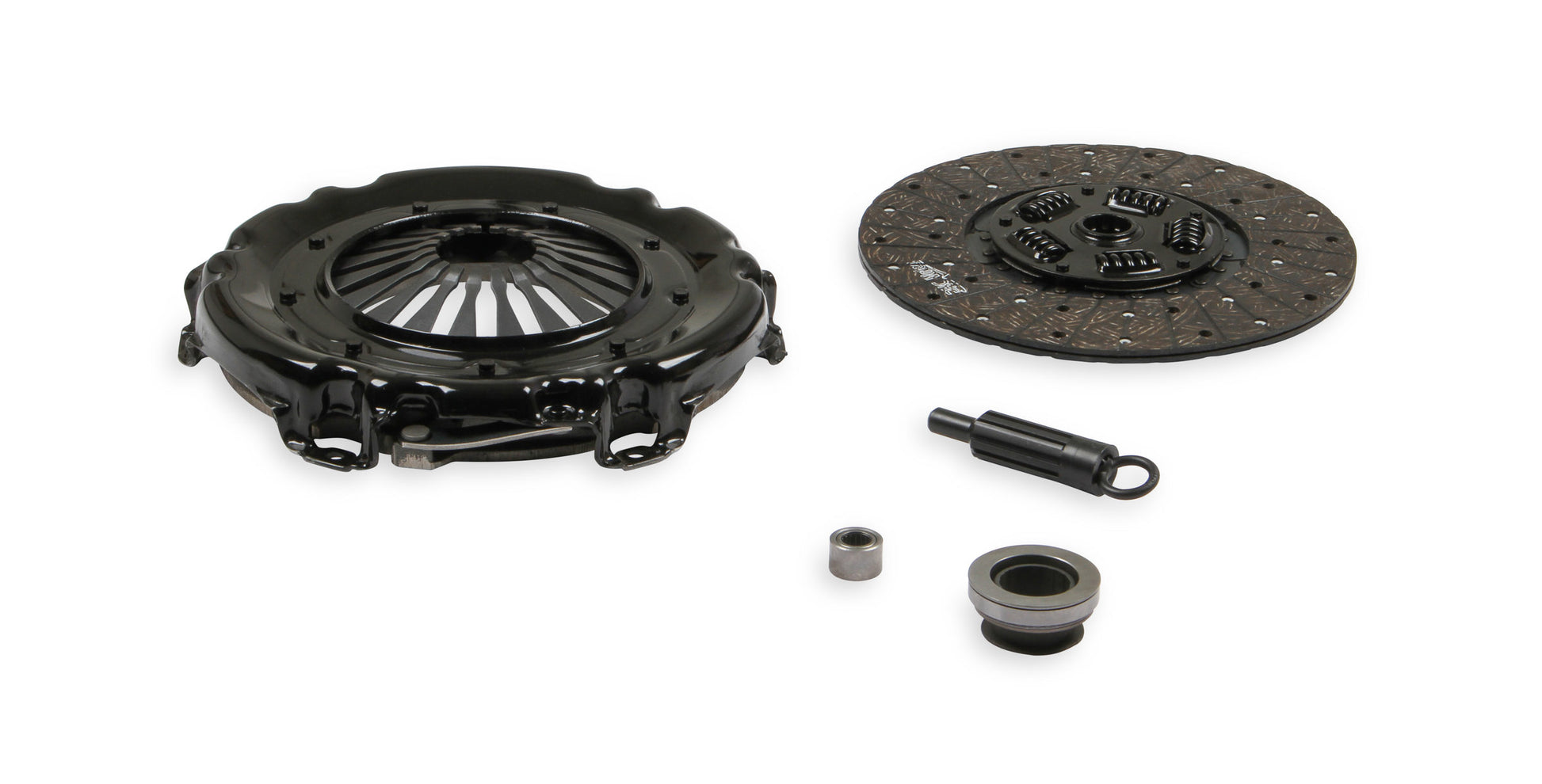

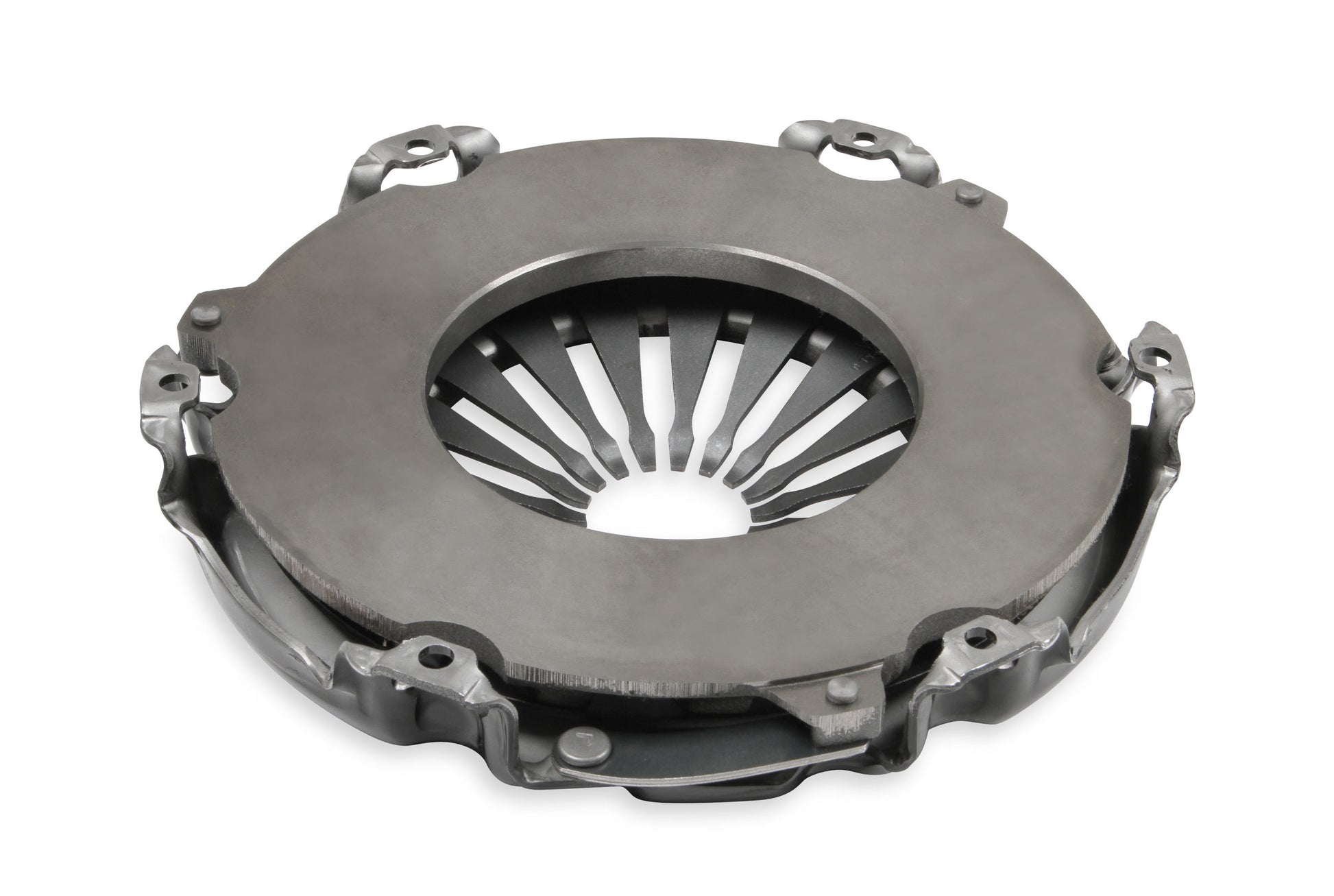

Hays Super Truck clutch kits are great replacements for original equipment units. Engineered and built as a matched assembly, each kit will provide exceptional performance, durability and long term dependability. This kit fits Chevy and GMC truck applications with 12 in clutch and 1-1/8 in 10 spline input shaft. The pressure plate is a diaphragm style, and the clutch disk is organic sprung hub. Comes complete with the throw out bearing and alignment tool. Other applications and styles available.
- Chevy And GMC Truck
- 12 In Clutch
- 1-1/8 In 10 Spline Alignment Tool

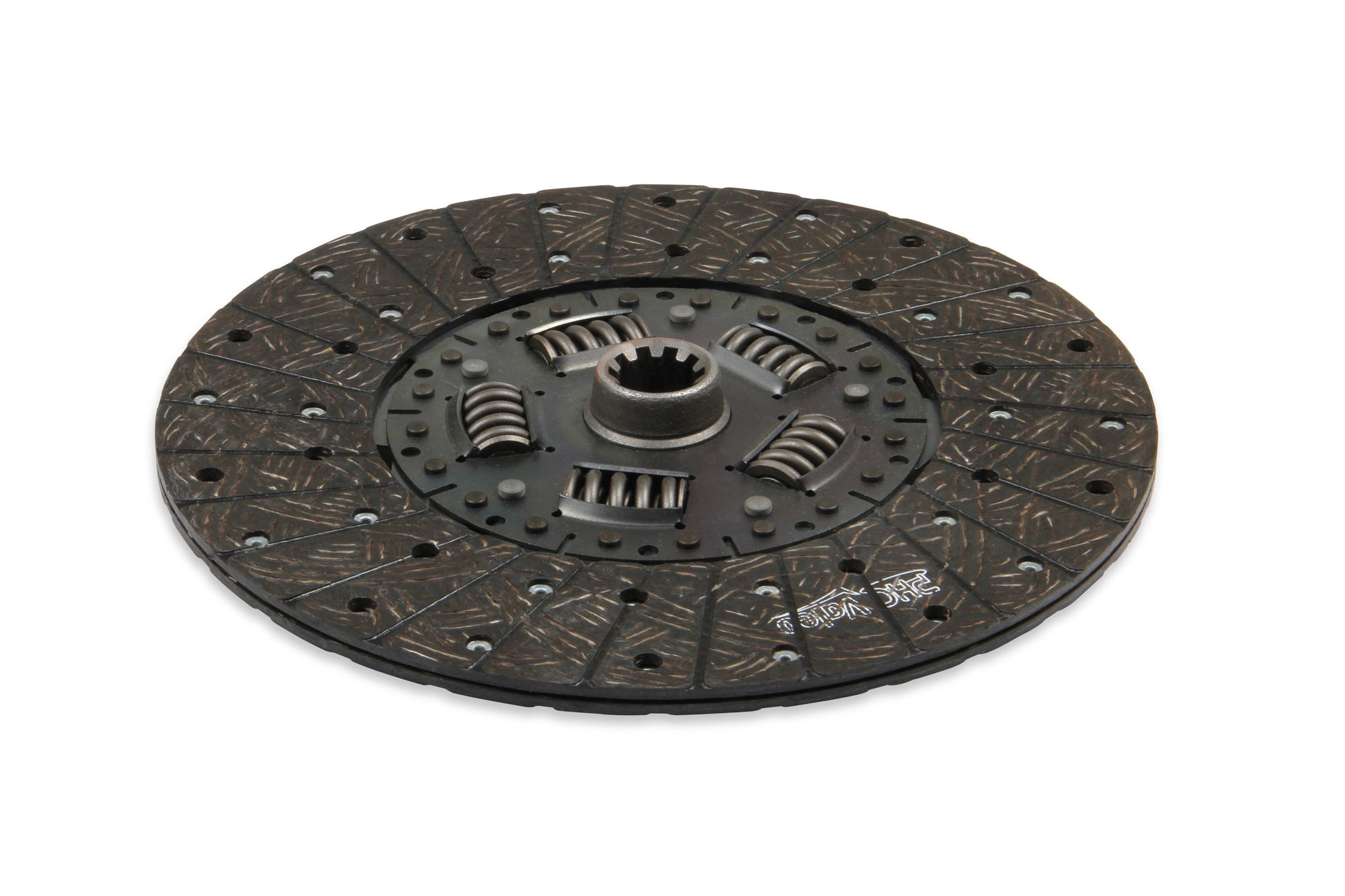

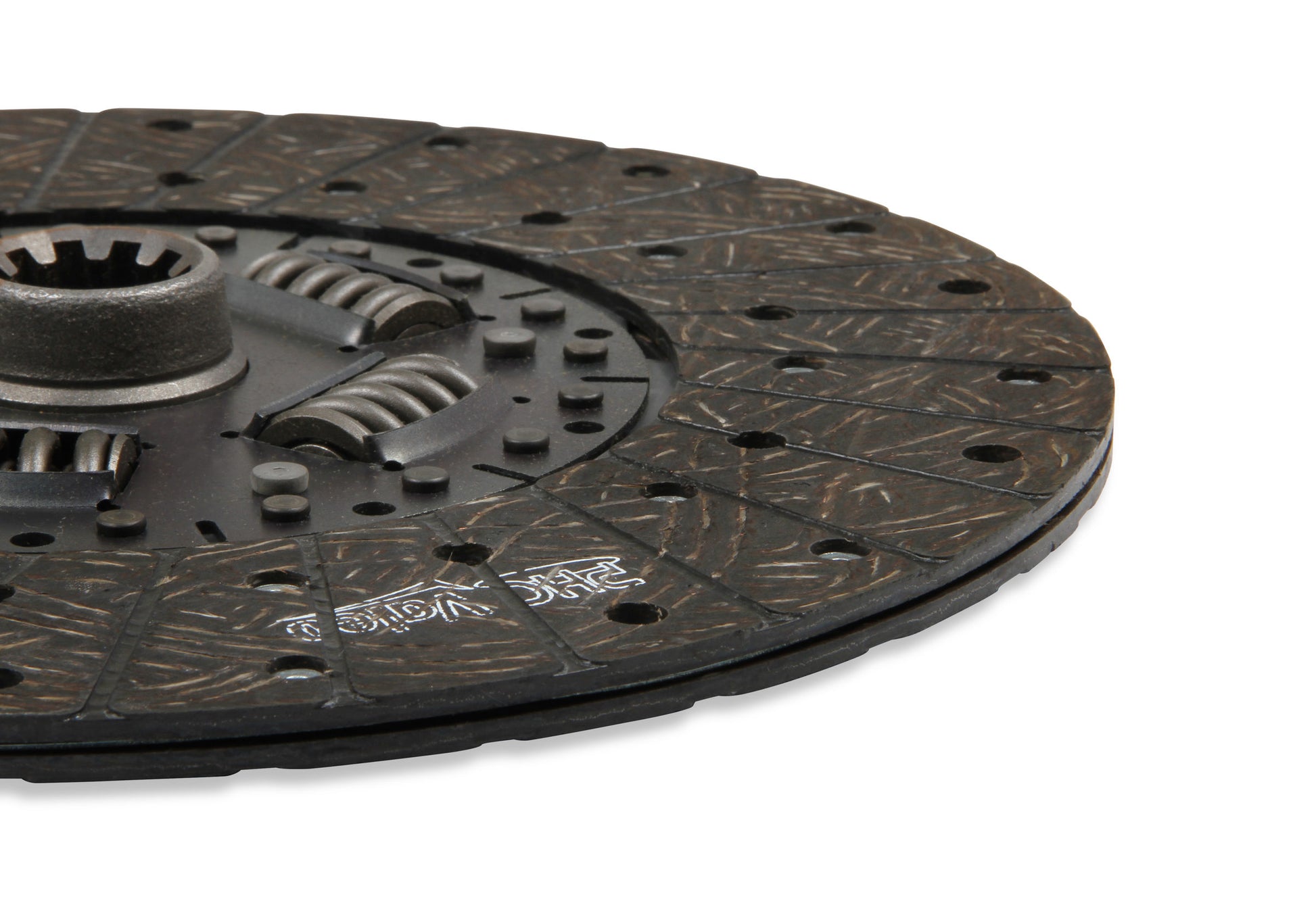

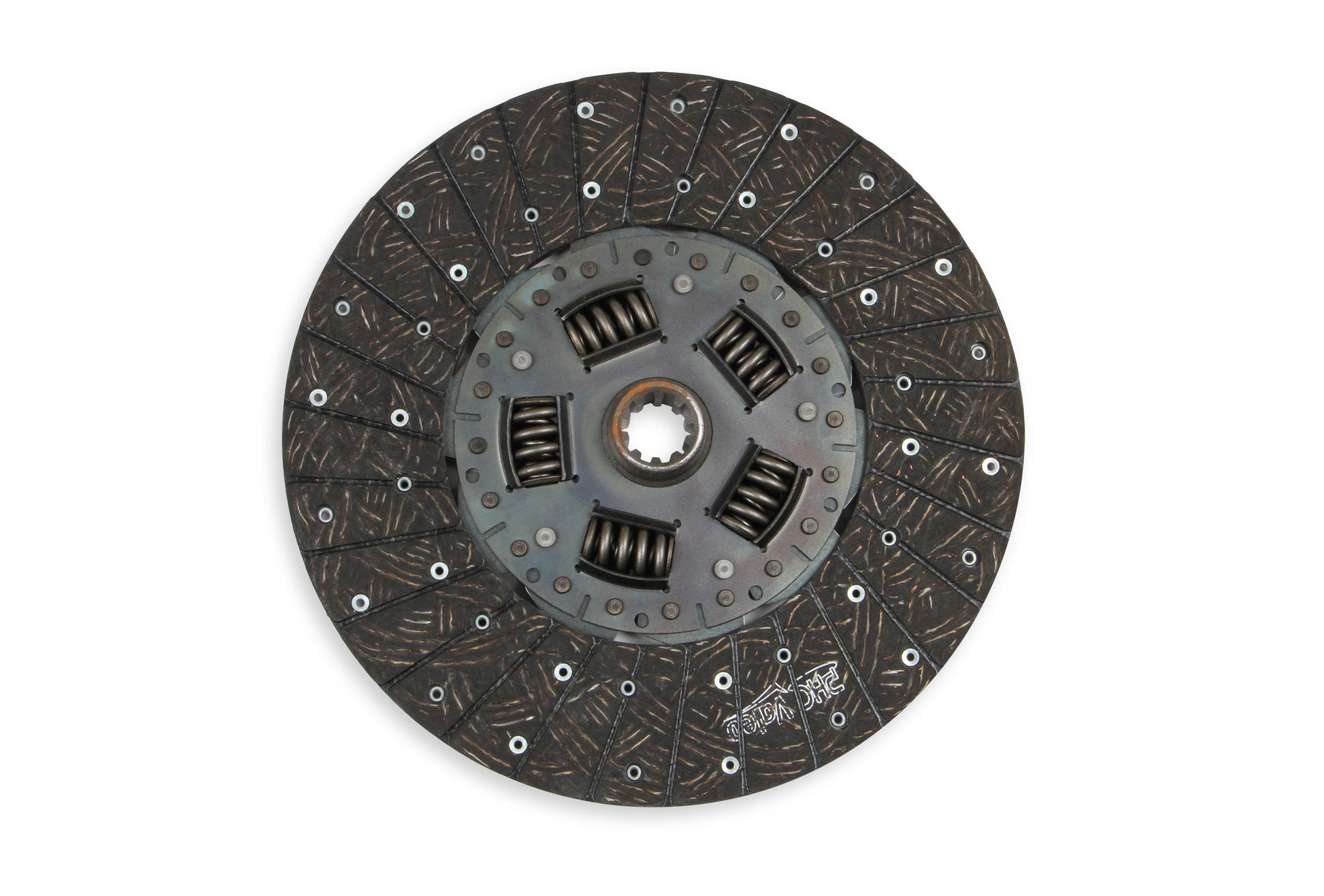

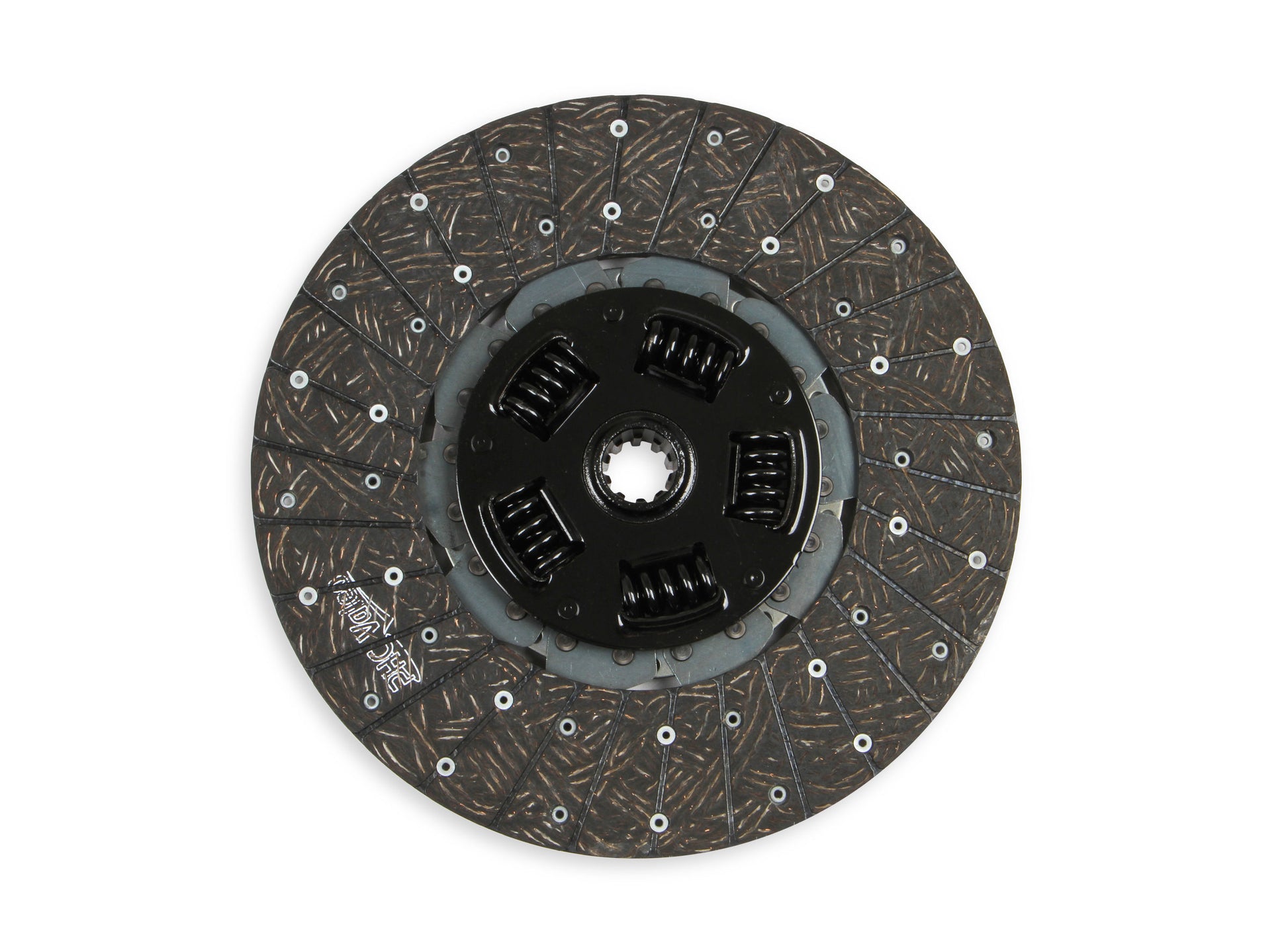

- Organic Sprung Hub
- Throw Out Bearing Included
Alignment Tool Included: Yes
Application: GM
Brand: Hays
Category: Transmission
Disc Diameter: 12
Disc Material: Organic
Disc Style: Spring Hub
Emission Code: 5
Input Shaft Diameter: 1-1/8 in.
Input Spline: 10
Max Horsepower Rating: 558
Max Torque Rating (ft.-lbs.): 532
part type: Transmission Clutch Kit

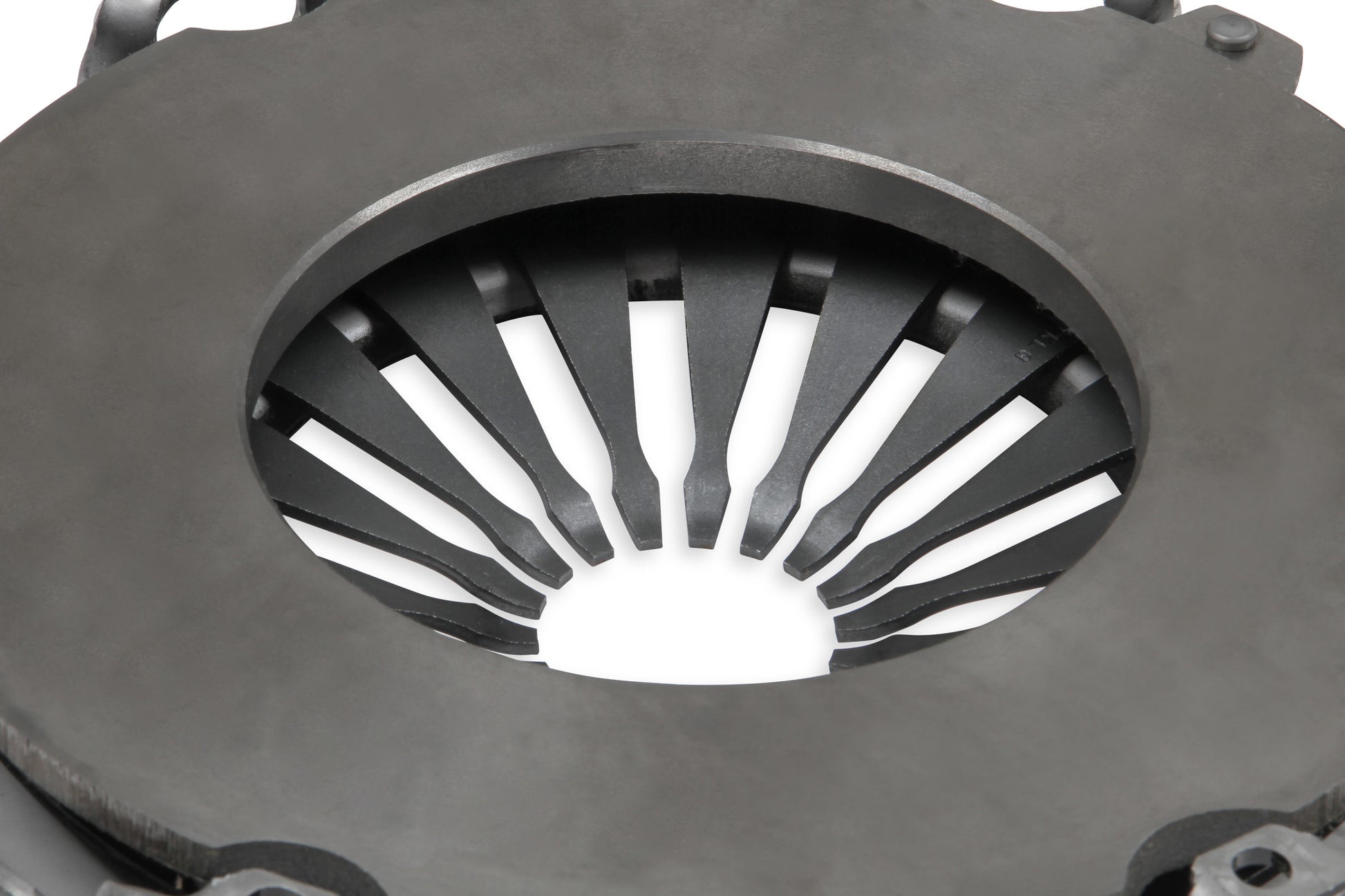

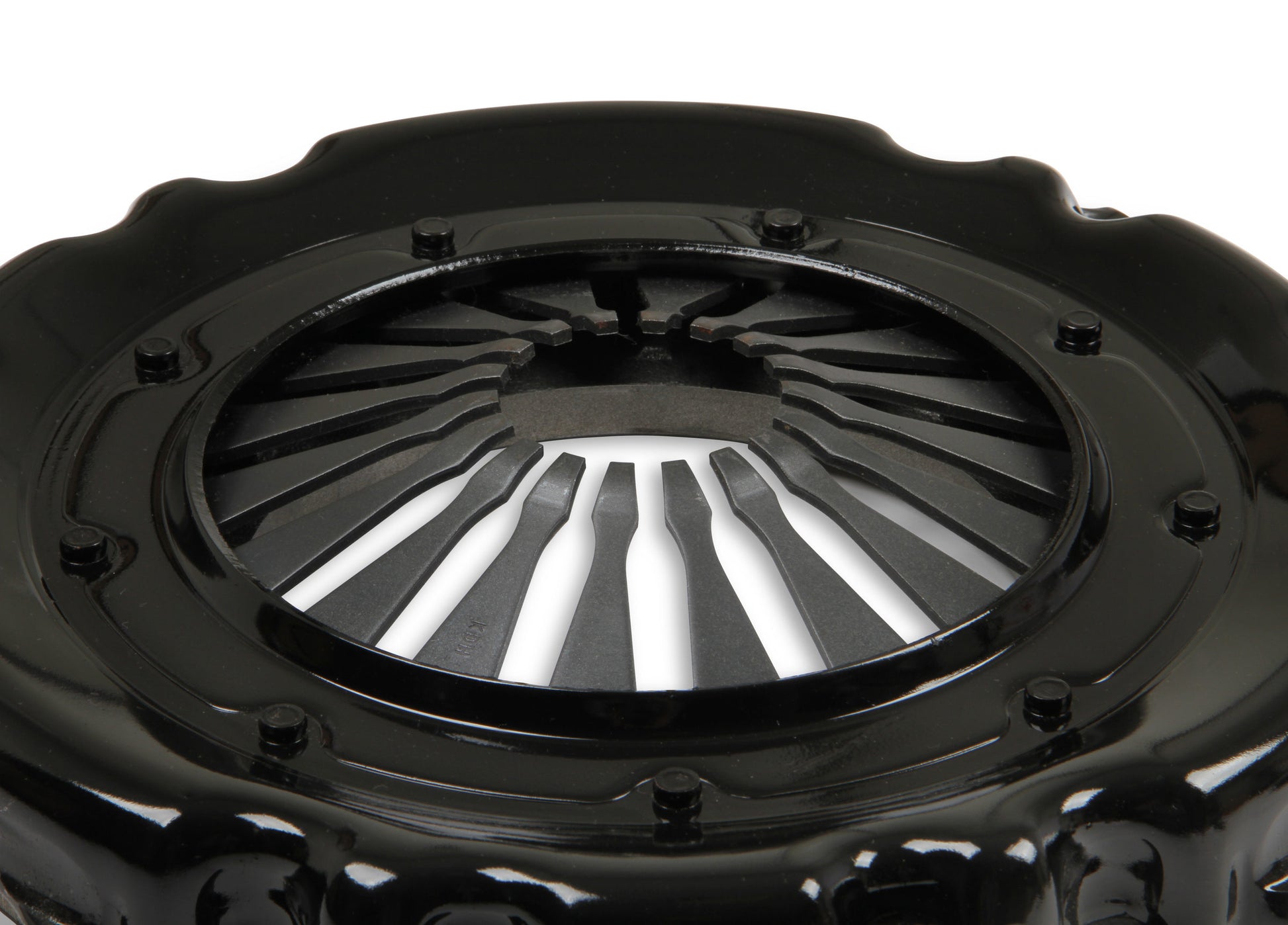

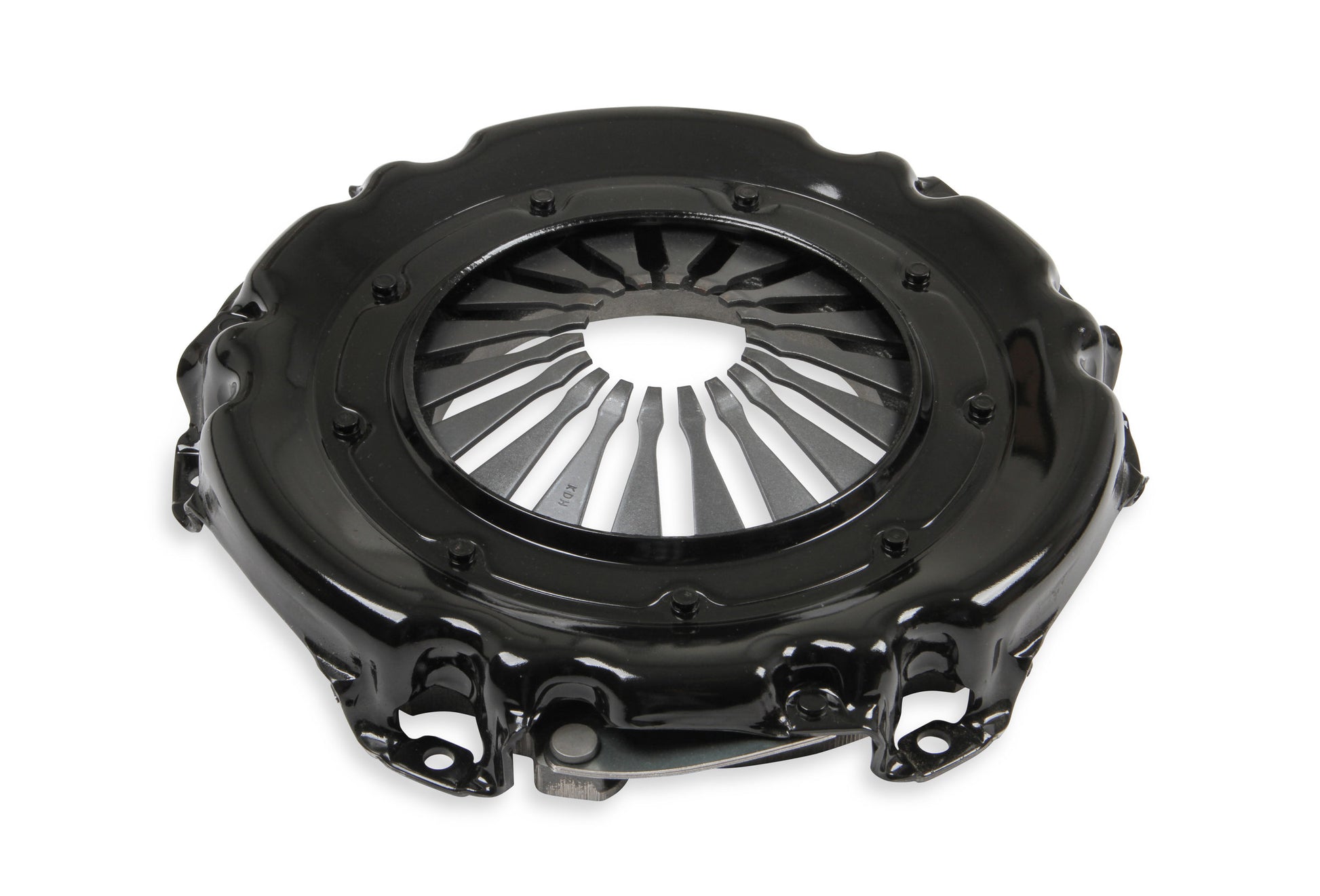

Pressure Plate Style: Diaphragm
Product Type: Clutch Kits
Sub Category: Transmission Components
Throwout Bearing Included: Yes
Transmission: Category
Warranty: Manufacturer's Limited 90 Day Warranty
