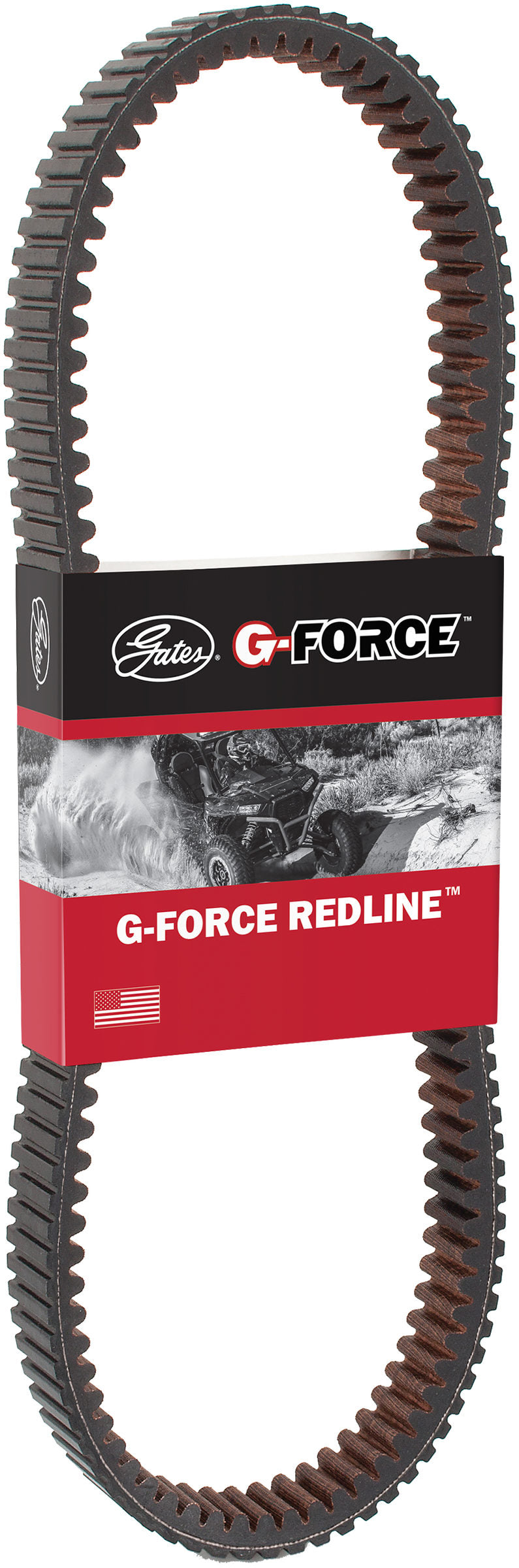

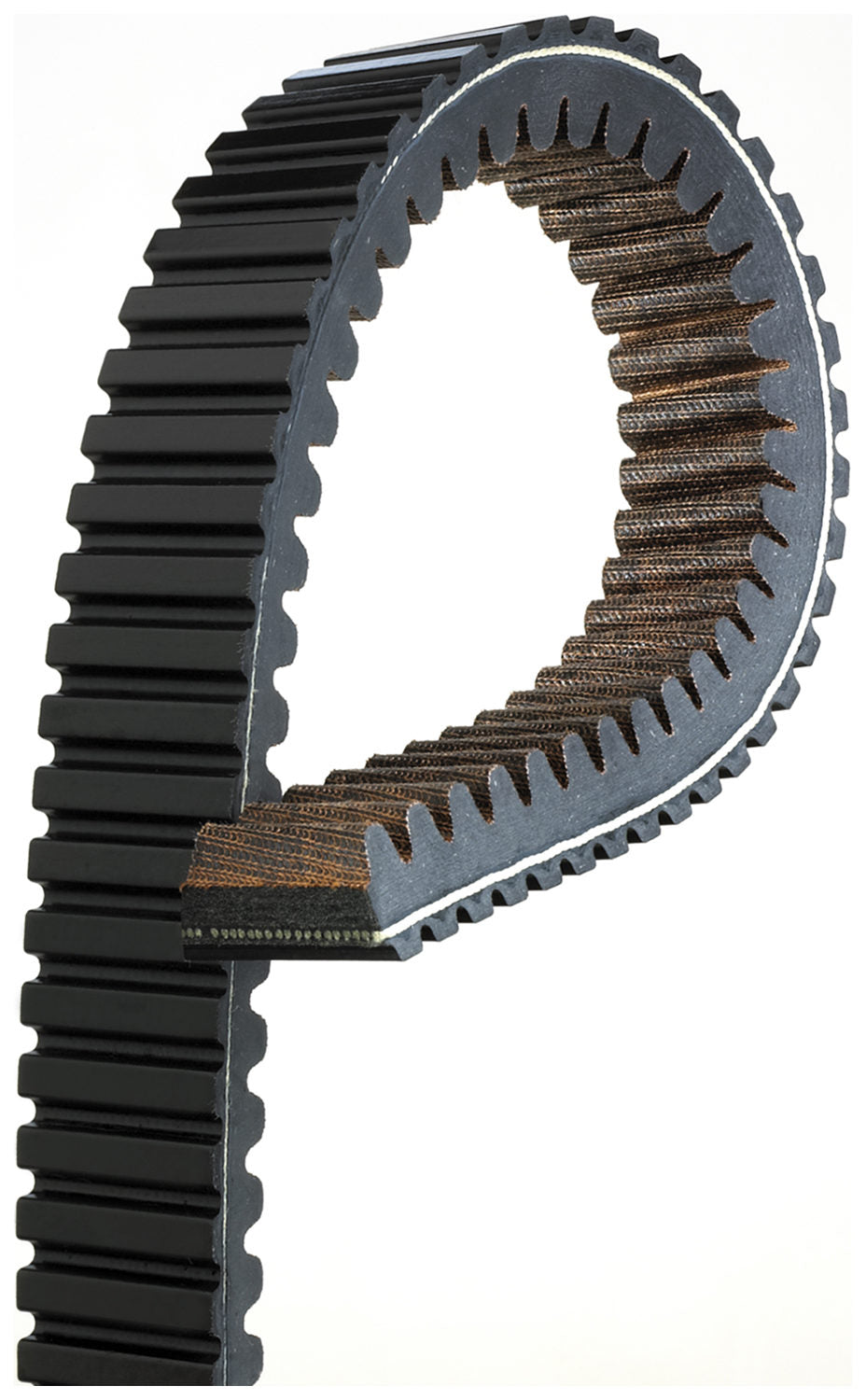

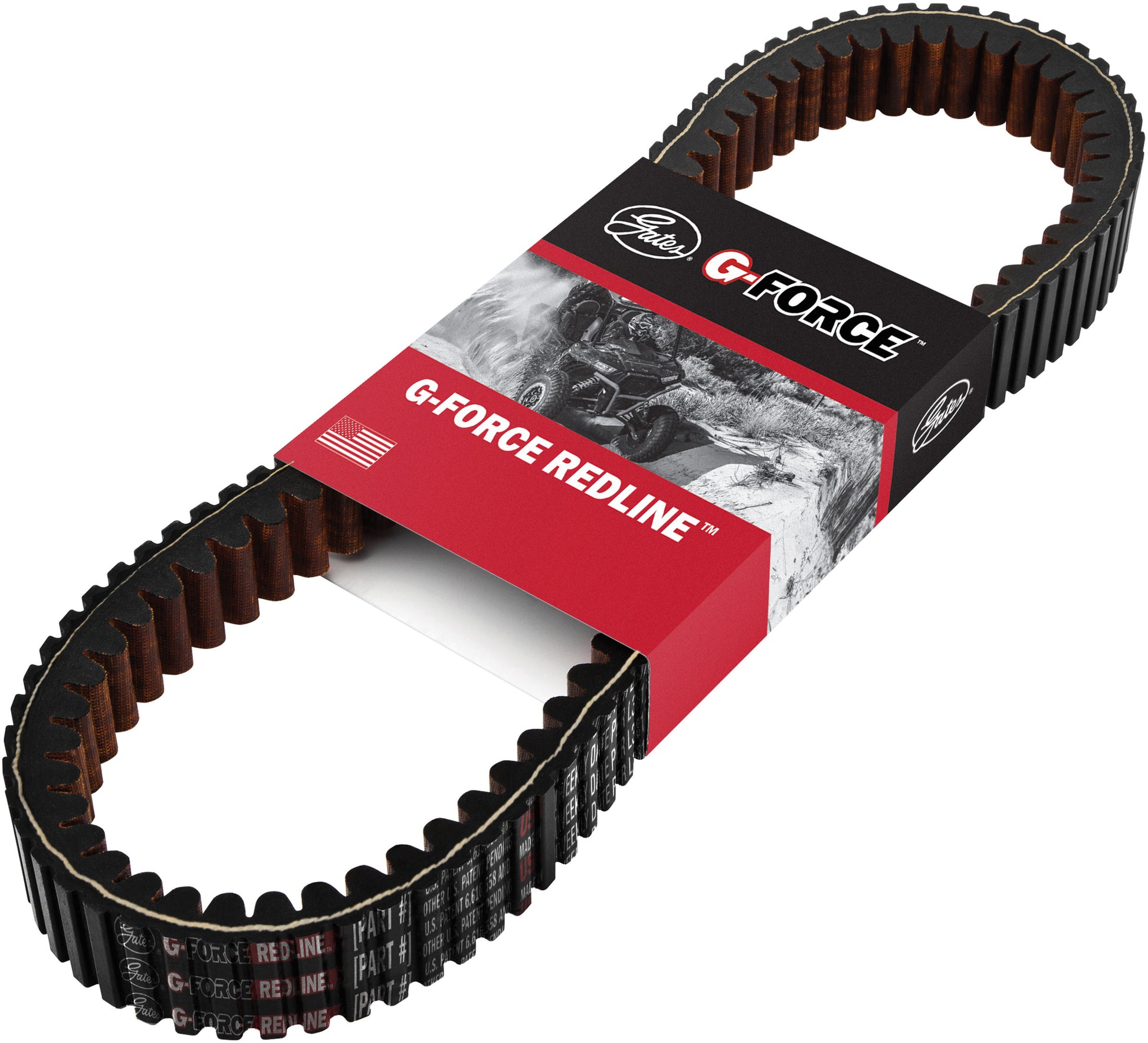

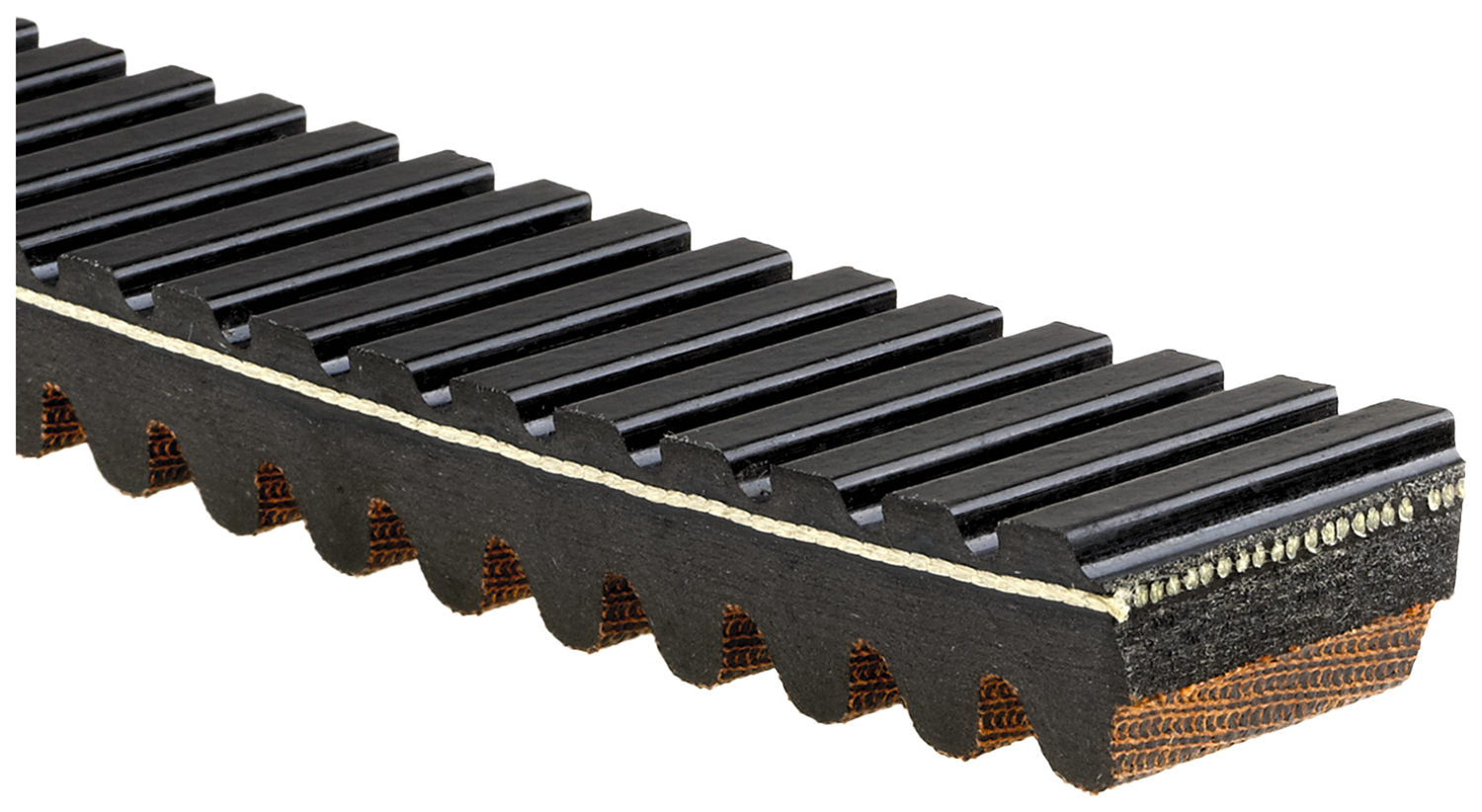

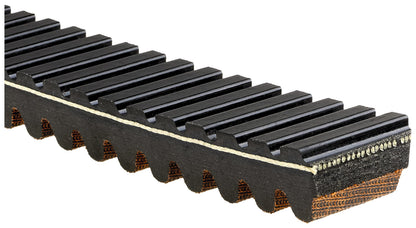

  • Product Image 1
  • Product Image 2
  • Product Image 3
  • Product Image 4
1 4

Gates 25R4789 - 04-17 John Deere Gator HPX 617cc Drive G-Force RedLine CVT Belt

Gates 25R4789 - 04-17 John Deere Gator HPX 617cc Drive G-Force RedLine CVT Belt

Gates | 25R4789
SKU: BBSC-25R4789
$86.99 USD
$95.69 USD $86.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Gates 25R4789 - 04-17 John Deere Gator HPX 617cc Drive G-Force RedLine CVT Belt

G-Force Redline Continuously Variable Transmission (CVT) Belt

Gates G-Force RedLine CVT Belts are the first of a new generation of Continuously Variable Transmission (CVT) belts. Gates' innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments.

  • Improved durability, crack- and wear-resistant means a longer-lasting, higher-performance power transmission belt for the most demanding applications
  • Greater heat resistance and recovery, even under severe duty cycles
  • Optimized, patented Ethylene Elastomeric (EE) compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
  • Tested under extreme conditions in controlled environments as well as on race vehicles
Top Width: 1.251
Construction: Double Notched
Color: Black
Thickness: .527
Cord Material: Aramid
Cross Section Designation: RVS-R
Outside Circumference: 49.067
Type: Power Sport Specialty High Performance CVT Belt
Grade Type: OE Improved
Belt Material: EPDM
Bottom Material: Yes
Angle: 24
Pitch Width: 1.181
Pitch Length: 47.894
Notched: Yes
