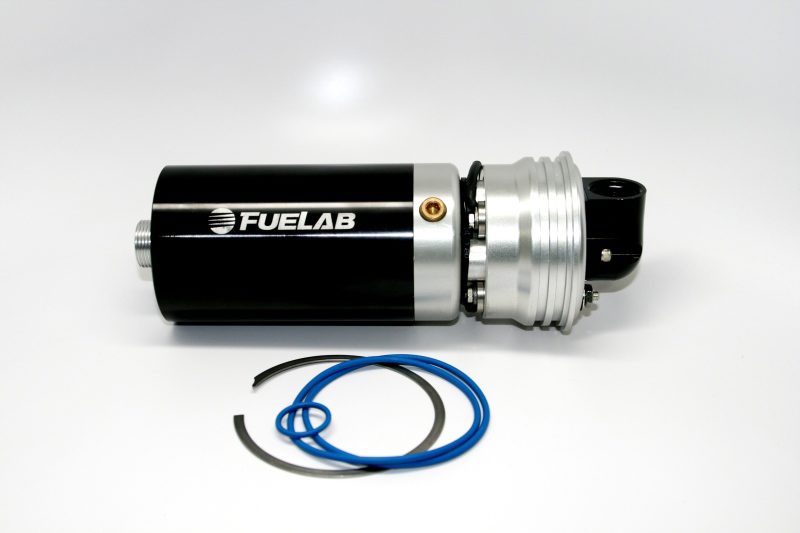

Fuelab 90902 - 1000 HP CARB Street/Strip In-Tank Power Module Fuel Pump Speed Adjustable DC Brushless

Fuelab 90902 - 1000 HP CARB Street/Strip In-Tank Power Module Fuel Pump Speed Adjustable DC Brushless

160GPH at 10PSI, 10PSI MAX -  Rated up to 1000HP Carureted Applications only. This in-tank pump increases reliability by eliminating multi -pump configurations and saves you time and money on installation

Pump Features

• Based on our popular 42402 series, but in a new configuration for in-tank applications
• Compatible with gasoline, diesel, methanol and ethanol
• Jet Pump Compatibility for saddle tanks or internal sumps
• High efficiency sling vane positive displacement pump
• Special housing shape for extremely quiet operation and steady pressure
• Carbon 9-vane construction with pressure balanced rotor for high reliability
• Backed by a limited lifetime warranty

Electronic Features

• Internal speed controller for variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage regulators or pump controllers required!
• Continuous duty-motor speed can be adjusted to meet fuel demand

Motor Features

• Lightweight super-efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux density Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Installation Features

• Requires the use of a bypass style regulator and return line
• Single Drop in Fuel Pump
• Features Noise Dampening Pump Mount Technology
• Installation Kits available for Fabricator Series and Vehicle Specific Applications
• No wires to pass into the fuel tank
• Eliminates the need for multi pump wiring, Y-blocks, extra plumbing
• Easy service access flange system
• Installation kits sold separately
