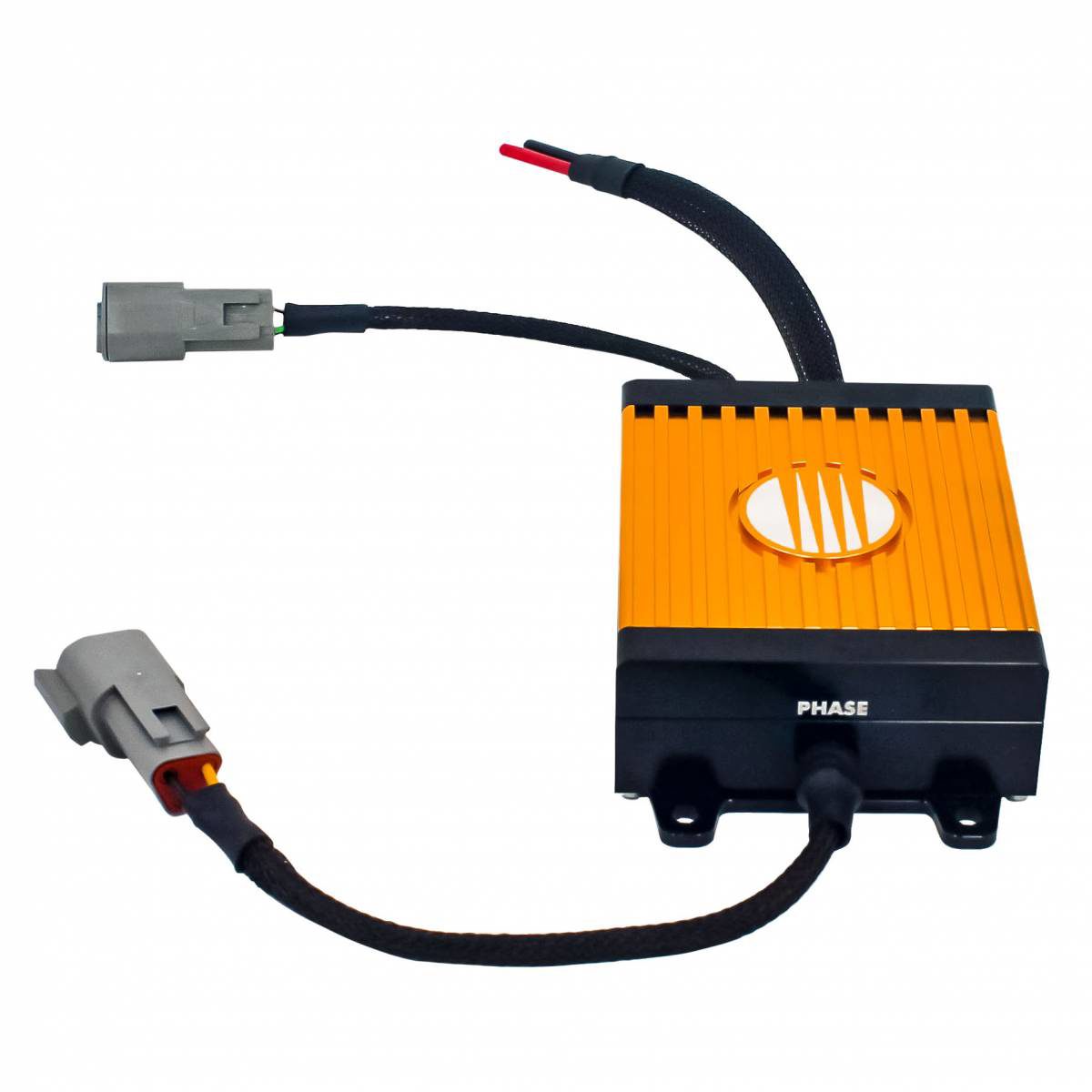

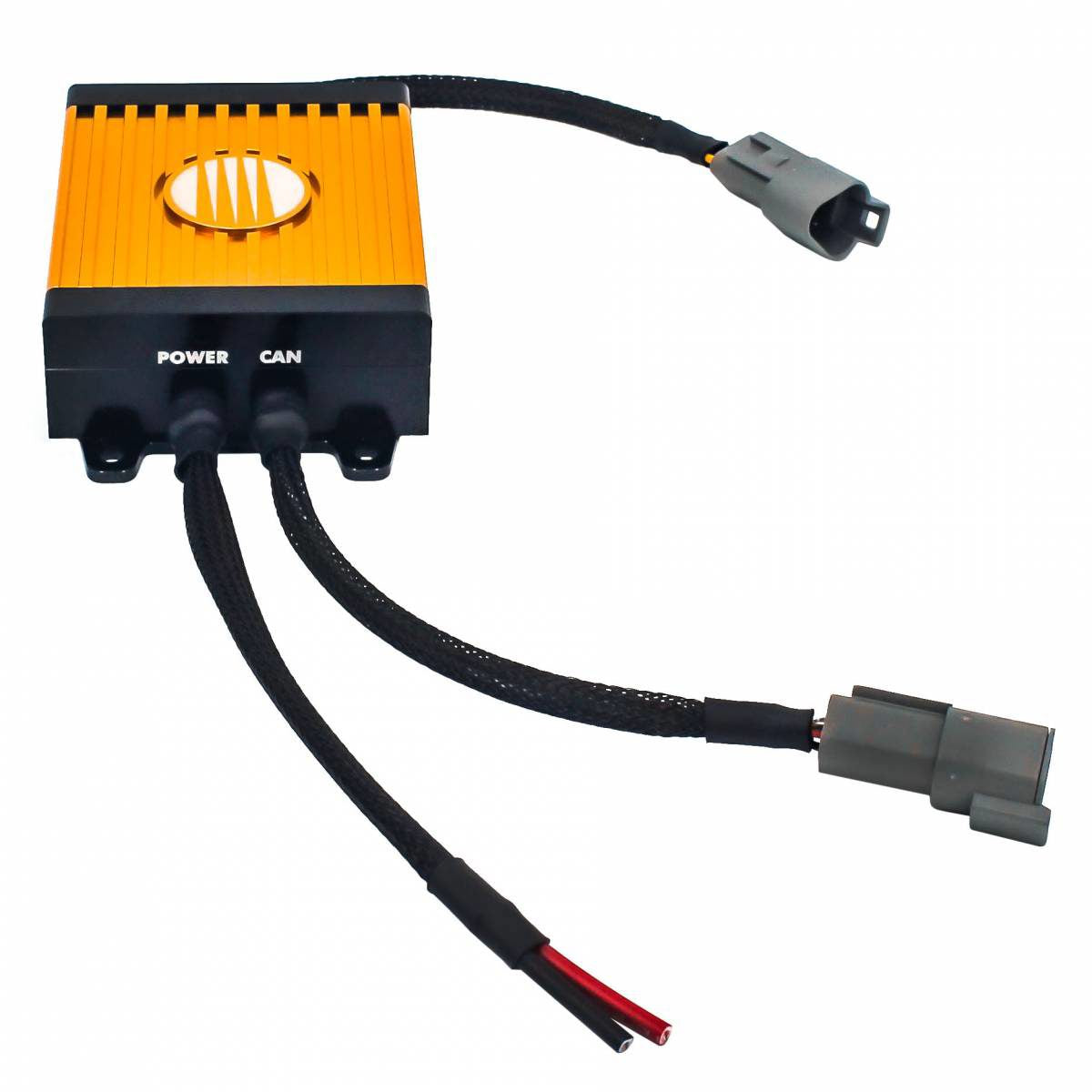

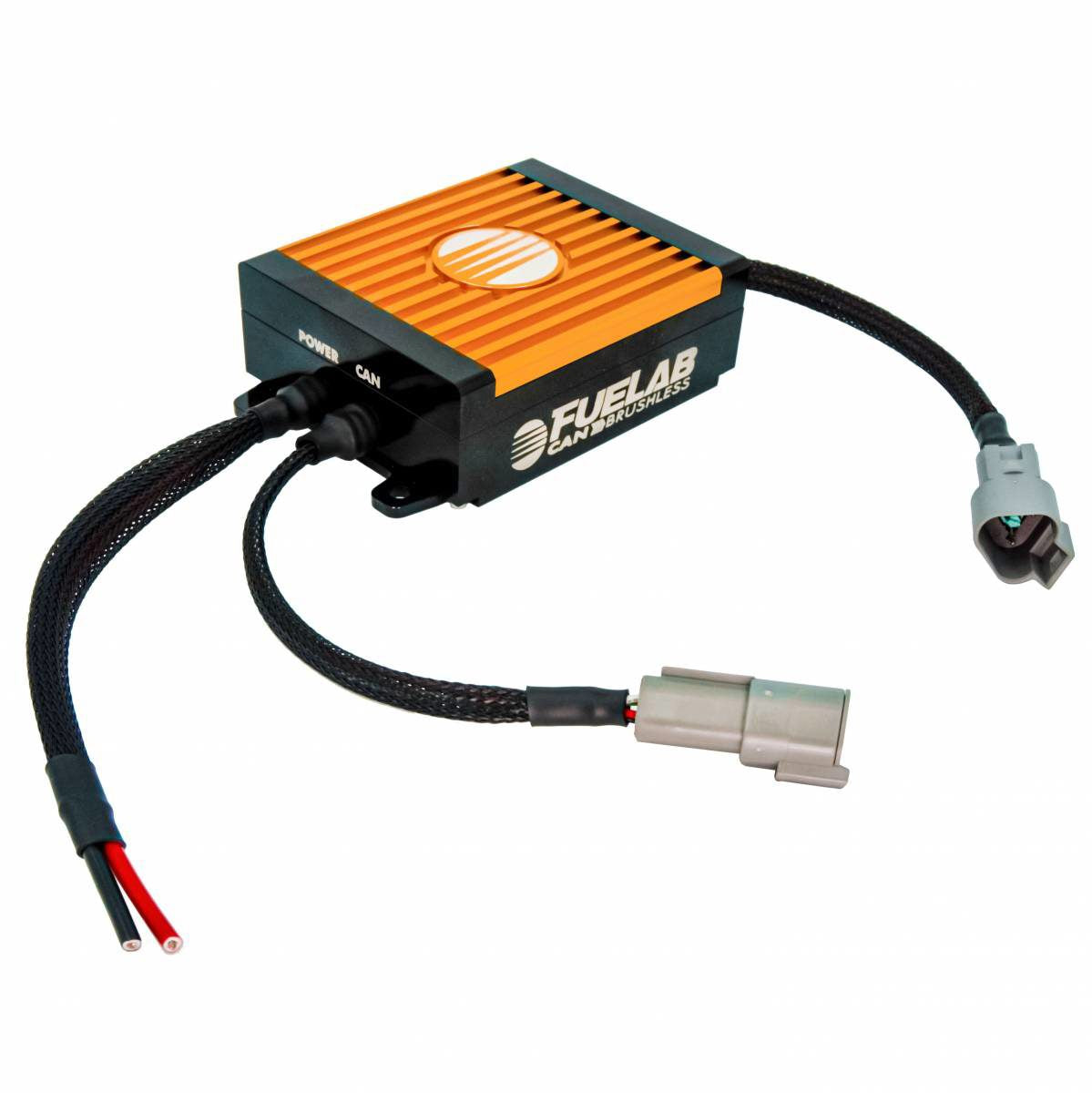

Fuelab 72007 - Electronic (External) DC Brushless Fuel Pump Controller

Fuelab 72007 - Electronic (External) DC Brushless Fuel Pump Controller

CAN Brushless Fuel Pump Controller - Accepts Multiple Speed Inputs (PWM, 0-5v) or Fixed Speed.

Features:

• Advanced CAN Integration
• User friendly CANopen communication allows easy tie in to controller
• CAN Customizable calibration options
• Data Streams include - Pump State (on,off), Pump Voltage, Pump Amperage, Pump Motor speed, PWM frequency and controller temp
• Offers multiple default and data codes for accurate diagnostics
• Compatible with 3-Phase DC Brushless Fuel Pumps
• (3-wire) without Internal Controllers Only
• 12 and 24v electrical system compatibility
• 50 Amp Max output Capacity
• Billet Aluminum Enclosure
• Backed by a limited lifetime warranty

Pulse Width Modulation Compatibility (PWM) or 0-5v Input Signal:

• Compatible with most aftermarket ECU's with PWM output frequency
• Compatible from 100Hz to 5000Hz
• AEM
• ECU Masters
• Fueltech
• Haltech
• Holley
• Link Engine Management
• Megasquirt
