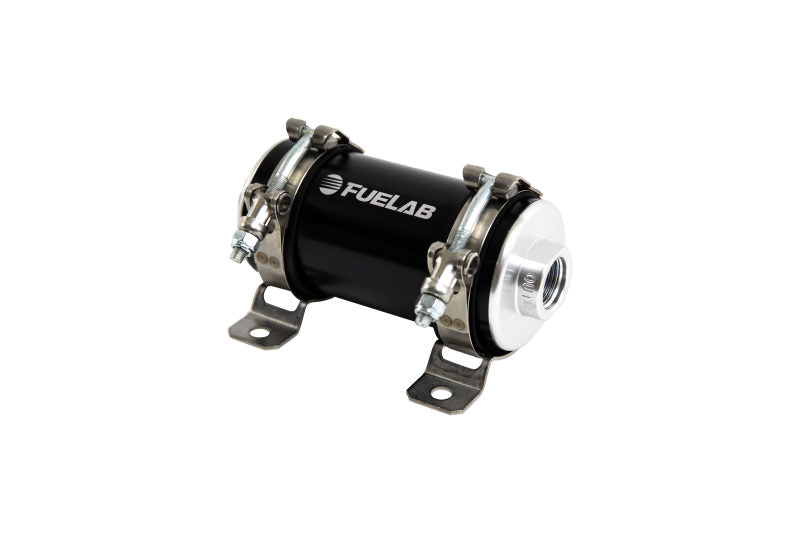

Fuelab 10304 - Velocity Series 100GPH Lift Pump 18psi Internal Bypass 2008-2010 Ford Powerstroke

Fuelab 10304 - Velocity Series 100GPH Lift Pump 18psi Internal Bypass 2008-2010 Ford Powerstroke

100GPH Lift Pump for 2008-2010 Ford Powerstroke (Pump Only) Internal Bypass Pre-Set at 18psi

Lift Pump Features

• Diesel fuel compatible
• Internal bypass pre-set at 8psi
• High efficiency sling vane positive displacement pump
• Special housing shape for extremely quiet operation and steady pressure
• Carbon 9-vane construction with pressure balanced rotor for high reliability
• Backed by a limited lifetime warranty

Motor Features:

• Lightweight super-efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux density Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features

• Internal Speed control for variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• Continuous duty-motor speed can be adjusted for appropriate demand

Construction Features

• Compact, lightweight design, less than 3 lbs, overall length 6.9 inch, diameter 2.63 inch
• Billet Aluminum Construction with anodize per MIL-A-8625, Type II
• High quality mounting brackets included
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port style -10AN fittings
