FST Performance RPM500 - (R) - FloMax(TM) 500 Fuel Fltr Sys -12 AN ports (Racing/ Marine)

FST Performance RPM500 - (R) - FloMax(TM) 500 Fuel Fltr Sys -12 AN ports (Racing/ Marine)

Fuel Filter - Flomax 500 - Canister - 3 Micron - Stainless Element - 12 AN Female Inlet - 12 AN Female Outlet - 300 gph - Black Anodized - Each

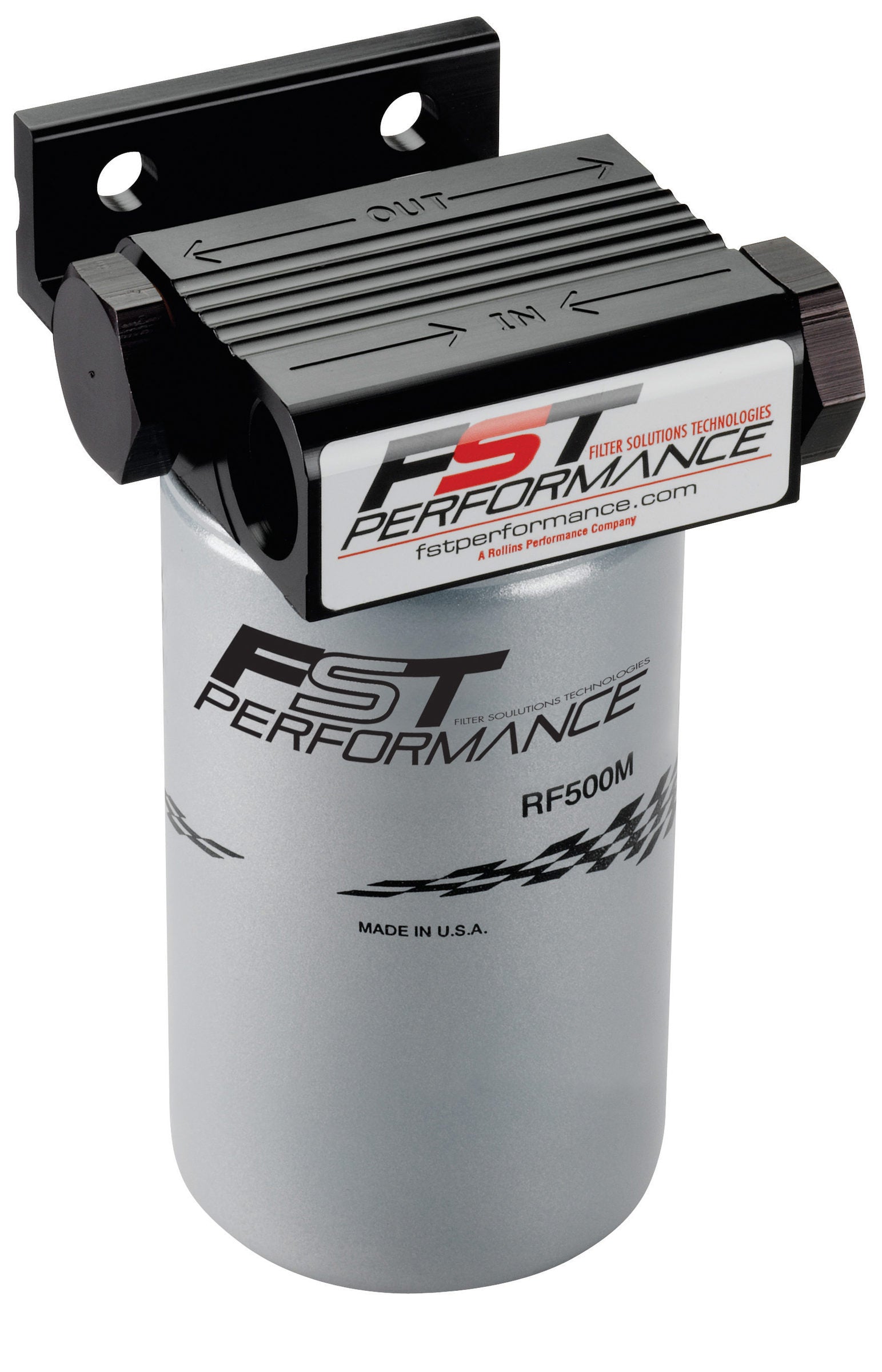

FloMax(TM) 500 Fuel Fltr Sys / 3 micron water-stripping spin-on Fltr / MultiFlow(TM) Solid Billet Aluminum base with two each -12 AN In & Out ports / Burst pressure 250psi / Height - 8.25" / Width - 3.75" / Depth - 5.0" / Weight - 49oz.

High Performance / Racing Fuel Filter-Water Separator System. The FloMax(TM) RPM500 series system was designed for marine racing applications to provide superior fuel-water separation and fuel filtration at high fuel flows. Using the same design and high efficiency filtration in the popular FloMax300 & 350, the RPM500 goes a step further in providing additional water and debris holding capacity. The high fuel flow capabilities and extremely low fuel flow restriction of the FloMax(TM)500 series coupled with highly efficient 3-micron filtration and water separation make this the most innovative and efficient system ever built. It is designed for use in gasoline, racing fuel, ethanol, and methanol in a wide variety of applications. Engineered for either suction or pressure side mounting the FloMax(TM)500 offers the utmost in installation flexibility plus the -12 AN/ORB MultiFlow(TM) multiport design allows unused fuel ports to function as a fuel system drain, regulator mount, fuel pressure gauge port and other fuel accessories. Replacement filter part # RF500M.
