Fox - 987-24-047

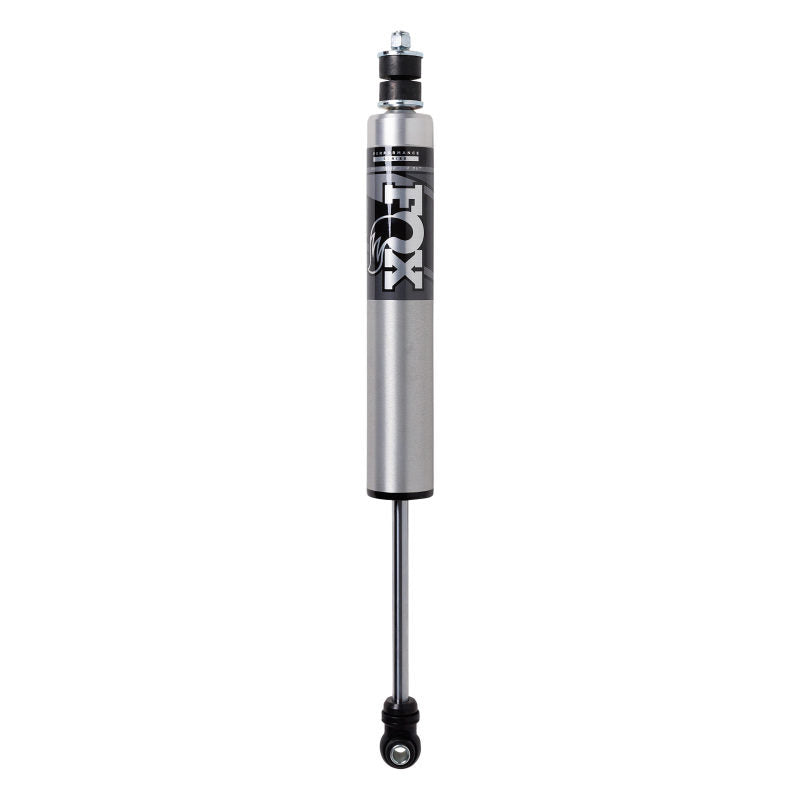

PERFORMANCE SERIES 2.5 SMOOTH BODY IFP HTO SHOCK
Application specific valving to maximize performance.
FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
- 2.5” Impact extruded 6061-T6 aluminum shock body
- Type II clear-anodized body plating
- High-flow velocity-sensitive damping
- 5/8” hard chrome shaft
- Internal floating piston (IFP)
- Hydraulic Top Out (HTO) piston
- Corrosion resistant
- Application specific tune
- Fully rebuildable and re-tunable
Travel (in): 9.86
Extended Length (in): 27.39
Compressed Length (in): 17.53
Bottom Mount: Eyelet
Label Name: 14-ON Ram 2500, Rear, 2.5 Truck PS, IFP, 2-3” Lift, HTO
Body Diameter (in): 2.5
Fox Catalog: TRUCK
Body Material: Aluminum
Type: Smooth Body
Series: Performance
Reservoir Type: Internal Floating Piston
Top Mount: Stem
