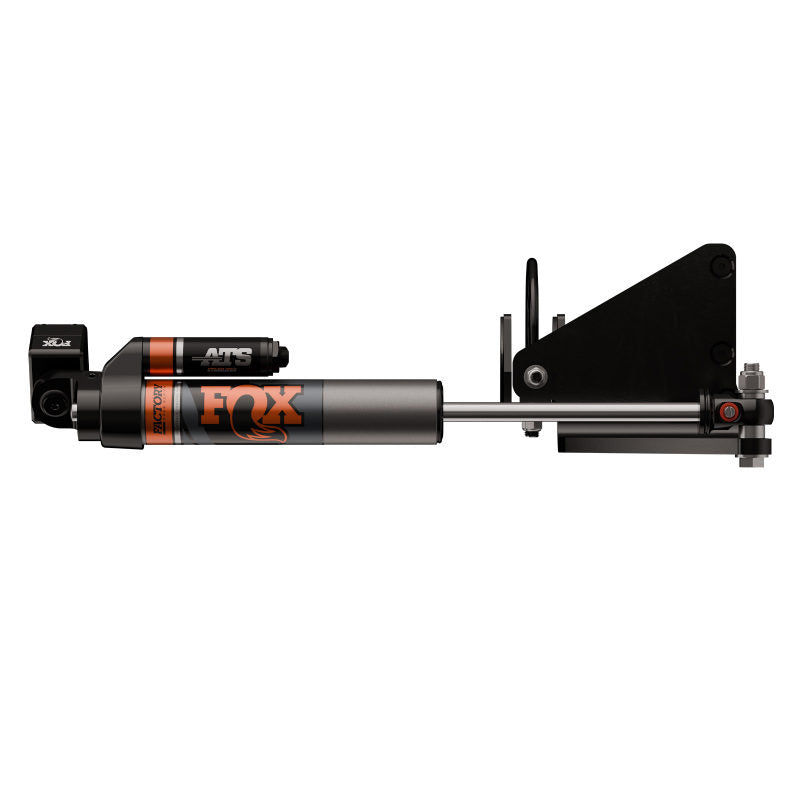

Fox 983-02-251 - 17-22 Ford Super Duty ATS Stabilizer w/ Bracket

Fox 983-02-251 - 17-22 Ford Super Duty ATS Stabilizer w/ Bracket

FACTORY RACE SERIES 2.0 ATS STABILIZER

Application specific valving to maximize performance.

With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space. The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.

• Adjustable Through Shaft Stabilizer
• Performance Tuned For Vehicle Specific Application
• Aluminum Body Dissipates Heat Faster Than Steel
• Eliminates fluid displacement, delivering neutral and consistent damping of unwanted steering feedback
• External Reservoir With Compression Adjuster
• Black Anodized CNC Machined Aluminum Components
