Fox - 981-35-403-L

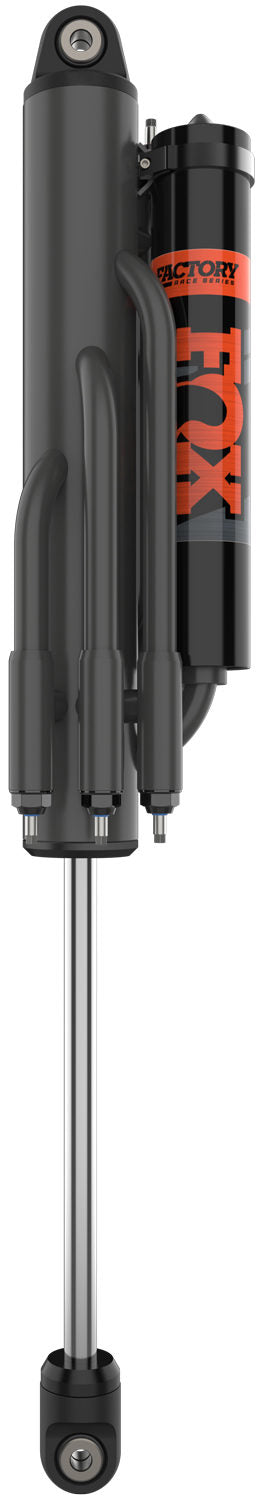

FACTORY RACE 3.5 X 18 EXTERNAL BYPASS(5 TUBE; 3/4in.) PIGGYBACK SHOCK (LEFT)
Rebuildable and serviceable. Custom valving options available.
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- 17-4 H900 hard chrome plated stainless steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Body Finish: FOX Grey Cerakote
Eyelet Length (in): 2.05
Travel (in): 18.00
Adjuster Type: External Bypass Clicker - Gen 3
Body Diameter (in): 3.5
Top Mount: Eyelet
Mounting: 5/8 x 1-1/2
Reservoir Dimensions: 3.00 x 16.00
Reservoir Type: Piggyback
Series: Factory Race
Shaft Size (in): 1
Type: External Bypass
Valving: 807-24-701
Body Material: Steel
Bottom Mount: Eyelet
Bypass Tubes: 5
Compressed Length (in): 28.45
Extended Length (in): 46.45
Fox Catalog: OFFROAD
Label Name: 3.5 FRS, EXBP, 5T (3/4"), P/B, 18", LH
