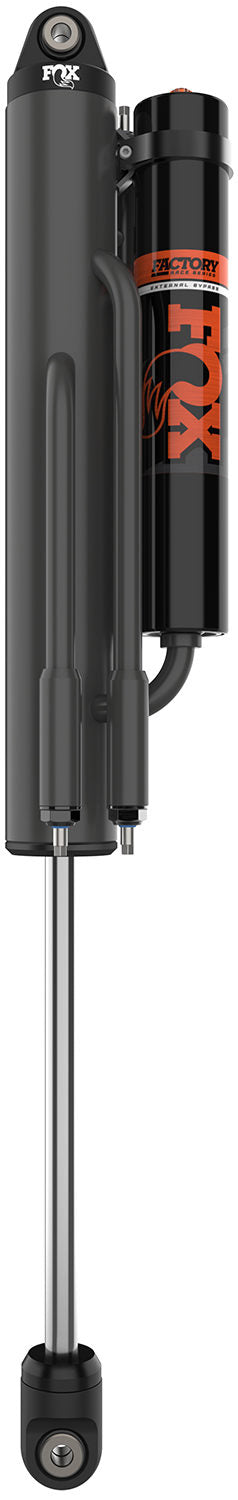

Fox 981-30-431-L - FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (LEFT)

Fox 981-30-431-L - FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (LEFT)

Fox | 981-30-431-L
SKU: FOX-981-30-431-L
Regular price $1,919.95 USD
Regular price $2,111.94 USD Sale price $1,919.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Fox 981-30-431-L - FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (LEFT)

FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (LEFT)

Rebuildable and serviceable. Custom valving options available.

FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There's no questioning whether they're race proven, but in the words of Bob Fox, "we're never done." In that spirit, we've reitalized our tried-and-true externally, adjustable position sensitive damping archtecture to deliver all-new standards of performance and durability, all while streamlining the production process.

  • NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
  • 17-4 H900 hard chrome plated stainless steel shaft
  • Owner serviceable and rebuildable
  • JM92 MIL-SPEC oil developed specifically for off-road racing
  • Black Anodized CNC Machined Aluminum Components
Label Name: 3.0 FRS, EXBP, 5T, R/R, 16", LH
Fox Catalog: OFFROAD
Series: Factory Race
Body Diameter (in): 3
Body Material: Steel
Bottom Mount: Eyelet
Top Mount: Eyelet
Bypass Tubes: 5
Compressed Length (in): 25.6
Extended Length (in): 41.46
Mounting: 1/2 x 1-1/2
Reservoir Dimensions: 2.55 x 14.00
Reservoir Type: Remote
Shaft Size (in): 7/8
Travel (in): 15.86
Type: External Bypass
Eyelet Length (in): 2
Valving: 807-24-600
Seal Kit: 803-04-025
Hose: -10 x 28.00
Adjuster Type: External Bypass Clicker - Gen 2
Body Finish: FOX Grey Cerakote
Bypass Tube Size: 3/4
Travel (rounded): 16
