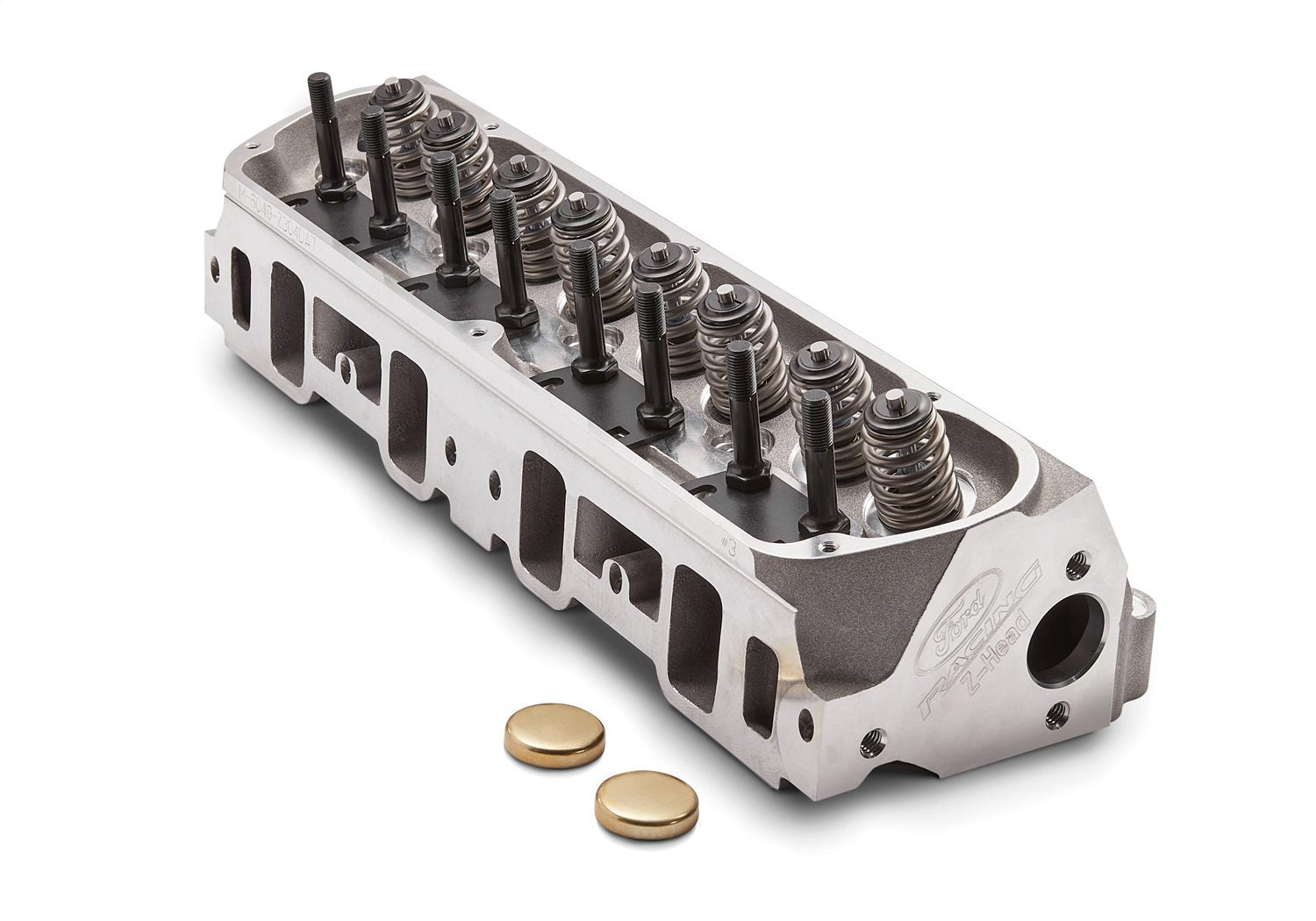

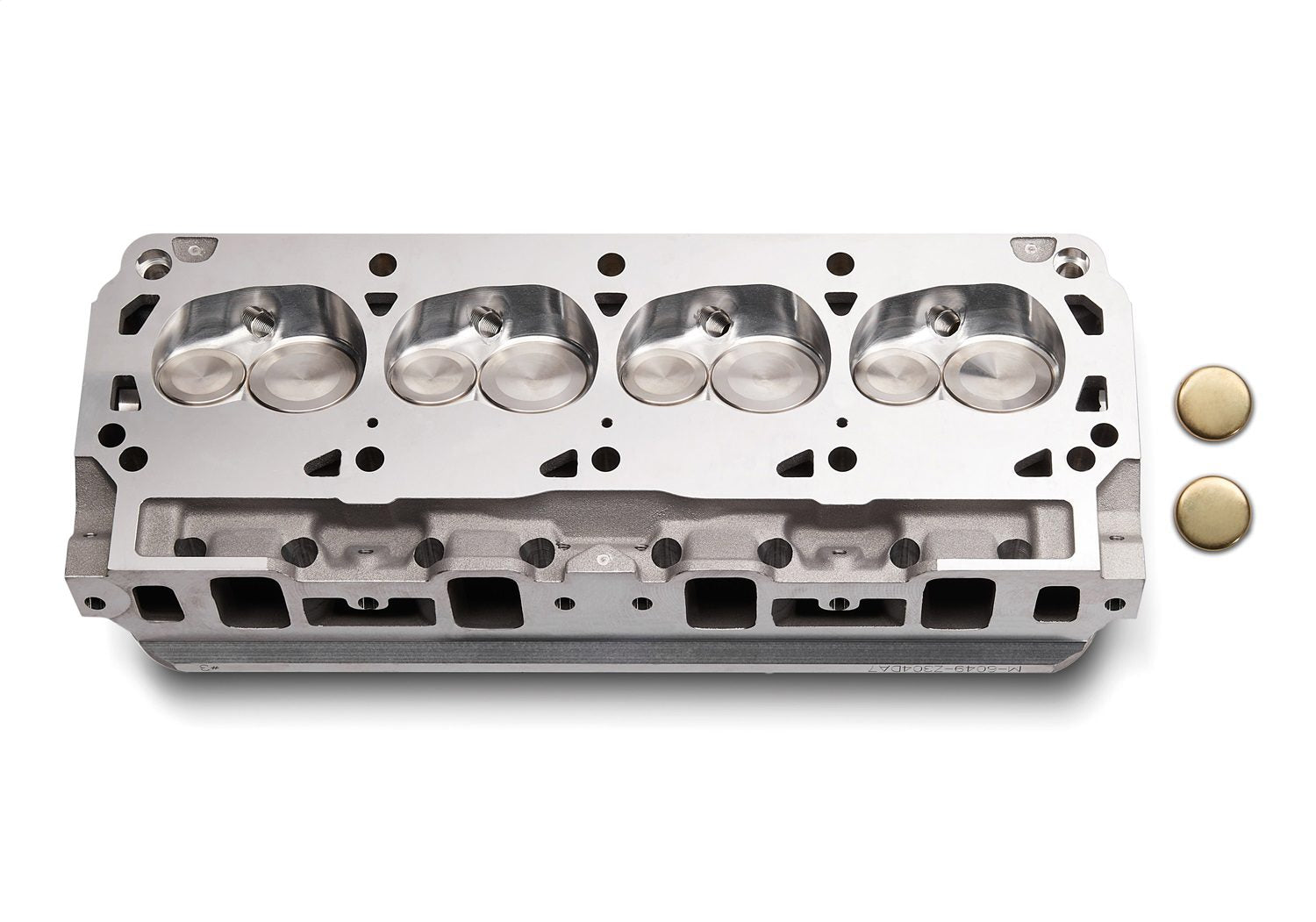

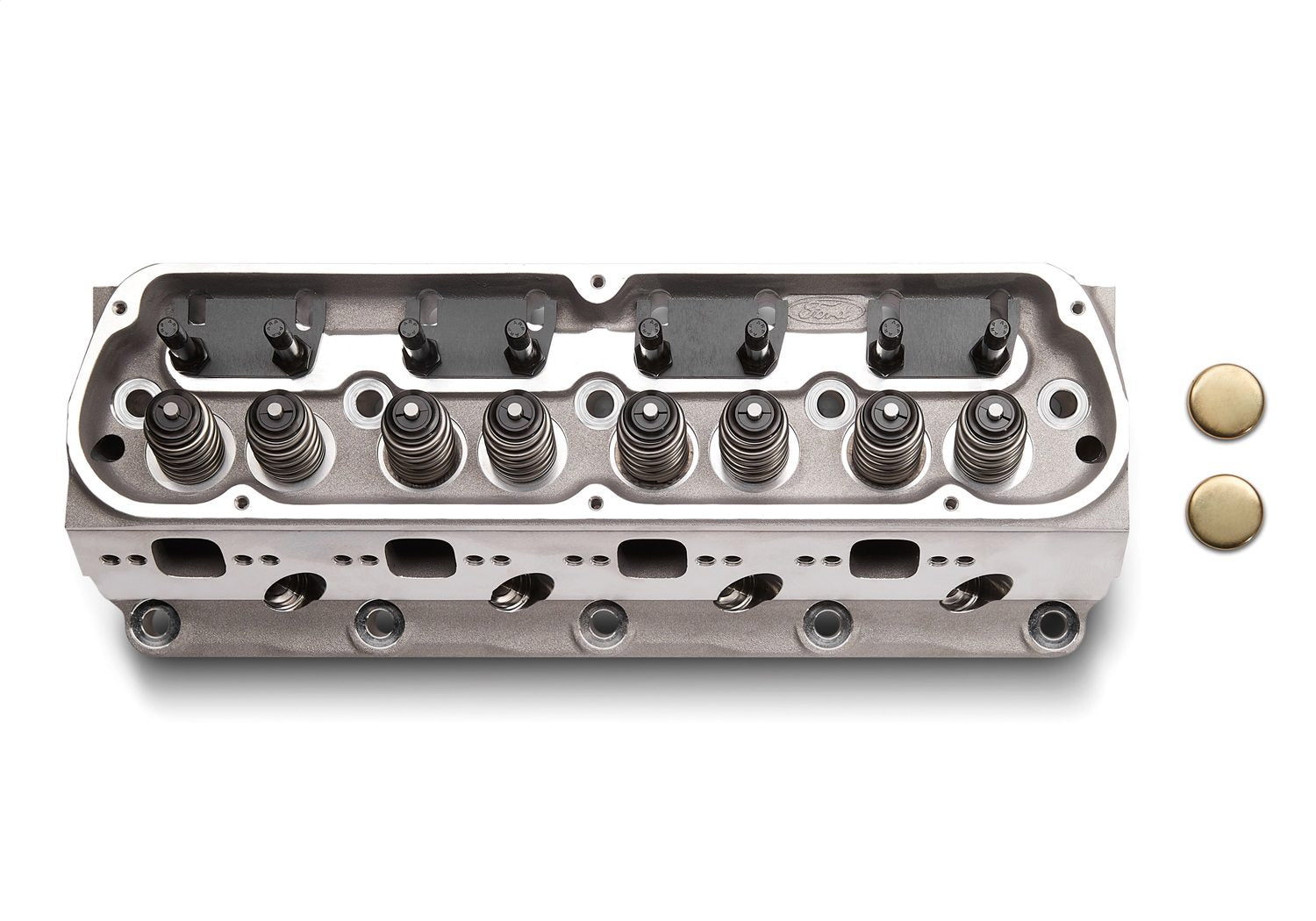

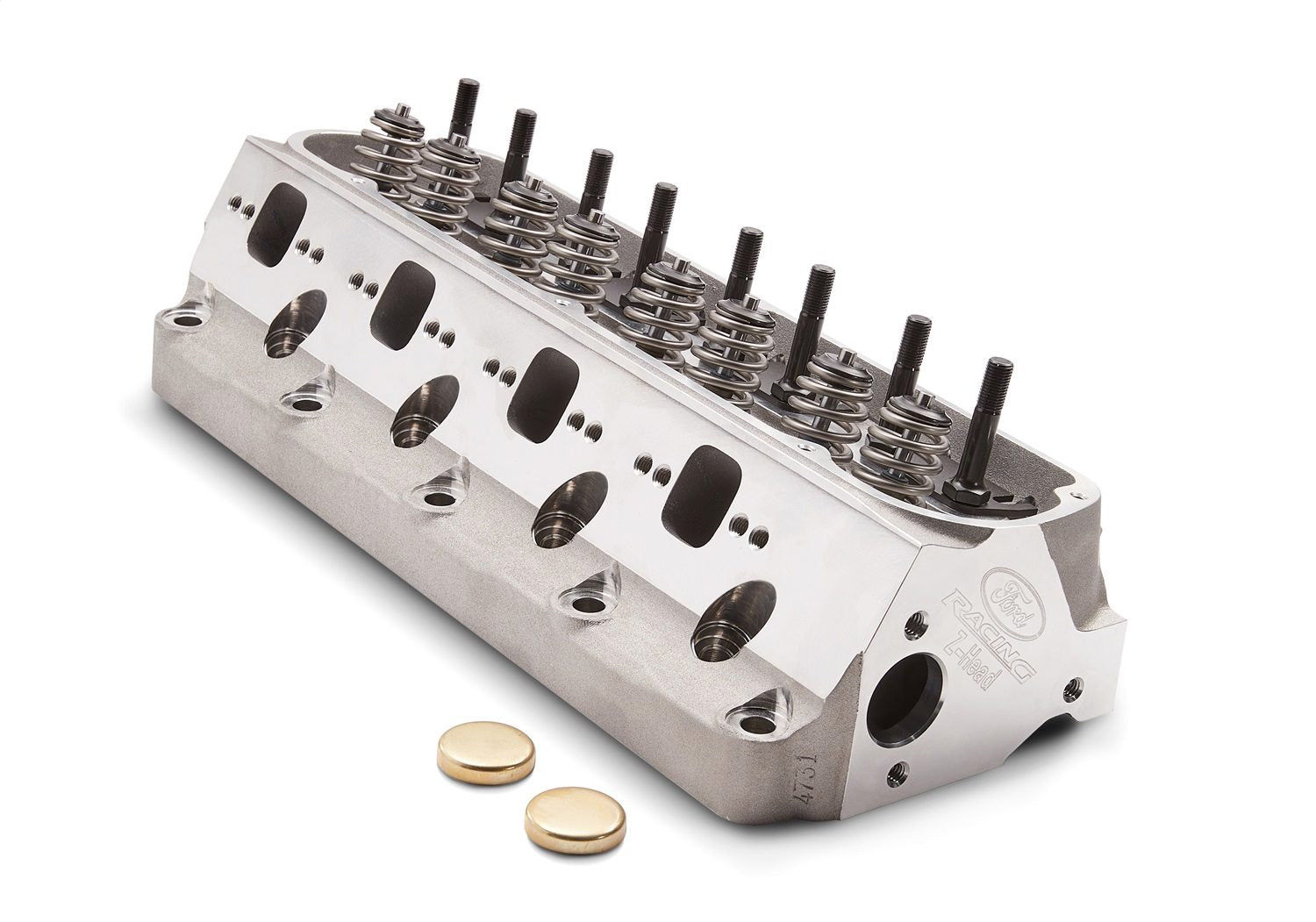

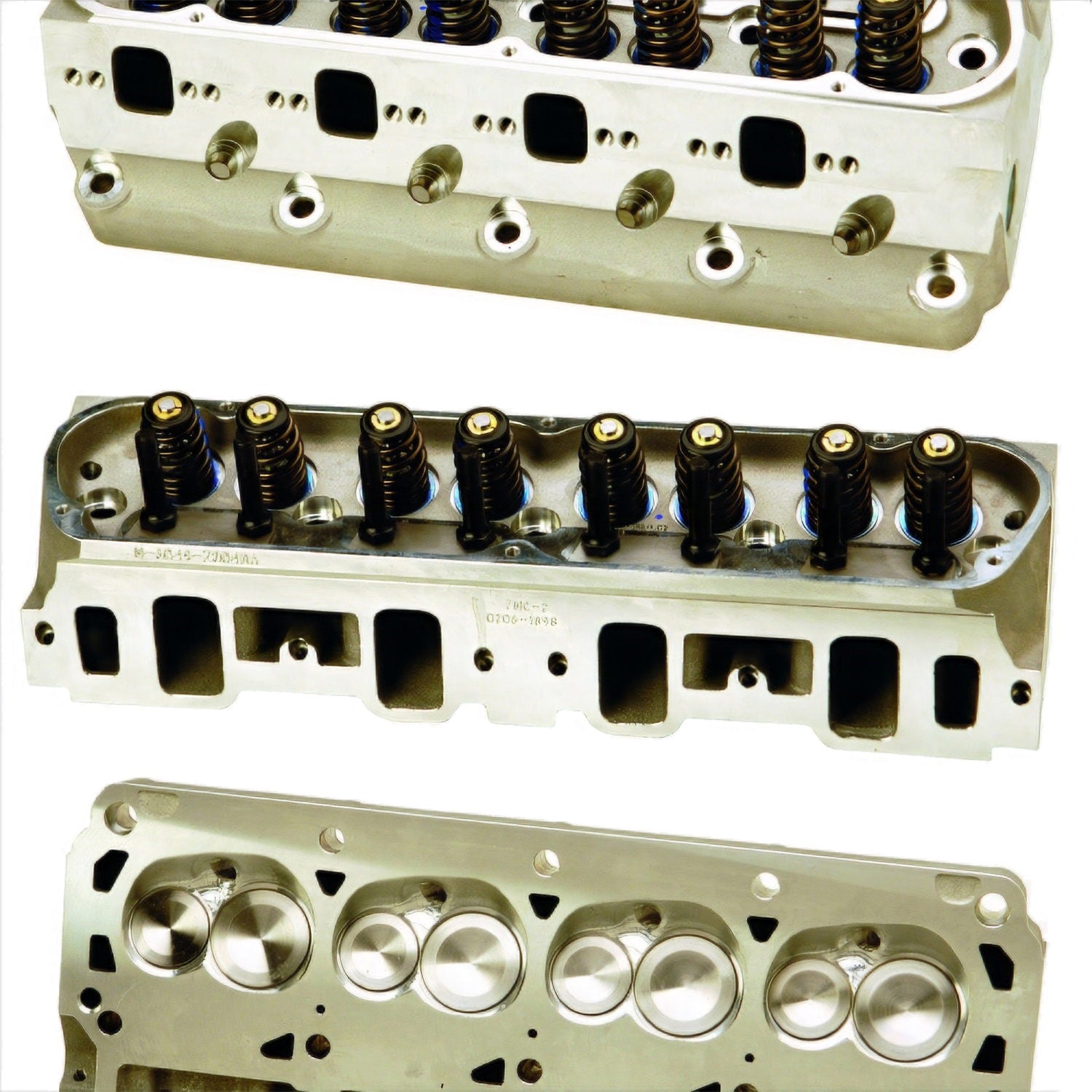

Ford Racing M-6049-Z304DA7 - 302/351W Z-Head Aluminum - Assembled 63CC with 7mm Valve

Ford Racing M-6049-Z304DA7 - 302/351W Z-Head Aluminum - Assembled 63CC with 7mm Valve

Cylinder Head - Z-Head - Assembled - 2.020 / 1.600 in Valves - 204 cc Intake - 63 cc Chamber - 1.290 in Springs - Aluminum - Small Block Ford - Each

Cylinder Head; Aluminum; For Use w/302/351W; Assembled Heads; 63cc with 7mm valve CNC Combustion Chamber; 1 pc.;

Cast from prime A356 T6 aluminum, these 'Z' heads from Ford Racing were designed using solid modeling technology. They feature high-flow ports and steel alloy intake and exhaust valve seats installed (they do require a competition valve job and bowl blending). The manganese-bronze valve guides are installed with a semi-finished I.D. and the combustion chambers are CNC-machined. Laser-cut guideplates are included, and they accept both tapered seat and gasket-style 14mm spark plugs.

• Cast From Prime A356 T6 Aluminum
• Heads are Cast w/High Flow Ports
• 20 Degree Inline Valves
• Steel Alloy Intake/Exhaust Valve Seats
• Manganese-Bronze Valve Guides
• 63cc CNCd Combustion Chamber
• 204cc Intake Port Volume As Cast
• 85cc Exhaust Port Volume As Cast
• Raised Exhaust Port Exit
• Custom Heads May Be Required
• Made in the USA
