Ford Racing - M-6007-Z2363RT

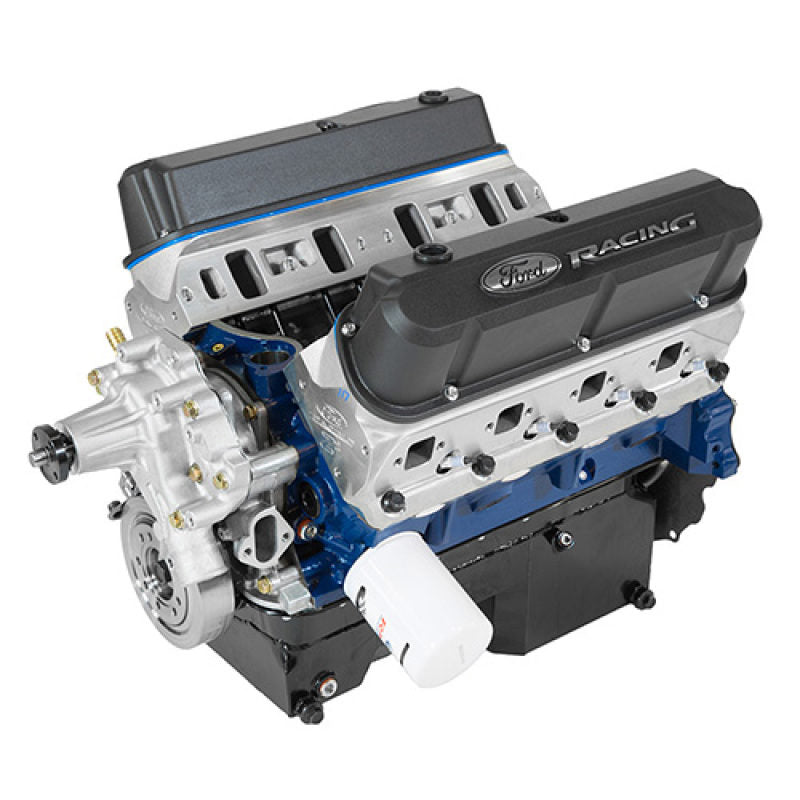

Crate Engine - 363 Cubic Inches - 507 HP - Rear Sump - Small Block Ford - Each
Crate Engine; 363CI 500HP; Rear Sump;
New Z2 Cylinder heads with Velocity Vane
- 507 Hp On Pump Gas - In A 302 Sized Package
- Uses Standard SBF Headers And Accessory Mounts
- Engine Type 302 Based Small Block Ford
- Displacement (Cu In) 363
- Bore X Stroke (In) 4.125 in. Bore X 3.400 in. Stroke
- Camshaft Type Hydraulic Roller
- Camshaft Lift (In) .580 In./.602 In.
- Camshaft Duration (.050 in.) 232 Degrees/240 Degrees
- Valve Size (in.) 2.05 in. Intake 1.60 in. Exhaust
- Compression Ratio 10.2
- 1 (Nominal)
- Rocker Arms Roller Rockers 1.65
- 1 Ratio
- Vibration Damper Ford Performance SFI Approved
Compression Ratio: 10.2:1
Engine Make/Size: Ford Small Block 302
Horsepower Rating: 507
RPM Range: 1500 - 6500
