Ford Racing - M-6007-M50H
Crate Engine - Gen 4 5.0L - 460 HP - Ford Coyote - Each
Crate Engine; Gen 4X 5.0L; 12:1 Comp. Ratio; 460 HP/420 lb.-ft. Torque; Incl. Longer Head Bolts/9.5qt. OilPan/Harness/Flexplate/RightSide Tubular Exhaust Man./80mm Throttle Body;

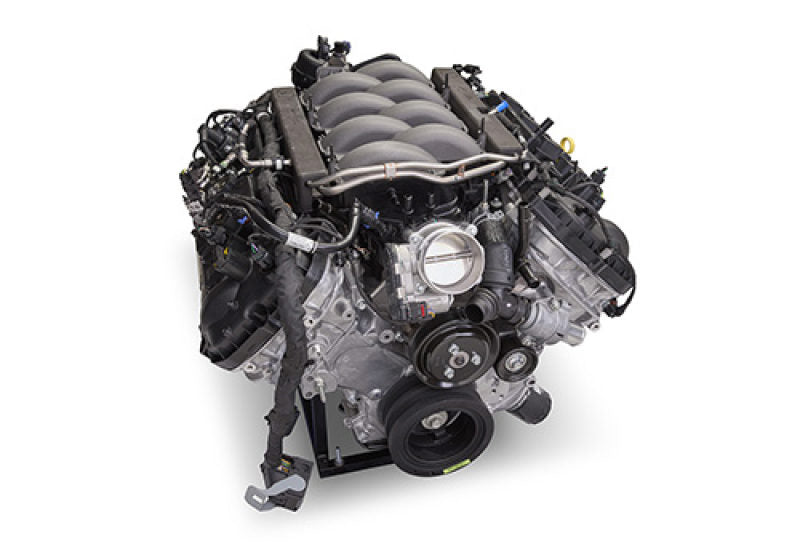

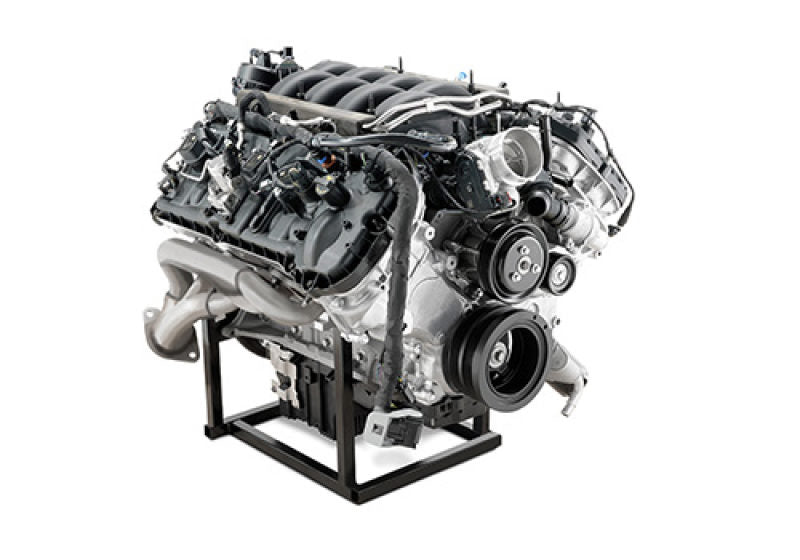

The Ford Performance all-aluminum 5.0L Coyote Gen 4X crate engine is a modern 5.0L 32-valve DOHC V-8 that utilizes advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow aluminum cylinder heads, and 12:1 compression to deliver 460 horsepower and 420 lb.-ft. of torque (with premium fuel). The aluminum cylinder block features plasma transferred arc spray in liners, cross-bolted main bearing caps, and thick main bearing bulkheads for strength. The Gen 4X 5.0L Coyote features a single 80mm throttle body for easier packaging in various applications.
- Sintered steel connecting rods as used on the Boss 302 Mustang
- Single 80 mm drive-by-wire throttle body
- Mustang GT 409 stainless steel exhaust manifold Right Side Only
- Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
