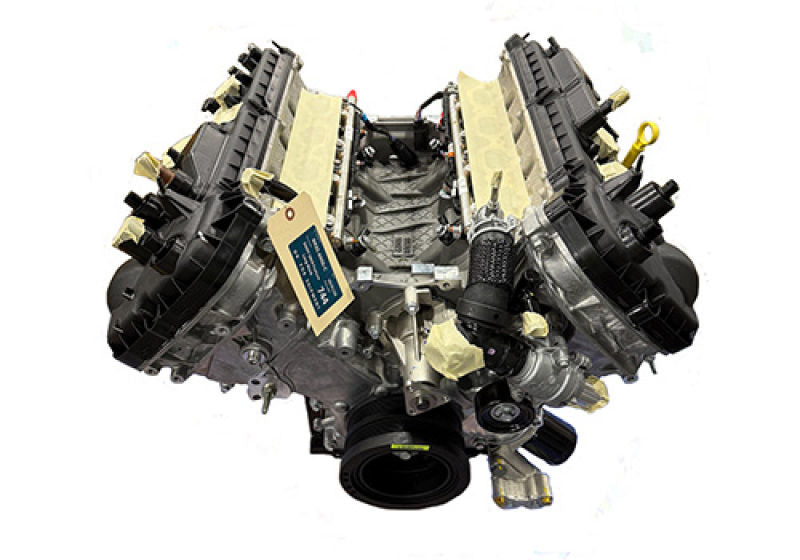

Ford Racing M-6006-M50DH - 2024 Gen 4 5.0L Coyote Dark Horse Long Block

Ford Racing M-6006-M50DH - 2024 Gen 4 5.0L Coyote Dark Horse Long Block

Gen 4 5.0L Coyote Dark Horse Long Block

This long block assembly is a replacement for your 2024 Mustang Dark Horse™ 5.0L and an upgrade for your 2024 Mustang GT 5.0L. The 2024 Mustang 5.0L DOHC 32-valve V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies and high compression to deliver 500 horsepower in the Dark Horse™.

• 12.0:1 Compression ratio
• Bore 93 mm x Stroke 92.7 mm
• Hypereutectic aluminum pistons
• Sintered steel connection rods
• Forged steel crankshaft
• Aluminum block that features plasma transferred wire arc spray weld liner coating
• Longer, 12 mm head bolts for higher clamp load
• 9.5 qt capacity steel oil pan
• NOTE: Driver side exhaust flange utilizes 5.2L bolt pattern
• The long block assembly does NOT include:
• Intake manifold/throttle bodies
• Fuel rails/fuel injectors
• Water pump pulley
• Alternator
• Exhaust manifolds
• Flywheel/flex plate
• Engine wiring/PCM
