Flowtech - 12120FLT

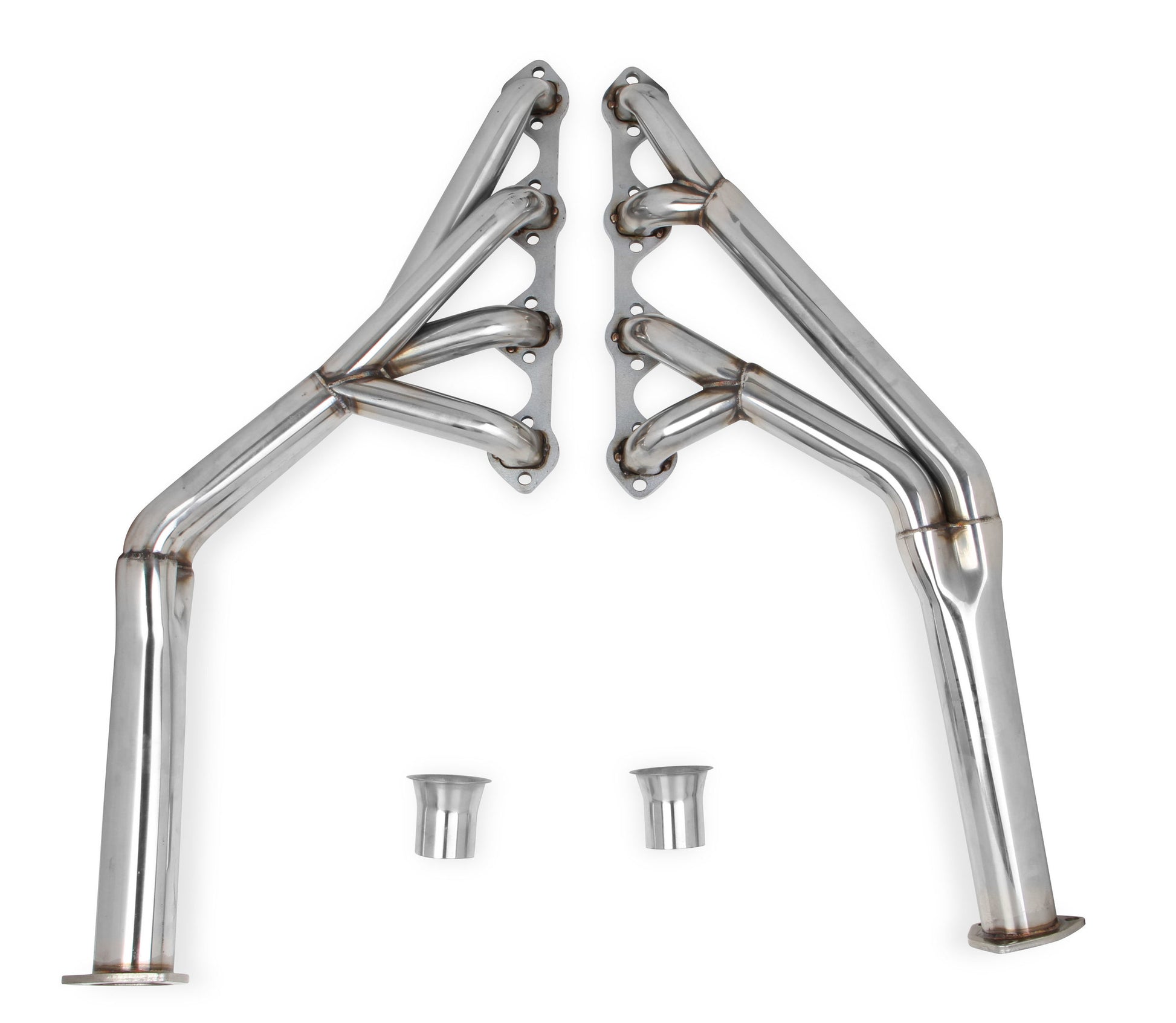

Flowtech Tri-Y Header
Tri-Y Headers; 1.5 in. Primary Tubing; 1.75 in. Secondary Tubing; 2.5 in. Collector; Mild Steel; Polished Finish;
Flowtech Headers are the perfect combination of quality and value. These Tri-Y style headers fit the popular 1965-1970 Ford 260/289/302 V8 engines. These Tri-Y style headers were originally designed for 1965-1966 Shelby GT350 Mustangs with a 289HiPo V8, 4-speed manual transmission, and manual steering.

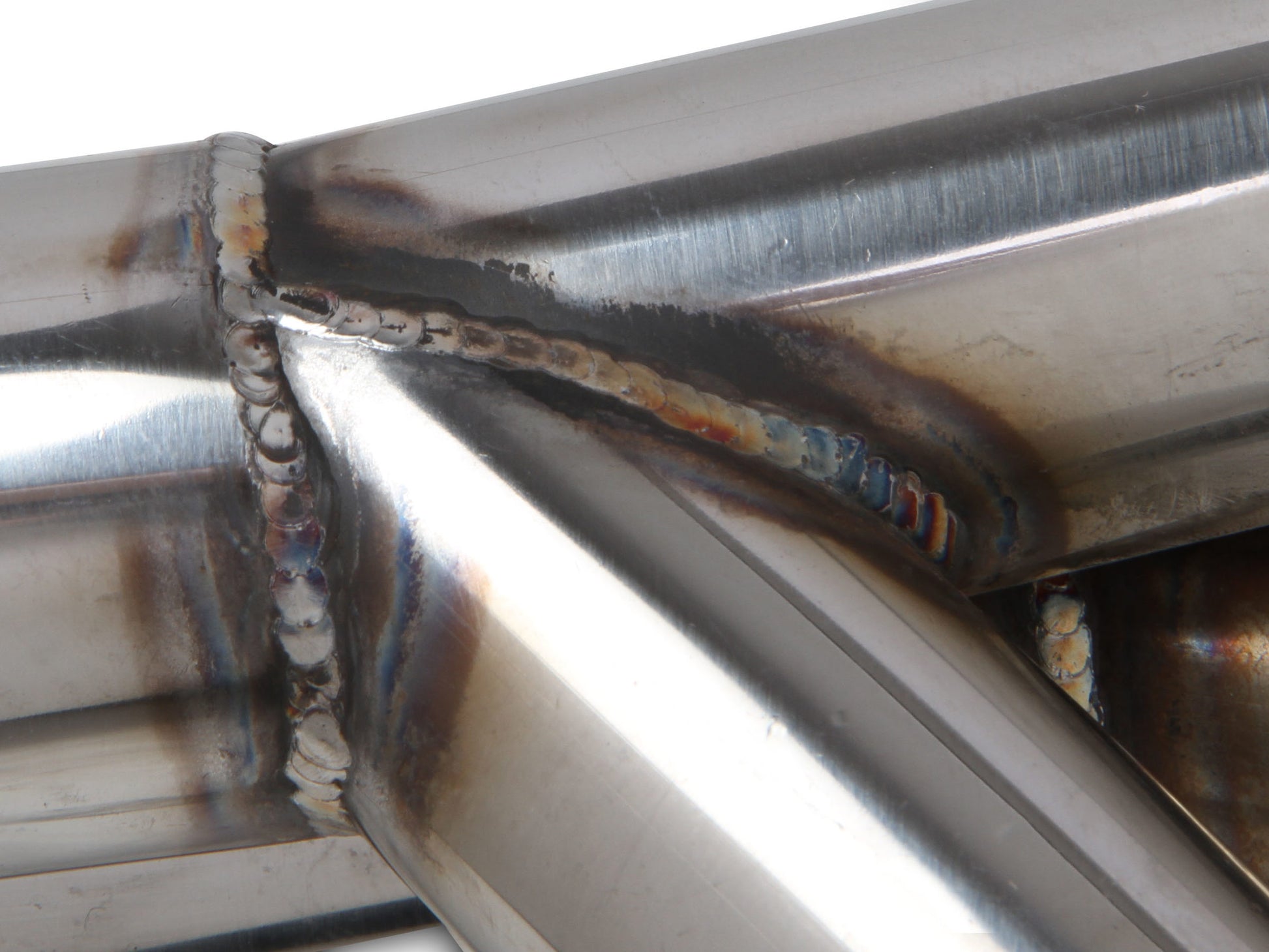

- Mandrel-bent tubes provide consistent tubing diameters for smooth flow and increases the cylinder scavenging effect and improves engine breathing
- Heavy duty 16-gauge tubing for increased strength and durability
- 1-1/2” diameter primary tubes, 1-3/4” diameter secondary tubes for increased exhaust flow increasing performance and improving throttle response

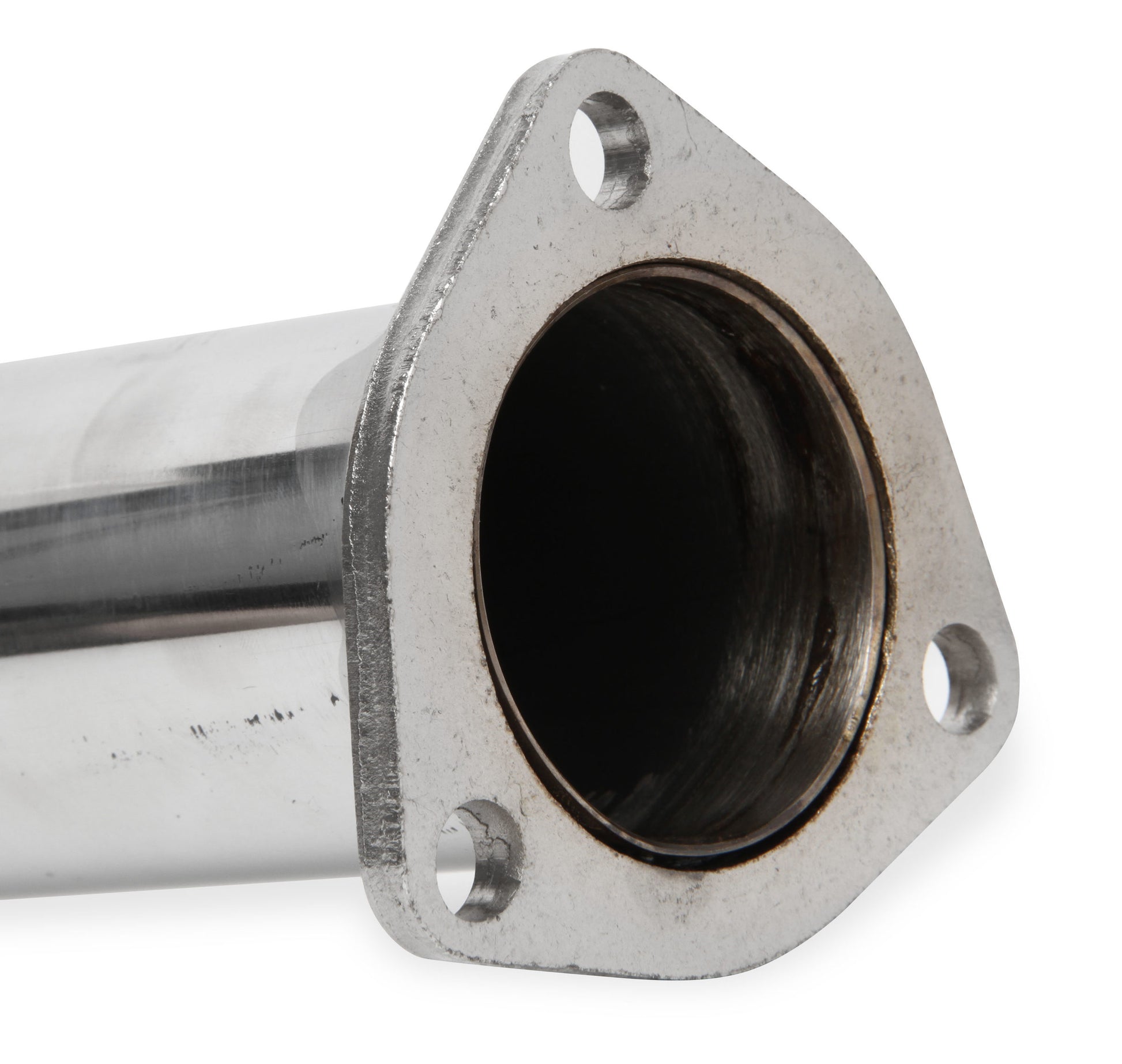

- 2-1/2” collector for maximum strength and exhaust flow

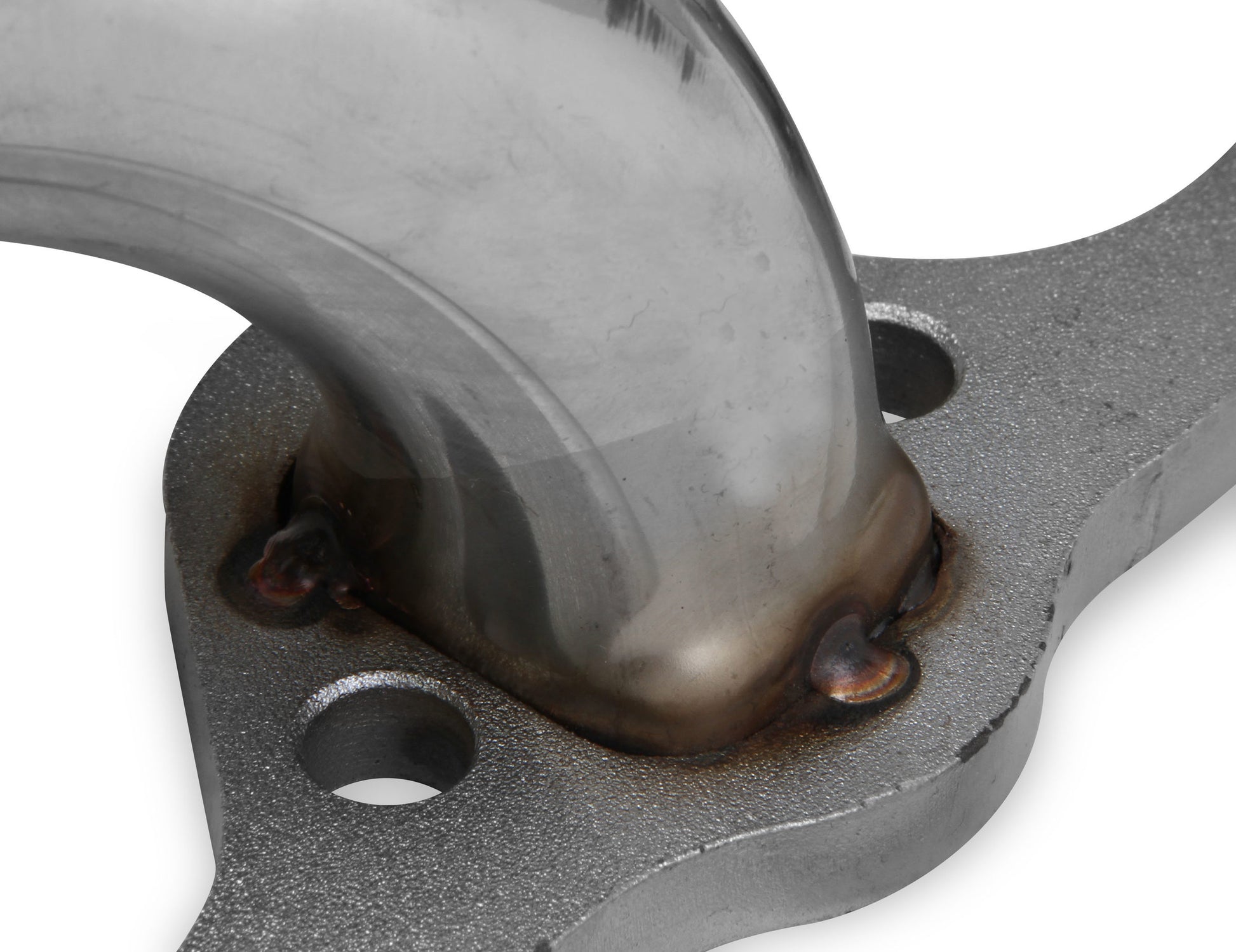

- 3/8” thick header flange for a leak-free seal and maximum strength
- Premium aluminum header gaskets included
- Available in a high heat resistant black paint or polished finish
Bolt size: 3/8-16 x 3/4
Brand: Flowtech Exhaust
CARB (California) Compliant: No
Category: Exhaust

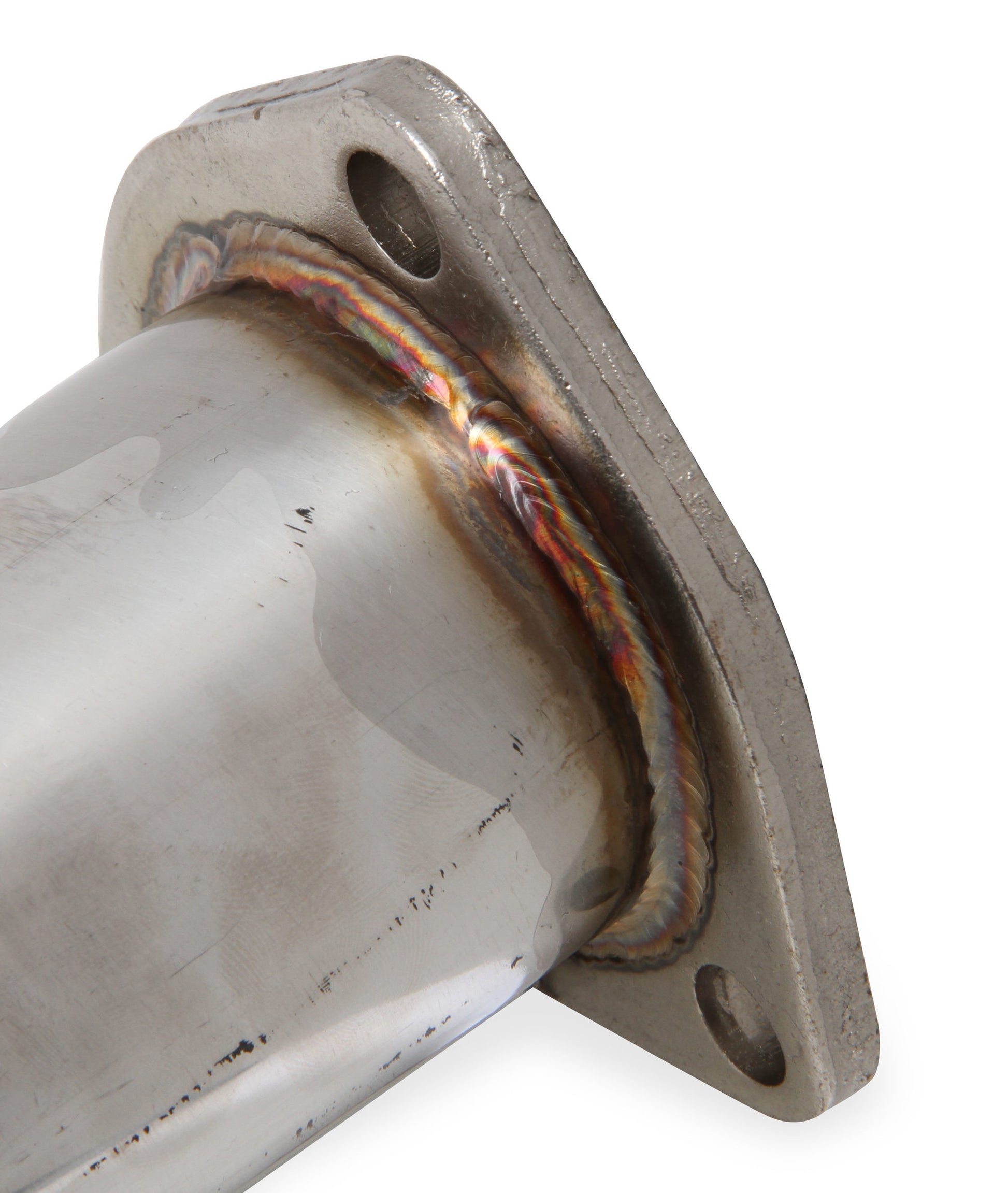

Collector Attachment: 3-Bolt Flange
Collector Diameter: 2.50
Collector Port Diameter: 2.50
Color: Silver
Design: Tri-Y
EGT Port: No
Emission Code: 4
Engine: Ford Small Block
Finish: Polished
Flange Thickness: 0.3750
Flange Thickness: 3/8"
Gasket Or Seal Included: Yes
Grade Type: Performance
Header Finish: Polished
Header Style: Tri-Y
Material: Mild Steel
Mounting Hardware Included: Yes
Oxygen Sensor Port: No
part type: Exhaust Header

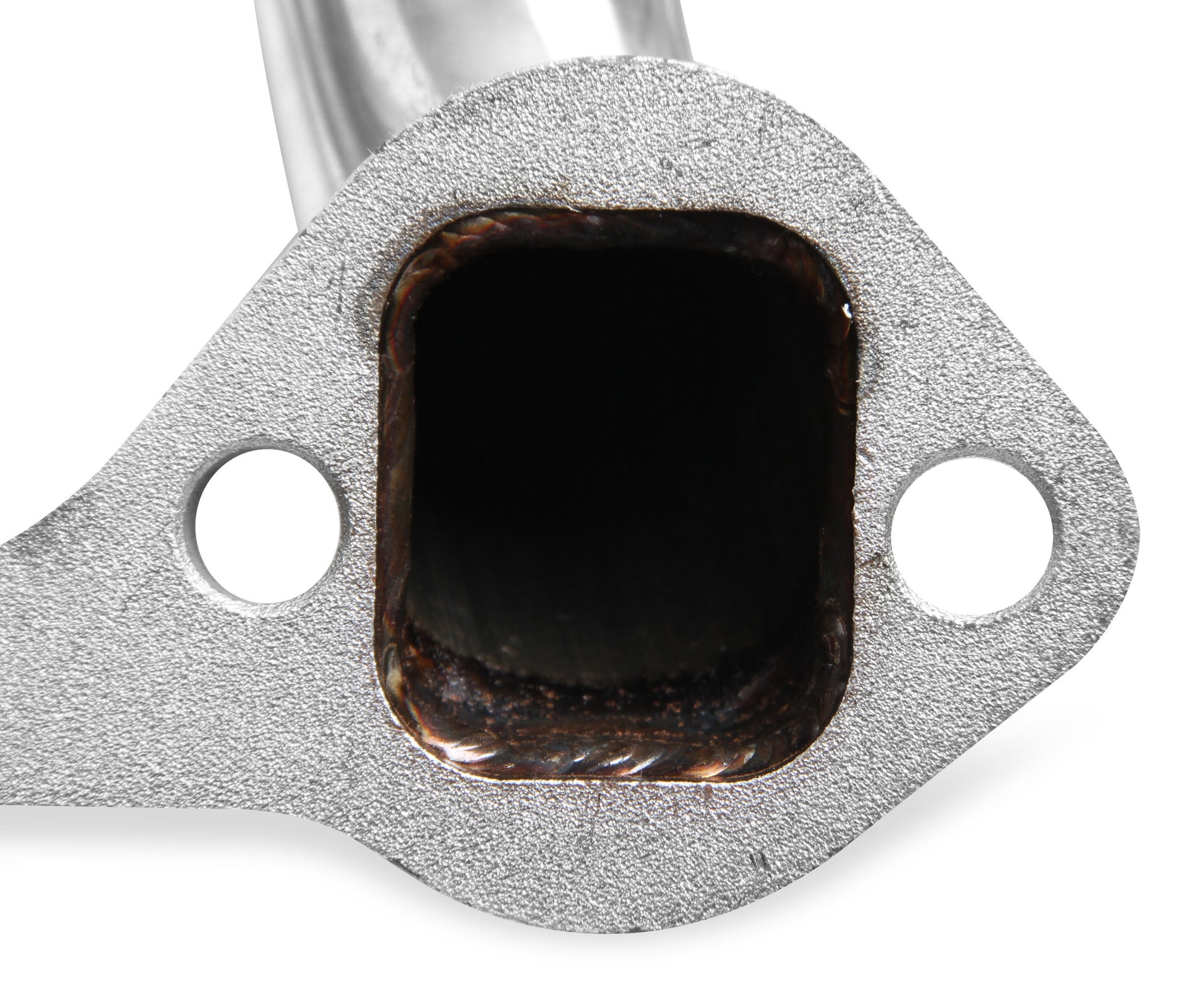

Port Shape: Rectangular
Primary Tube Dia.: 1-1/2 inch
Primary Tubing Diameter: 1.500
Primary Tubing Diameter: 1-1/2
Product Type: Headers
Sheen Level: Semi-Gloss
Sub Category: Exhaust Manifolds
Tube Wall Thickness: 16
Warning: California Proposition 65
